R1L-E2A/SKP-8 Portable Bond Meter
Active
Intrinsically Safe Milli-Ohmmeter and Bond Meter, 10 µΩ to 20 Ω, Includes "SKP-8" Probes
The Model R1L-E2A is an electrical bonding meter and milli-ohmmeter certified to ATEX, UL and CSA intrinsically safe standards. It is used on the Lockheed F-35 Joint Strike Fighter and C-130 Hercules airframes as well as the Sikorsky S-70, S-92 and Seahawk helicopters to test electrical bonds on antenna installations, electrical safety grounds and lighting protection systems.

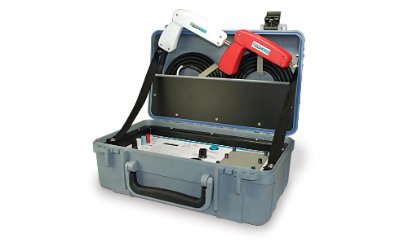

A rugged heavy-duty plastic case is provided to contain and protect the instrument. When closed, a gasket seals the lid to keep out water and dirt when the Model R1L-E2A is transported through rain or other environmentally hostile conditions. When the lid is open, a second gasket provides a seal for the front panel, and all panel openings are sealed to prevent water entry, as is the removable battery cover.

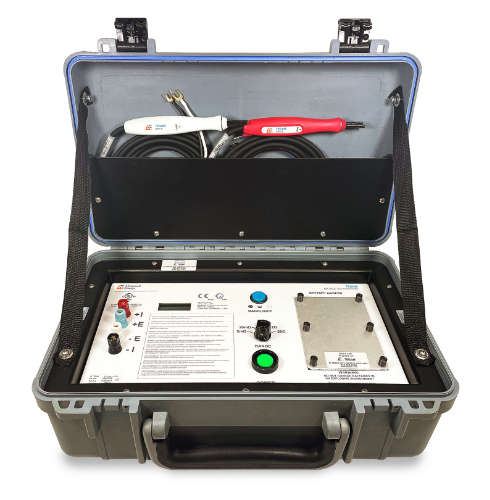

Two different styles of 4-wire Kelvin probes are available to adapt to the physical conditions. Both the large HTP-101A pistol grip Kelvin probes and the smaller SKP-8 hand probes are designed with static dissipating properties and are an integral part of the intrinsic safety system. The SKP-8 Kelvin probes have a choice of replaceable tips to further accommodate the work requirements.
The Model R1L-E2A is battery powered by three internal heavy-duty alkaline “D” cells. Front panel controls include a POWER ON-OFF switch and a rotary range selector switch. Five resistance ranges are provided from 2 mΩ to 20 Ω.
A rugged heavy-duty plastic case is provided to contain and protect the instrument. When closed, a gasket seals the lid to keep out water and dirt when the Model R1L-E2A is transported through rain or other environmentally hostile conditions. When the lid is open, a second gasket provides a seal for the front panel, and all panel openings are sealed to prevent water entry, as is the removable battery cover.
Two different styles of 4-wire Kelvin probes are available to adapt to the physical conditions. Both the large HTP-101A pistol grip Kelvin probes and the smaller SKP-8 hand probes are designed with static dissipating properties and are an integral part of the intrinsic safety system. The SKP-8 Kelvin probes have a choice of replaceable tips to further accommodate the work requirements.
The Model R1L-E2A is battery powered by three internal heavy-duty alkaline “D” cells. Front panel controls include a POWER ON-OFF switch and a rotary range selector switch. Five resistance ranges are provided from 2 mΩ to 20 Ω.
Features
- Portable: Long Battery Life (80 Hrs)
- Ranges: 2 mΩ to 20Ω
- Accuracy: 0.25% of reading
- Resolution: 1 µΩ
- Milli-Ohmmeter & Bond Meter Certifications: ATEX Ex ia IIA T4 Ga and C-UL-US Listed Class I, Div. 1, Group D in compliance with ANSI/UL 913-1988, Fifth edition, 21 February, 1997
- Simple Operation
- Offset Compensation
- Backlit Display
- 3-year warranty
- Assembled in USA
Benefits
- Designed for continuous use in the presence of flammable gases, vapors, and mists
- Unit includes instrument and test probes inside rugged carry case
Specifications
| Accuracy: | ±(0.1% rdg + 2 cnt) |
|---|---|
| Connector Type: | Banana |
| Datalogging: | No |
| Intrinsically Safe: | Yes |
| Max. Resolution: | 1 µΩ |
| Maximum Test Current: | 1.3 A |
| Measurement Range: | 1 µΩ to 20 Ω |
| Operating Temperature (°C): | -20 to 50 ⁰C |
