tegam ®

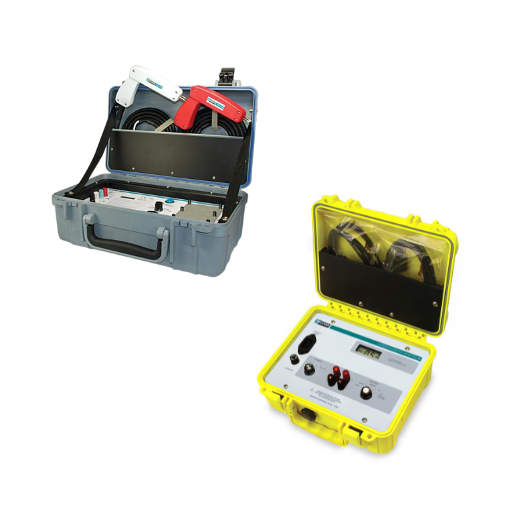

Portable Bond Meters
Active
Bench Top Milli-Ohmmeter and Bond Meter
Advanced Energy's portable bond meters are instrinsically safe, making them suitable to use in potentially explosive work areas. These bond meters also offer a long battery life: 80 hours of typical use on a full charge. Applications include metal bonding, switch, circuit breaker, circuit resistance, and other contact and connection resistance tests, as well as for higher-resistance measurements for circuit analysis and resistor testing up to 20Ω.
Features
- Ranges: 2 mΩ to 20Ω
- Accuracy: 0.25% of reading
- Resolution: 1 µΩ
Benefits
- Portable: Long Rechargeable Battery Life
- Simple Operation
- Kelvin Test Leads included
- 3-year warranty
- Made in USA
Specifications
| Basic Accuracy: | ±0.25% |
|---|---|
| Connector Type: | Banana |
| Datalogging: | No |
| Intrinsically Safe: | Yes, No |
| Max. Resolution: | 1 µΩ |
| Maximum Test Current: | 1.4 A |
| Measurement Range: | 1 µΩ to 20 Ω |
| Operating Temperature (°C): | -20 to 50 ⁰C |
