Monroe 288C Series


Easy-to-Use Charge Plate Monitor For Manual or Automated Testing

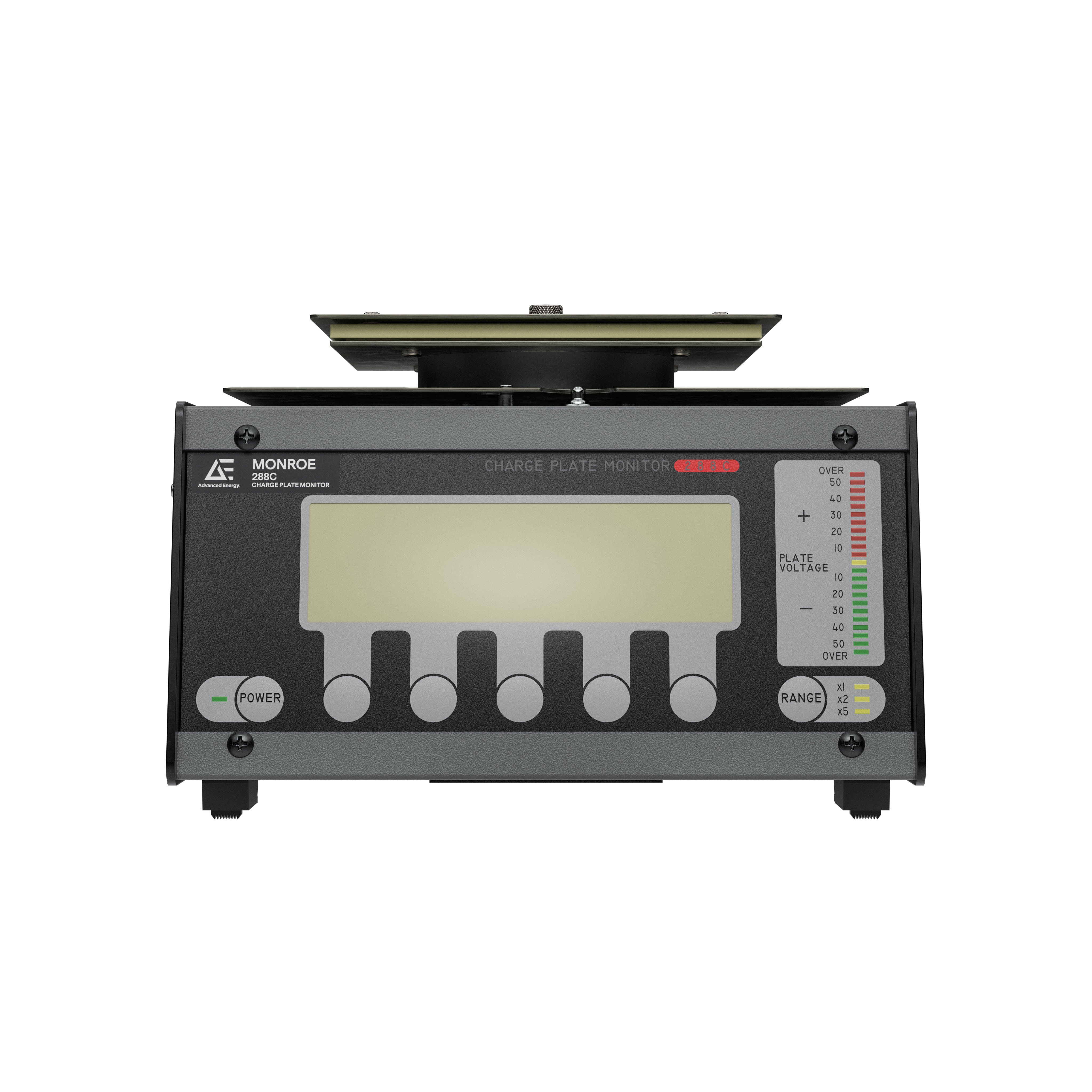

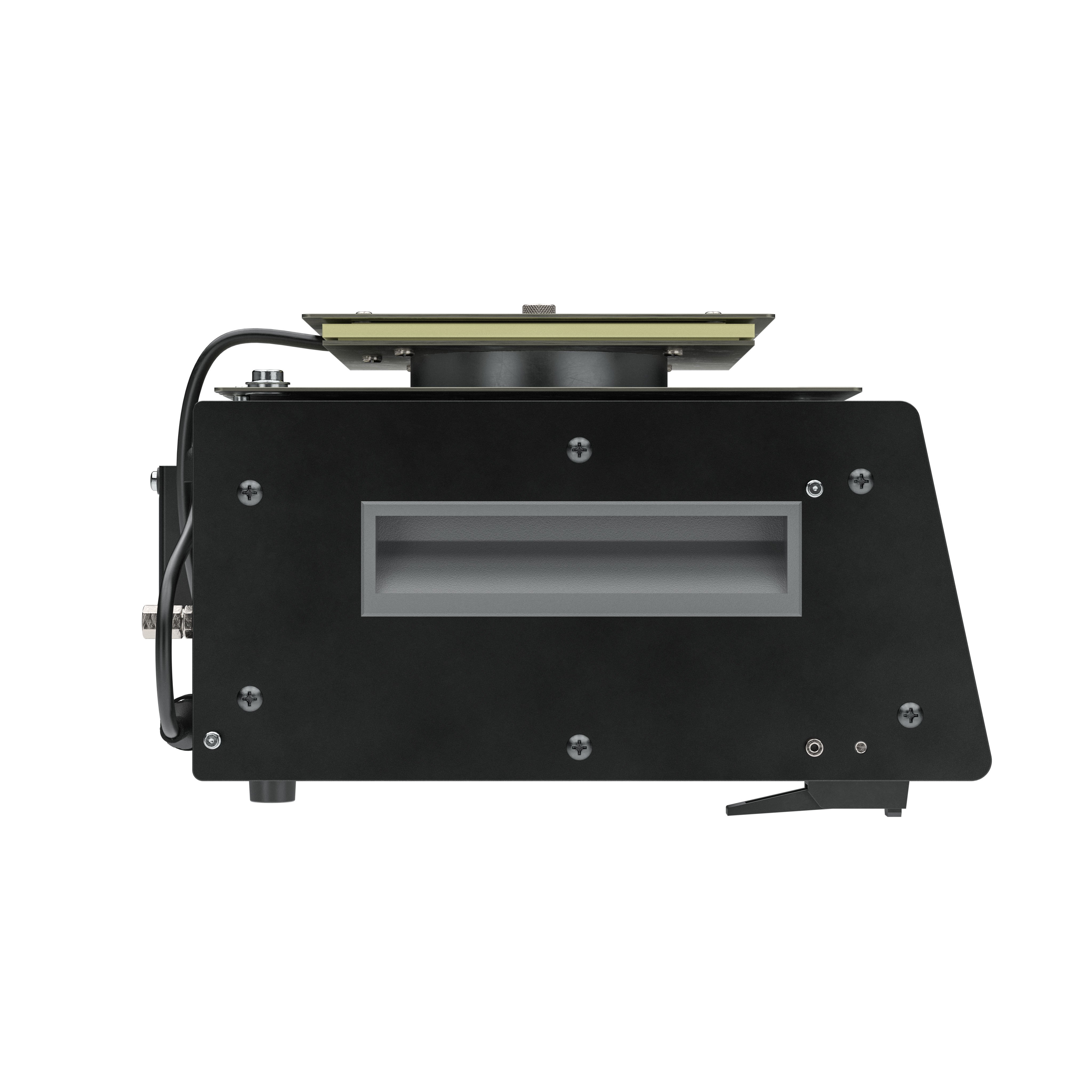

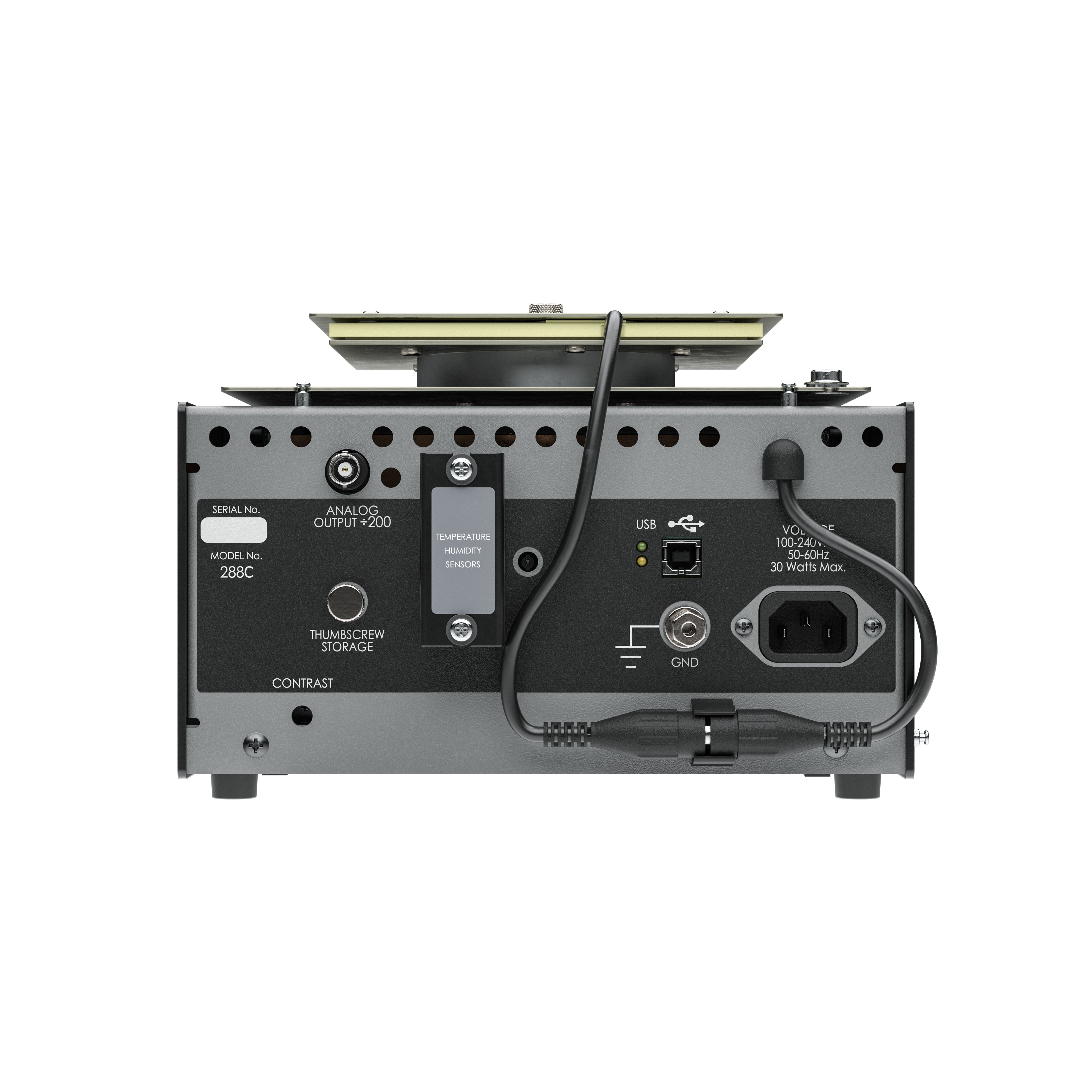

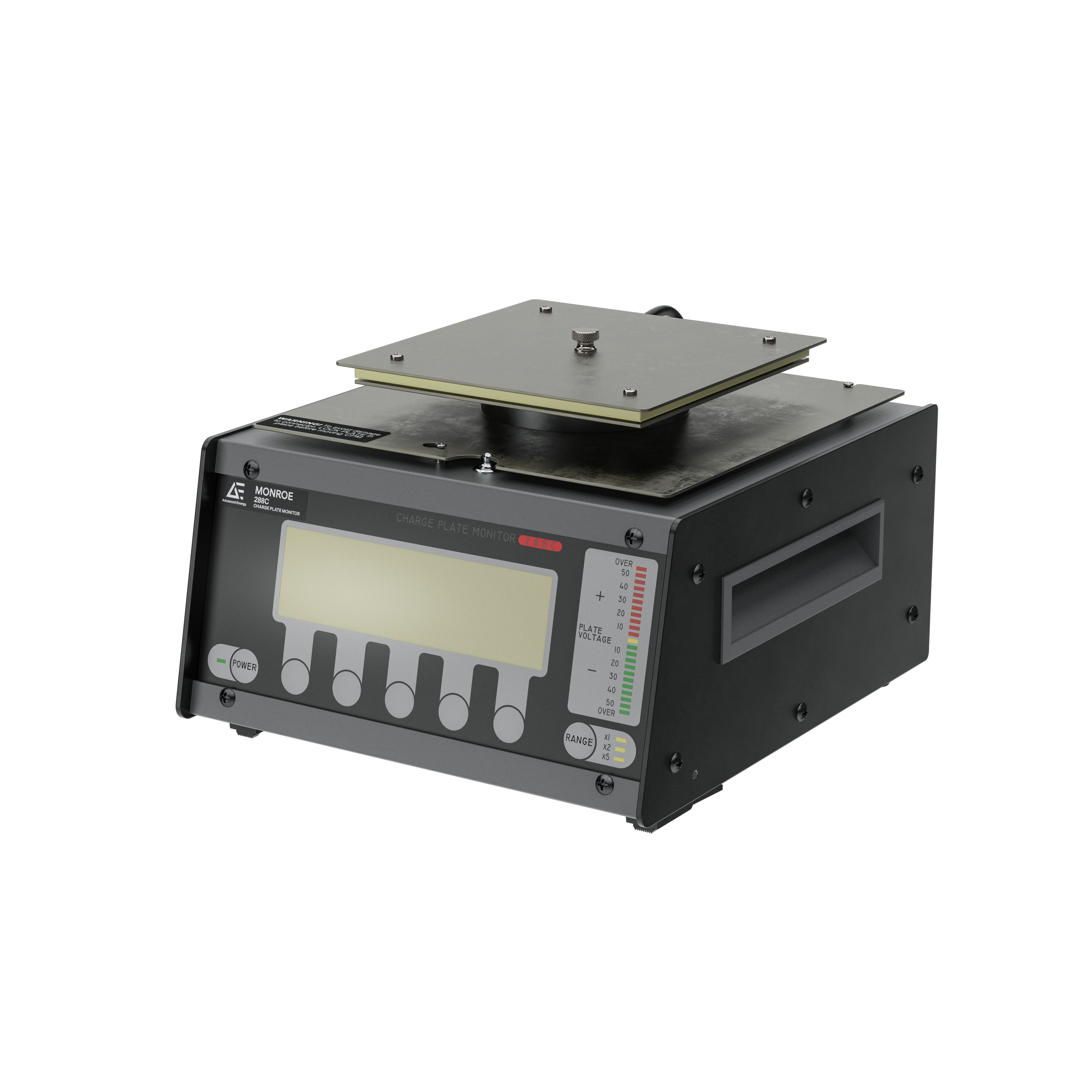

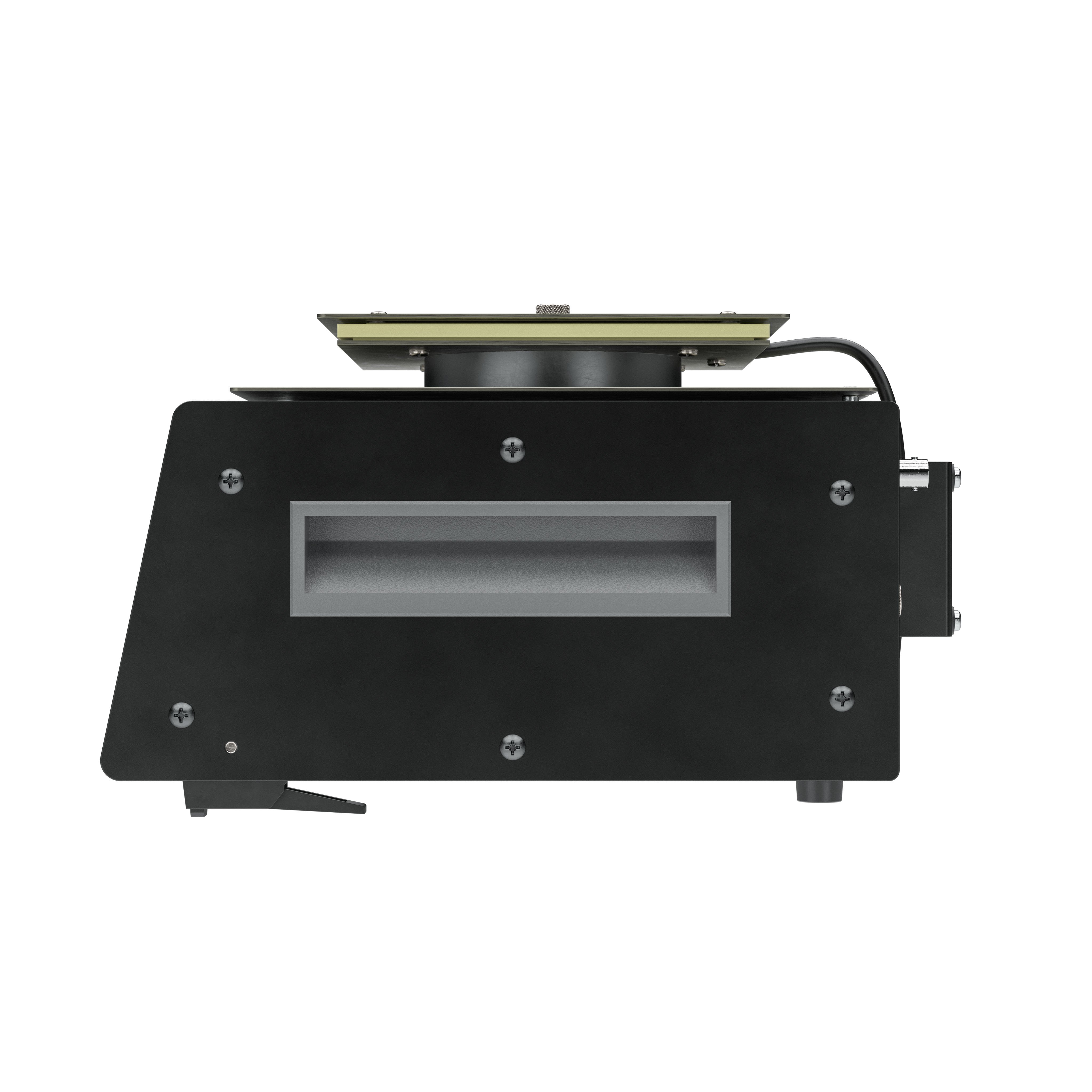

The Monroeᵀᴹ 288C is an easy-to-use, charge plate monitor for manual or automated testing. All test parameters are programmable, allowing tests to be optimized and not dictated by equipment limitations. Once programmed, the Monroeᵀᴹ 288C will perform a series of tests automatically: ± decays, balance, balance peaks, temperature, humidity, time/date are stored and may be reviewed via the display or downloaded to a PC. The included software permits the user to define and name ionizer locations, test setups, and sequences and upload them to the CPM. All of these features result in a flexible, easy-to-use instrument that facilitates audits while minimizing errors.


  • Internal battery for portable operation

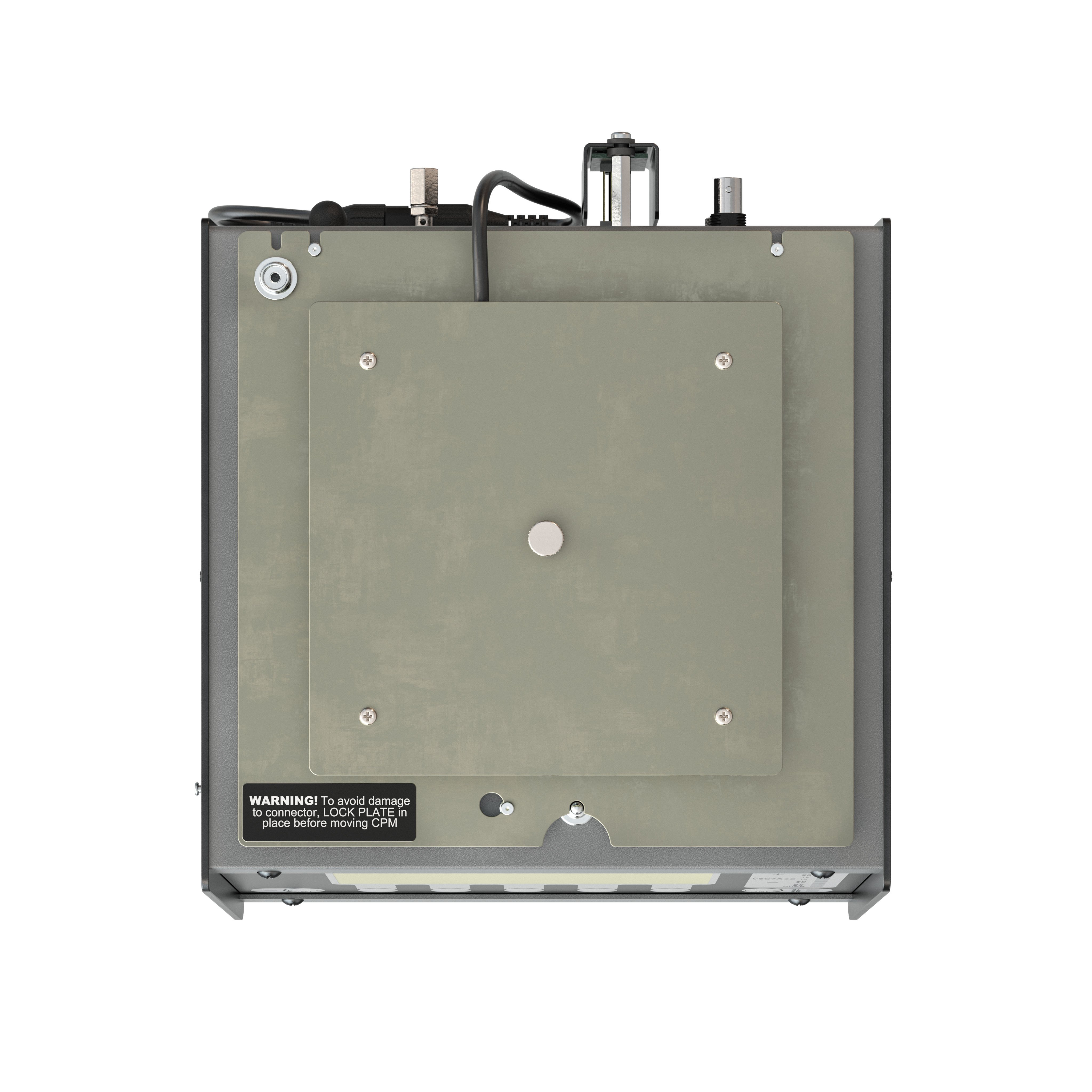

  • Detachable 6 x 6-inch plate with optional 1 x 1 in and 3 x 3 in plates
  • Built-in temperature and humidity sensors
  • Auto-ranging to 0.1 V resolution below 100 V Meets ESD Association Standard ANSI / ESD STM 3.1
  • CE compliant


  • Perform manual and automated testing of decay and balance
  • Store up to 1500 tests total (not for each location), 600 locations, and 4 test protocols
  • Use the large, easy-to-read, high contrast LCD display
  • Configure operating parameters
  • Utilize soft keys for highly intuitive programming


Operational temperature range (°C): 5 to 35
Measurement Range: ±1200 V
Measurement Accuracy (%): +/- 0.1%
Speed of Response (ms): < 10
Communications Interface: USB


Calibration and Alignment

Advanced Energy has the tools and processes to ensure your equipment continues to meet its original specifications.  Our products are calibrated at global AE service sites with proprietary technology designed to exceed industry standards​.
