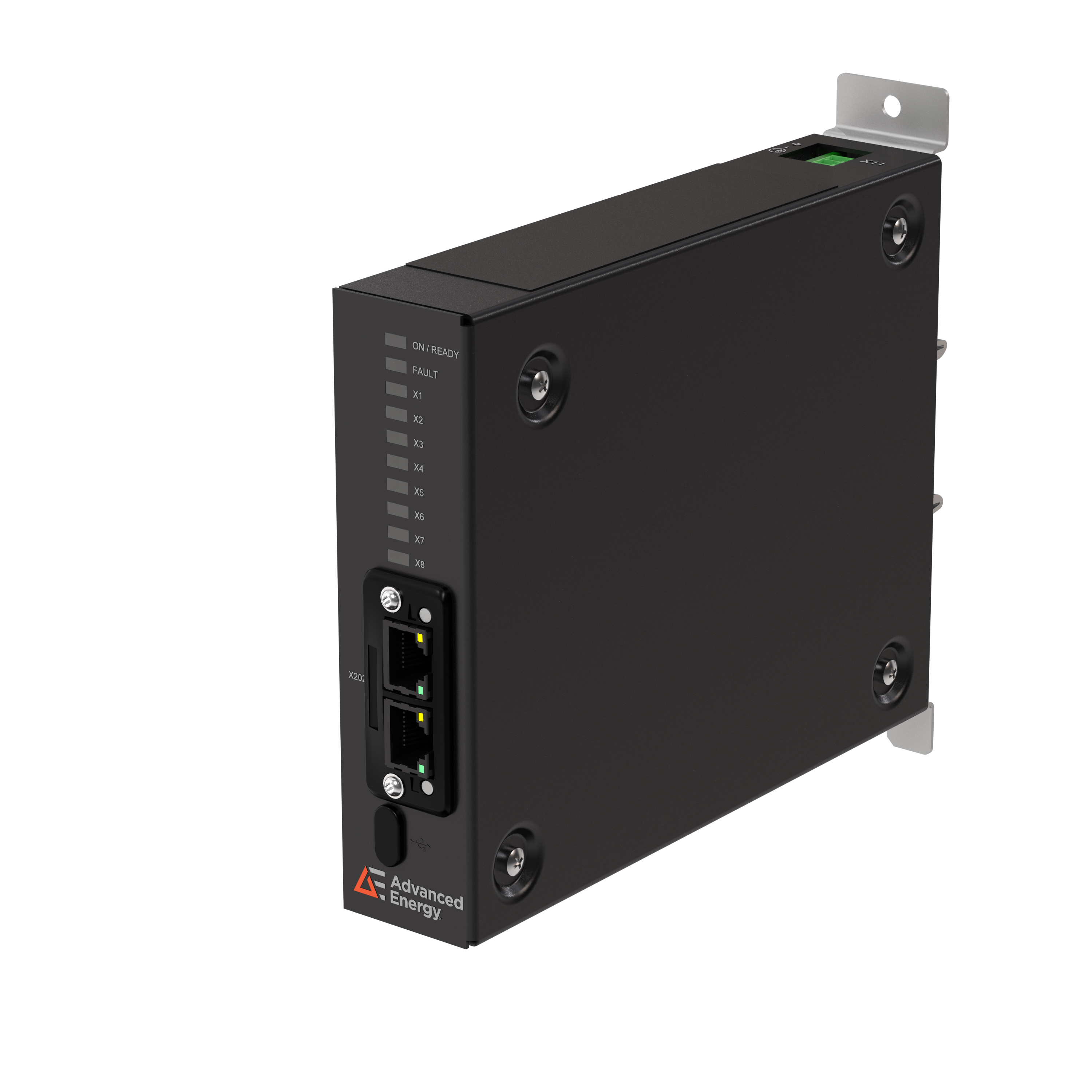

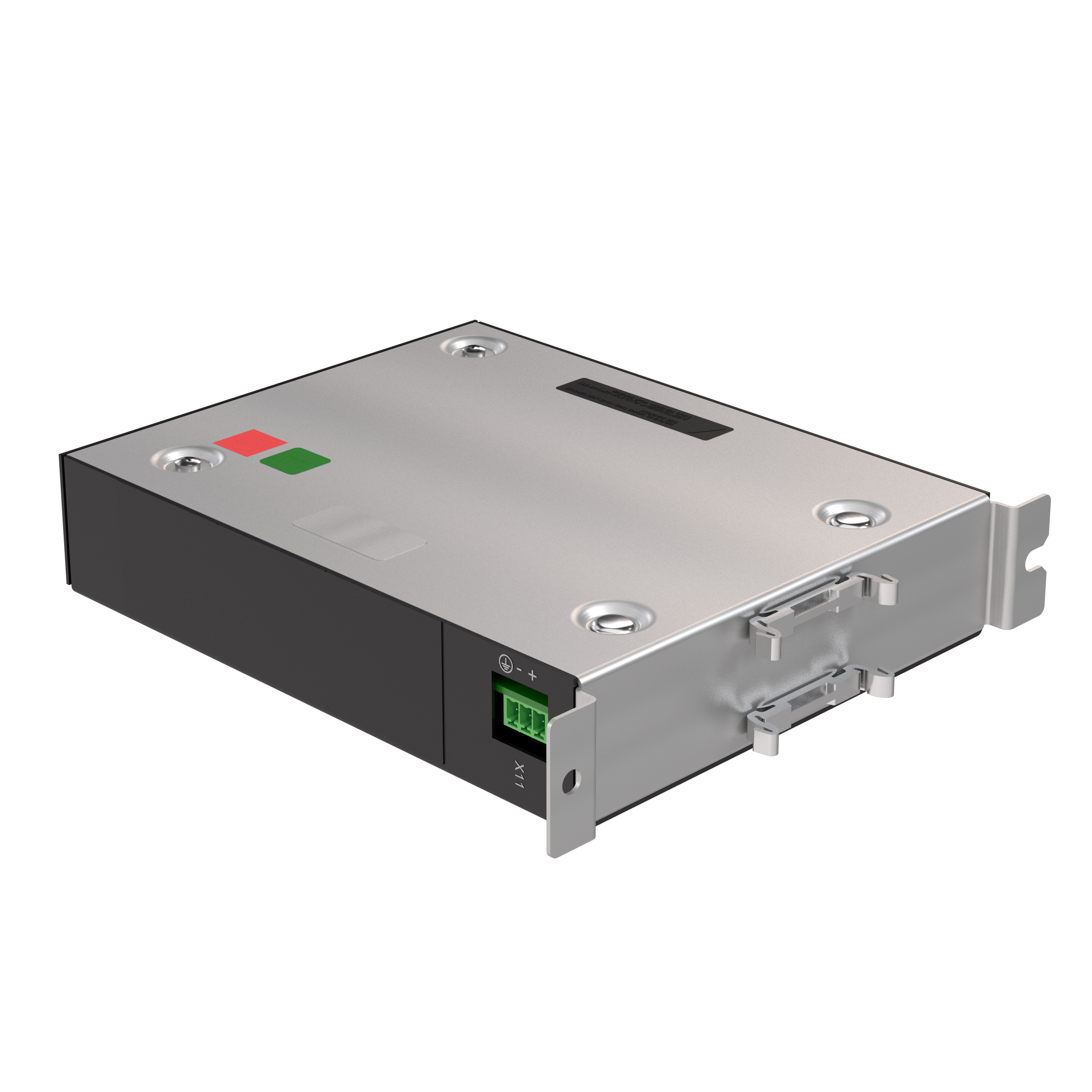

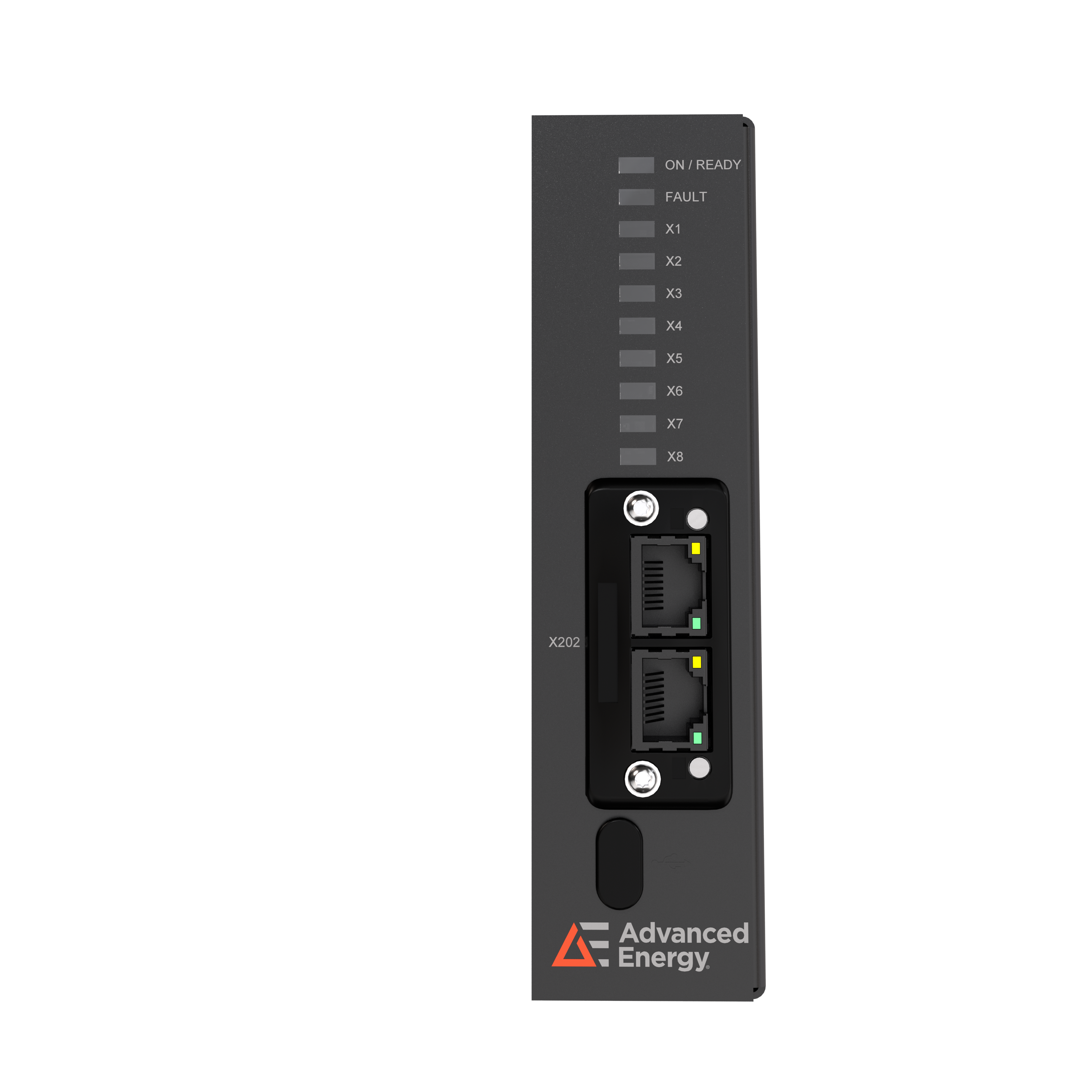

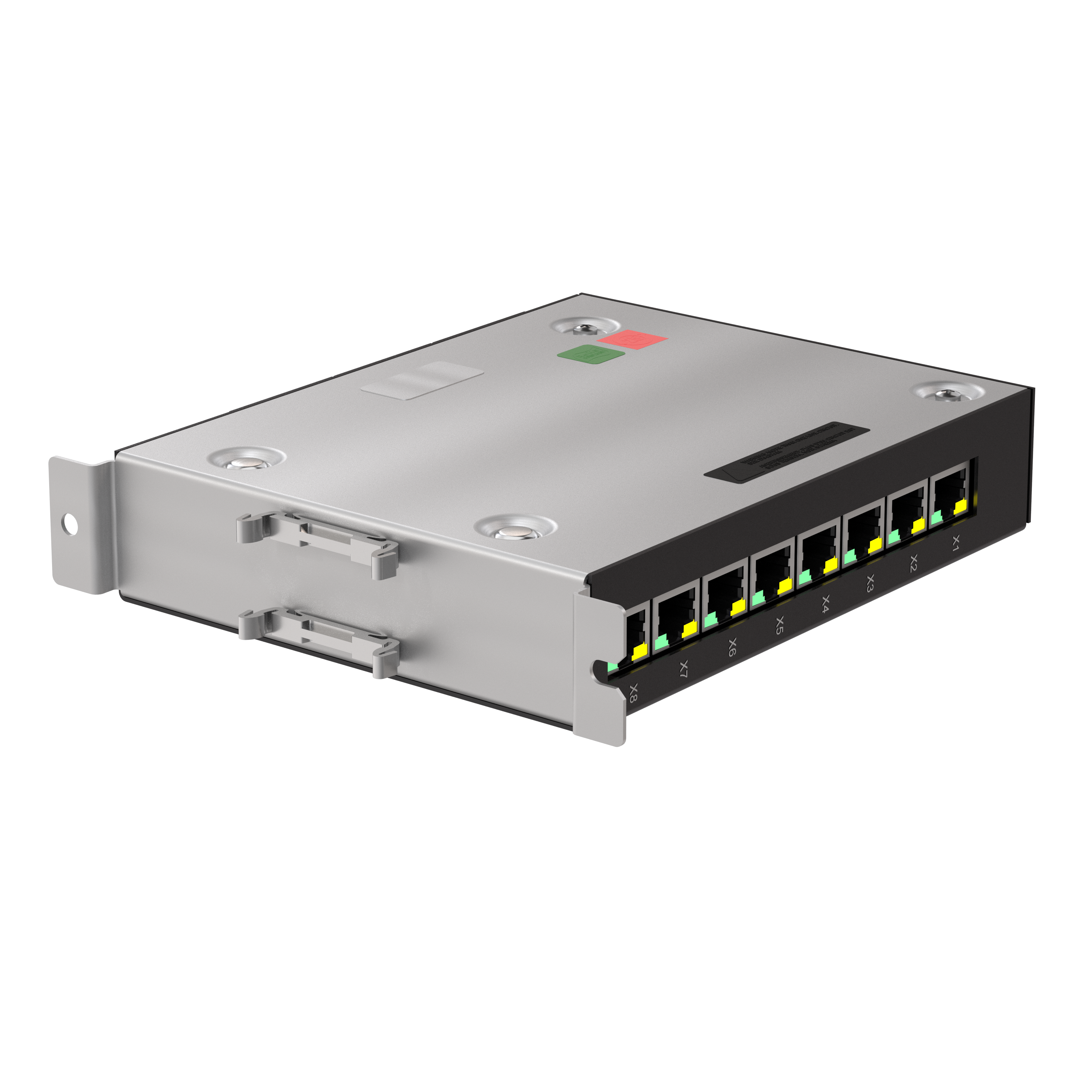

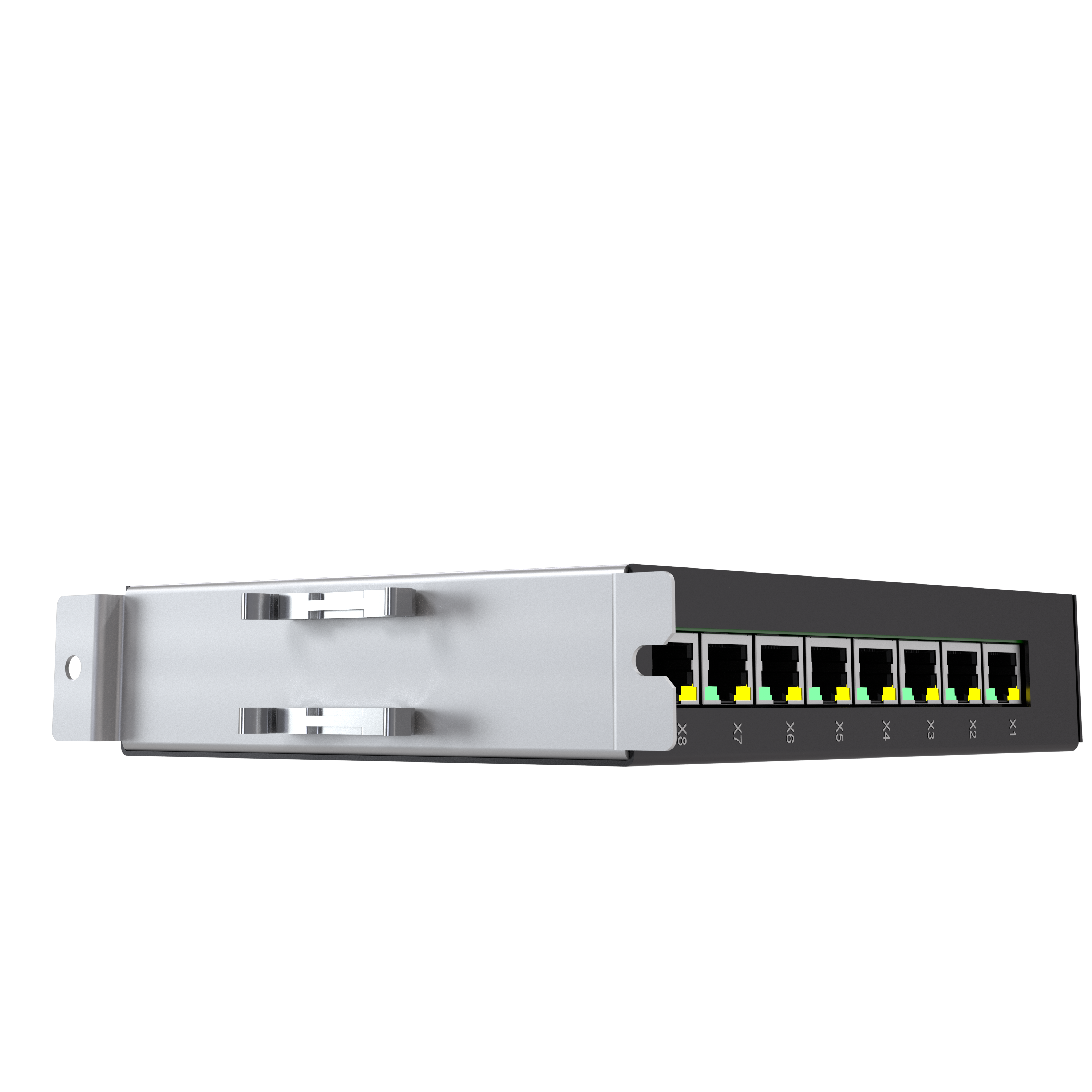

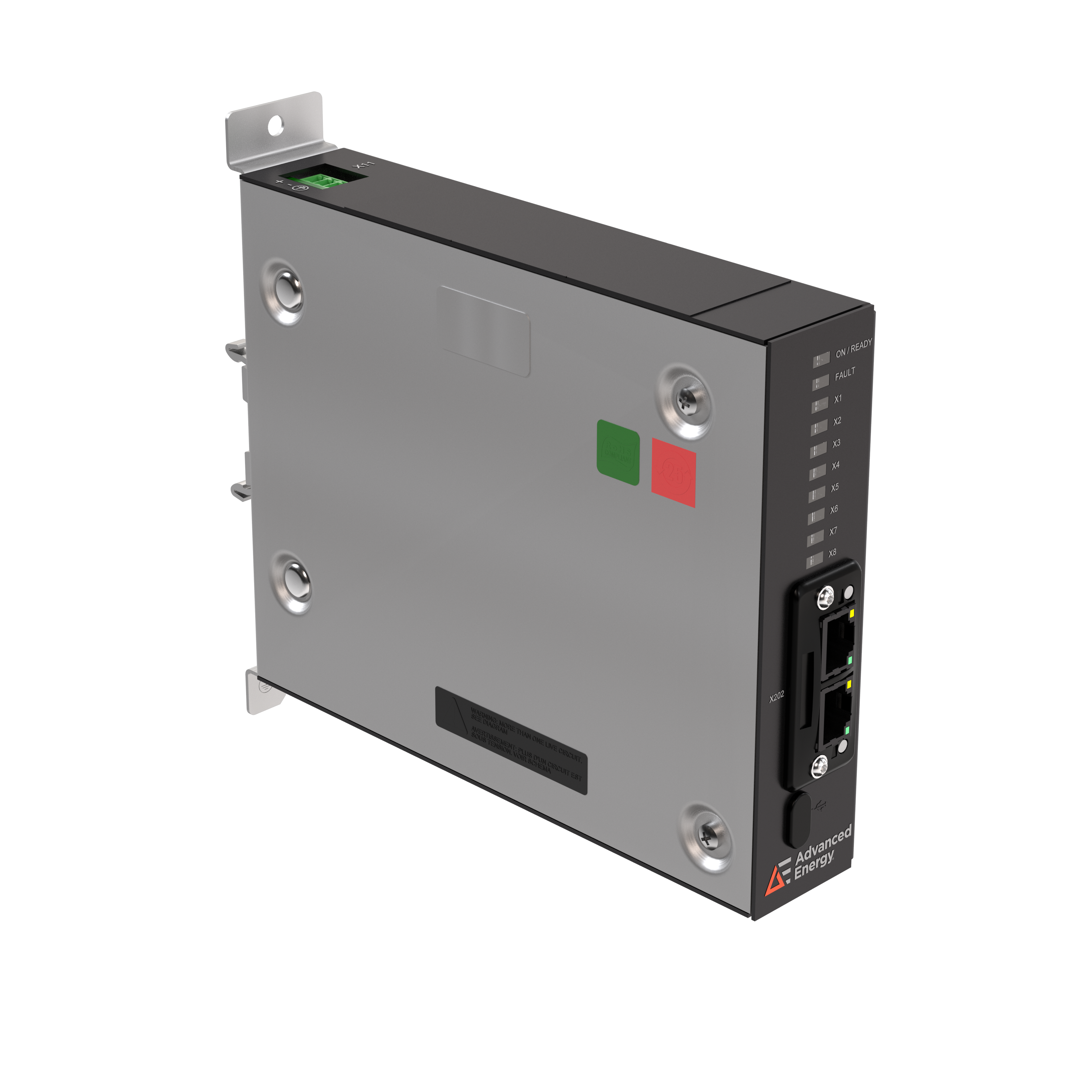

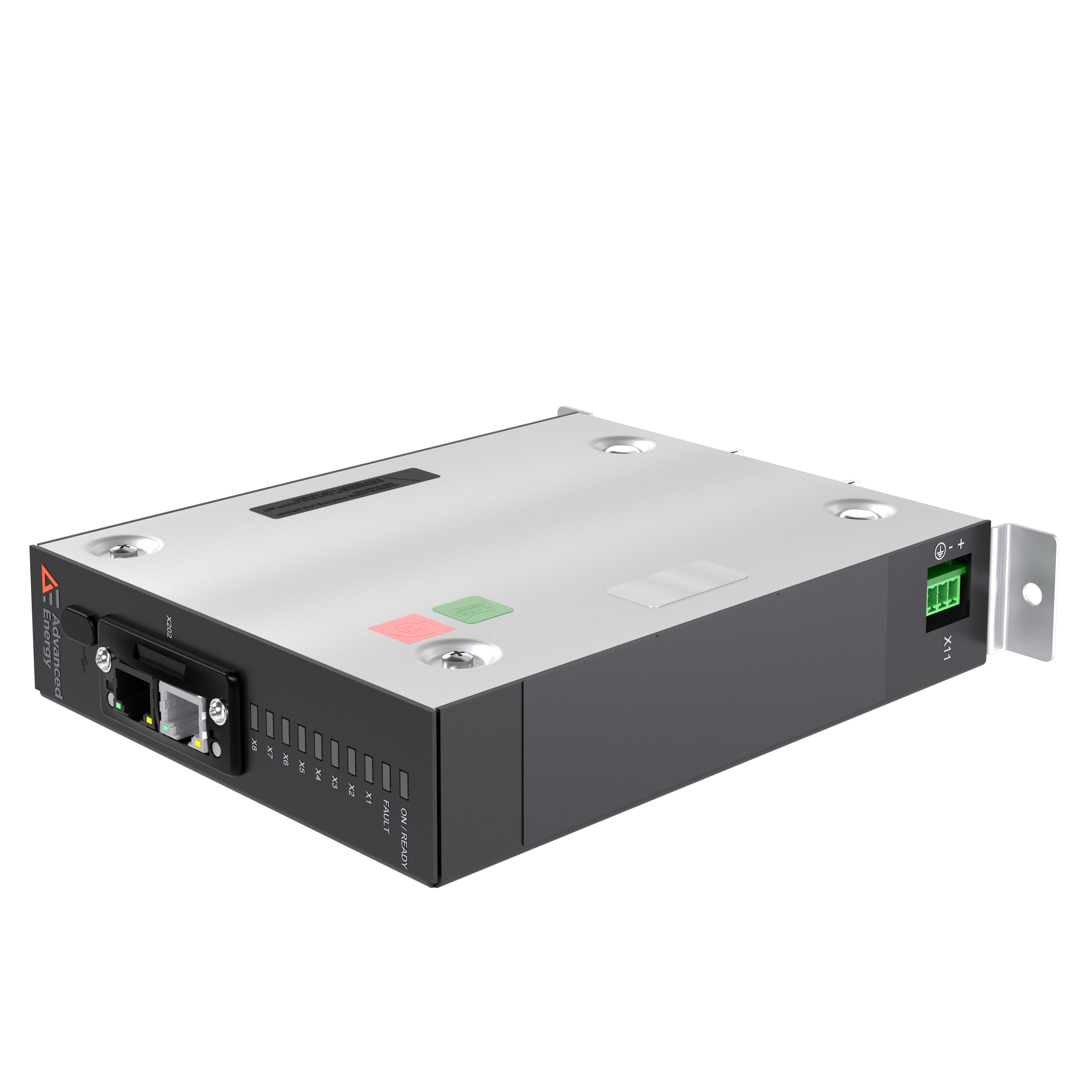

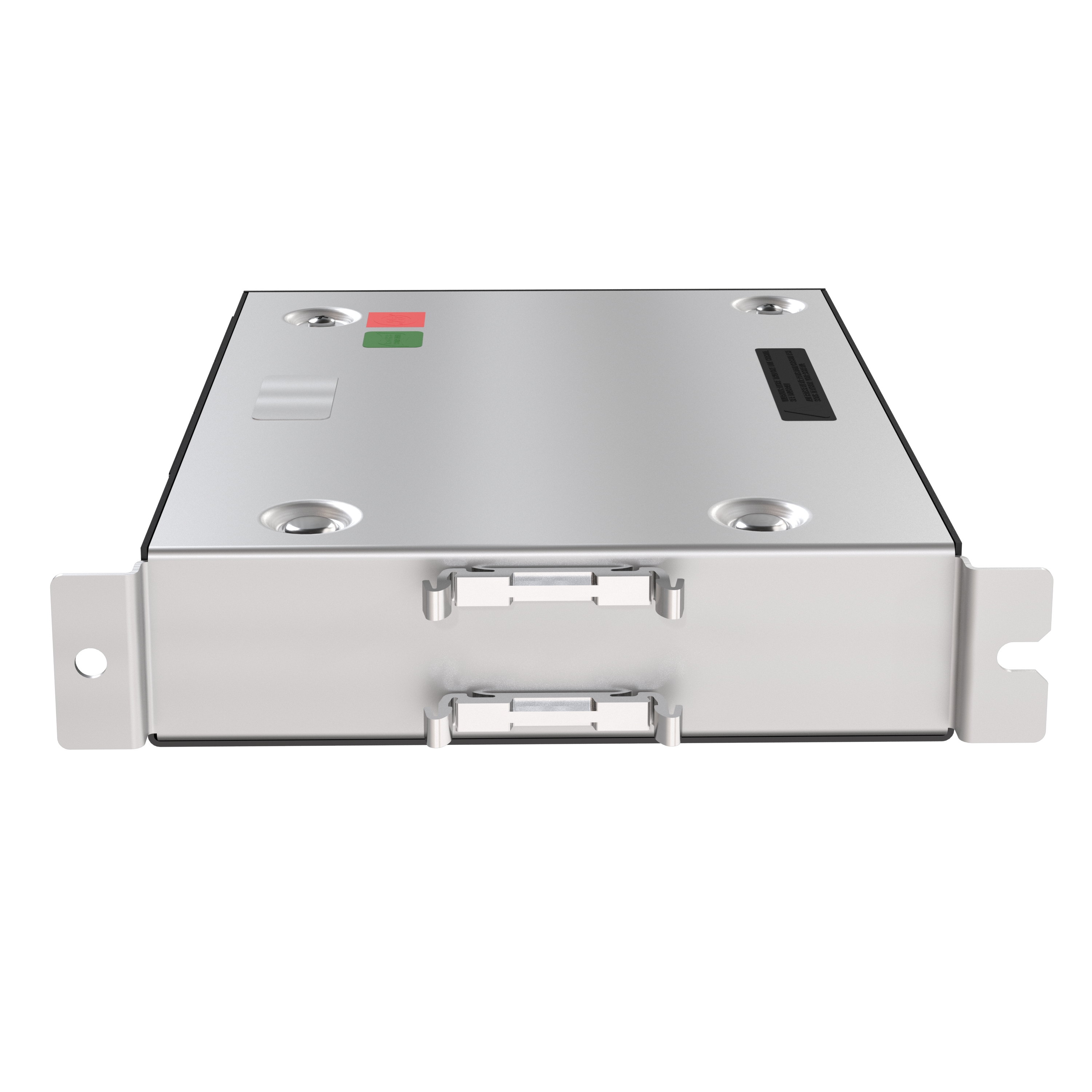

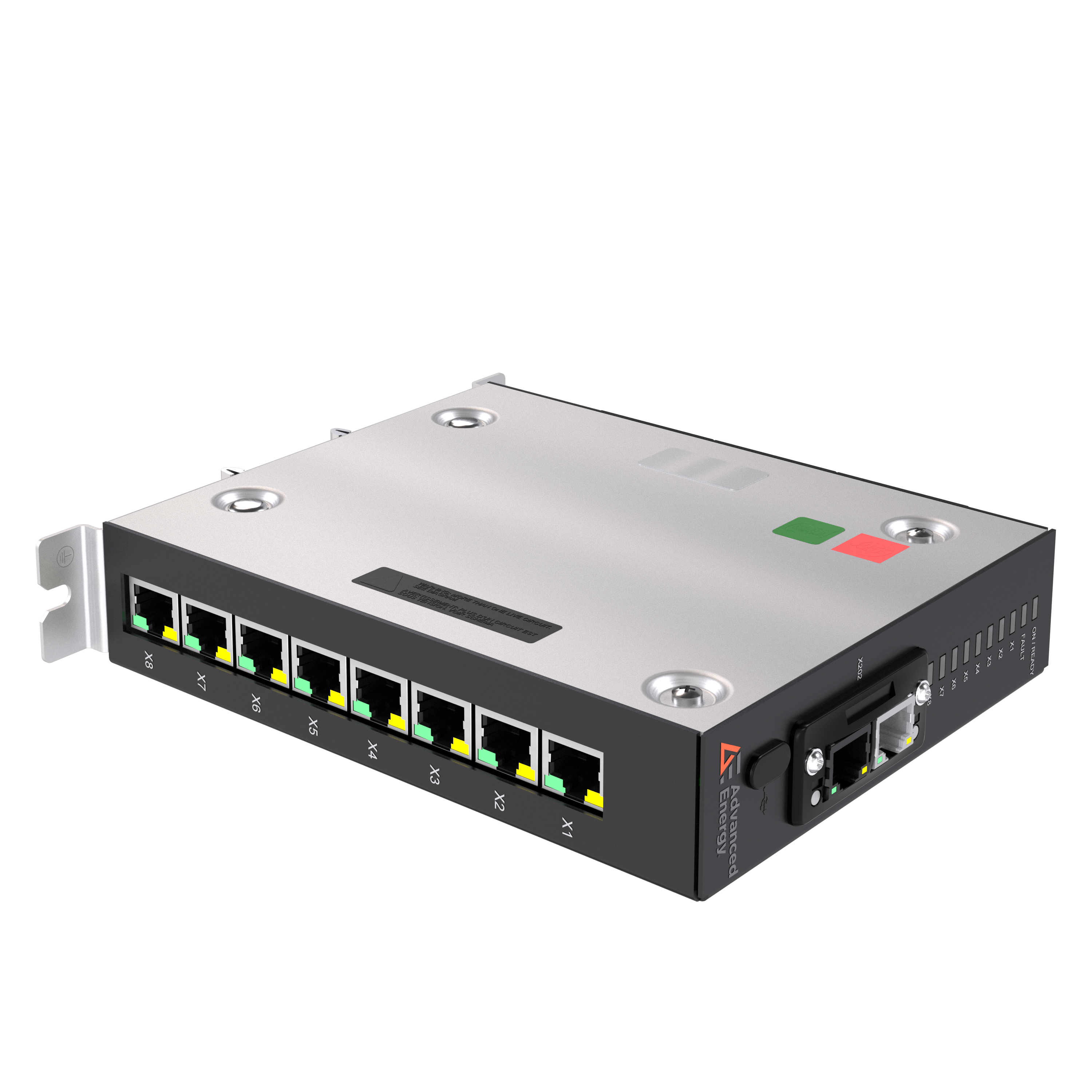

Advanced™ Bus Module—SCR and Pyrometer Integration
Active
Precise data transmission for various fieldbus communication protocols

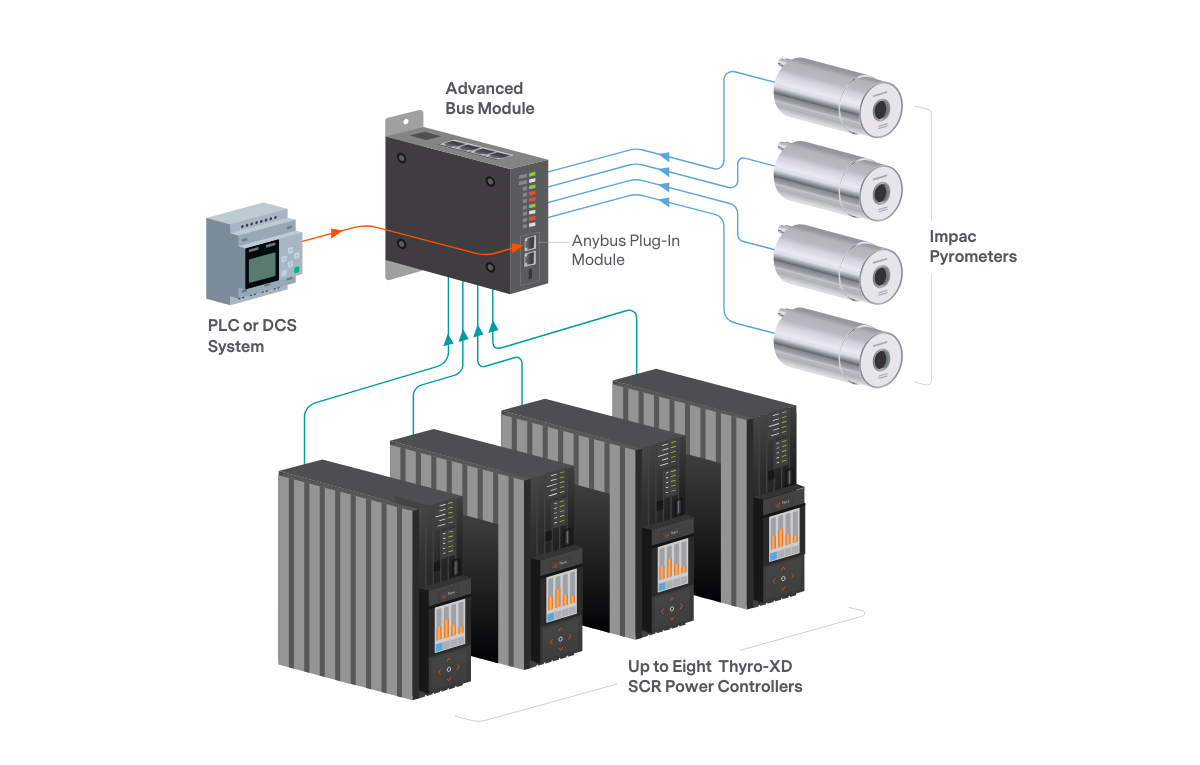

The Advanced Bus Module (ABM) can enhance the Thyro-XD SCR power controller's performance by enabling ultra-fast EtherCat connectivity. Users who choose to enable EtherCat communication through the ABM and interface cards can benefit from additional functionality and performance by integrating temperature feedback from multiple Impac pyrometers for real-time temperature control.
Features
- Connects Thyro-XD SCRs with Impac pyrometers
- Smallest footprint for optimized design with Thyro-XD SCRs
- Available grid optimization via dASM mode for up to 32 SCRs in full wave mode
Benefits
- Flexibility—Connect with a variety of common fieldbus communications via Anybus interface
- Real-time temperature control—SCR-pyrometer integration
- Insight—Full parameter access to all connected SCRs via Thyro Tool Pro Software with integrated USB interface
.png "Thyro-ABM-Diagram-(2).png")
Options
| Part Number | Model Descriptions |
|---|---|
| 2000190022 | Advanced Bus Module S: Advanced Bus Module Standard with EtherCAT® Switches |
| 2000190031 | Advanced Bus Module D: Advanced Bus Module Standard with dASM and without EtherCAT Switches |
| 2000190030 | Advanced Bus Module N: Advanced Bus Module Standard, without EtherCAT Switches, without dASM |
| Check Accessories for Part Number | Anybus Digital Interface Card: Ethernet/IP®, EtherCAT, PROFIBUS®, PROFINET®, Modbus TCP/IP® |
| 2000000380 | Thyro-Tool Pro PC: PC software for commissioning, visualization, configuration, and trending |
Accessories
Thyro Anybus Module - EtherCAT
Communication Module Adds Another Interface
Thyro Anybus Module - EtherNet/IP
Communication Module Adds EtherNet/IP Interface
Thyro Anybus Module - Modbus
Communication Module Adds Modbus TCP Interface
Thyro Anybus Module - Profibus
Communication Module Adds the Profibus Interface
Thyro Anybus Module - Profinet
Communication Module Adds Profinet Interface
Thyro GSD Software
Download Thyro GSD files
Downloads
- Thyro GSD CANopen (Thyro-S, -A, -AX) (13 KB)
- Thyro GSD DeviceNet (Thyro-A, -AX) (47 KB)
- Thyro GSD EtherCAT (Thyro-PX) (13 KB)
- Thyro GSD EthernetIP (Thyro-PX) (11 KB)
- Thyro GSD EthernetIP (Thyro-S, -A, -AX) (4 KB)
- Thyro GSD Profibus (Thyro-PX) (10 KB)
- Thyro-PX ProfiNet Software (Thyro-PX) (16 KB)
- Thyro-PX ProfiNet Software (Thyro-S, -A, -AX) (14 KB)
Thyro Tool Pro
Thyro Tool software is custom software made for Thyro SCR Power Controllers
