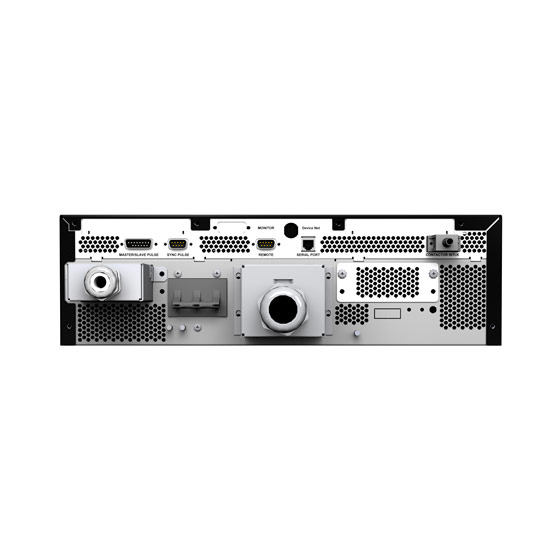

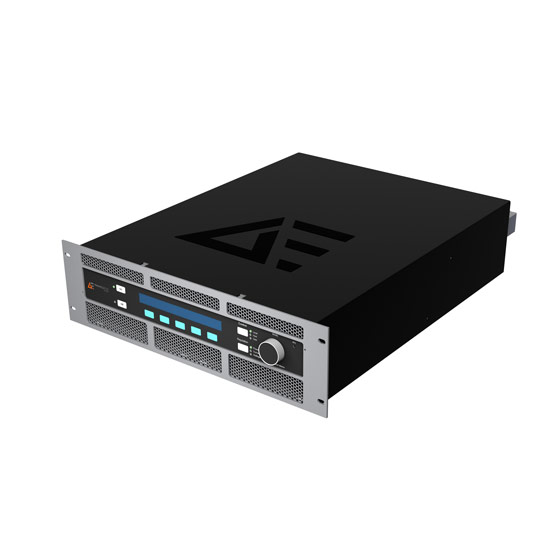

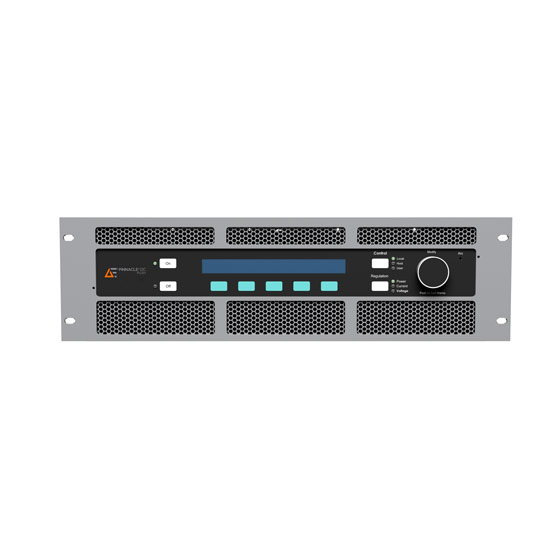

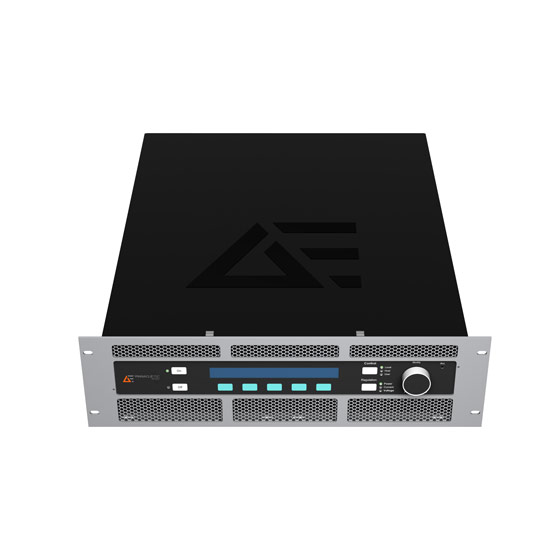

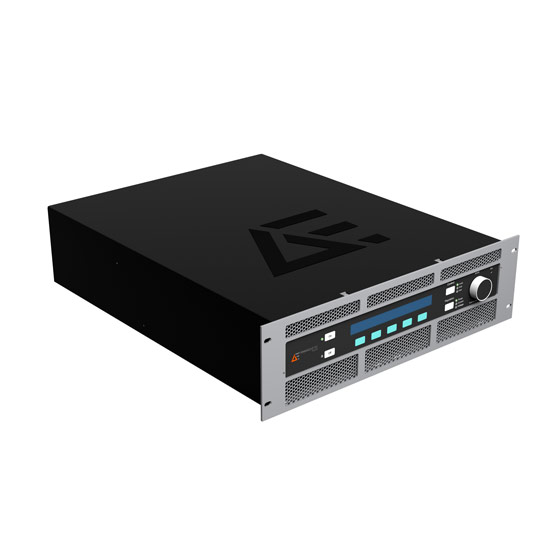

Pinnacle III Plus+ Pulsed DC Power Supply

Active

Process-Proven, Pulsed DC for Single-Magnetron Reactive Sputtering of Thin Dielectric Films

Pinnacle Plus+ generators deliver DC power in a pulsing configuration enabling reactive sputtering of extremely uniform, high-quality dielectric films.
  • Charge clearing during the reverse pulse prevents arcs from developing
  • Adjustable process through frequency and duty cycle control
  • Compact air-cooled design expandable in main/satellite configurations

Features

  • Adjustable frequency range of 5 to 350 kHz 
  • Variable duty cycle up to 45% 
  • Wide voltage range — single-tap wide impedance range 
  • Superior arc management
  • Dual output available for multi-chamber production 

Benefits

  • Higher deposition and yield rates 
  • Superior film uniformity and quality 
  • Reduced substrate damage caused by arcing 
  • Excellent process flexibility and latitude 
  • Repeatable performance

Specifications

Cooling: Air
Output Frequency (MHz, kHz): 5 to 350 kHz
Input Voltage (V): 208, 400, 440, 480 VAC
Power Level (kW): 1.5 to 10 kW
Rack Width: Full rack
Height (Inches): 3U
Output Voltage Range (V): 325-800 V
Communications Interface: Ethernet, EtherCAT, DeviceNet, ProfiNet, Profibus, RS-232/485, EtherNet/IP, and analog communications
All Specifications Collapse Specifications
