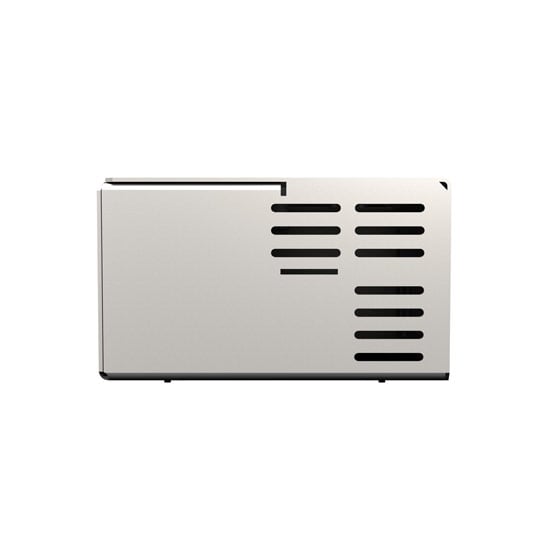

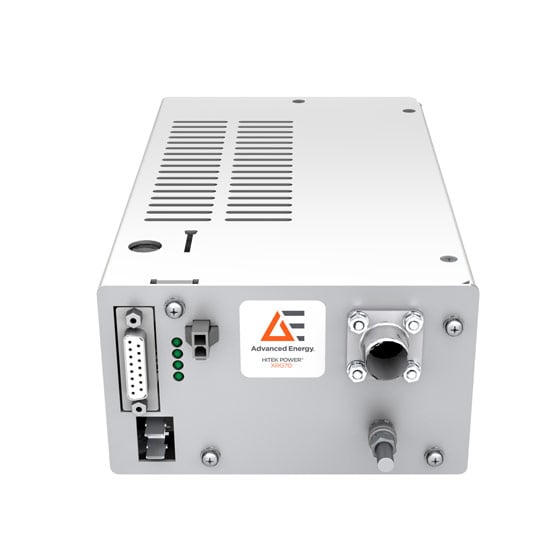

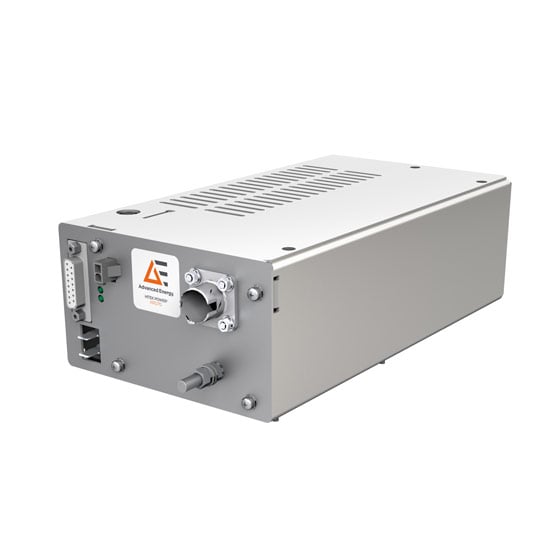

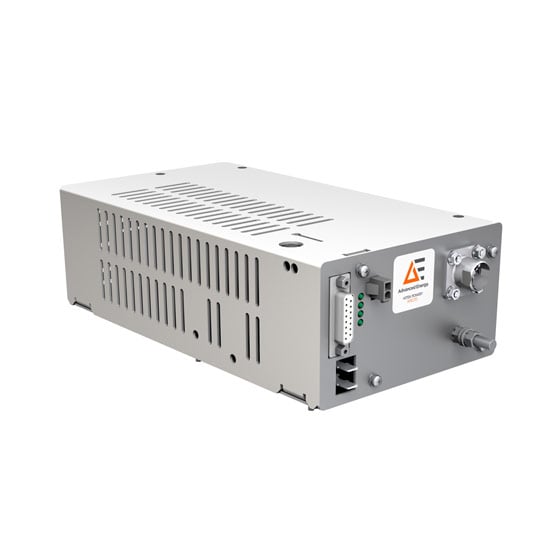

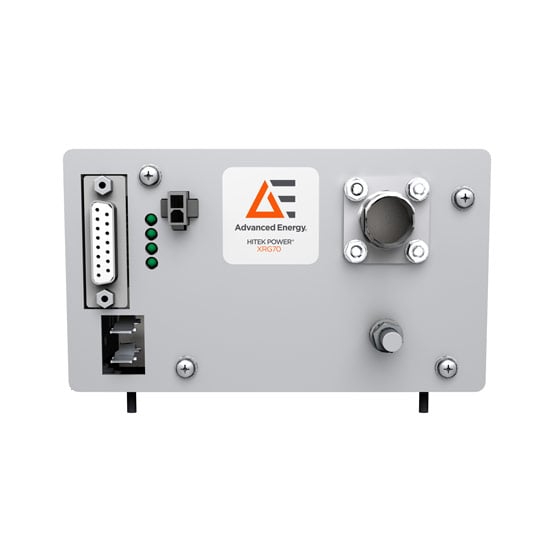

XRG70 Series
Active
Compact, High-Performance, 70 W X-Ray Power Supplies
XRG70 series offers superior high voltage stability, stress control, and packaging. This series includes a variety of models from 25 to 70 kV and is based on grounded filament products for cathode applications. The filament is automatically controlled by integral-beam loop control. The power stage utilizes a current-fed resonant push-pull converter to provide high efficiency while ensuring reliable operation.
Features
- 20 W grounded filament
- Exceptionally compact
- Safety interlock
- High accuracy and stability
Benefits
- Custom derivatives available
- Operate a wide range of X-ray tubes
- Utilize compact design; the XRG70 series is suitable for benchtop systems
- Rely on emergency shutdown thanks to integrated safety relay
- Optimize for a wide range of demanding applications
Specifications
| Output Power (W): | 70 |
|---|---|
| Maximum Output Current (A): | 0.002 |
| Output Current Range (mA): | 0.8 to 2 |
| Output Voltage Range (V): | 20000 to 70000 |
