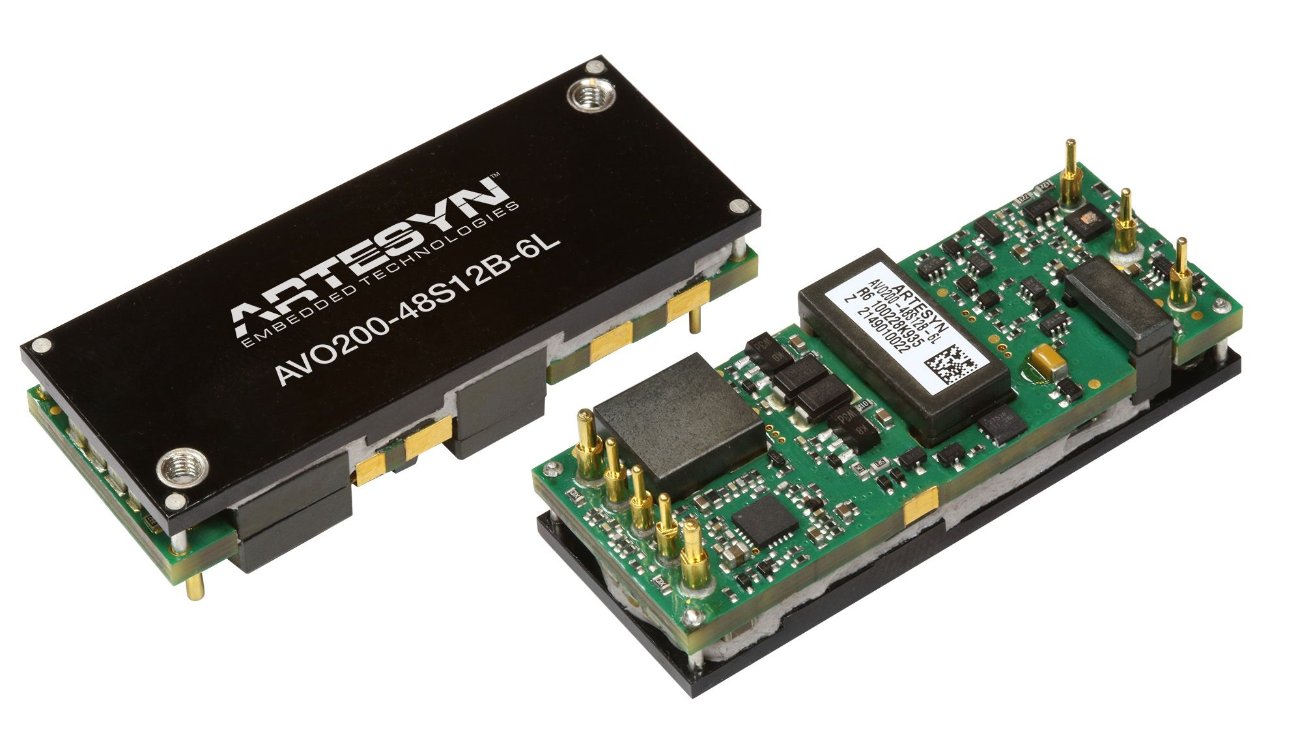

AVO200 Series


200 W Eighth-Brick Isolated DC-DC Converters

The AVO200 series of eighth-brick isolated DC-DC converters comprises two single output models offering fully regulated voltages of 5.0 V or 12 V. These converters are rated at 200 W continuous power; the 5.0 V model can deliver up to 40 A, while the 12 V model can deliver up to 16.7 A. They have a wide 2:1 input range of 36 to 75 VDC and are primarily designed for use with standard 48 V telecommunications equipment supplies. Typical applications include wireless, optical or access networks, as well as server and computing infrastructures.


  • 12V at up to 17A, 200W
  • 5V at up to 40A, 200W
  • 80% to 110% output voltage trim range
  • 94.5% efficiency
  • Basic insulation, 1500V isolation
  • Input 36 - 75V
  • Output 12V at 17A
  • Output 5V at 40A
  • Output 200W
  • Isolation voltage 1500V
  • Mechanical 1/8th brick footprint


  • baseplate or open fram construction
  • remote sense and enable function
  • SMT or PTH termination options available.
  • Enable Logic Positive or Negative enable
  • Insulation Basic insulation
  • Mechanial Baseplate or open frame


Output Power (W): 200
Length (Inches): 2.3
Width (Inches): 0.9
Height (Inches): 0.5
Mounting Type: BMP; Through Hole
Minimum Output Current (A): 0
Maximum Output Current (A): 40
Output Voltage Range (V): 4V to 13.2V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
AVO200-48S05-6L Active, In Stock
open frame version
4 5.5 40 5 1 Request Buy
AVO200-48S05B-6L Active, In Stock
Baseplate version
4 5.5 40 5 1 Request Buy
AVO200-48S12-6L Active, In Stock
Open frame version
9.6 13.2 17 12 1 Request Buy
AVO200-48S12B-6L Active, In Stock
Baseplate version
9.6 13.2 17 12 1 Request Buy
