AVD100 Series


100 W 1/16th Brick

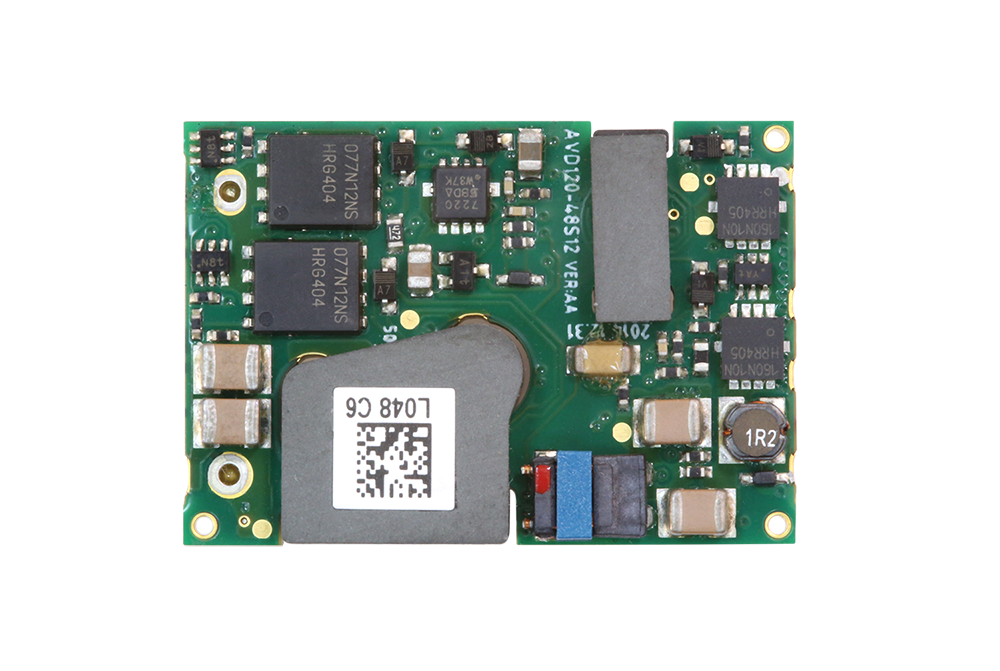

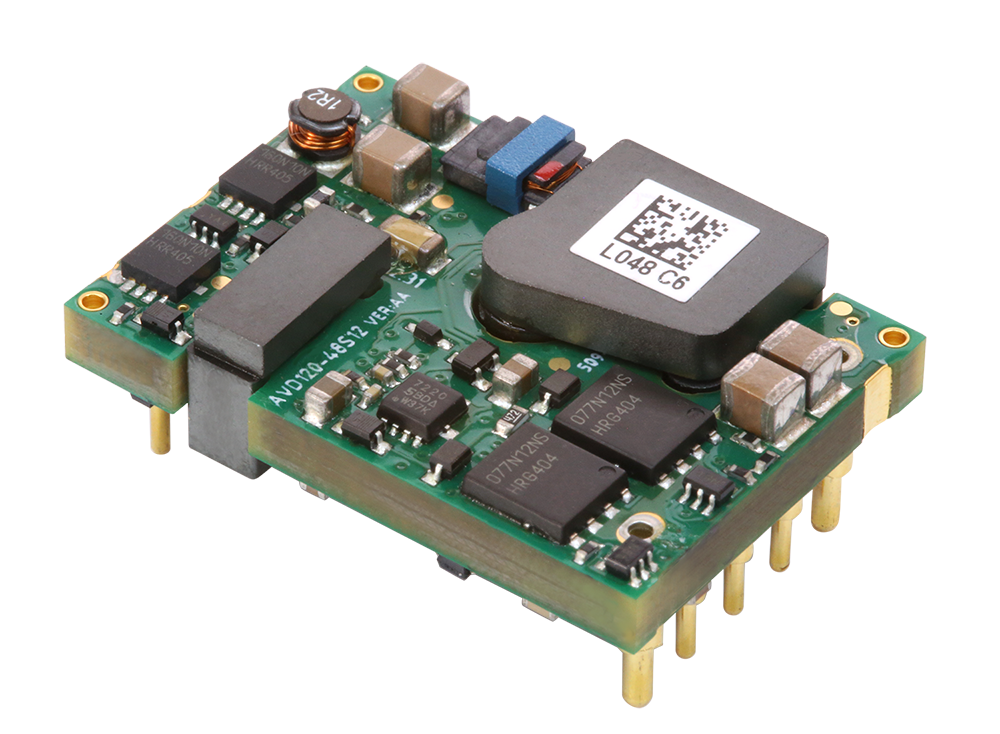

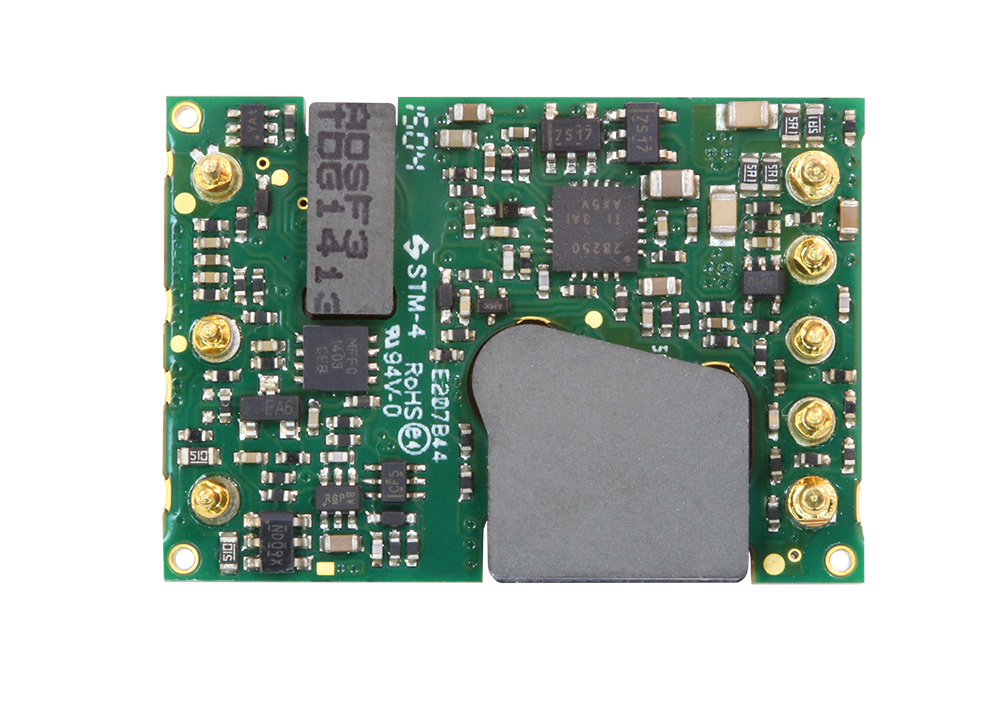

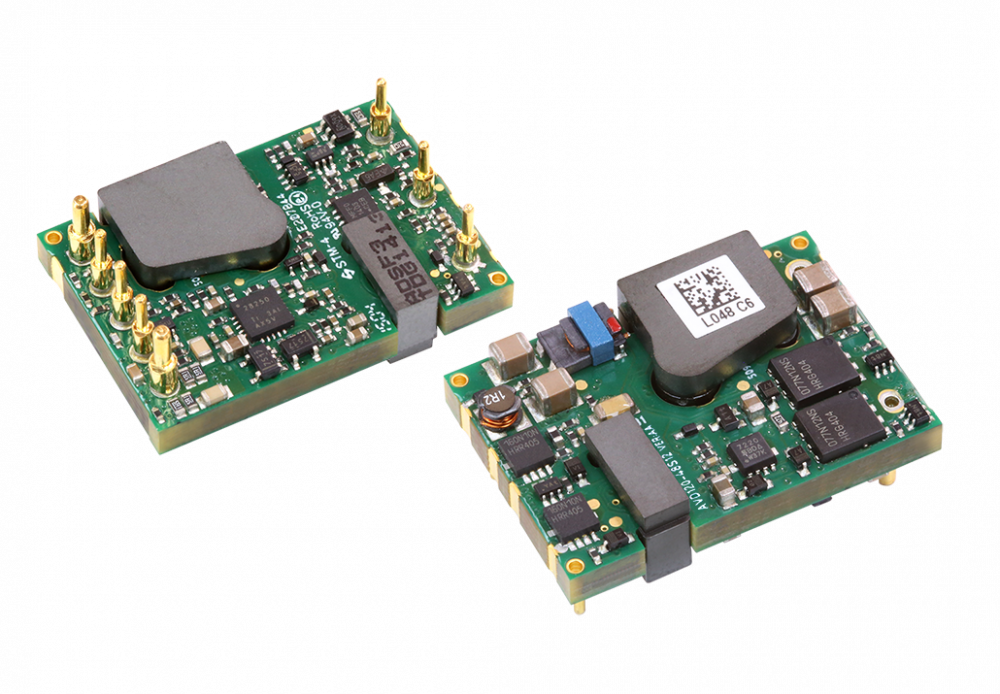

The AVD100 series of sixteenth-brick isolated DC-DC converters comprises two single output models offering fully regulated voltages of 5.0 V or 12 V, rated at 20 A, 10 A respectively. Both of the converters have a wide 2:1 input range of 36 to 75 VDC and are designed primarily for use with standard 48 V telecommunications equipment supplies. Rated at 100 W, they employ an open-frame construction, offer up to 91% full load efficiency and accommodate an ambient operating temperature range of -40 to 85˚C. A baseplate option is available for enhanced thermal performance. The converters use 250 kHz fixed frequency switching to minimize the need for external EMI filtering.

Standard features include output trim, remote enable, undervoltage lockout and differential remote sense. The converters are comprehensively protected against overvoltage, overcurrent and overtemperature conditions. AVD100 series converters have an installed height of just 0.4 inch (10.5 mm), making them ideal for systems with demanding inter-board spacing requirements.


  • Delivering up to 20 A output
  • Ultra-high efficiency 92% typ. at full load
  • Wide input range: 36 V ~ 75 V
  • RoHS 6 compliant


  • Excellent thermal performance
  • No minimum load requirement
  • Basic isolation
  • High power density
  • Low output noise
  • Reflow soldering-able


Output Power (W): 120
Length (Inches): 1.299
Width (Inches): 0.9
Height (Inches): 0.4
Mounting Type: BMP; SMT &Through Hole
Minimum Output Current (A): 10
Maximum Output Current (A): 20
Output Voltage Range (V): 4V to 13.2V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
AVD100-48S05-6L Active, In Stock 4 5.5 20 5 1 Request Buy
AVD100-48S05B-6L Active, Contact Us 4 5.5 20 5 1 Contact Us Buy
AVD100-48S05TL Active, Contact Us 4 5.5 20 5 1 Contact Us Buy
AVD120-48S12-6L Active, In Stock 9.6 13.2 10 12 1 Request Buy
AVD120-48S12B-6L Active, In Stock 9.6 13.2 10 12 1 Request Buy
AVD120-48S12TL Active, Contact Us 9.6 13.2 10 12 1 Contact Us Buy
