AYA 2 Watt Isolated DC-DC Converter

Not for New Designs

Industrial Isolated DC-DC Converter for Low Power Applications

Advanced Energy’s AYA series of 2 W isolated DC-DC converters are suitable for a diverse range of low power applications, including data communication, telecommunication and computer peripheral equipment, industrial automation and mobile battery-powered systems. The series comprises 28 variants, each of which is available in a mini dual-in-line package for through-hole mounting or a mini surface-mount package.

All AYA series 2 W converters feature wide input voltage; 7 of the models have 4.5 to 10 V input, 7 have 9 to 18 V inputs, 7 have 18 to 36 V inputs, 7 have 36 to 75 V inputs.

Within each of these categories, there is a choice of four single output models, offering voltages of 3.3 V, 5 V, 12 V and 15 V, and three dual output models offering +5/-5 V, +12/-12 V or +15/-15 V.

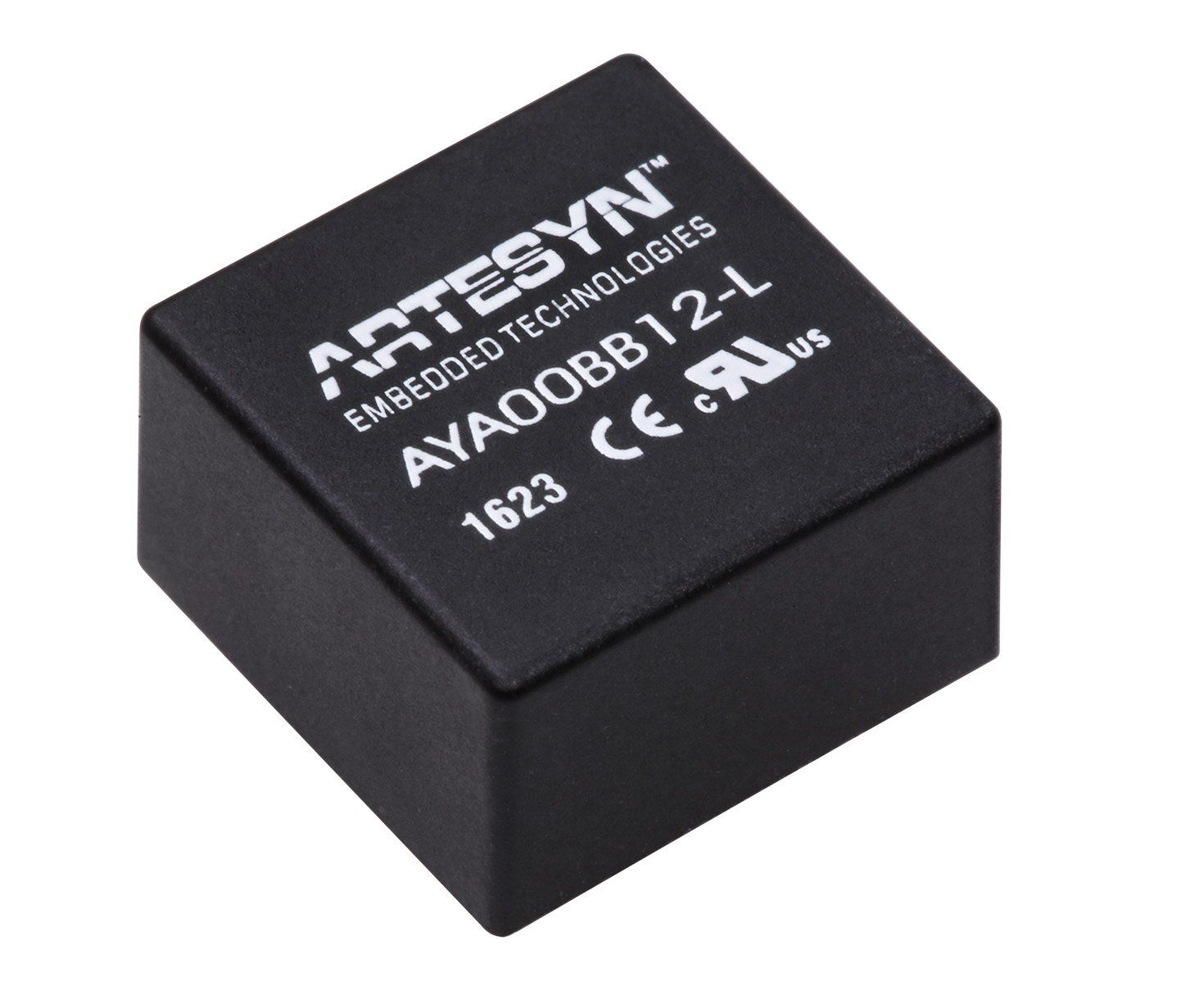

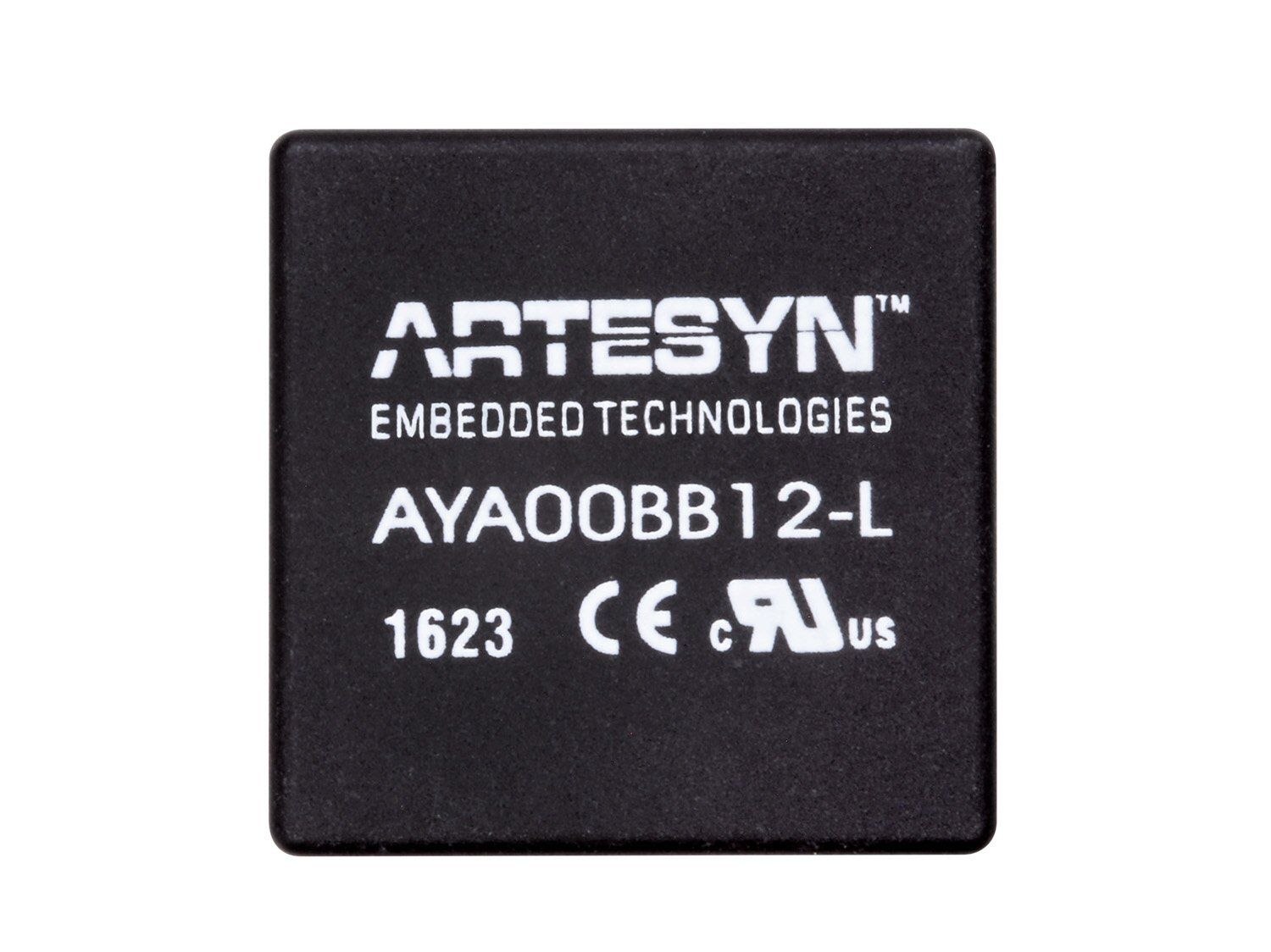

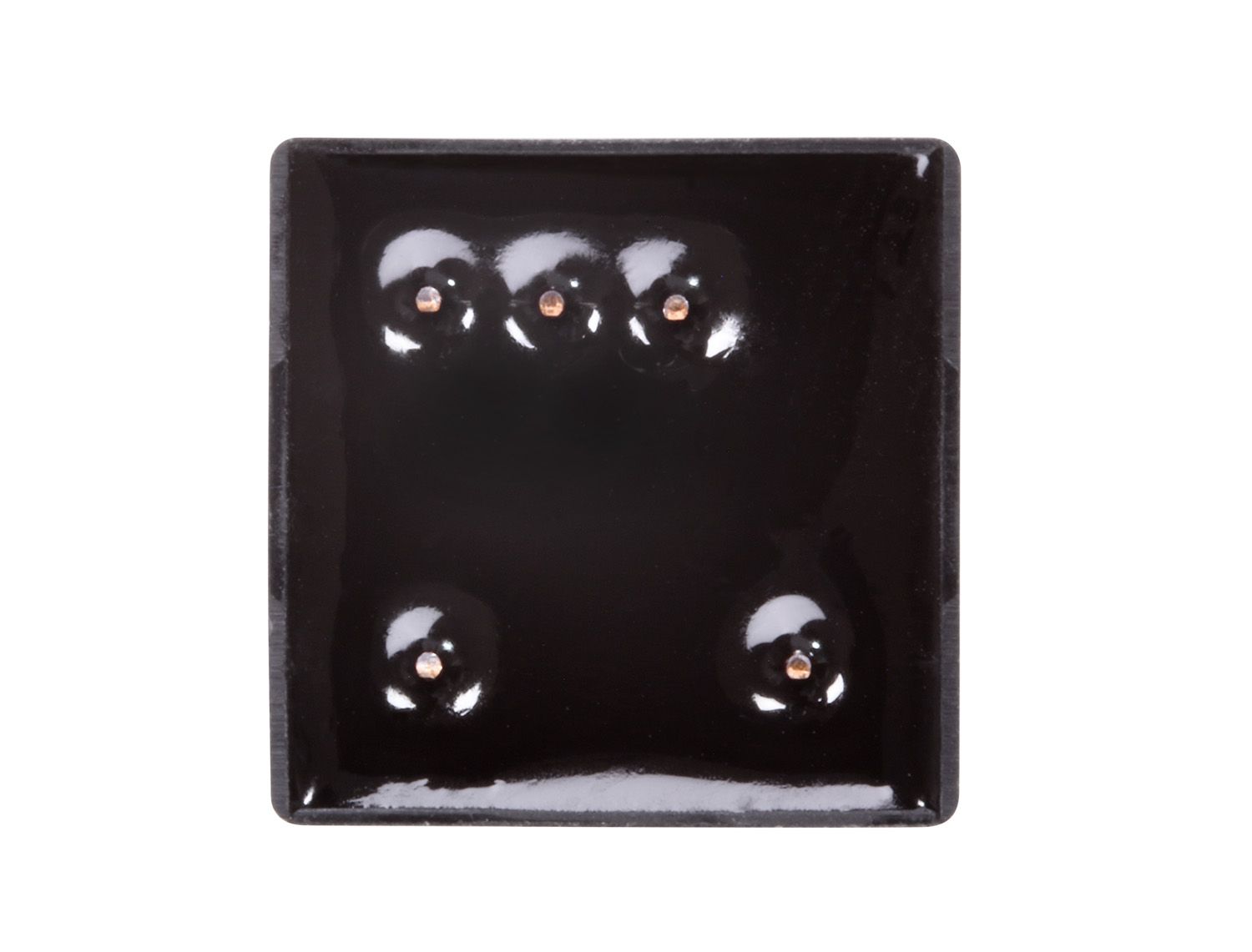

Fully encapsulated in an ultra compact 0.55 x 0.55 inch (14 x 14 mm) plastic case, the converters have a height of just 0.32 inch (8 mm). The surface-mount versions accommodate an ambient operating temperature range of -40 to 80˚C, while the through-hole versions can handle temperatures from -40 to 85˚C, both with suitable derating. Offering up to 80% conversion efficiency, the converters use 100 kHz fixed frequency switching to minimize the need for external EMI filtering and comply with the EN 55022 class A and FCC level A standards for conducted noise.

AYA series converters with output voltages of 5 V or higher are rated at 2 W power output; the four 3.3 V models are rated at 1.3 W. Standard features include 1,500 VDC input/output isolation, remote On/Off and continuous (hiccup mode) protection against output short circuit.

Features

  • 14 x 14 x 8.0 mm (0.55 x 0.55 x 0.31 inches)
  • Efficiency up to 87%
  • I/O-isolation 1500 VDC
  • Wide 2:1 input range
  • Operating temperature range -40 to +85 (for DIP module)

Benefits

  • Ultra compact DIP package
  • Single and dual output
  • 3-year product warranty

Specifications

Output Power (W): 2
Length (Inches): 0.55
Width (Inches): 0.55
Height (Inches): 0.31
Mounting Type: BMP; Through Hole
Minimum Output Current (A): 0.07
Maximum Output Current (A): 0.4
Output Voltage Range (V): -15V to 15V
All Specifications Collapse Specifications

Stock Check

Model Number Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
AYA00A05-L 5 5 0.4 5 1 Contact Us Buy
AYA00A12-L Active, In Stock 5 5 0.4 5 1 Request Buy
AYA00A24-L Active, In Stock 5 5 0.4 5 1 Request Buy
AYA00A48-L Active, In Stock 5 5 0.4 5 1 Request Buy
AYA00AA05-L Active, In Stock 5 5 0.2 5 2 Request Buy
AYA00AA12-L Active, In Stock 5 5 0.2 5 2 Request Buy
AYA00AA24-L Active, In Stock 5 5 0.2 5 2 Request Buy
AYA00AA48-L Active, In Stock 5 5 0.2 5 2 Request Buy
AYA00B05-L Active, In Stock 12 12 0.167 12 1 Request Buy
AYA00B12-L Active, In Stock 12 12 0.167 12 1 Request Buy
AYA00B24-L Active, In Stock 12 12 0.167 12 1 Request Buy
AYA00B48-L Active, In Stock 12 12 0.167 12 1 Request Buy
AYA00BB05-L Active, In Stock 12 12 0.083 12 2 Request Buy
AYA00BB12-L Active, In Stock 12 12 0.083 12 2 Request Buy
AYA00BB24-L Active, In Stock 12 12 0.083 12 2 Request Buy
AYA00BB48-L Active, In Stock 12 12 0.083 12 2 Request Buy
AYA00C05-L Active, In Stock 15 15 0.134 15 1 Request Buy
AYA00C12-L Active, In Stock 15 15 0.134 15 1 Request Buy
AYA00C24-L Active, In Stock 15 15 0.134 15 1 Request Buy
AYA00C48-L Active, In Stock 15 15 0.134 15 1 Request Buy
AYA00CC05-L Active, In Stock 15 15 0.067 15 2 Request Buy
AYA00CC12-L Active, In Stock 15 15 0.067 15 2 Request Buy
AYA00CC24-L 15 15 0.067 15 2 Contact Us Buy
AYA00CC48-L Active, In Stock 15 15 0.067 15 2 Request Buy
AYA00F05-L Active, In Stock 3.3 3.3 0.4 3.3 1 Request Buy
AYA00F12-L Active, In Stock 3.3 3.3 0.4 3.3 1 Request Buy
AYA00F24-L Active, In Stock 3.3 3.3 0.4 3.3 1 Request Buy
AYA00F48-L Active, In Stock 3.3 3.3 0.4 3.3 1 Request Buy
