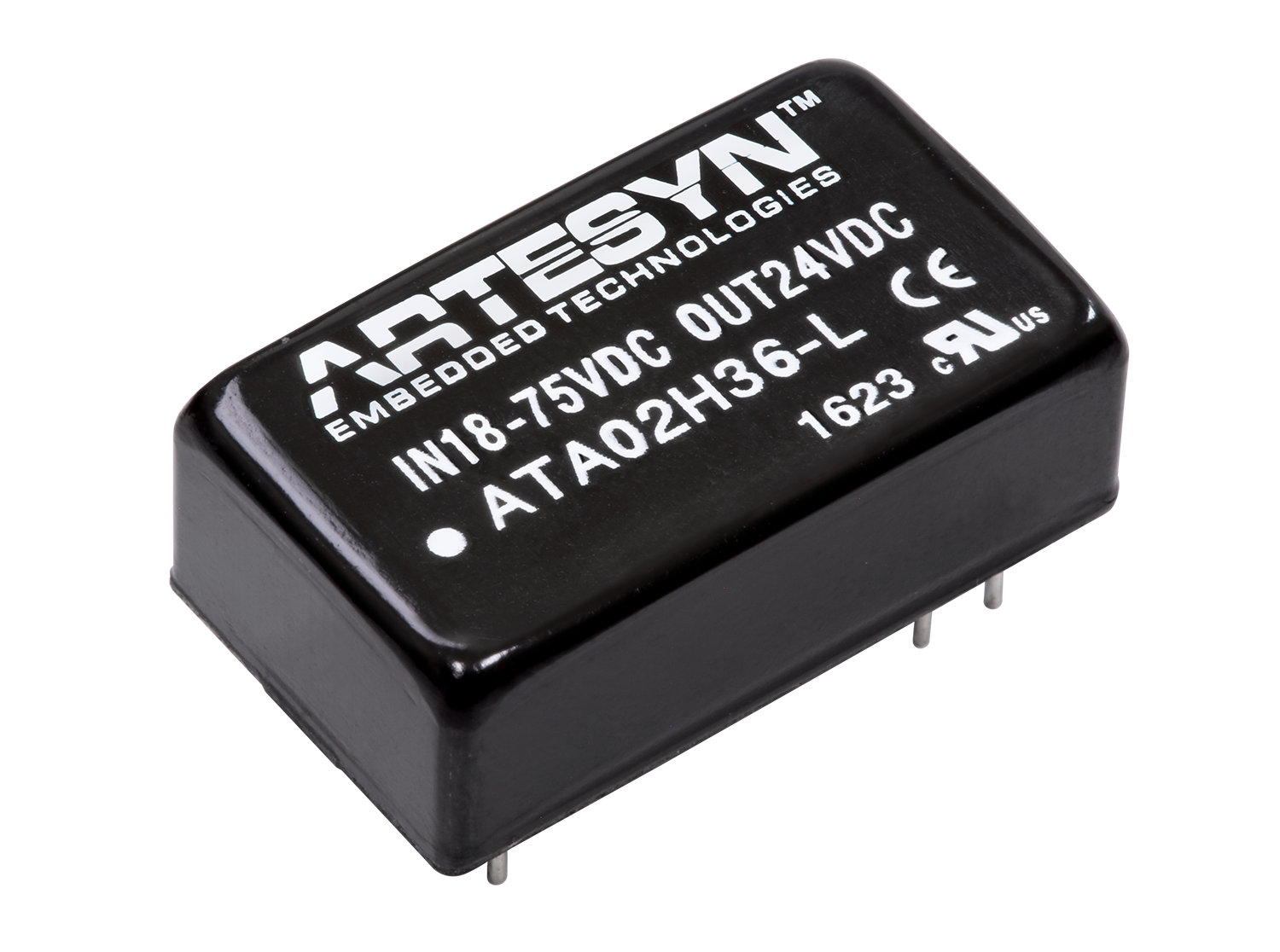

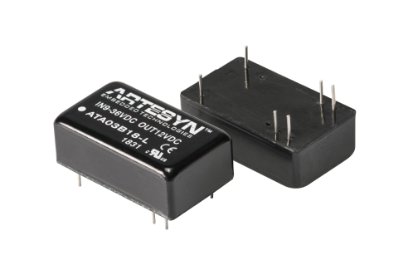

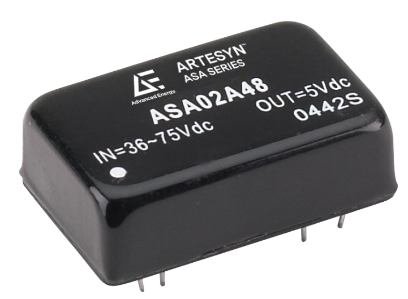

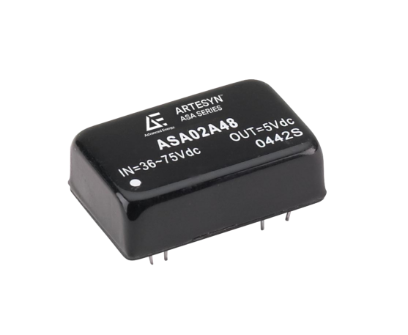

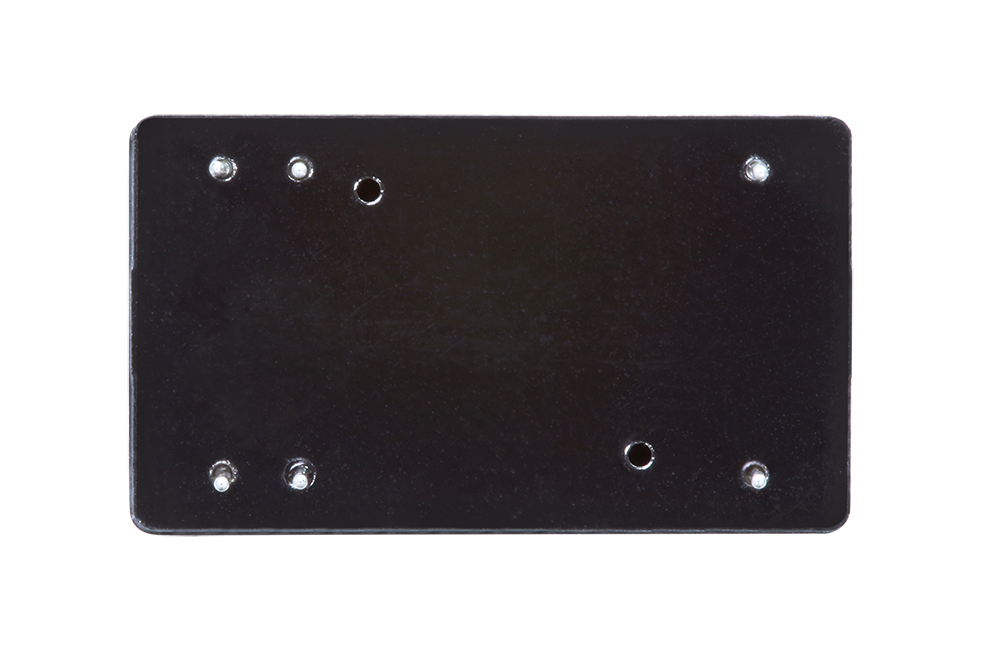

ATA 8 Watt Isolated DC-DC Converter Series
Active
8 W Industrial DC-DC Converter
Advanced Energy’s ATA series 8 W isolated DC-DC converters are suitable for a diverse range of low power applications, including data communication, telecommunication and computer peripheral equipment, industrial automation and mobile battery-powered systems. The series comprises 14 variants, each of which is available in a mini dual-in-line package for through-hole mounting.
All ATA series 8 W converters feature ultra-wide 4:1 inputs; seven of the models have 9 to 36 V inputs and the other seven have 18 to 75 V inputs. Within each of these two categories, there is a choice of five single output models, offering voltages of 3.3 V, 5 V, 12 V, 15 V or 24 V, and two dual output models offering +12/-12 V or +15/-15 V.
Fully encapsulated in an ultra compact 0.94 x 0.54 inch (24 x 13.7 mm) plastic case, the converters have a height of just 0.32 inch (8 mm). The surface-mount versions accommodate an ambient operating temperature range of -40 to 80ËšC, while the through-hole versions can handle temperatures from -40 to 80ËšC, both with suitable derating. Offering up to 80% conversion efficiency, the converters use 350 kHz fixed frequency switching to minimize the need for external EMI filtering and comply with the EN 55022 class A and FCC level A standards for conducted noise.
ATA series converters with output voltages of 5 V or higher are rated at 8 W power output; the four 3.3 V models are rated at 6.6 W. Standard features include 1,500 Vdc input/output isolation, remote On/Off and continuous (hiccup mode) protection against output short-circuit.
All ATA series 8 W converters feature ultra-wide 4:1 inputs; seven of the models have 9 to 36 V inputs and the other seven have 18 to 75 V inputs. Within each of these two categories, there is a choice of five single output models, offering voltages of 3.3 V, 5 V, 12 V, 15 V or 24 V, and two dual output models offering +12/-12 V or +15/-15 V.
Fully encapsulated in an ultra compact 0.94 x 0.54 inch (24 x 13.7 mm) plastic case, the converters have a height of just 0.32 inch (8 mm). The surface-mount versions accommodate an ambient operating temperature range of -40 to 80ËšC, while the through-hole versions can handle temperatures from -40 to 80ËšC, both with suitable derating. Offering up to 80% conversion efficiency, the converters use 350 kHz fixed frequency switching to minimize the need for external EMI filtering and comply with the EN 55022 class A and FCC level A standards for conducted noise.
ATA series converters with output voltages of 5 V or higher are rated at 8 W power output; the four 3.3 V models are rated at 6.6 W. Standard features include 1,500 Vdc input/output isolation, remote On/Off and continuous (hiccup mode) protection against output short-circuit.
Features
- Input voltage range 9V to 36V
- Input voltage range 18V to 75V
- Output voltage (Single) 3v3, 5v, 12v, 15v, 24v
- Output voltage (Dual) +/-5V, +/-12V, +/-15V
- Isolation voltage 1500Vdc
Benefits
- Output voltage Single and Dual O/P versions
- Mechanical Fully potted
- Termination Through Hole or SMT
Specifications
Output Power (W): | 8 |
---|---|
Length (Inches): | 0.94 |
Width (Inches): | 0.54 |
Height (Inches): | 0.31 |
Mounting Type: | BMP; SMT &Through Hole |
Minimum Output Current (A): | 0.34 |
Maximum Output Current (A): | 2 |
Output Voltage Range (V): | -15V to 24V |
