artesyn™
AEE 50W High I/P Version Series
Active
50 W Isolated DC-DC Converters
The AEE series of 50 W isolated DC-DC converters features a 4:1 wide input voltage range of 18 VDC to 75 VDC and typical efficiency of 92%. Designed for use with nominal 48 V supplies in ruggedized applications, including industrial automation, instrumentation, test and measurement, and telecommunications, the series comprises models with single-output voltages of 3.3, 5, 12, 15, and 24 VDC. The 3.3 VDC model is rated at 33 W output.
Standard features include 1500 VDC input/output isolation, protection against overvoltage, overcurrent and overtemperature conditions, and remote on/off. Operating temperature range is -40 to +80℃ without derating.

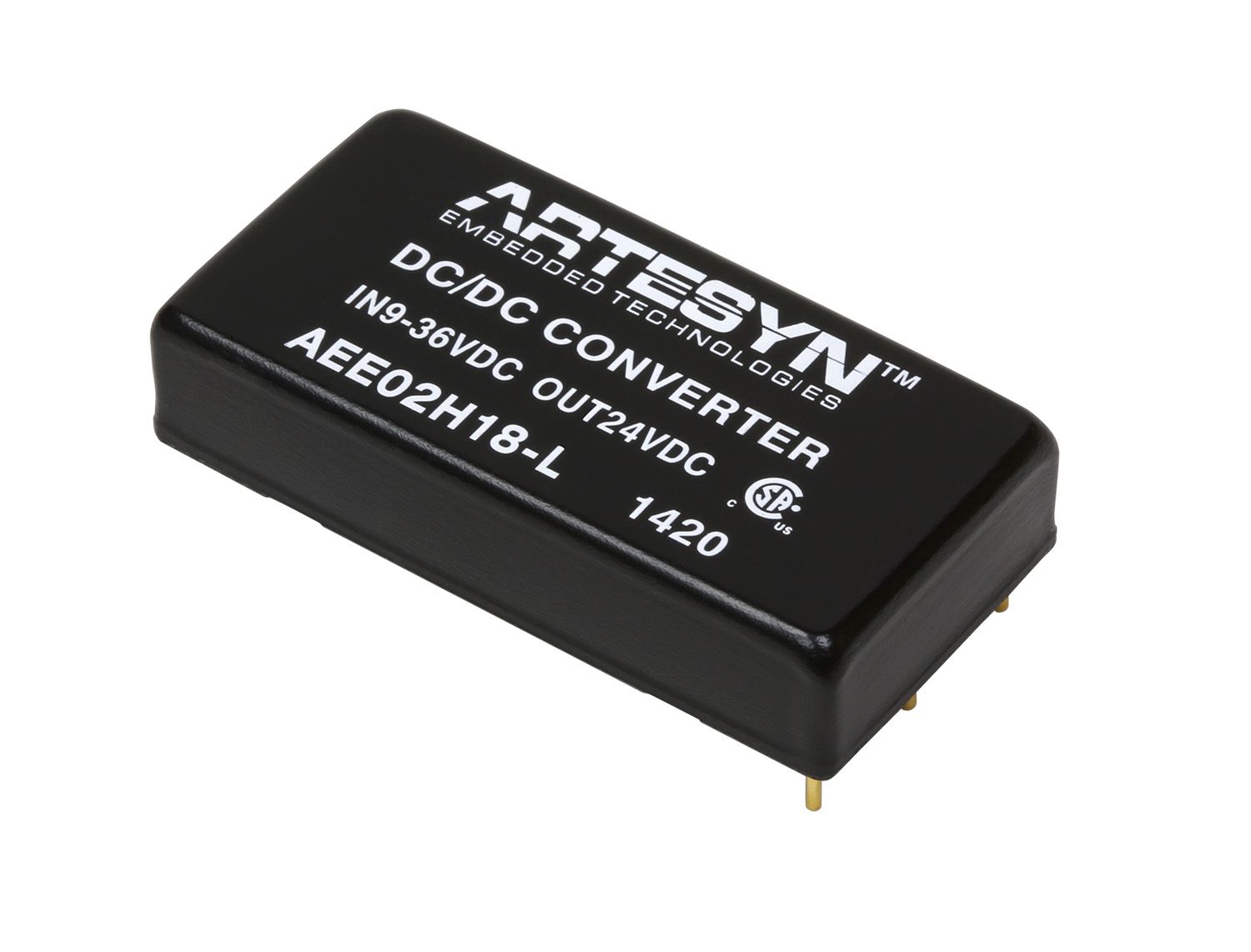

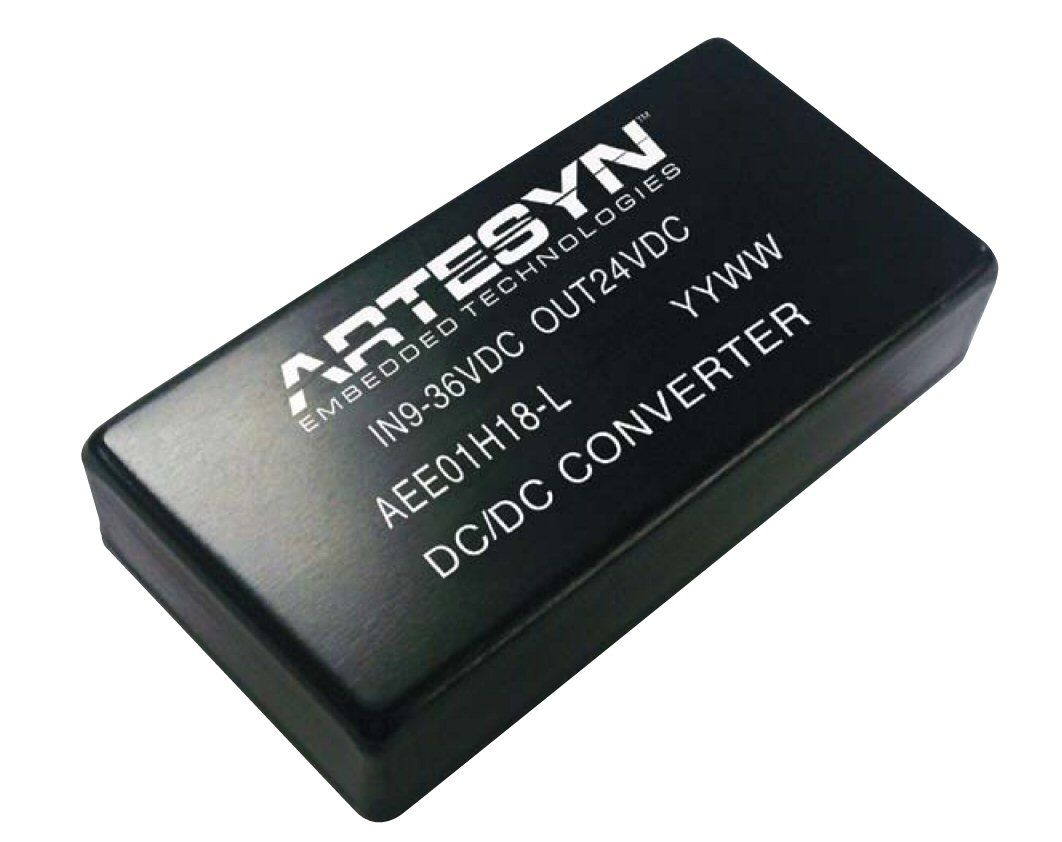

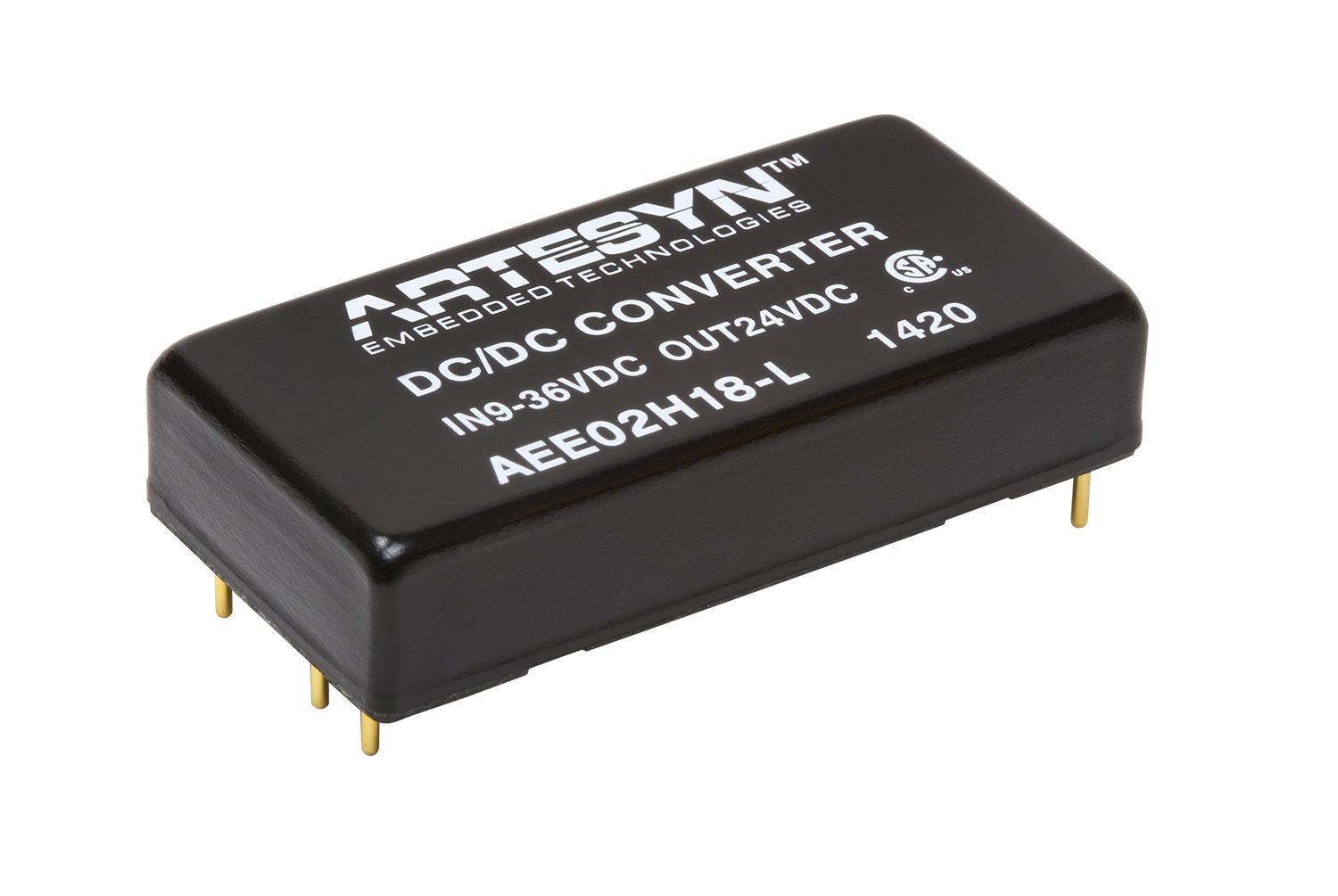

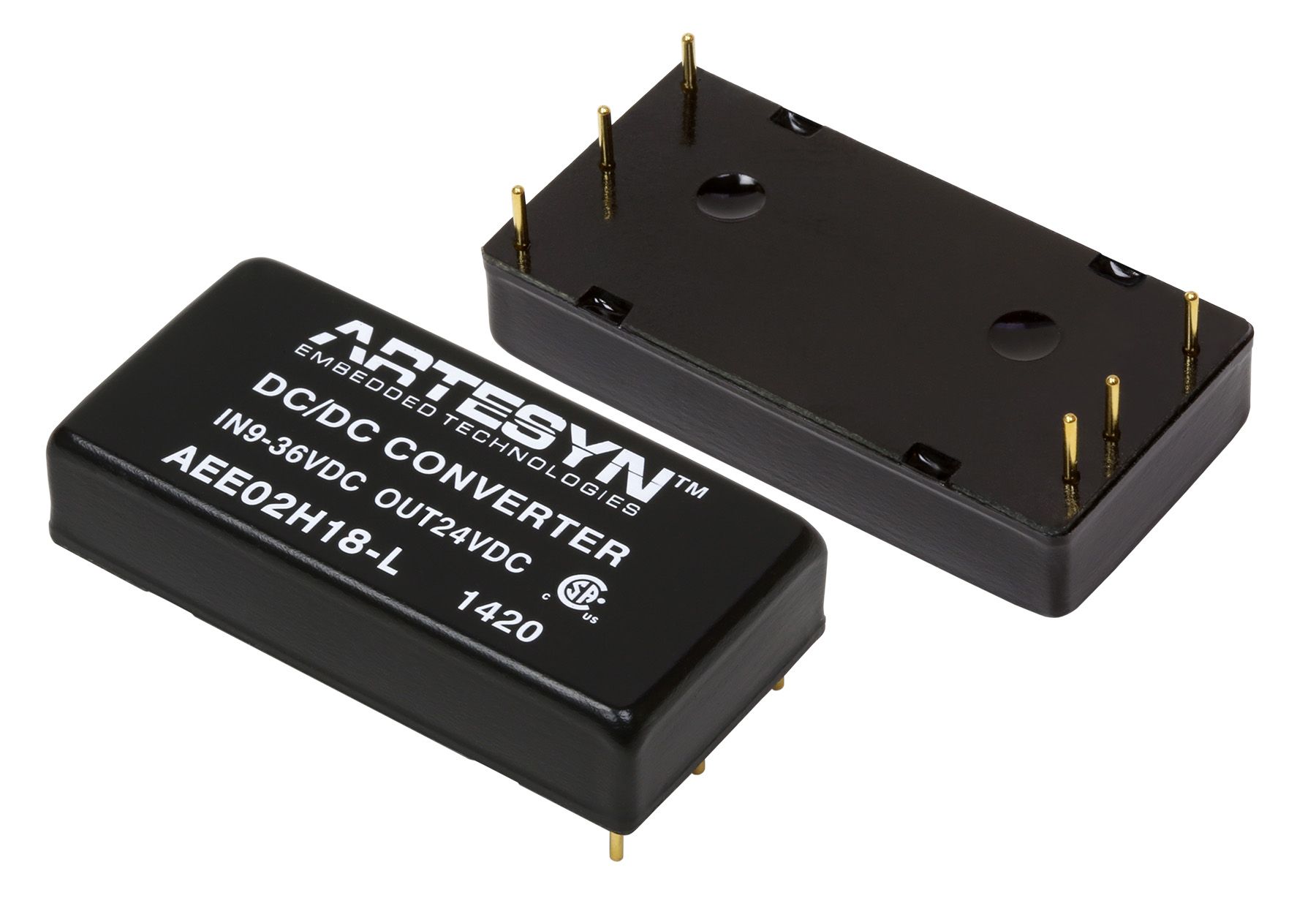

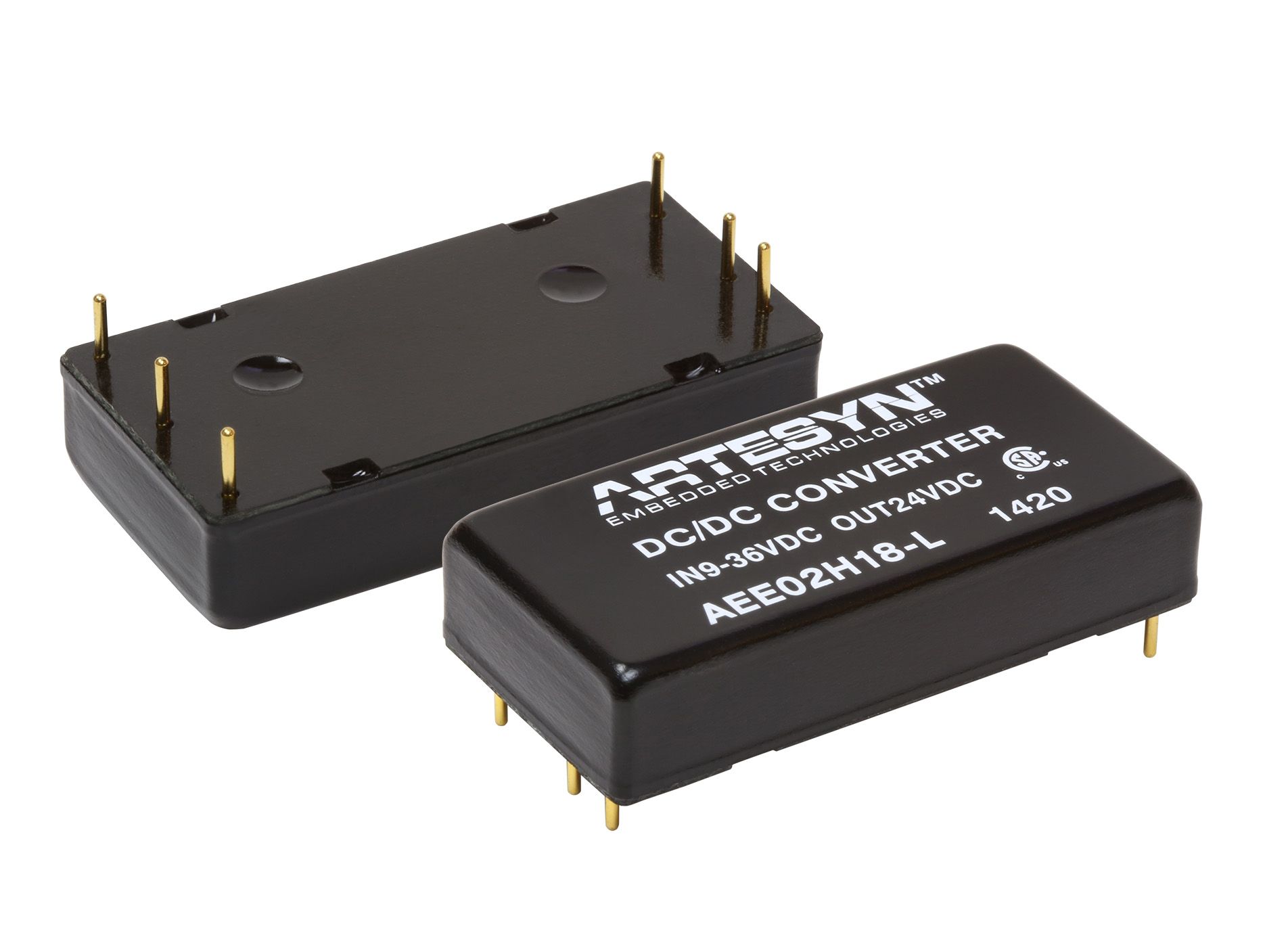

The fully potted, metal-cased construction is 1 x 2 x 0.4 inches (25.4 x 50.8 x 10.2 mm), with the 24 VDC model taller at 0.43 inch (11 mm).
Standard features include 1500 VDC input/output isolation, protection against overvoltage, overcurrent and overtemperature conditions, and remote on/off. Operating temperature range is -40 to +80℃ without derating.
The fully potted, metal-cased construction is 1 x 2 x 0.4 inches (25.4 x 50.8 x 10.2 mm), with the 24 VDC model taller at 0.43 inch (11 mm).
Features
- Input voltage 18 to 75Vdc
- Output voltage 3V3, 5V, 12V, 15V, 24V
- Isolation 1500Vdc
- Mechanical 2 inch by 1 inch
Benefits
- Construction Metal case, fully potted
- Mechanical Heatsink option
Specifications
| Output Power (W): | 50 |
|---|---|
| Length (Inches): | 2 |
| Width (Inches): | 1 |
| Height (Inches): | 0.4 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 10 |
| Output Voltage Range (V): | 3V to 28.8V |
