Advanced energy’s global footprint helps ease customers’ tariff concerns. This series includes parts that are USMCA qualified.
SL Power™

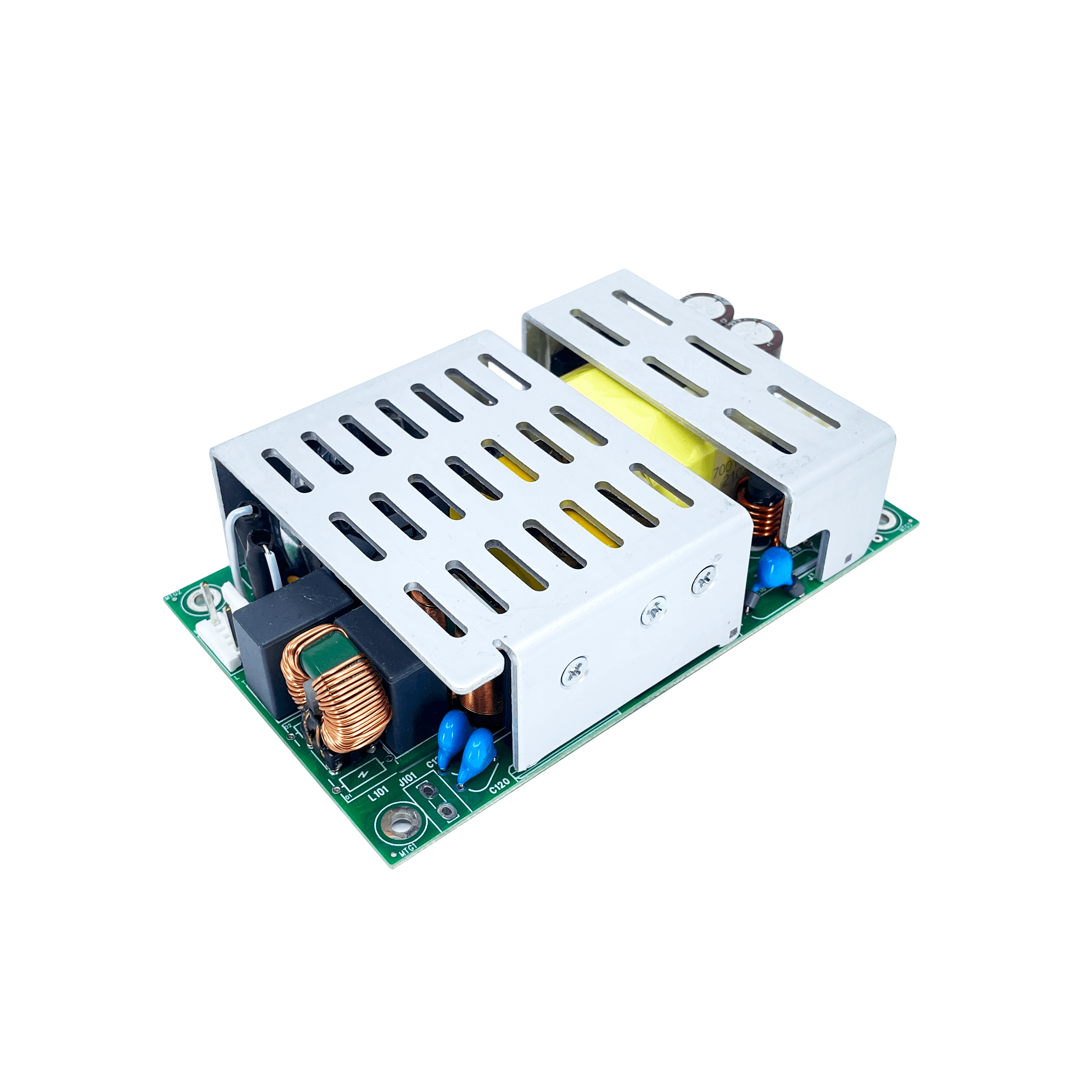

SLB300 Series
Active
300 W Single Output Medical & Industrial Grade
Advanced Energy’s SL Power SLB300 medically-approved AC-DC power supplies are available with a nominal main output of 12 V, 15 V, 18 V, 24 V, 36 V, 48 V or 56 V. SLB300 power supplies provide up to 300 W with air flow. All models have output overvoltage, short circuit and overload protection and a 3 x 5 x 1.4 inch form factor.
Features
- 3” x 5” x 1.4” Package
- 300 W with 100 LFM Air
- 200 W Convection Cooled
- Universal Input 80 to 264 VAC
Benefits
- EN/CSA/IEC/UL62368-1 Approved
- Approved to EN/CSA/IEC/UL60601-1-1, 3rd Ed
- 3 Years Warranty
- Fits 1U Applications
- RoHS Compliant
- Class B Conducted and Radiated EMI
Specifications
| Output Power (W): | 300 |
|---|---|
| Length (Inches): | 5 |
| Width (Inches): | 3 |
| Height (Inches): | 1.22 |
| Mounting Type: | Embedded PSU |
| Minimum Output Current (A): | 5.4 |
| Maximum Output Current (A): | 22.5 |
| Output Voltage Range (V): | 12V to 5V6 |
