SL Power™
LPP200 Series
Active
200 W Single Output Low Profile Industrial and Medical Grade PSU

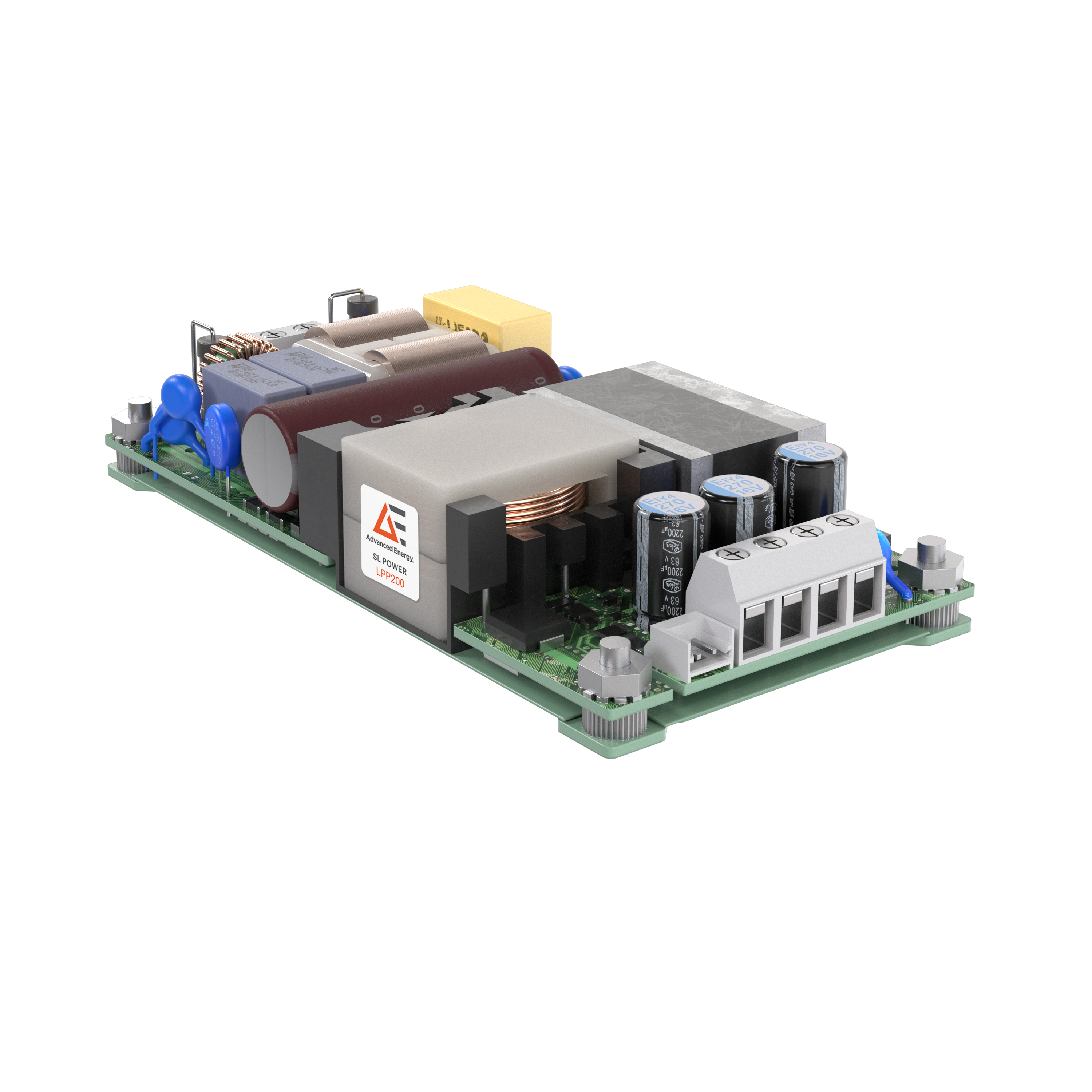

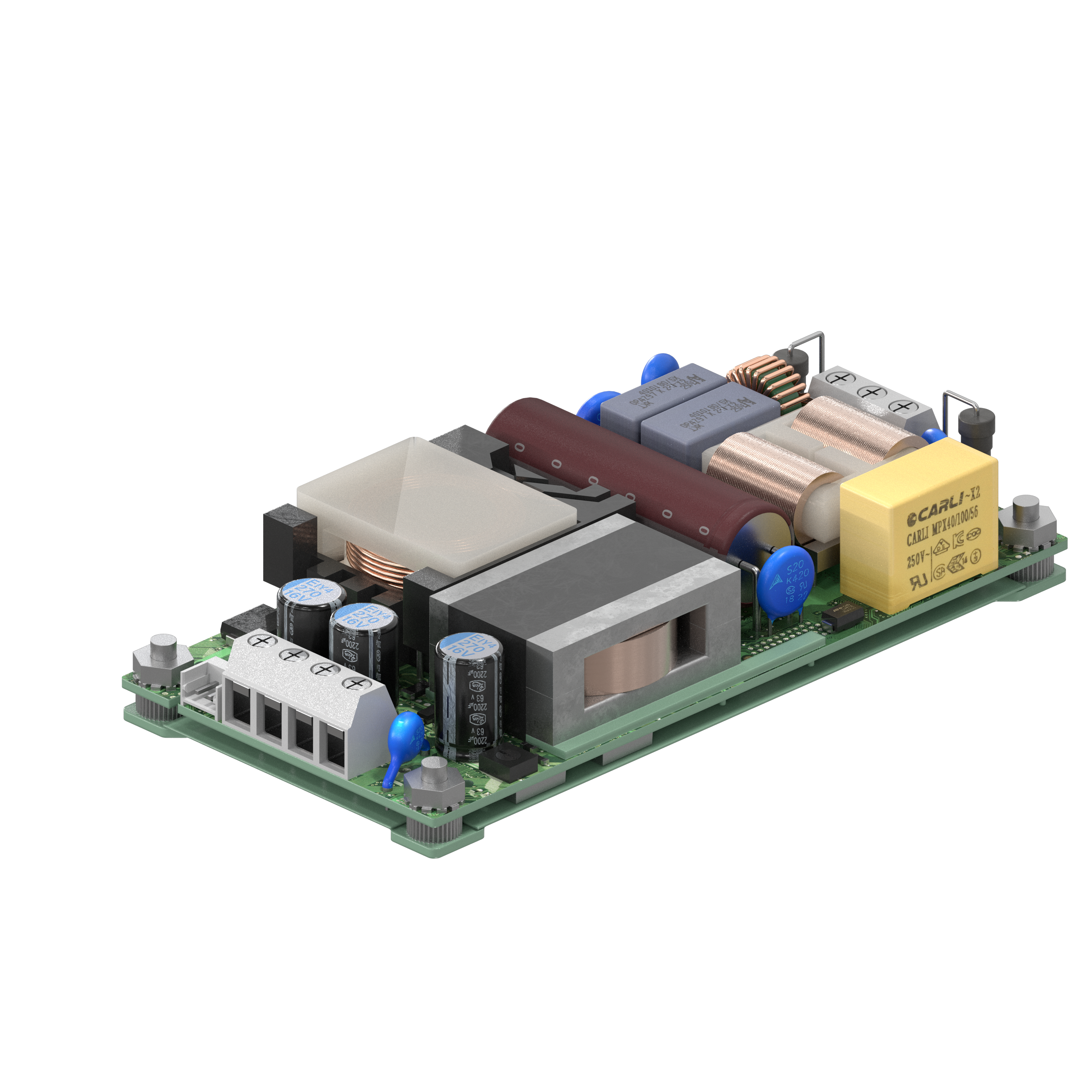

Advanced Energy’s SL Power LPP200 AC-DC power supplies deliver exceptional performance and reliability in a compact, low-profile (0.75") open-frame design, making them particularly well-suited for medical and industrial applications where space constraints are critical. The LPP200 series offers models with nominal main outputs of 12 V, 24 V, or 48 V, and supports up to 200 W of output power with airflow. Each unit incorporates comprehensive protection features, including output overvoltage, short circuit, and overload safeguards, all within a small 2" x 4" x 0.75" form factor.
Features
• Low profile height of 0.75"
• Suitable for type BF applications
• 200 W max output power
• 2" x 4" x 0.75" size
• Medical/industrial safety
• -20° to 70°C with derating
• 12 V fan output
• High efficiency 90% typical
• ±5% adjustment range
• Suitable for type BF applications
• 200 W max output power
• 2" x 4" x 0.75" size
• Medical/industrial safety
• -20° to 70°C with derating
• 12 V fan output
• High efficiency 90% typical
• ±5% adjustment range
Benefits
• Enables greater levels of miniaturization in medical and industrial devices
• Exceptional reliability and EMI performance, giving system designers the ability to reduce size without compromising performance
• 4th edition EMC and Class B emissions performance helps reduce development time and cost
• Suitable for type BF (Body Floating) medical applications
• Exceptional reliability and EMI performance, giving system designers the ability to reduce size without compromising performance
• 4th edition EMC and Class B emissions performance helps reduce development time and cost
• Suitable for type BF (Body Floating) medical applications
Specifications
| Output Power (W): | 200 |
|---|---|
| Input Voltage (V): | 90 to 264 |
| Length (Inches): | 4 |
| Width (Inches): | 2 |
| Height (Inches): | 0.75 |
| Mounting Type: | Chassis Mount |
| Minimum Output Current (A): | 3.92 |
| Maximum Output Current (A): | 15.67 |
Technical Documentation
Product Information Documents
Updated
Insights & Studies
New
Technical Videos
LPP200 Series - 200 W Single Output Low Profile Medical and Industrial Grade PSU
Mar 11, 2026
Advanced Energy’s SL Power LPP200 AC-DC power supplies deliver exceptional performance and reliability in a compact, low-profile (0.75") open-frame design, making them particularly well-suited for medical and industrial applications where space constraints are critical.
#Openframepowersupply #lowprofilepsu #ACDCPowersupply #MedicalGradePSU #200WPowerSupply
