For new designs, see ME10 Series

SL Power™

MENB1010 Series

Active

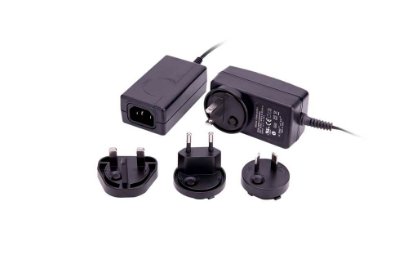

10 W Single Output External Power Adapter Medical Grade

Advanced Energy’s SL Power MENB1010 series of desktop AC-DC external power adapter comprises four output models. All models feature medical safety approvals and accept a universal input of 100 to 240 VAC. MENB10 series power adapters provide up to 10 W of output power with Impact-Resistant Polycarbonate enclosure and are ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option.

Features

  • 90 to 264 VAC Universal Input Range
  • 5 V to 24 V Single Output Models, up to 12 W

Benefits

  • Meets EISA2007, CEC Efficiency Level V, EU (EC) No 278/2009 Phase II
  • Desktop & Wall Plug Styles
  • Regulated Output with Low Ripple
  • Impact-Resistant Polycarbonate Enclosure
  • No load Power Consumption <0.3 W
  • Limited Power Source
  • Certified to UL/EN/IEC60601-1, 3rd Edition, 2xMOPP Isolation
  • 3 Year Warranty

Specifications

Output Power (W): 10
Length (Inches): 3.28
Width (Inches): 1.85
Height (Inches): 1.5
Mounting Type: External Adapter
Minimum Output Current (A): 0.25
Maximum Output Current (A): 2
Output Voltage Range (V): 5V to 48V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
MENB1010A1203F01 Active, In Stock
12V @ 1.0A Class I, level V
12 12 1 12 1 Request Buy

Technical Documentation
