SL Power™
SLE36 Series
Active

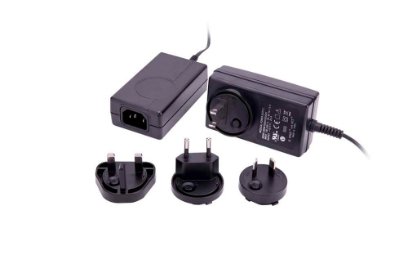

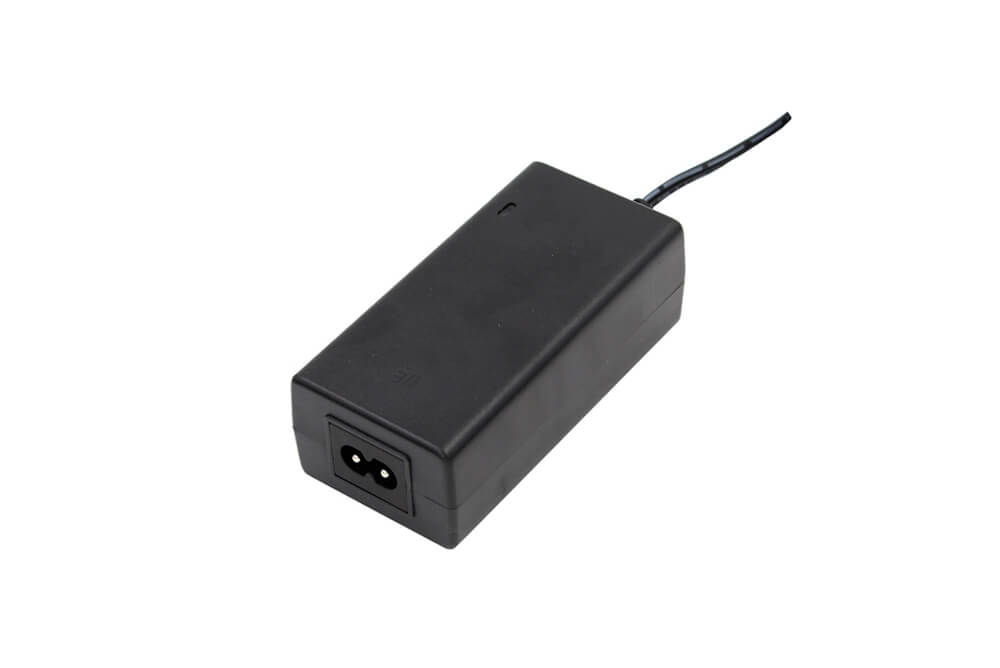

36 W Single Output External Power Adapters
Advanced Energy's SL Power SLE36 series of plug-in wall-mount AC-DC power adapters feature both medical and ITE safety approvals. It meets Department of Energy Level VI and European Code of Conduct V5 Tier 2 Directive efficiency standards.
Features
- Low Leakage Current ≤50 μA
- ≤0.075 W Standby Power
- 9 V to 36 V Outputs, Up to 36 W
- Up to 5000 m Operating Altitude
Benefits
- Medical & ITE Safety Approvals
- 2 x MOPP Input to Output Isolation
- Suitable for Medical Equipment Up to Class BF
- DOE Efficiency Level VI
- CoC V5 Tier 2(2016)
- AC Inlet IEC60320 C8 (class II) input
- Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
Specifications
| Output Power (W): | 36 |
|---|---|
| Length (Inches): | 3.81 |
| Width (Inches): | 1.99 |
| Height (Inches): | 1.3 |
| Mounting Type: | External Adapter |
| Minimum Output Current (A): | 1 |
| Maximum Output Current (A): | 3 |
| Output Voltage Range (V): | 9V to 36V |
