SL Power™
GE150 Series
Active

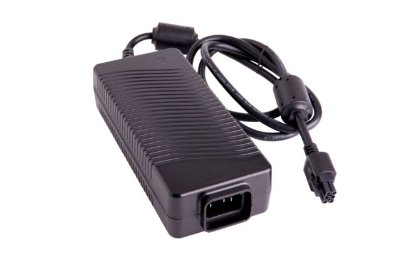

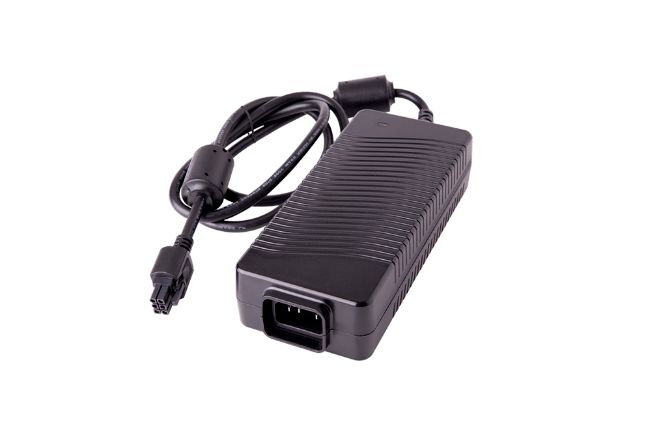

150 W Single Output External Medical & ITE Power Adapter
Advanced Energy’s SL Power GE150 series of desktop AT A GLANCE AC-DC external power adapter comprises five output models. All models feature medical and industrial safety approvals and accept a universal input of 85 to 264 VAC. GE150 series power adapters provide up to 150 Watts of output power with IP22 rated enclosure and are ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option.
Features
- Compact Size: 6.5” x 2.8” x 1.5”
- Up to 150 W of AC-DC Power
- >3M Hours MTBF
- Universal Input 85 to 264 VAC Input Range
Benefits
- Approved to EN/IEC/UL60601-1, 3rd Edition with Isolation Levels which Satisfy the 2 MOPP Requirements
- No Load Input Power
- Meets EN55011/CISPR11, FCC Part 15.109 Class B Conducted & Radiated Emissions
- 3 Year Warranty
- Approved to EN/IEC/UL62368-1
- Meets UL/EN/IEC60601-1-2, 4th Edition for EMC
- Meets DoE Efficiency Level VI
- E-Cap Life of >10 years
- IP22 Rated Enclosure
Specifications
| Output Power (W): | 150 |
|---|---|
| Length (Inches): | 6.5 |
| Width (Inches): | 2.83 |
| Height (Inches): | 1.46 |
| Mounting Type: | External Adapter |
| Minimum Output Current (A): | 3.13 |
| Maximum Output Current (A): | 12.5 |
| Output Voltage Range (V): | 12V to 48V |
