SL Power™

ME150 Series

Active

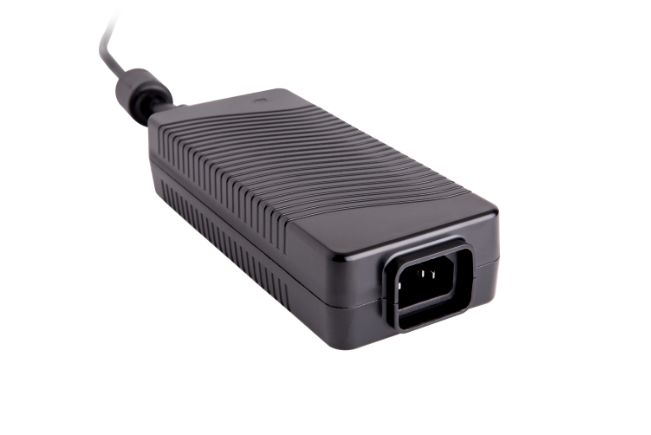

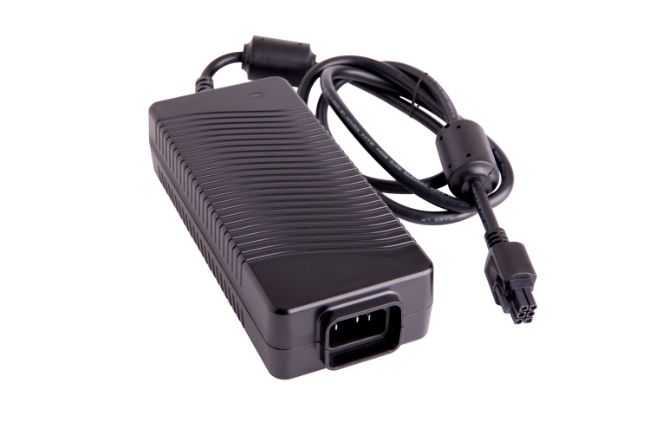

150 W Single Output External Power Adapter Medical Grade

Advanced Energy’s SL Power ME150 series of desktop AC-DC external power adapter comprises four output models. All models feature medical safety approvals and accept a universal input of 85 to 264 VAC. ME150 series power adapters provide up to 150 W of output power with IP22 rated enclosure and are ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option.

Features

  • Up to 150 W of AC-DC Power
  • Compact size: 6.5” x 2.8” x 1.5”
  • Universal Input 85 to 264 VAC Input Range
  • >3M hours MTBF

Benefits

  • Meets UL/EN/IEC60601-1-2, 4th edition for EMC
  • Approved to EN/IEC/UL60601-1, 3rd edition with isolation levels which satisfy the 2 MOPP requirements
  • Meets DoE Efficiency Level VI and EU CoC Version 5, Tier 2 Requirements
  • Meets EN55011/CISPR11, FCC Part 15.109 Class B Conducted & Radiated Emissions
  • E-cap life of >10 years
  • IP22 Rated Enclosure
  • 3 Year Warranty

Specifications

Output Power (W): 150
Length (Inches): 6.5
Width (Inches): 2.83
Height (Inches): 1.46
Mounting Type: External Adapter
Minimum Output Current (A): 3.2
Maximum Output Current (A): 12.5
Output Voltage Range (V): 12V to 48V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
ME150A1251F01 Active, Contact Us
12V @ 7.50A Class I Desktop C14
12 12 7.5 12 1 Contact Us Buy
ME150A1251N01 Active, In Stock
12V @ 7.50A Class II Desktop C8
12 12 7.5 12 1 Request Buy
ME150A1251Q01 Active, Contact Us
12V @ 7.50A Class II Desktop C18
12 12 7.5 12 1 Contact Us Buy
ME150A1551F01 Active, In Stock
15V @6.0A Class I Desktop C14
15 15 6 15 1 Request Buy
ME150A1551N01 Active, In Stock
15V @6.0A Class II Desktop C8
15 15 6 15 1 Request Buy
ME150A1551Q01 Active, Contact Us
15V @6.0A Class II Desktop C18
15 15 6 15 1 Contact Us Buy
ME150A1851F01 Active, In Stock
18V @ 5.0A Class I Desktop C14
18 18 5 18 1 Request Buy
ME150A1851N01 Active, In Stock
18V @ 5.0A Class II Desktop C8
18 18 5 18 1 Request Buy
ME150A1851Q01 Active, Contact Us
18V @ 5.0A Class II Desktop C18
18 18 5 18 1 Contact Us Buy
ME150A2451F01 Active, In Stock
24V @ 3.75A Class I Desktop C14
24 24 3.75 24 1 Request Buy
ME150A2451N01 Active, In Stock
24V @ 3.75A Class II Desktop C8
24 24 3.75 24 1 Request Buy
ME150A2451Q01 Active, Contact Us
24V @ 3.75A Class II Desktop C18
24 24 3.75 24 1 Contact Us Buy
ME150A4851F01 Active, In Stock
48V @ 3.20A Class I Desktop C14
48 48 3.2 48 1 Request Buy
ME150A4851N01 Active, In Stock
48V @ 3.20A Class II Desktop C8
48 48 3.2 48 1 Request Buy
ME150A4851Q01 Active, Contact Us
48V @ 3.20A Class II Desktop C18
48 48 3.2 48 1 Contact Us Buy

Technical Documentation
