artesyn™
AIF13WAC
Active

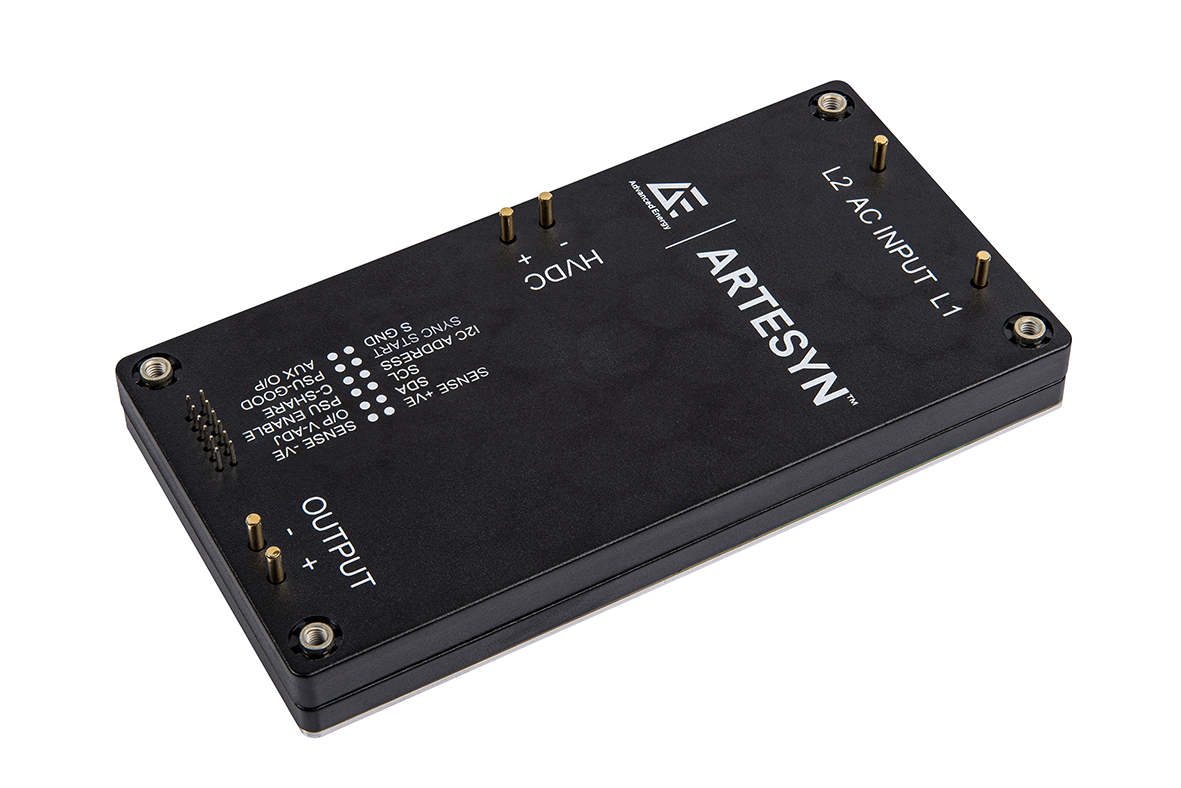

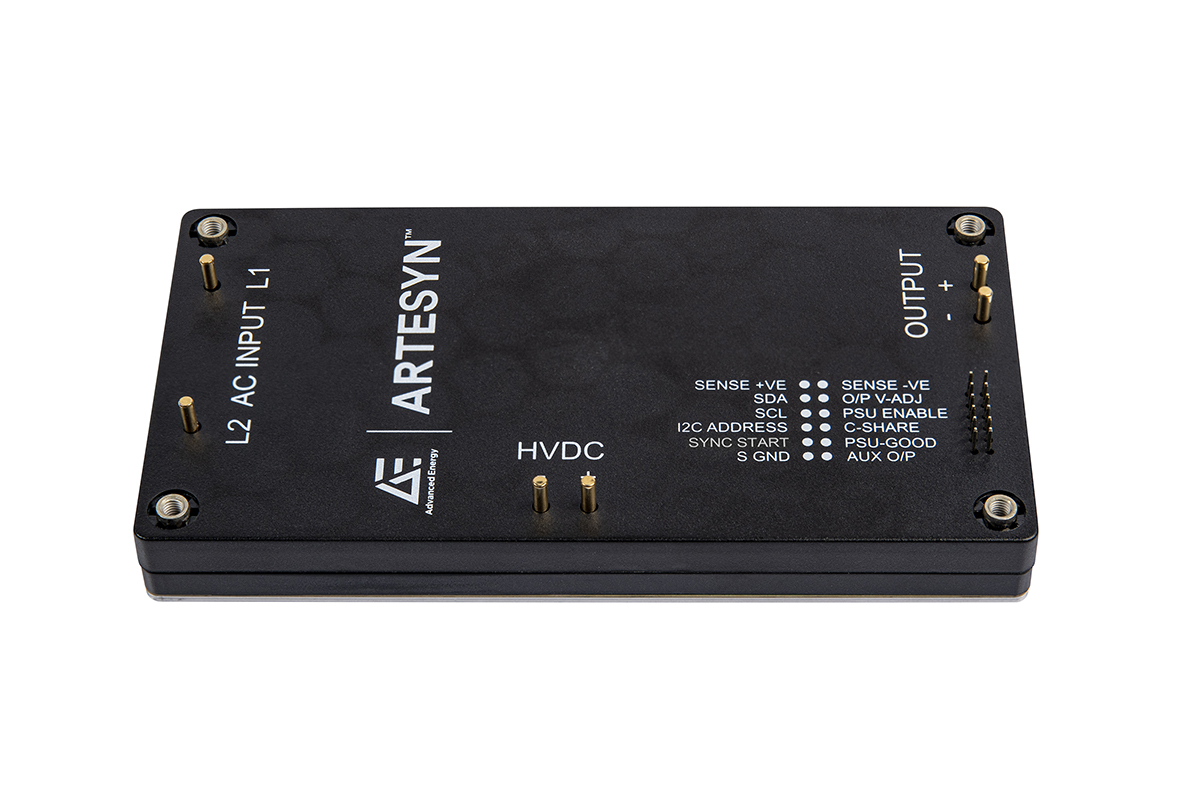

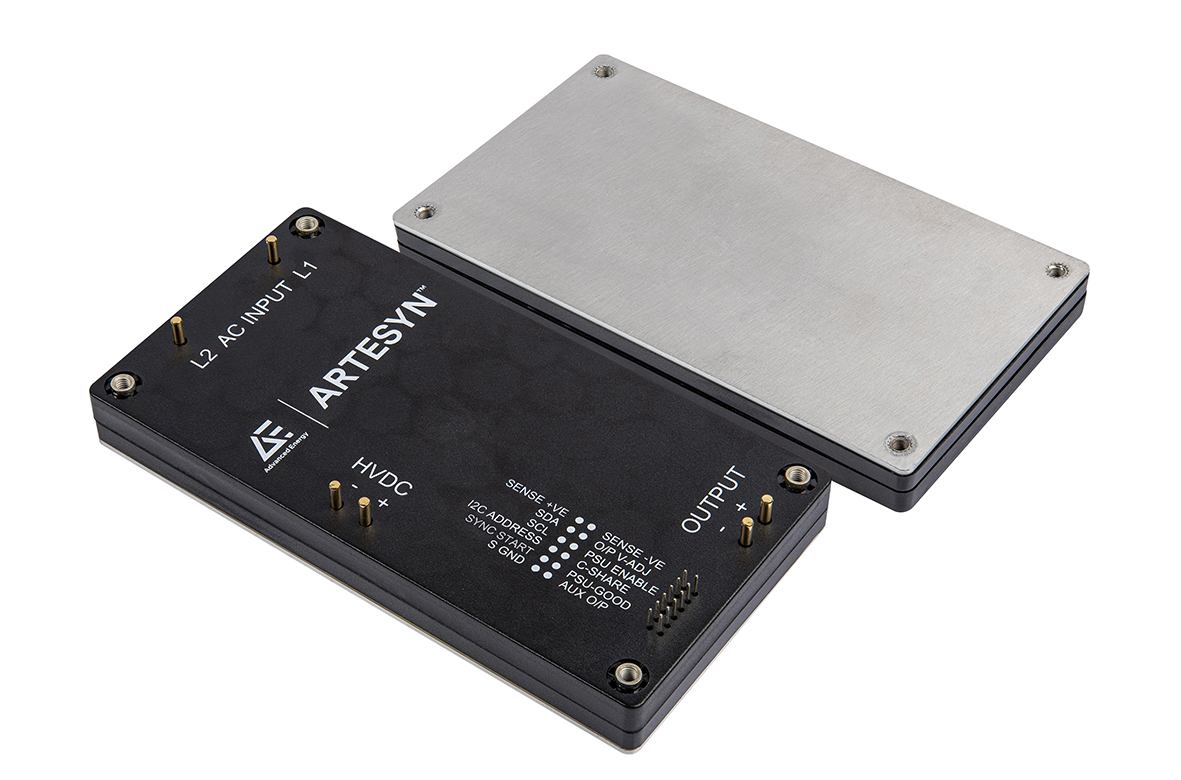

Advanced Energy’s Artesyn AIF13WAC series delivers 600 W in the same full-brick size as 500 W units (standard 2.4 in x 4.6 in x 0.55 in height), providing an easy upgrade path and simplified application design. These 600 W AC-DC full-brick power modules feature full digital control, internal inrush limiting, and active current sharing. They accept a wide 90 to 264 VAC input, provide 94% (typical) efficiency, and deliver a nominal isolated output voltage of 48 VDC with a 10 V auxiliary output. These 600 W AC-DC converters are optimized for contact-cooled applications, such as I.P. sealed systems in which the converters are located inside the casing. PMBus control simplifies use and minimizes external components.
Features
- Input voltage and frequency: 86 to 264 VAC, 47 to 63 Hz
- Output noise: 480 mV pk-pk max
- Output power: 48 V, 13 A
- Auxilary output: 10 V at 250 mA
- Hold-up HVDC: 380 VDC
- Control output voltage adjust: -20 to +10% Vout
- Isolation 4000 VDC input to output
- Isolation 2500 VDC input to baseplate
- Isolation 1000 VDC output to baseplate
- Parallel unit capability: Up to three units
- Thermal derating: 100% power at 100°C baseplate
- Efficiency: Up to 94% high-line input
Benefits
- Easy upgrade path
- Simplified application design
- Internal inrush limiting
- Control PMBus interface
- Control output voltage sense
- Control active current share
- Control PSU enable
- Control PSU-good signal
Specifications
| Output Power (W): | 600 |
|---|---|
| Input Voltage (V): | 86 - 264 V |
| Operating Temperature (°C): | 105 degC baseplate |
| Length (Inches): | 4.6 |
| Width (Inches): | 2.4 |
| Height (Inches): | 0.5 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 0 |
Featured Resources
Technical Documentation
Product Information Documents
Safety & Compliance Certificates
Updated
Engineering Resources
Technical Videos
AIF13WAC 600 W Full-Brick AC-DC BMP Converter
Mar 19, 2026
Advanced Energy’s Artesyn AIF13WAC 600 W board mount power converter is designed for contact-cooled telecom and industrial applications. It features inrush current limiting, an auxiliary output, analog/digital control compatibility, free GUI configuration software, and up to 94% efficiency at 100°C base plate temperature. Two units can be paralleled for more power, providing scalability and reliability. The AIF13WAC converter sets a new standard for compact, efficient, and intelligent AC-DC conversion.
Visit AIF13WAC: https://www.advancedenergy.com/en-us/products/ac-dc-power-supply-units/encapsulated-pcb-mount/acdc-bmp/aif13wac/
#ACDCpowermodule #600WFullBrick #HighPowerdensity #FanlessPowerSupply #PMBusPowerConverter
