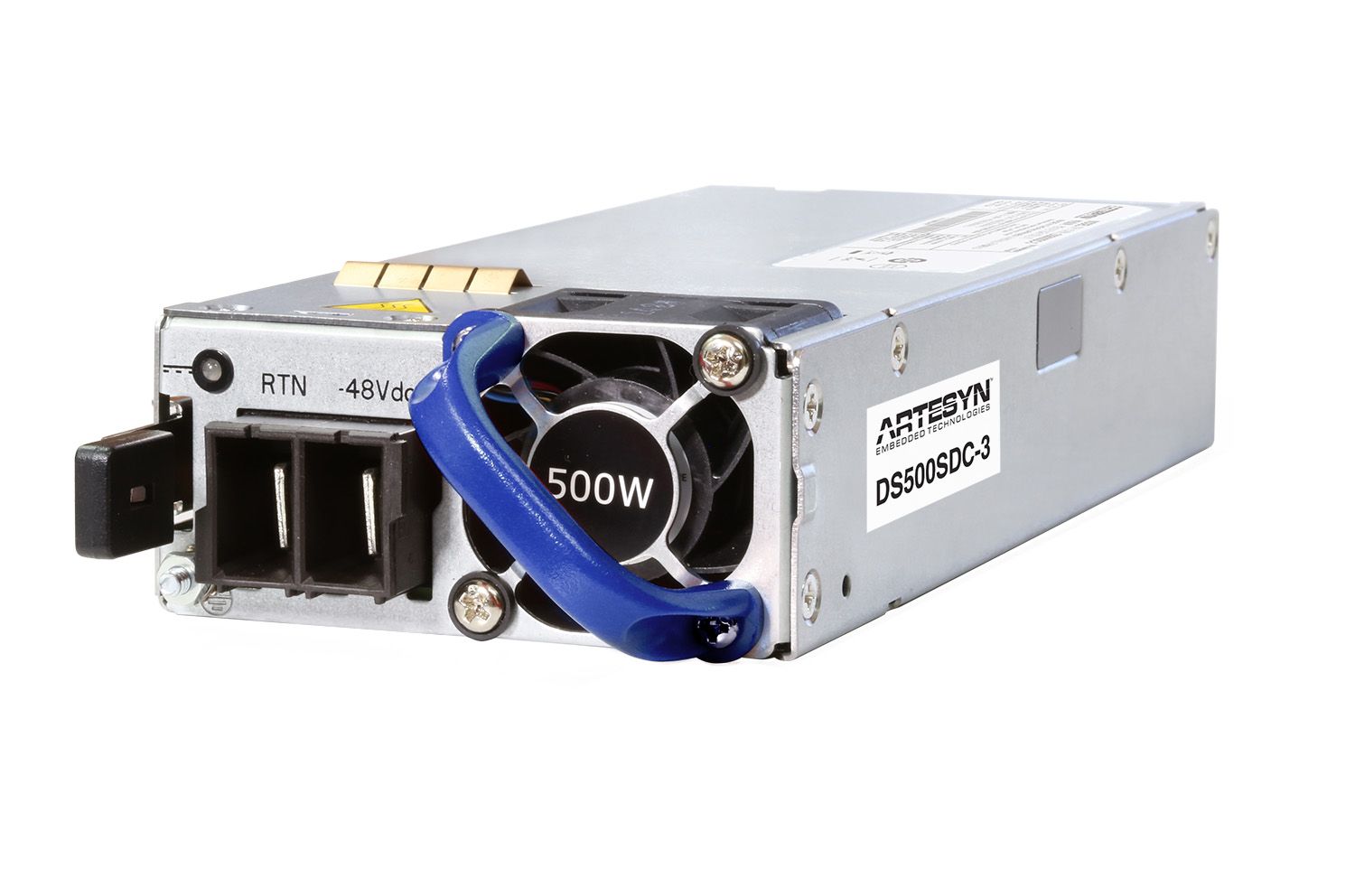

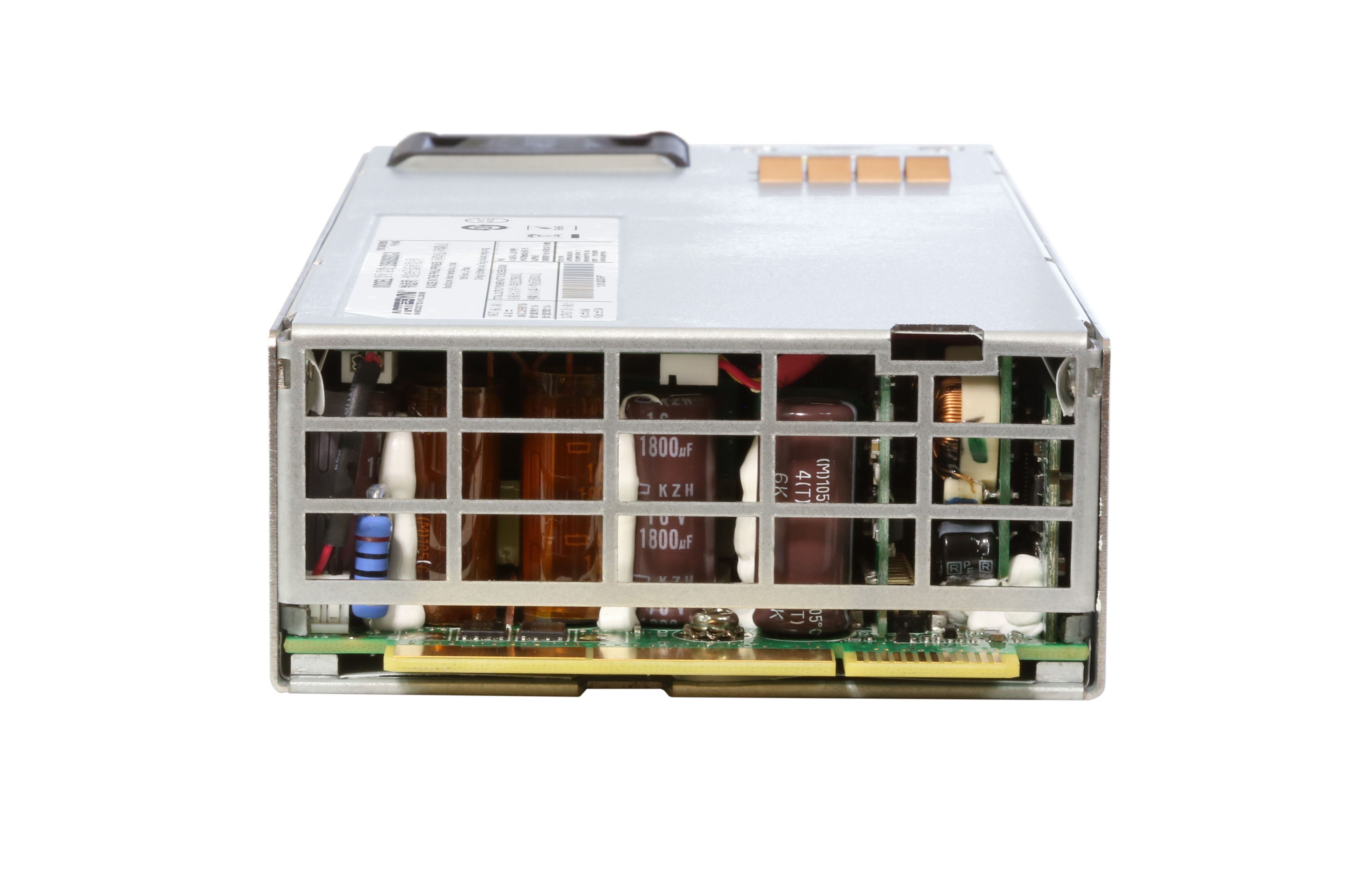

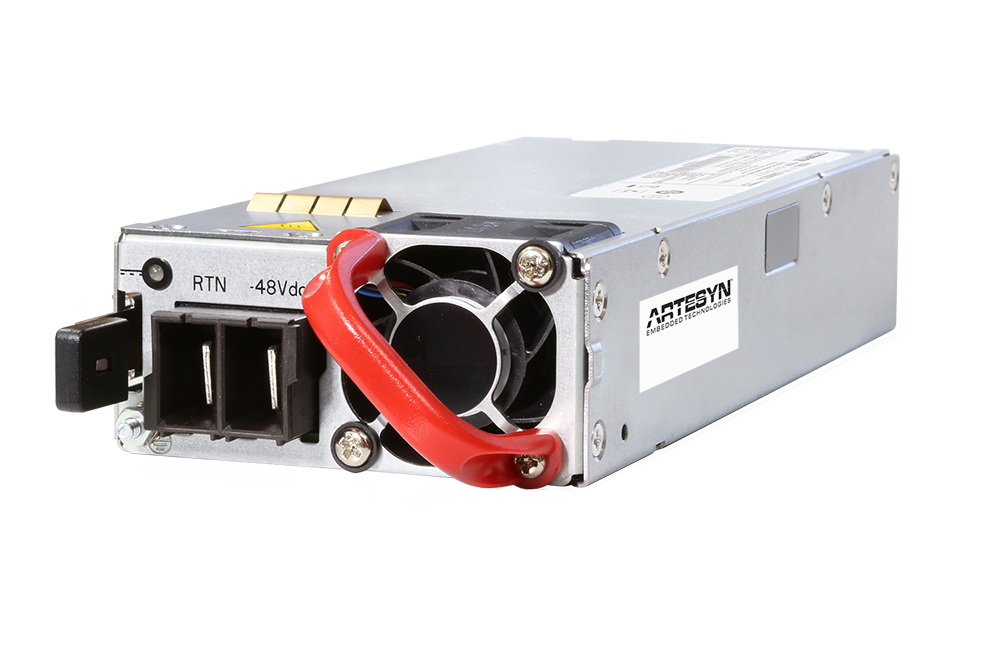

DS500SDC Series
Active
12 V 500 W Power Supplies (48 V DC Input)

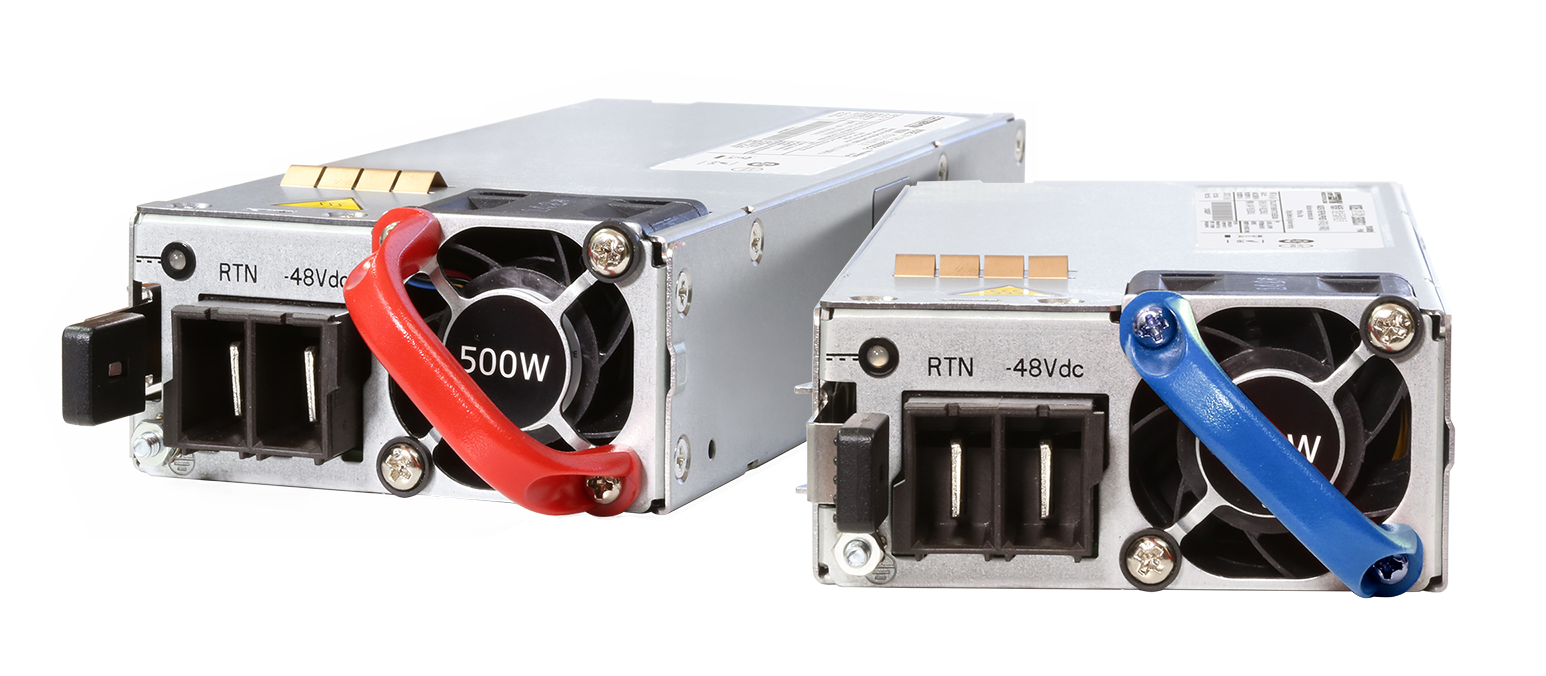

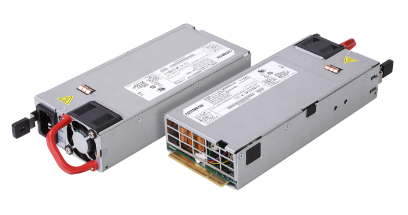

The DS500SDC-3 series of 500 W bulk front-end DC-DC power supply accepts an input of -36 to -72 VDC and provides a main 12 V output plus a 12 V standby output. Housed in a 1U high rack-mounting enclosure with a short form factor that frees up system space, the DS500SDC-3 has a power density of 10.9 W per cubic inch. This series comes in two airflow versions – dc-connector to ac-connector and vice versa. The series is also in the same form factor and has the same output configuration as the DS500SPE-3. With a main 12 V output delivering up to 41.67 A and staying regulated down to zero load, they're perfect for feeding downstream DC-DC converters in distributed power architectures (DPA). This digitally-controlled power supply is PMBus® compliant with a built-in I2C serial interface that allows set-up, monitoring and control via PMBus GUI.
Features
- 1U power supply
- 500 W output power
- Highdensity design: 12 W/in3
- N+1 or N+N redundant
Benefits
- Active current sharing
- Compatible with Artesyn"™s
- Full digital control
- High power and short form factor
- Inrush current control
- PMBus compliant
- Reverse airflow available
- Two year warranty
- Universal PMBus GUI
Specifications
| Output Power (W): | 500 |
|---|---|
| Length (Inches): | 7.74 |
| Width (Inches): | 3.4 |
| Height (Inches): | 1.58 |
| Mounting Type: | Rack-mount |
| Minimum Output Current (A): | 2 |
| Maximum Output Current (A): | 41.67 |
| Output Voltage Range (V): | 0V to 0V |
