artesyn™
iMP4
Active
750 to 1158 W Configurable AC-DC Power Supplies
The iMP4 series AC-DC configurable power supplies comprise a microprocessor-controlled PFC front end providing five slots that accept intelligent DC-DC converter modules. It is capable of delivering 750 to 1100 W in a 254 mm x 127 mm x 63.5 mm package, with up to 15 isolated outputs using single, dual or triple output modules ranging from 1.8 to 66 V. Single output modules come in four power ranges that can be mixed and matched and connected in parallel or series.
User-configurable functions include current, input/output OK signals and indicators. These digitally controlled power supplies feature a PMBus®-compliant I2C serial interface that enables parameters such as the voltage, current limit and enable/inhibit status of individual outputs to be programmed via an intuitive downloadable user GUI. The serial interface also allows remote monitoring of voltage, current and temperature. The iMP4 series carries full industrial EN/UL60950, medical EN60601-1safety approvals, is SEMI F47 compliant (with extended hold-up module) and offers optional reverse fan, conformal coating and RS485, CANBus and MODBUS communications.
User-configurable functions include current, input/output OK signals and indicators. These digitally controlled power supplies feature a PMBus®-compliant I2C serial interface that enables parameters such as the voltage, current limit and enable/inhibit status of individual outputs to be programmed via an intuitive downloadable user GUI. The serial interface also allows remote monitoring of voltage, current and temperature. The iMP4 series carries full industrial EN/UL60950, medical EN60601-1safety approvals, is SEMI F47 compliant (with extended hold-up module) and offers optional reverse fan, conformal coating and RS485, CANBus and MODBUS communications.
Features
- 85% efficiency
- Field replaceable intelligent fan (speed control/fault status)
- Output margining, sequencing and remote sense
- Industrial Shock/Vibration (>50G’s)
- MTBF >550,000 hours
- Two-year warranty
Benefits
- Intelligent I2C control communications for easy configuration
- Fast deployment
- Thousands of output combinations customized to any application.
- Confidence in reliability from the #1 configurable power supply manufacturer
Specifications
| Length (Inches): | 10 |
|---|---|
| Width (Inches): | 5 |
| Height (Inches): | 2.5 |
| Output Voltage Range (V): | 1.8 to 300 |
| Maximum Output Power (W): | 1100 |
| Minimum Input Voltage (V): | 85 |
| Maximum Input Voltage (V): | 264 |
Accessories Stock Check
Introducing ConfigPro
Advanced Energy’s Revolutionary Online Power Configurator
With over 3 million configurable power supply combinations, this power solution algorithm optimizes cost and guides you to the ideal solution for MP, IMP, IVS, and MICROMP (UMP) configurable power supply families.
Get Started
Technical Documentation
Product Information Documents
Safety & Compliance Certificates
Engineering Resources
Insights & Studies
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
Compare

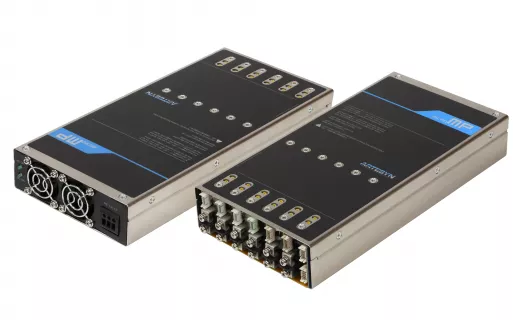

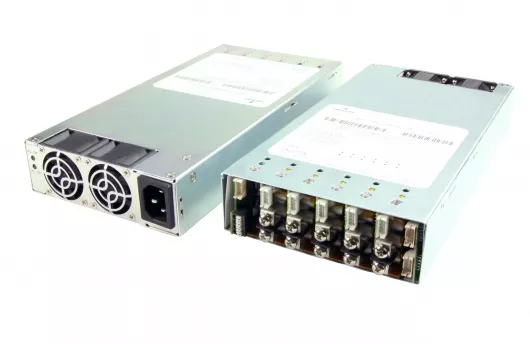

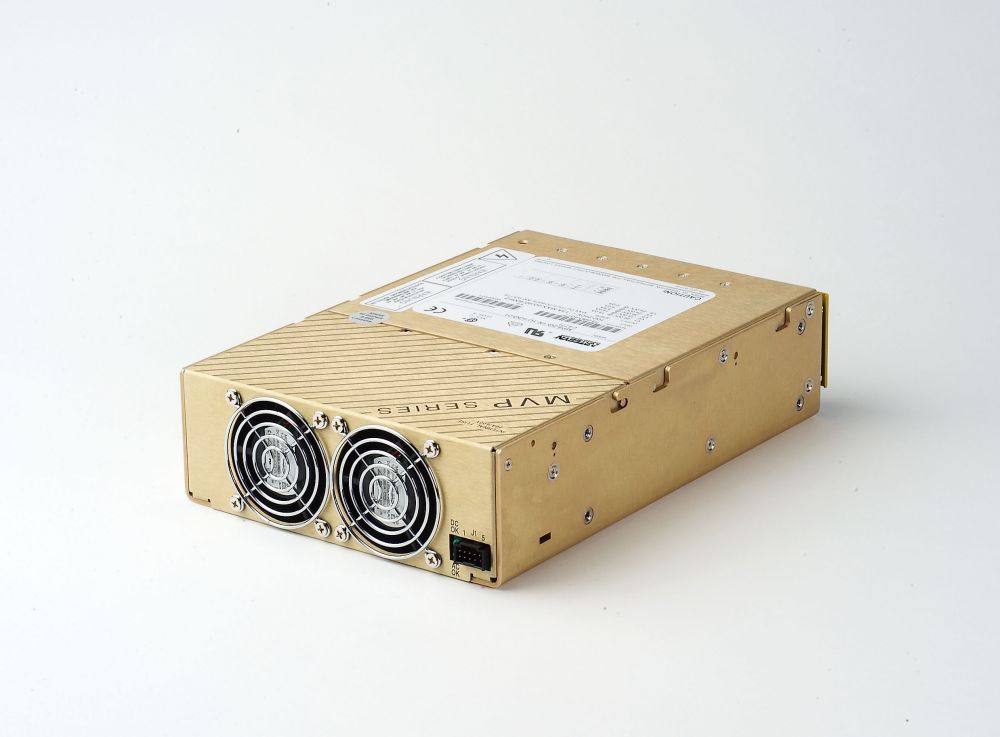

| Model | iMP4 | uMP10 Gen II | iMP8 | Ultimod UX6 | Coolx1000 |
|---|---|---|---|---|---|
| Length (Inches) | 10 | 10.11 | 10 | 10.23 | 10 |
| Width (Inches) | 5 | 5 | 7 | 5 | 6.5 |
| Height (Inches) | 2.5 | 1.57 | 2.5 | 1.59 | 1.54 |
| Output Voltage Range (V) | 1.8 to 300 | 0.9 to 500 | 1.8 to 420 | 1.15 to 348 | 1 to 615 |
| Maximum Output Power (W) | 1100 | 1200 | 1200 | 1200 | 1000 |
| Minimum Input Voltage (V) | 85 | 85 | 85 | 85 | 85 |
| Maximum Input Voltage (V) | 264 | 264 | 264 | 264 | 264 |
