Coolx600
Active
Up to 600 W Configurable, Fanless AC-DC Power Supplies
As the first fanless power supply to market, the revolutionary Excelsys CoolX®600 series is a convection-cooled, configurable AC-DC power supply platform offering comprehensive features and specifications. Boasting 93% efficiency, it delivers up to 600 W from a very compact 215.9 x 114.3 x 39.1 mm package. It's fanless design and lack of base-plate cooling requirements help eliminate acoustic noise, making it a smart choice for scientific, medical, and vibration-sensitive applications.
Two base models are available. The CX06S complies with the IEC60950 (second edition) for industrial applications and IEC62368-1 for audio/video, information and communication technology. The CX06M carries the IEC60601-1 (third edition) and IEC60601-1-2 (fourth edition, EMC) certifications for medical applications. The CoolX600 can be populated with up to four CoolMods, providing up to eight isolated DC outputs that range from 1.0 to 58 V. Outputs can be parallel connected for higher currents and series connected for higher voltages up to 232 VDC.
New CoolX-G option allows customers and safety agencies to carry out the full 4kVAC and 5.6Kvdc primary to secondary isolation test on the complete power supply, exactly as it will be used and installed in their system with no modifications required.
Two base models are available. The CX06S complies with the IEC60950 (second edition) for industrial applications and IEC62368-1 for audio/video, information and communication technology. The CX06M carries the IEC60601-1 (third edition) and IEC60601-1-2 (fourth edition, EMC) certifications for medical applications. The CoolX600 can be populated with up to four CoolMods, providing up to eight isolated DC outputs that range from 1.0 to 58 V. Outputs can be parallel connected for higher currents and series connected for higher voltages up to 232 VDC.
New CoolX-G option allows customers and safety agencies to carry out the full 4kVAC and 5.6Kvdc primary to secondary isolation test on the complete power supply, exactly as it will be used and installed in their system with no modifications required.
Features
- 93% efficiency
- No fans, acoustic noise, or vibrations
- Safety approved to 5000 m altitude
- MTBF > 400,000 hours
- Five-year warranty
Benefits
- Higher power density consumes less physical space
- Intelligent digital power provides maximum flexibility with analog and digital PMBus® control
- Fast deployment with user- and field-configurability
- Confidence in Reliability from the #1 configurable power supply manufacturer
Specifications
| Length (Inches): | 8.5 |
|---|---|
| Width (Inches): | 4.5 |
| Height (Inches): | 1.54 |
| Output Voltage Range (V): | 1 to 232 |
| Maximum Output Power (W): | 600 |
| Minimum Input Voltage (V): | 85 |
| Maximum Input Voltage (V): | 264 |
Technical Documentation
Product Information Documents
New
Guides & Manuals
Updated
Engineering Resources
Updated
Insights & Studies
Updated
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
Compare

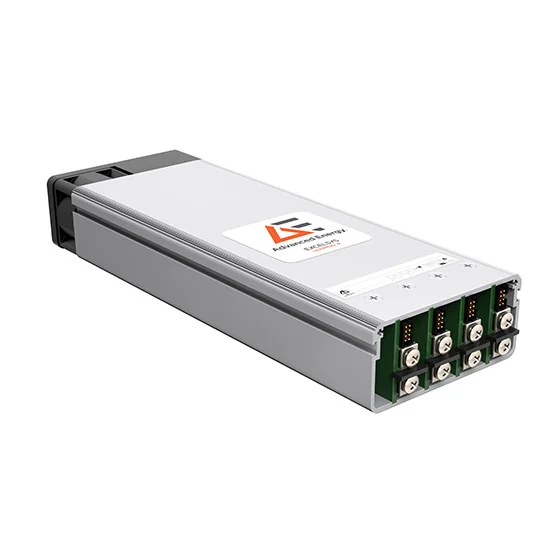

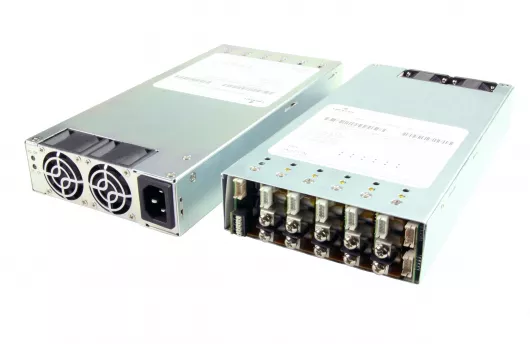

| Model | Coolx600 | uMP04 Gen II | Ultimod UX4 | XFB | Xgen 4-slot |
|---|---|---|---|---|---|
| Length (Inches) | 8.5 | 10.11 | 10.23 | 10.55 | 10.24 |
| Width (Inches) | 4.5 | 3.5 | 3.5 | 5 | 3.5 |
| Height (Inches) | 1.54 | 1.57 | 1.59 | 1.59 | 1.59 |
| Output Voltage Range (V) | 1 to 232 | 0.9 to 240 | 1.15 to 232 | 1 to 232 | 1.15 to 232 |
| Maximum Output Power (W) | 600 | 600 | 600 | 700 | 750 |
| Minimum Input Voltage (V) | 85 | 85 | 85 | 85 | 85 |
| Maximum Input Voltage (V) | 264 | 264 | 264 | 264 | 264 |
