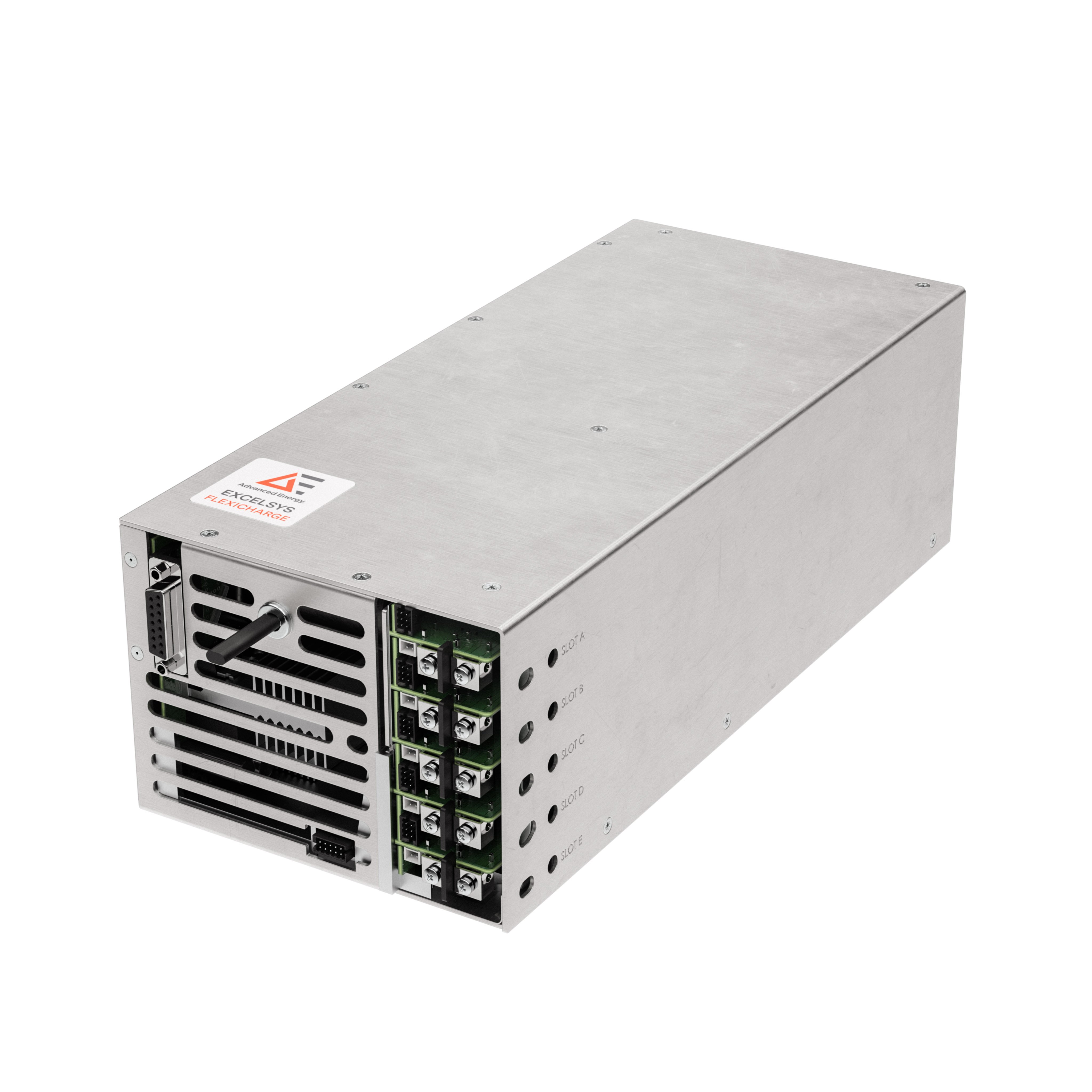

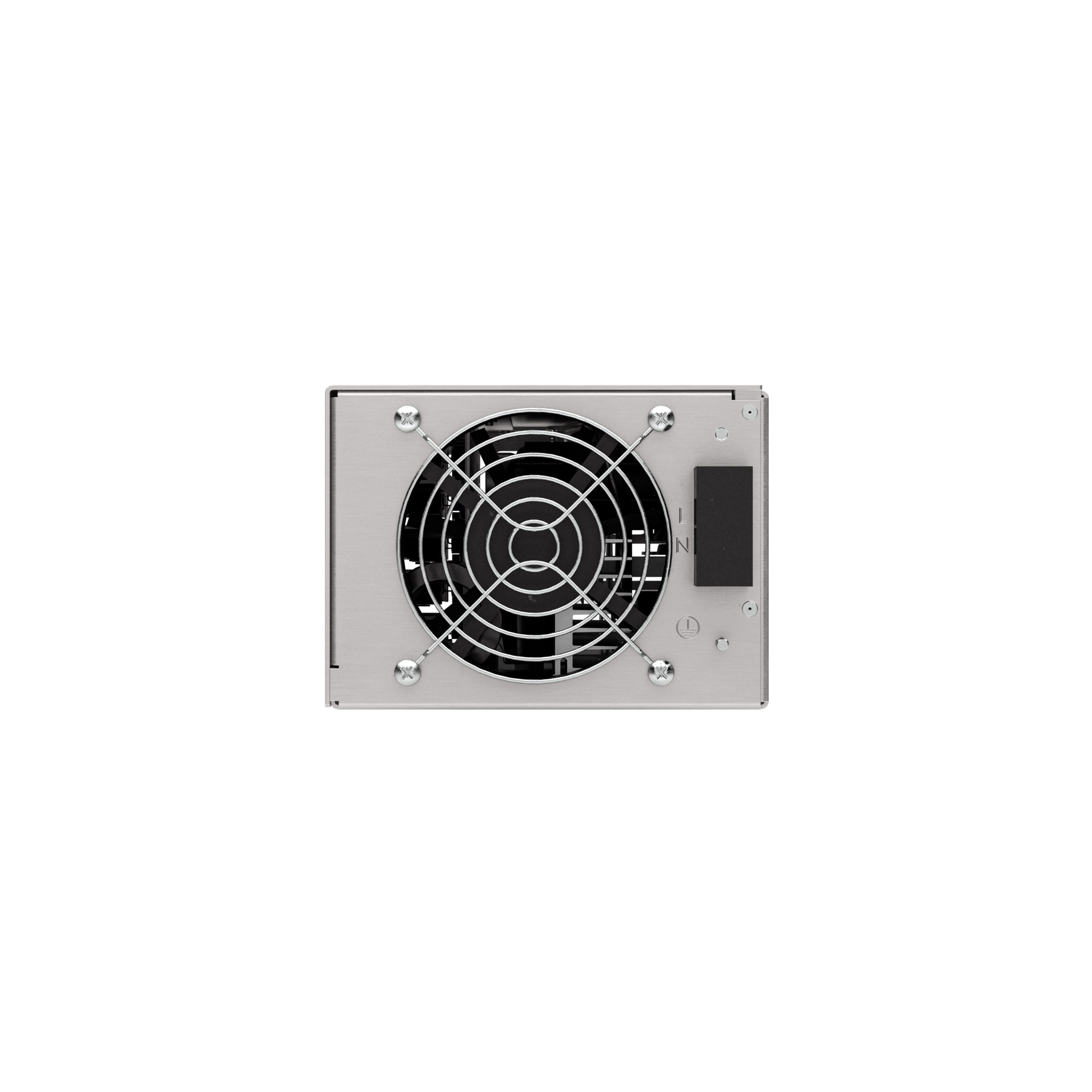

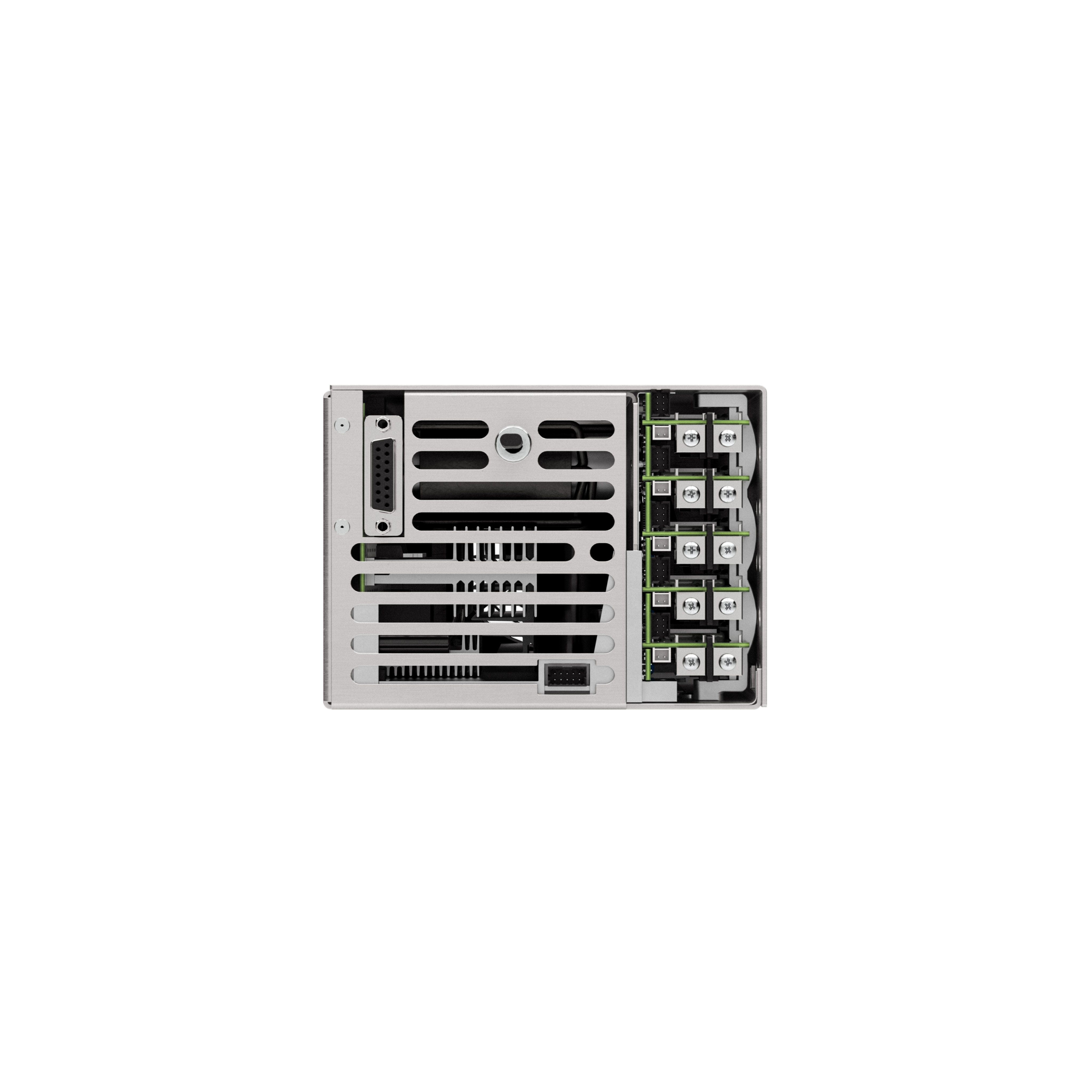

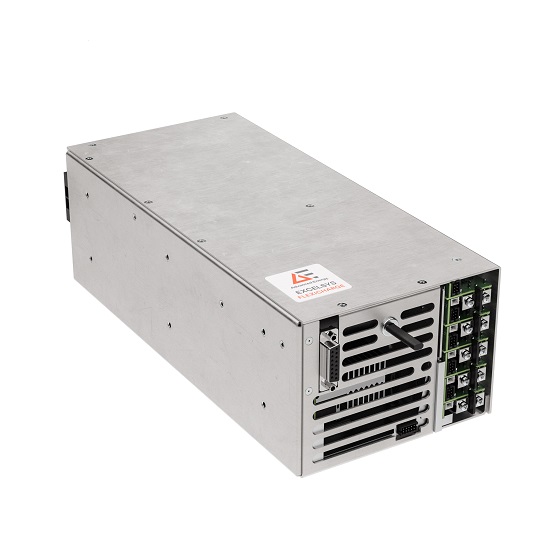

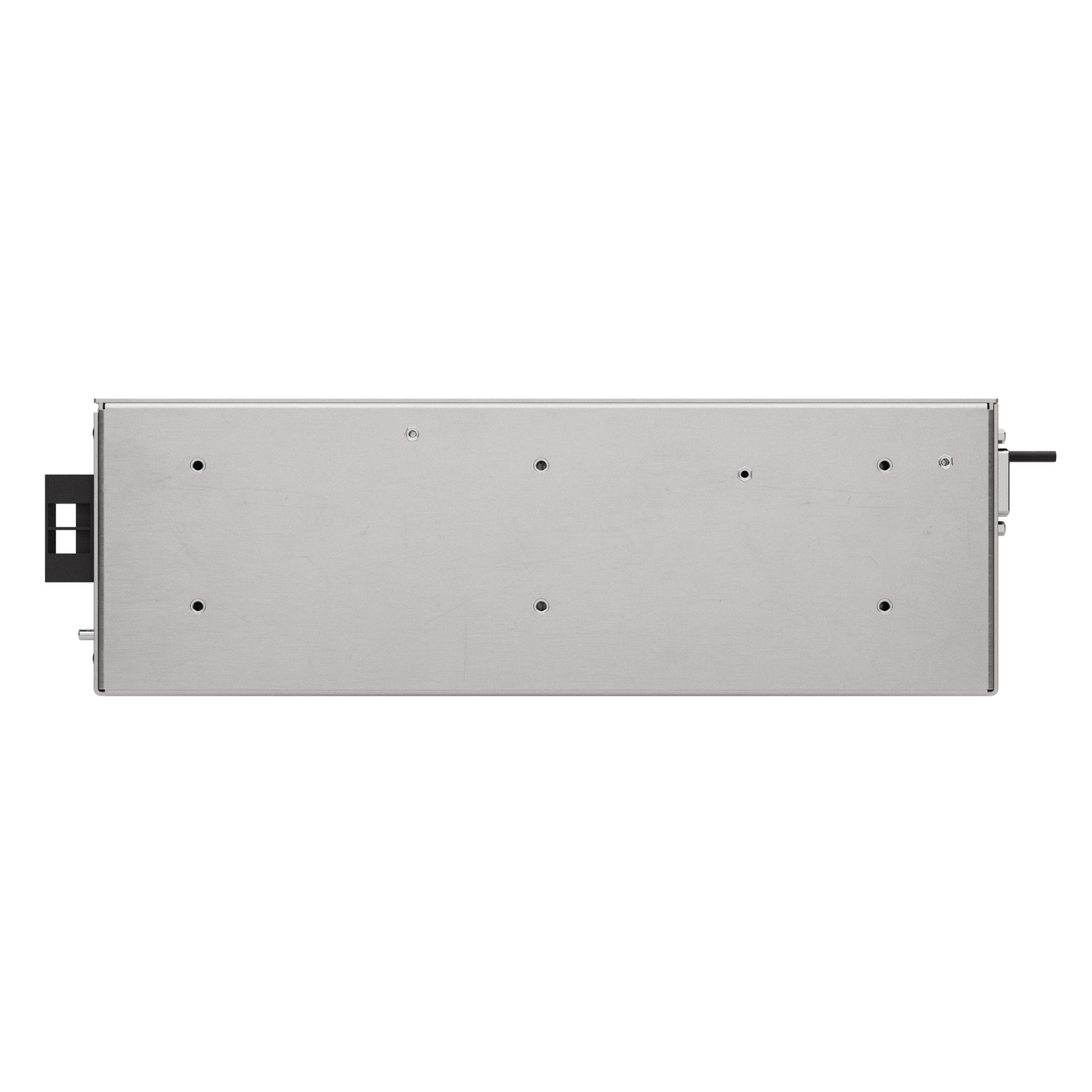

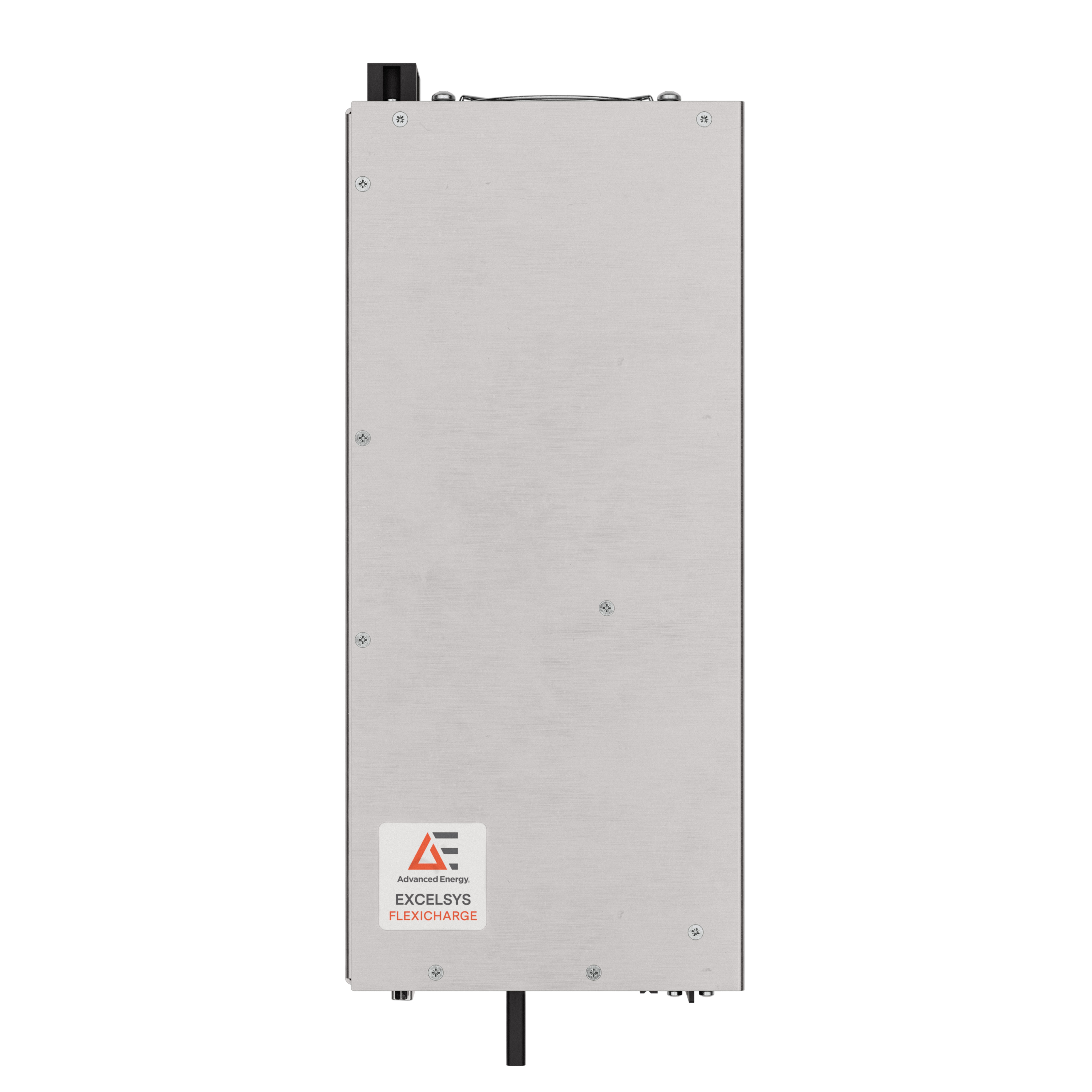

FC1500

Active

High Voltage 1.5 kJ Capacitor Charger and Low Voltage Power Supply in One Package. Up to 2300 W Total Power.

The FC1500 medical capacitor charging power supply, with a built-in configurable AC-DC power supply is designed to provide the system power needs for medical laser applications. The FC1500 can provide both capacitor charging and AC-DC low voltage system power (with added low voltage modules) due to its unique design and intelligent control. This functionality provides extra flexibility to power other systems and applications. The FC1500 has unique built-in intelligent control for capacitor charging, higher charge rates, and power limit control. There is added control and monitoring cabability via the analog and PMBus digital intelligent control system.

The FC1500 improves end users time to market by simplifying EMI and low leakage current approvals needed at end applications. The FC1500 also has IEC60101-1 3rd edition safety agency approval.

Features

  • Capacitor Charger
    • Up to 1500 W and 0 to 1000 VDC.
    • Excellent pulse to pulse repeatability and user power limit control
    • Analog and digital control and monitoring features.
  • AC-DC power supply
    • Up to 800 W.
    • Up to 10 isolated low voltage outputs.
    • Serial and Parallel outputs for higher voltages or current.
    • Analog and digital control and monitoring features.
  • High power density

Benefits

  • Full safety agency approvals
  • High power density - up to 1.5 kW capacitor charger power and up to 800 W low voltage power in one unit
  • Programmable charge rates with power limit control and excellent pulse to pulse repeatability
  • Low current leakage and EMI solution for end users - improved time to market
  • Intelligent Digital Power: Access maximum flexibility with analog and digital control and monitoring

Specifications

Output Power (W): 800 to 1500
Length (Inches): 13.701
Width (Inches): 5.709
Height (Inches): 4.173
Mounting Type: Base/Side Mounting, DIN-Rail Mounting
Minimum Output Current (A): 0
Maximum Output Current (A): 6
Output Voltage Range (V): 0 to 1000
All Specifications Collapse Specifications

Stock Check

Model Number
Efficiency (%) Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Max Output Power (W) Number of Outputs Samples Buy
CMA Active, In Stock
CoolMod 2.5V-6.0V/21A (25A*),must be used with CoolX CoolPac/Flexicharge
93 2.5 6 30 5 150 1 Request Buy
CMB Active, In Stock
CoolMod 6.0V-15.0V/15A (23.3A*) ,must be used with CoolX CoolPac/Flexicharge
93 6 15 23.3 12 280 1 Request Buy
CMC Active, In Stock
CoolMod 15.0V-28.0V/8.33A (12.5A*),must be used with CoolX CoolPac/Flexicharge
93 15 18 12.5 24 300 1 Request Buy
CMD Active, In Stock
CoolMod 28.0V-58.0V/4.17A (6.25A*),must be used with CoolX CoolPac/Flexicharge
93 28 58 6.25 48 300 1 Request Buy
CMD-W01 Active, In Stock
CoolMod Wide Trim, 3.0V-58.0V/4.17A (6.25A*),must be used with CoolX CoolPac/Flexicharge
93 3 58 6.25 48 300 1 Request Buy
CMG Active, In Stock
CoolMod Dual 3.0V-30.0/3A (4A*),must be used with CoolX CoolPac/Flexicharge
93 200 2 Request Buy
CMH Active, In Stock
CoolMod Dual 3.0V-6.0V/6A (10A*), 3.0V-30.0V/3A (4A*),must be used with CoolX CoolPac/Flexicharge
93 180 2 Request Buy
CMK Active, In Stock
CoolMod 175V-205V/0.6A(1.0A*),must be used with CoolX CoolPac/Flexicharge
93 175 205 1 200 205 1 Request Buy
FC15M-1000-00000-N Active, Contact Us
Flexicharge 1500W capacitor charger only
85 250 1000 6 1000 1500 7 Contact Us Buy

Technical Documentation

Compare

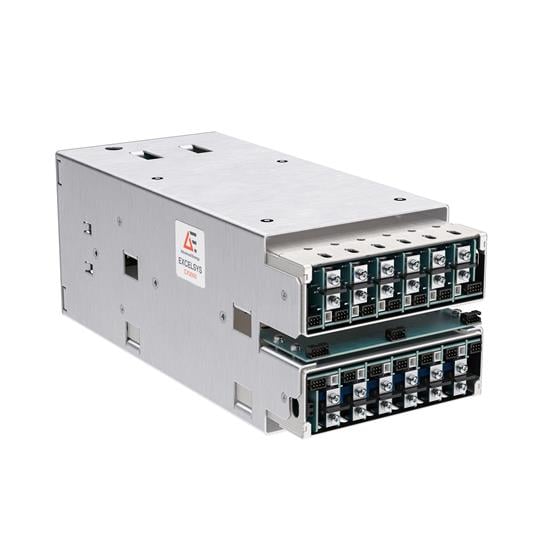

Model FC1500 CoolX3000 CoolX1000
Length (Inches) 13.701 11.8 10
Width (Inches) 5.709 5.2 6.5
Height (Inches) 4.173 4.7 1.539
Output Voltage Range (V) 0 to 1000 1 to 696 1 to 348
Maximum Output Power (W) 1500 3000 1000
