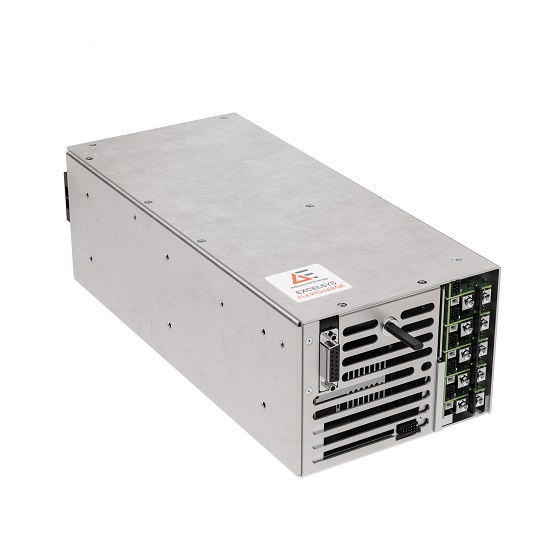

FC1500

Active

High Voltage 1.5 kJ Capacitor Charger and Low Voltage Power Supply in One Package. Up to 2300 W Total Power.

The FC1500 medical capacitor charging power supply, with a built-in configurable AC-DC power supply is designed to provide the system power needs for medical laser applications. The FC1500 can provide both capacitor charging and AC-DC low voltage system power (with added low voltage modules) due to its unique design and intelligent control. This functionality provides extra flexibility to power other systems and applications. The FC1500 has unique built-in intelligent control for capacitor charging, higher charge rates, and power limit control. There is added control and monitoring cabability via the analog and PMBus digital intelligent control system.

The FC1500 improves end users time to market by simplifying EMI and low leakage current approvals needed at end applications. The FC1500 also has IEC60101-1 3rd edition safety agency approval.

Eigenschaften

  • Capacitor Charger
    • Up to 1500 W and 0 to 1000 VDC.
    • Excellent pulse to pulse repeatability and user power limit control
    • Analog and digital control and monitoring features.
  • AC-DC power supply
    • Up to 800 W.
    • Up to 10 isolated low voltage outputs.
    • Serial and Parallel outputs for higher voltages or current.
    • Analog and digital control and monitoring features.
  • High power density

Vorteile

  • Full safety agency approvals
  • High power density - up to 1.5 kW capacitor charger power and up to 800 W low voltage power in one unit
  • Programmable charge rates with power limit control and excellent pulse to pulse repeatability
  • Low current leakage and EMI solution for end users - improved time to market
  • Intelligent Digital Power: Access maximum flexibility with analog and digital control and monitoring

Spezifikationen

Ausgangsleistung (W): 800 to 1500
Länge (Zoll): 13.701
Breite (Zoll): 5.709
Höhe (Zoll): 4.173
Montage Typ: Base/Side Mounting, DIN-Rail Mounting
Minimaler Ausgangsstrom (A): 0
Maximaler Ausgangsstrom (A): 6
Ausgangsspannungsbereich (V): 0 to 1000
Alle Spezifikationen Spezifikationen zusammenklappen

Lagerbestand prüfen

Modellnummer
Wirkungsgrad (%) Min. Spannung (V) Max. Spannung (V) Stromstärke (A) Nennspannung (V) Maximale Ausgangsleistung (W) Anzahl der Ausgänge Proben Kaufen
CMA Aktiv, Vorrätig
CoolMod 2.5V-6.0V/21A (25A*),must be used with CoolX CoolPac/Flexicharge
93 2.5 6 30 5 150 1 Anfrage Kaufen
CMB Aktiv, Vorrätig
CoolMod 6.0V-15.0V/15A (23.3A*) ,must be used with CoolX CoolPac/Flexicharge
93 6 15 23.3 12 280 1 Anfrage Kaufen
CMC Aktiv, Vorrätig
CoolMod 15.0V-28.0V/8.33A (12.5A*),must be used with CoolX CoolPac/Flexicharge
93 15 18 12.5 24 300 1 Anfrage Kaufen
CMD Aktiv, Vorrätig
CoolMod 28.0V-58.0V/4.17A (6.25A*),must be used with CoolX CoolPac/Flexicharge
93 28 58 6.25 48 300 1 Anfrage Kaufen
CMD-W01 Aktiv, Vorrätig
CoolMod Wide Trim, 3.0V-58.0V/4.17A (6.25A*),must be used with CoolX CoolPac/Flexicharge
93 3 58 6.25 48 300 1 Anfrage Kaufen
CMG Aktiv, Vorrätig
CoolMod Dual 3.0V-30.0/3A (4A*),must be used with CoolX CoolPac/Flexicharge
93 200 2 Anfrage Kaufen
CMH Aktiv, Vorrätig
CoolMod Dual 3.0V-6.0V/6A (10A*), 3.0V-30.0V/3A (4A*),must be used with CoolX CoolPac/Flexicharge
93 180 2 Anfrage Kaufen
CMK Aktiv, Vorrätig
CoolMod 175V-205V/0.6A(1.0A*),must be used with CoolX CoolPac/Flexicharge
93 175 205 1 200 205 1 Anfrage Kaufen
FC15M-1000-00000-N Active, Kontakt
Flexicharge 1500W capacitor charger only
85 250 1000 6 1000 1500 7 Kontakt Kaufen

Technische Dokumentation

Vergleichen Sie

Model FC1500 CoolX3000 CoolX1000
Länge (Zoll) 13.701 11.8 10
Breite (Zoll) 5.709 5.2 6.5
Höhe (Zoll) 4.173 4.7 1.539
Ausgangsspannungsbereich (V) 0 to 1000 1 to 696 1 to 348
Maximale Ausgangsleistung (W) 1500 3000 1000
