tegam ®

Datalogging Thermometers

Active

Superior accuracy and 1000-Hour battery life

Advanced Energy's TEGAM 900 Series data logging thermometers are instruments you can rely on every day with confidence. The dataogging feature of the 931B and 932B thermometers allows users to accurately record and store up to 1000 time-stamped measurements at the touch of a button, review them on the device, and transfer them, using Bluetooth® low energy technology, via a mobile device or PC, to local or cloud storage at their convenience.



Features

  • Datalogging Thermometer Accuracy: ±(0.04% rdg + 0.3 °C)
  • Range : -418 °F to 3308 °F
  • Resolution : 0.1/1 °C/°F/K
  • 1000-Hour Battery Life
  • Input Type : K, J, T , E, B, N, R & S
  • Probe Offset
  • Displays Real-Time Statistical Data
  • Data Logging and Wireless Transmission Capability
  • Creative Ergonomic Design
  • Three-Year Warranty
  • Two-Year Calibration Guarantee
  • Optional ISO 17025 Calibration Certificate Available
  • CE, Complies with 47 CFR Part 15 of the FCC rules, Class B
  • Assembled in the USA

Benefits

  • Capture temperature measurements automatically, eliminating recording errors
  • Bluetooth LE and iOS/Android app provide seamless connectivity with virtually any software
  • High-performance and probe offset function assure you are accurately monitoring your processes
  • Use one thermometer to support eight different thermocouple types
  • Ultra-long battery life means your thermometer is always ready; educed operating costs over product lifecycle
  • Easy one-hand operation and convenience
  • 2-year calibration cycle means less downtime and lower costs

Specifications

Accuracy: 0.0004
Connector Type: Mini-TC
Intrinsically Safe: No
Measurement Range: -250 to 1767 ⁰C
No. of Inputs: 1, 2
Operating Temperature (°C): -20 to 55 ⁰C
Probes Supported: J,K,T,E,B,N,R,S
Resolution (°C): 0.1⁰ C/F/K
All Specifications Collapse Specifications

Stock Check

Model Number
Connector Type No. of Inputs Probes Supported Temp. Scale Buy
1000078 Active
Data Thermometer Kit
Mini-TC 1 J,K,T,E,B,N,R,S C, F, K Buy

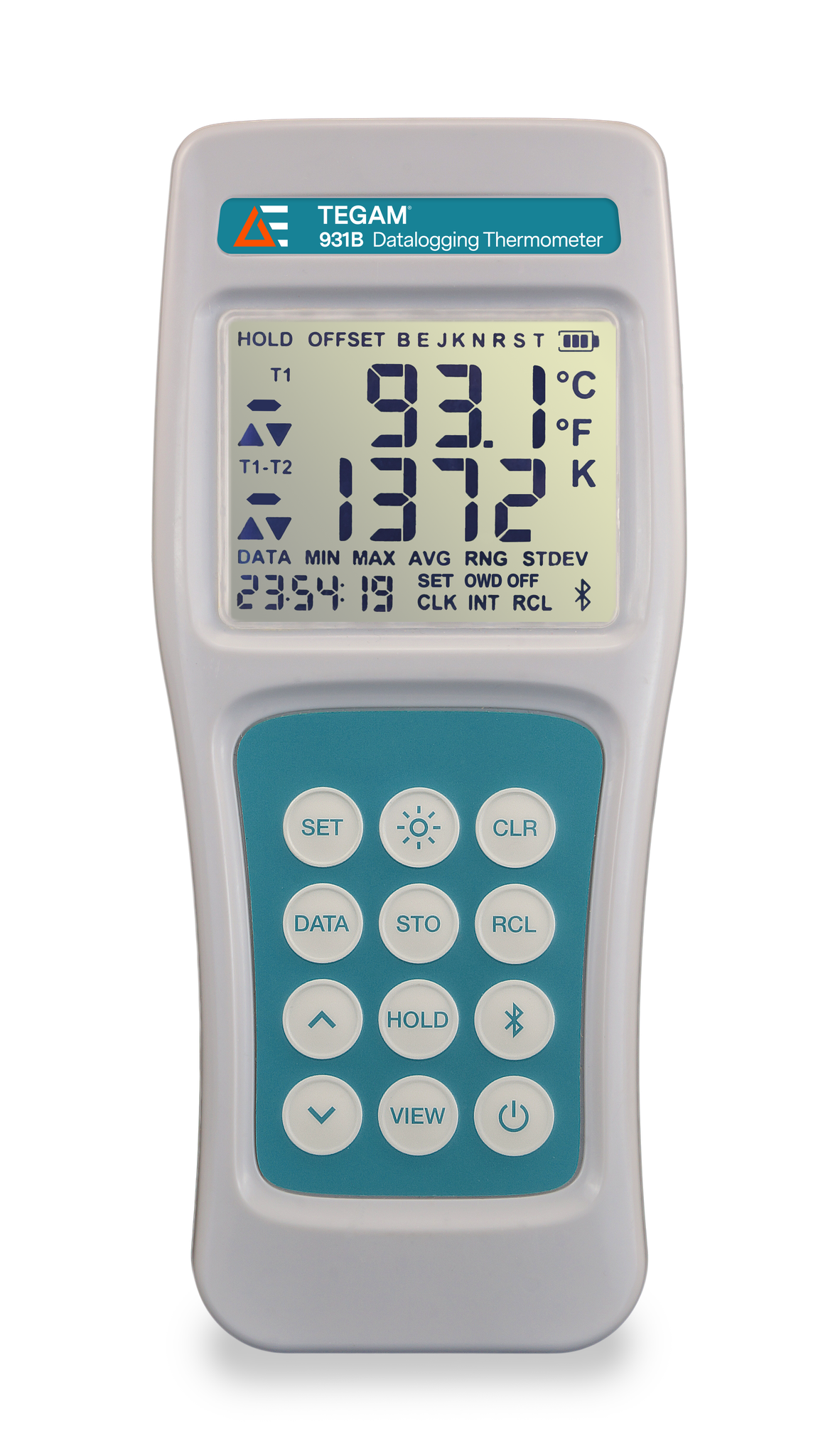

931B Active
Data Thermometer, Bluetooth® Wireless, Single Input °C &°F (K, J , T, E, B, N, R & S)
Mini-TC 1 J,K,T,E,B,N,R,S C, F, K Buy
932B Active
Data Thermometer, Bluetooth® Wireless, Dual Input °C &°F (K, J , T, E, B, N, R & S)
Mini-TC 2 J,K,T,E,B,N,R,S C, F, K Buy
OPT-900-17025 Active
17025 Calibration Option 900 Thermometer Series
Buy
SDK-93X Active
Software Developers Kit for 931B, 932B
Buy

Recommended Probes (Note, thermometers do not include temperature probes.)

Accessories Stock Check

911-910
Active
Tilt Stand / Magnetic Hanger for 900 Series (Factory Installed)

Tilt Stand, Magnet, Hanger is an optional accessory for the TEGAM 911A, 912A, 931A or 932A handheld thermometers. It is Factory Installed with purchase of 900 series thermometer. The hanger attaches to the back of the handheld thermometer so that professionals may free their hands while taking temperature measurements.

Technical Specifications
Purchased with a thermocouple thermometer and IS installed prior to shipping
Attaches easily to the back of TEGAM’s 911A, 912A, 931A or 932A
Allows professionals to free their hands while taking temperature measurements
Versatile

911-911
Active
Foam-filled Hard Carry Case for 900 Series

Foam-filled hard carry case is an optional accessory for the TEGAM 911B, 912B, 931B or 932B handheld digital thermometers and the TEGAM 940A or 945A handheld temperature calibrators.

The case has a place for your handheld instrument, probes, and additional batteries.

Technical Specifications
Durable
Custom fit
Protects Equipment

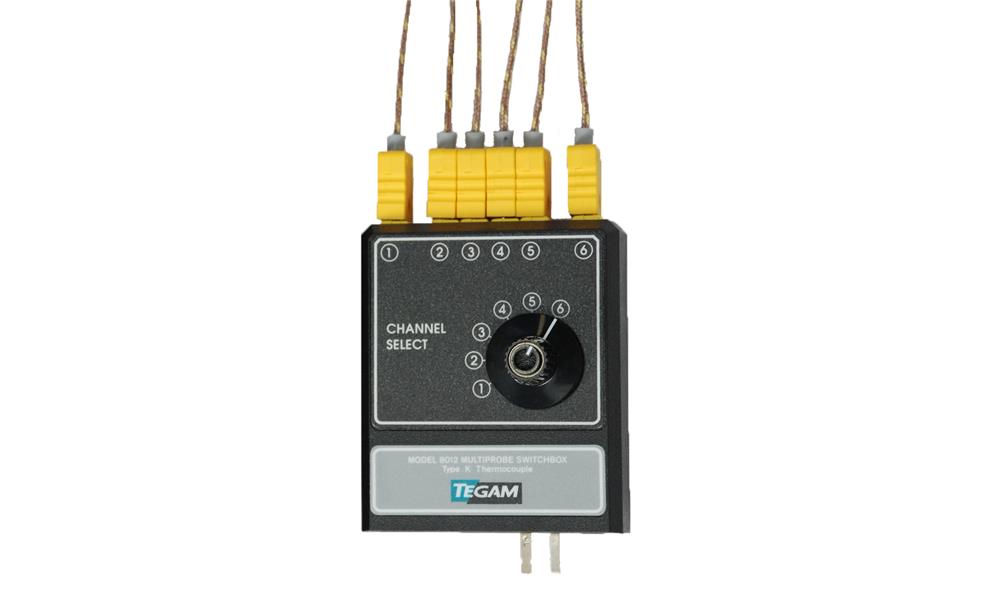

8012
Active
6 Input Switch Box T/C Type K

TEGAMS’s 80XX series switchbox enables you to read six probes in any sequence on your K, J or T thermometer. Compatible with virtually every bench top or handheld thermometer, TEGAM’s multi-probe switch boxes plug directly into any single or multiple input thermometer. TEGAM switch boxes can also interface a single thermometer or other readout device to up to six different thermocouple probes. With an optional extention cable the switchbox becomes a bench unit complete with rubber feet and built-in tilt feature. You can connect two or more switchboxes together for quick reading of multiple-probe temperatures.

Model 8012 – Type K Thermocouple
Model 8022 – Type J Thermocouple
Model 8052 – Type T Thermocouple

APPLICATIONS: Multi-thermometer calibration, multi-thermocouple monitoring, multiple switch boxes can be interfaced with each other to expand input or output capabilities.

Technical Specifications
Enables to read six probes in any sequence
Compatible with virtually every bench and handheld digital thermometer.
One year warranty
Used with models 911B, 912B, 931B, 932B, 840A, 845, 850, 855, 874C, 874F
Made in USA

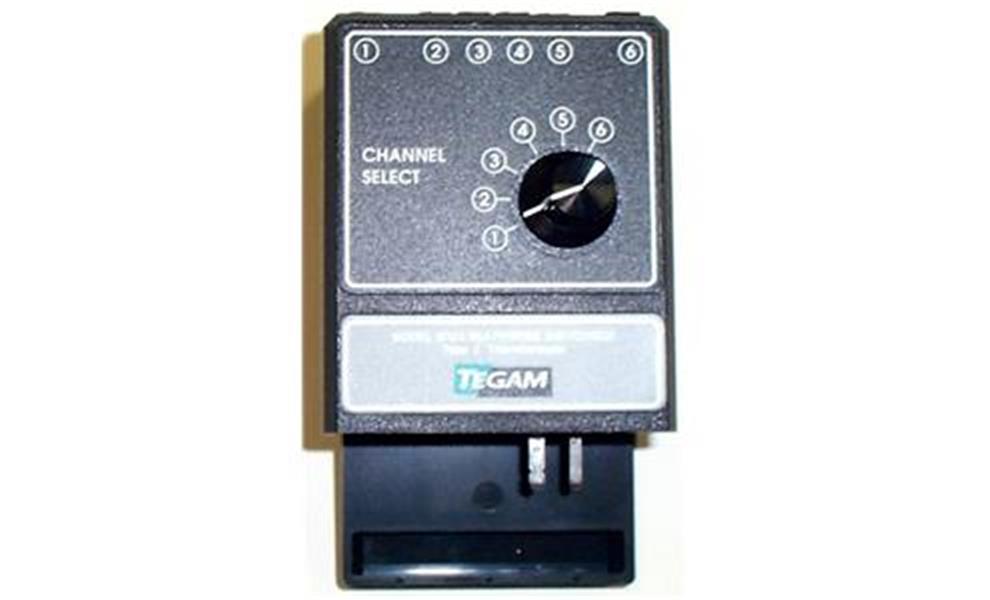

8022
Active
6 Input Switch Box T/C Type J

TEGAMS’s 80XX series switchbox enables you to read six probes in any sequence on your K, J or T thermometer. Compatible with virtually every bench top or handheld thermometer, TEGAM’s multi-probe switch boxes plug directly into any single or multiple input thermometer. TEGAM switch boxes can also interface a single thermometer or other readout device to up to six different thermocouple probes. With an optional extention cable the switchbox becomes a bench unit complete with rubber feet and built-in tilt feature. You can connect two or more switchboxes together for quick reading of multiple-probe temperatures.

Model 8012 – Type K Thermocouple
Model 8022 – Type J Thermocouple
Model 8052 – Type T Thermocouple

APPLICATIONS: Multi-thermometer calibration, multi-thermocouple monitoring, multiple switch boxes can be interfaced with each other to expand input or output capabilities.

Technical Specifications
Enables to read six probes in any sequence
Compatible with virtually every bench and handheld digital thermometer.
One year warranty
Used with models 911B, 912B, 931A, 932A, 840A, 845, 850, 855
Made in USA

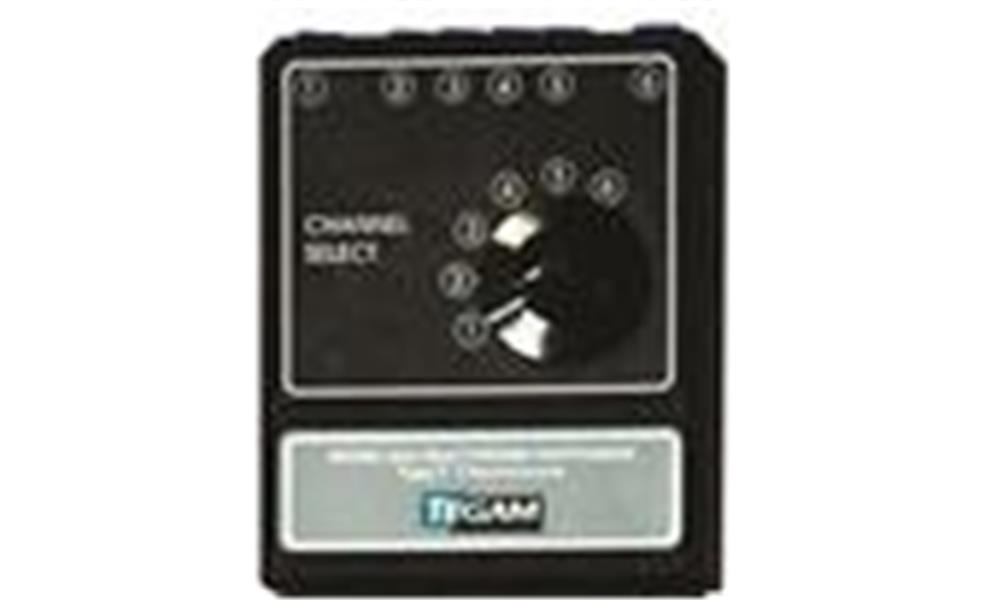

8052
Active
6 Input Switch Box T/C Type T

TEGAMS’s 80XX series switchbox enables you to read six probes in any sequence on your K, J or T thermometer. Compatible with virtually every bench top or handheld thermometer, TEGAM’s multi-probe switch boxes plug directly into any single or multiple input thermometer. TEGAM switch boxes can also interface a single thermometer or other readout device to up to six different thermocouple probes. With an optional extention cable the switchbox becomes a bench unit complete with rubber feet and built-in tilt feature. You can connect two or more switchboxes together for quick reading of multiple-probe temperatures.

Model 8012 – Type K Thermocouple
Model 8022 – Type J Thermocouple
Model 8052 – Type T Thermocouple

APPLICATIONS: Multi-thermometer calibration, multi-thermocouple monitoring, multiple switch boxes can be interfaced with each other to expand input or output capabilities.

Technical Specifications
Enables to read six probes in any sequence
Compatible with virtually every bench and handheld digital thermometer.
One year warranty
Used with models 911B, 912B, 931A, 932A, 840A, 845, 850, 855, 875C, 875F
Made in USA

911-912
Active
Tilt Stand / Magnetic Hanger for 900 Series (User Installed)

Tilt Stand, Magnet, Hanger is an optional accessory for the TEGAM 911B, 912B, 931B or 932B handheld thermometers.  The hanger attaches to the back of the handheld thermometer so that professionals may free free their hands while taking temperature measurements.

Technical Specifications
Product is individually packed and is NOT installed on a thermocouple thermometer
Attaches easily to the back of TEGAM’s 911B, 912B, 931B or 932B
Allows professionals to free their hands while taking temperature measurements
Versatile

ISO 17025 Calibration Option, 900 Series Thermometers

ISO 17025 is an International Standard and grew out of ISO Guide 25. In 2002 ISO started assessing all calibration labs to 17025. It has been updated several times since then, cleaning ambiguities, strengthening traceability requirements and expanding its overall coverage of processes. The premise of ISO 17025 is that traceability and a fully developed uncertainty statement are required to establish confidence in the calibration. Traceability is required to SI Standards (international standards based on the new SI units of measure). ISO 17025 also requires a full total uncertainty statement for the laboratory to prove the accuracy of the calibration. Its procedures assess the training and competencies of the lab personnel and the calibration procedures. ISO 17025 also requires accreditation by an internationally recognized authority.
