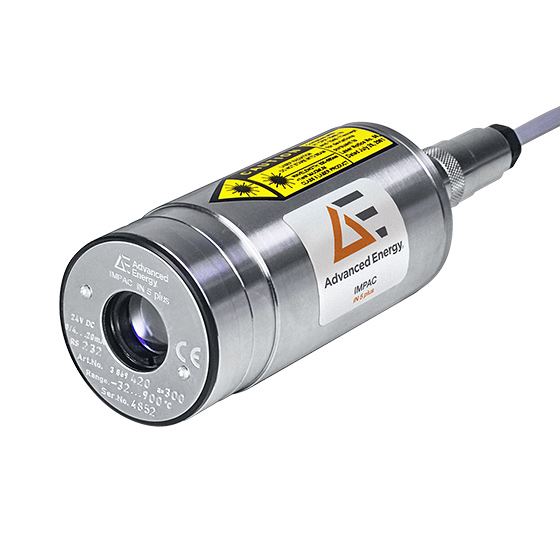

Impac IN 5 plus Series Pyrometers

Active

Digital pyrometer with fixed optics for non-contact temperature measurement of non-metallic surfaces or painted, coated or anodized metals between -32 and 900 °C.

The Impac IN 5 plus series infrared thermometers are specially designed for non-contact temperature measurements on non-metallic surfaces and also on painted, coated or anodized metals. These instruments are digital pyrometers equipped with a digital interface, enabling temperature indication and storage on a PC. A temperature sub range can be configured and the instrument parameters can be adjusted remotely. The version IN 5-L plus is equipped with optics with better fields of view for the measurement of small objects. The high-speed version IN 5-H plus has a shorter exposure time of only 10 ms and is suited for fast measuring processes.

Features

  • Digital interfaces RS232 or RS485 and laser targeting light sighting system
  • High accuracy due to digital linearization of the ouput
  • Small spot sizes, minimum 1 mm
  • Various optics available
  • Adjustable exposure time
  • Compact housing

Benefits

  • Operate in rough industrial environments
  • Digitally store and process temperature data
  • Adjust emissivity and exposure time directly in the instrument
  • Optimally match instruments to the right applications
  • Remotely adjust instrument parameters and configure a temperature subrange

Specifications

Operational temperature range (°C): -32 to 900 °C
Spectral Range (µm): 8 to 14
Measurement Uncertainty (°C): From 0.6% oR or 2 °C
Optics (mm): Fixed optics
FOV (minimum spot size) (mmm): Min. 100:1 (1)
Alignment / Sighting: Laser targeting
Interface / Output (mA): 0/4 to 20 mA
Exposure Time t90 (ms): 80 ms
All Specifications Collapse Specifications

Stock Check

Model Number
Output Type Optics Alignment Response Time Min. Temperature (°C) Max. Temperature (°C) Applications Samples Buy
3 869 400 Active, Contact Us 0/4 to 20 mA / RS232 Fixed Laser Target 80 -32 900 Non-Metal Surfaces Contact Us Buy
3 869 410 Active, Contact Us 0/4 to 20 mA / RS485 Fixed Laser Target 80 -32 900 Non-Metal Surfaces Contact Us Buy
3 869 420 Active, Contact Us 0/4 to 20 mA / RS232 Fixed Laser Target 80 -32 900 Non-Metal Surfaces Contact Us Buy
3 869 430 Active, Contact Us 0/4 to 20 mA / RS485 Fixed Laser Target 80 -32 900 Non-Metal Surfaces Contact Us Buy
3 869 440 Active, Contact Us 0/4 to 20 mA / RS232 Fixed Laser Target 80 -32 900 Non-Metal Surfaces Contact Us Buy
3 869 450 Active, Contact Us 0/4 to 20 mA / RS485 Fixed Laser Target 80 -32 900 Non-Metal Surfaces Contact Us Buy
3 869 850 Active, Contact Us 0/4 to 20 mA / RS232 Fixed Laser Target 80 -32 900 Non-Metal Surfaces Contact Us Buy
3 871 200 Active, Contact Us 0/4 to 20 mA / RS232 Fixed Laser Target 10 -32 900 Non-Metal Surfaces Contact Us Buy
3 871 210 Active, Contact Us 0/4 to 20 mA / RS485 Fixed Laser Target 10 -32 900 Non-Metal Surfaces Contact Us Buy
3 871 220 Active, Contact Us 0/4 to 20 mA / RS232 Fixed Laser Target 10 -32 900 Non-Metal Surfaces Contact Us Buy
3 871 230 Active, Contact Us 0/4 to 20 mA / RS485 Fixed Laser Target 10 -32 900 Non-Metal Surfaces Contact Us Buy
3 871 240 Active, Contact Us 0/4 to 20 mA / RS232 Fixed Laser Target 10 -32 900 Non-Metal Surfaces Contact Us Buy
3 871 250 Active, Contact Us 0/4 to 20 mA / RS485 Fixed Laser Target 10 -32 900 Non-Metal Surfaces Contact Us Buy
3 871 600 Active, Contact Us 0/4 to 20 mA / RS232 Fixed Laser Target 180 0 900 Non-Metal Surfaces Contact Us Buy
3 871 610 Active, Contact Us 0/4 to 20 mA / RS485 Fixed Laser Target 180 0 900 Non-Metal Surfaces Contact Us Buy
3 871 620 Active, Contact Us 0/4 to 20 mA / RS232 Fixed Laser Target 180 0 900 Non-Metal Surfaces Contact Us Buy
3 871 630 Active, Contact Us 0/4 to 20 mA / RS485 Fixed Laser Target 180 0 900 Non-Metal Surfaces Contact Us Buy
3 871 640 Active, Contact Us 0/4 to 20 mA / RS232 Fixed Laser Target 180 0 900 Non-Metal Surfaces Contact Us Buy
3 871 650 Active, Contact Us 0/4 to 20 mA / RS485 Fixed Laser Target 180 0 900 Non-Metal Surfaces Contact Us Buy

Accessories

Impac Other Electrical

Other Electrical Accessories Compatible With Impac Pyrometers

Impac DA 4000

Digital LED Display With 2-Wire Supply Voltage

Impac Mechanical Accessories

Other Mechanical Accessories Compatible With Impac Pyrometers

Impac MultiTempLogger

Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software

Impac Power Supplies

Impac Pyrometer DC and AC Power Supply Units

Impac PI 6000 Controller

Extremely Fast, Digital, and Programmable PID Controller

Impac DA 6000

Digital LED Display With 2-Wire Supply Voltage

Impac DA 6000-N

LED digital display with RS232 or RS485 interface for digital pyrometers

Compare

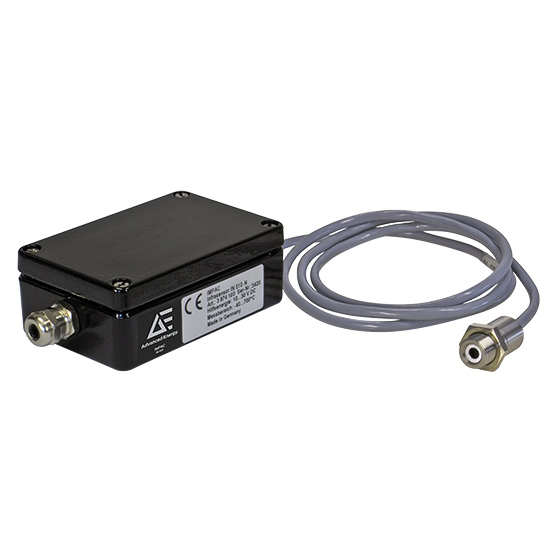

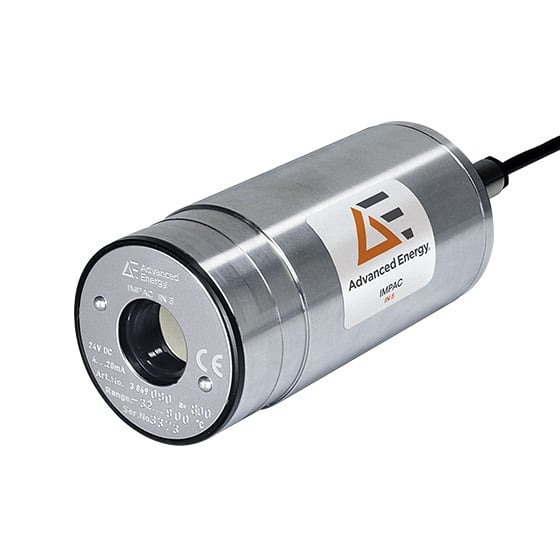

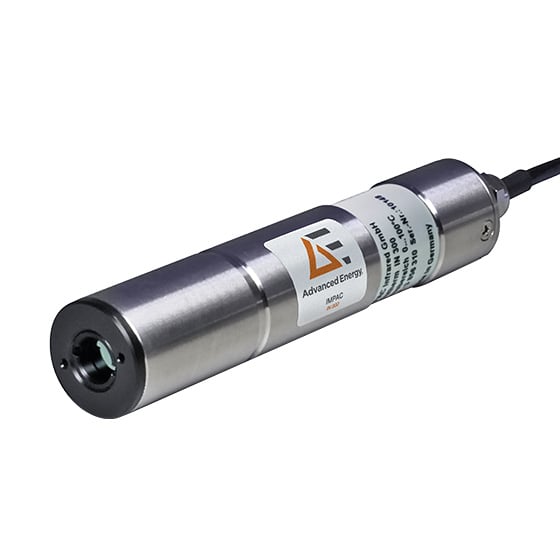

Model Impac IN 5 plus Series Impac 300 Series Impac 500 Series Impac 600 Series Impac IN 5 Series
Spectral Range (µm) 8 to 14 8 to 14 8 to 14 0.7 and 14 (5 ranges in between) 8 to 14
Measurement Uncertainty (°C) From 0.6% oR or 2 °C 1.5% of measuring range in °C From 0.8% oR or 1 °C From 0.5% oR or 0.8 °C From 0.6% oR or 1 °C
Optics (mm) Fixed optics Fixed optics Fixed optics Fixed optics Fixed optics
FOV (minimum spot size) (mmm) Min. 100:1 (1) Min. 15:1 2:1 or 10:1 Min. 70:1 Min 50:1 (2)
Alignment / Sighting Laser targeting None None None
Interface / Output (mA) 0/4 to 20 mA 0/4 to 20 mA 0/4 to 20 mA 0/4 to 20 mA 4 to 20 mA
Exposure Time t90 (ms) 80 ms 300 ms 180 ms Multiple specifications. Please refer to Datasheet. 80 ms
