Impac IS 140 & IGA 140 Series
Fast digital pyrometer with focusable optics and integrated display for measurements on metals, ceramics, graphite, etc. Temperature ranges between 220 and 3500 °C.

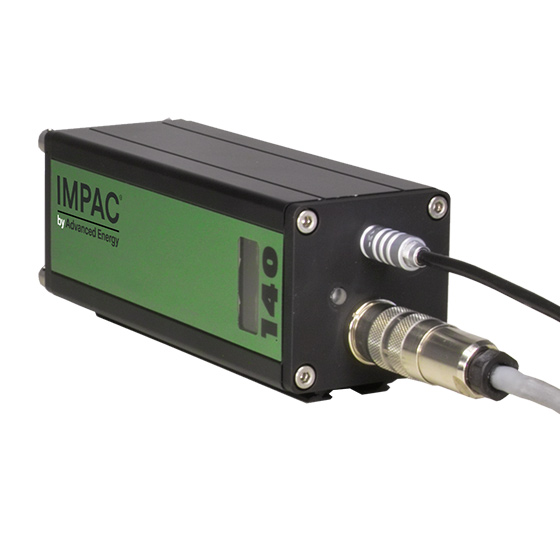

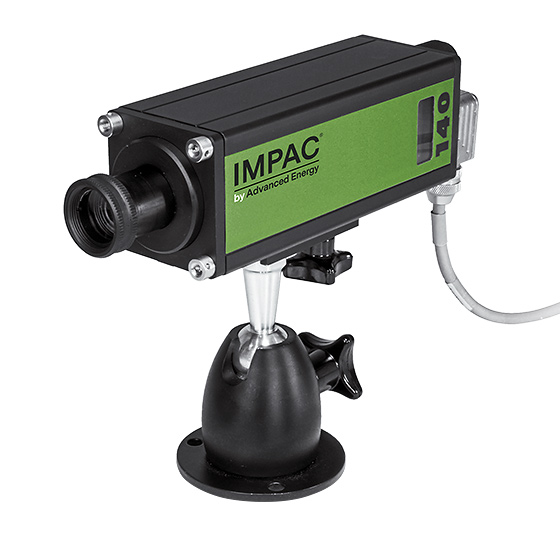

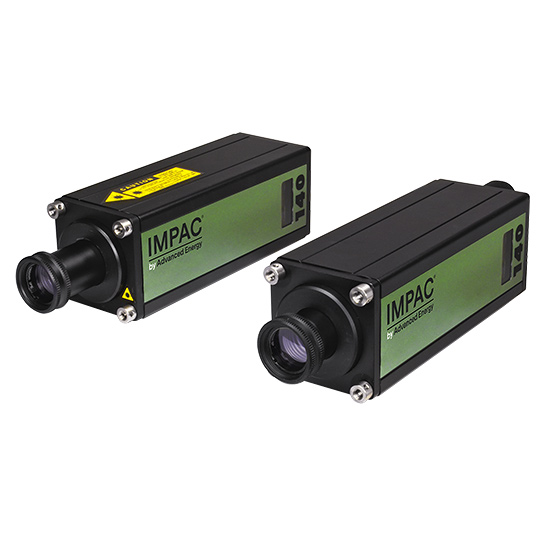

The Impac® IS 140 and IGA 140 series presents a range of digital, highly precise pyrometers, designed for non-contact temperature measurements on a diverse range of materials such as metals, ceramics, and graphite. These instruments can measure temperatures ranging from 220 to 3500 °C and offer three different focusable optics, each yielding extremely small spot sizes.
For enhanced communication, these pyrometers come equipped with switchable RS232 and RS485 serial interfaces. This allows users to read temperatures and adjust pyrometer parameters through the provided InfraWin software. The series offers -PB types equipped with a Profibus-DP interface and -PN types fitted with a Profinet interface, simplifying their integration into existing systems. In the standard delivery, the GSD file for Profibus and GSDML for Profinet offer a selection from five different module configurations to cater to a spectrum of requirements.
Features
- Standard switchable digital RS232/RS485 interface with optional Profinet, or Profibus interfaces
- Adjustable settings via the instrument, integrated key pad, or via the interface

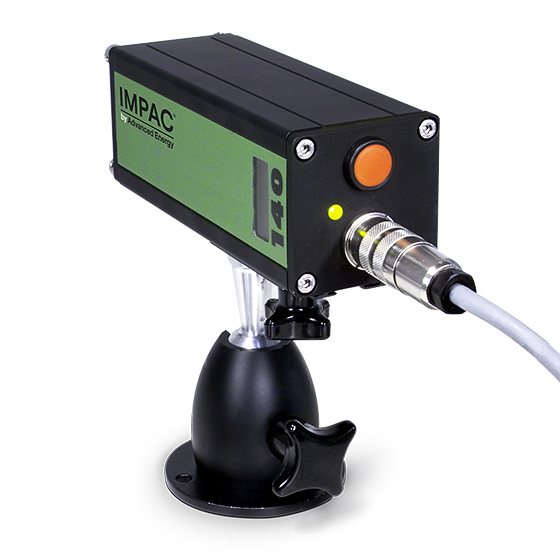

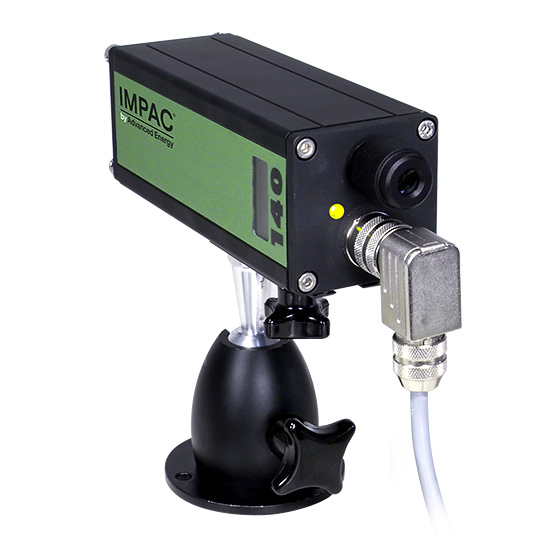

- Laser-targeting light or through lens viewfinder
- Built-in digital display with temperature indication
Benefits
- Achieve extremely high accurate and fast temperature measurement
- Connect to existing Profibus and Profinet systems with optional interfaces
- Set any temperature subrange within the full temperature range
Specifications
| Operational temperature range (°C): | 220 and 3500 °C (18 ranges in between) |
|---|---|
| Spectral Range (µm): | 0.55 and 1.8 (4 ranges in between) |
| Measurement Uncertainty (°C): | From 03% oR + 1 °C |
| Optics (mm): | Focusable optics |
| FOV (minimum spot size) (mmm): | Min. 380:1 (0.35) |
| Alignment / Sighting: | Laser targeting or through lens sighting |
| Interface / Output (mA): | 0/4 to 20 mA |
| Exposure Time t90 (ms): | 1 ms |
Technical Documentation
Accessories
Impac InfraWin Software
Pyrometer Measurement and Evaluation Software
Impac Other Electrical
Other Electrical Accessories Compatible With Impac Pyrometers
Impac DA 4000
Digital LED Display With 2-Wire Supply Voltage
Impac Mechanical Accessories
Other Mechanical Accessories Compatible With Impac Pyrometers
Impac MultiTempLogger
Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software
Impac Temperature Linescan Systems
Rotation/Scanning Attachments and Built-in Scanner
Impac Power Supplies
Impac Pyrometer DC and AC Power Supply Units
Impac PI 6000 Controller
Extremely Fast, Digital, and Programmable PID Controller
Impac DA 6000-N
LED digital display with RS232 or RS485 interface for digital pyrometers
Impac DA 6000
Digital LED Display With 2-Wire Supply Voltage
Compare

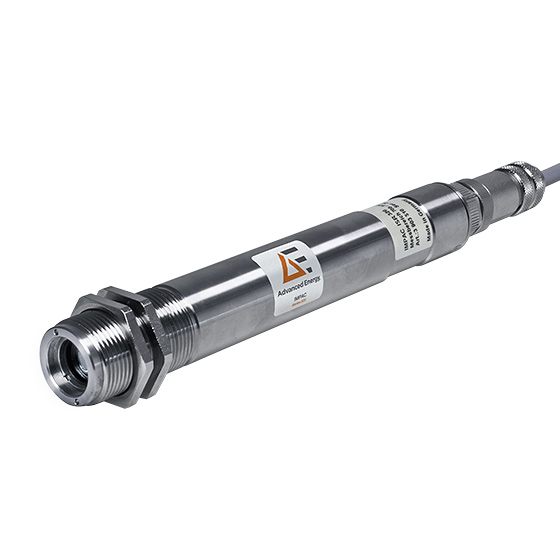

| Model | Impac IS 140 & IGA 140 Series | Impac IS 6 & IGA 6 Series | Impac IS 320 & IGA 320 Series | Impac 600 Series |
|---|---|---|---|---|
| Spectral Range (µm) | 0.55 and 1.8 (4 ranges in between) | 0.7 and 1.8 (2 ranges in between) | 0.8 and 1.8 (2 ranges in between) | 0.7 and 14 (5 ranges in between) |
| Measurement Uncertainty (°C) | From 03% oR + 1 °C | From 0.3% oR + 2 °C | From 0.3% oR + 1 °C | From 0.5% oR or 0.8 °C |
| Optics (mm) | Focusable optics | Focusable optics | Fixed optics | Fixed optics |
| FOV (minimum spot size) (mmm) | Min. 380:1 (0.35) | Min 350:1 (0.6) | Min 230:1 (1) | Min. 70:1 |
| Alignment / Sighting | Laser targeting or through lens sighting | Built-in laser aiming light, through-lens sighting, or color TV camera | Built-in LED targeting light | None |
| Interface / Output (mA) | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA |
| Exposure Time t90 (ms) | 1 ms | 0.12 ms | 2 ms | Multiple specifications. Please refer to Datasheet. |
| Display | Illuminated LC display for temperature indication or parameter settings | LED, 4 digit matrix, 5 mm high temperature signal or measuring distance | Color LCD, 262,000 colors (optional) |
