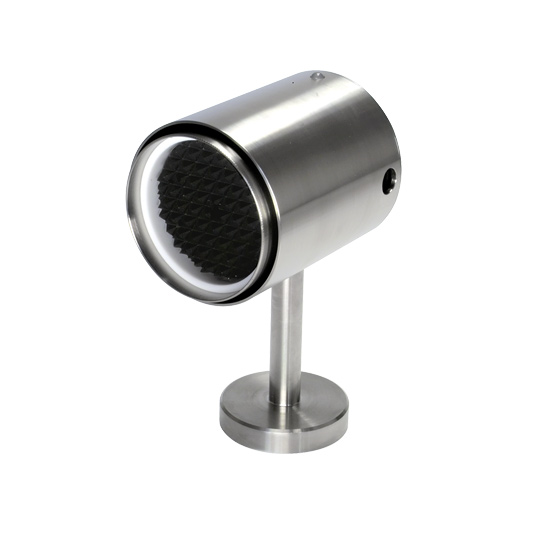

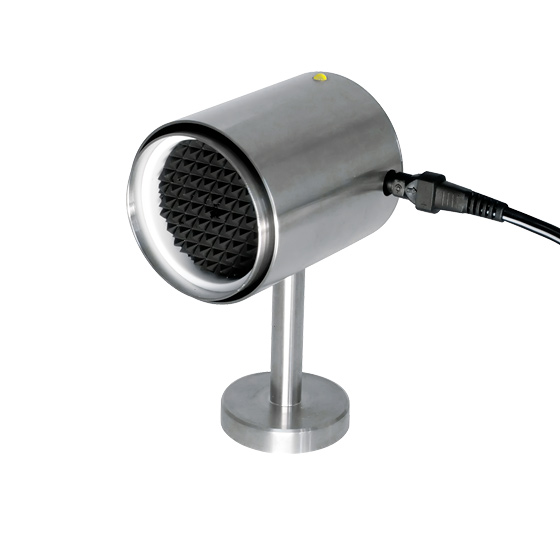

Mikron IRC Blackbodies

Active

Low Temperature Calibration Sources with Fixed Temperature Options from 35 to 150°C

The Mikron® IRC series (35 to 150) calibration sources are designed for inspection of pyrometer measurement accuracy at lower fixed temperature values. Precise control ensures constant and stable heating of the large emitter surface. High temperature uniformity with a maximum deviation of 0.2°C and high emissivity (98%) enable exact verification of pyrometers with larger spot sizes. The robust stainless-steel design guarantees operation under rough industrial environments. Compact dimensions enable you to check hard-to-access sensors in verying installtion conditions.

Features

  • Short warm-up times
  • High temperature stability
  • Small dimensions
  • Stainless steel housing

Benefits

  • Operate in rough conditions
  • Easily check hard-to-access sensors thanks to compact design
  • Enable high temperature uniformity with precise control

Specifications

Measurement Uncertainty (°C): ±0.25% of reading ±1°C
Interface / Output (mA): RS232, RS485
Relative Humidity: 85
CE-label: CE-Label
Device Output Temperature Range (°C): 35-150 °C
Stability: 0.1 °C
Heated Emitter Shape: 50.8 mm
