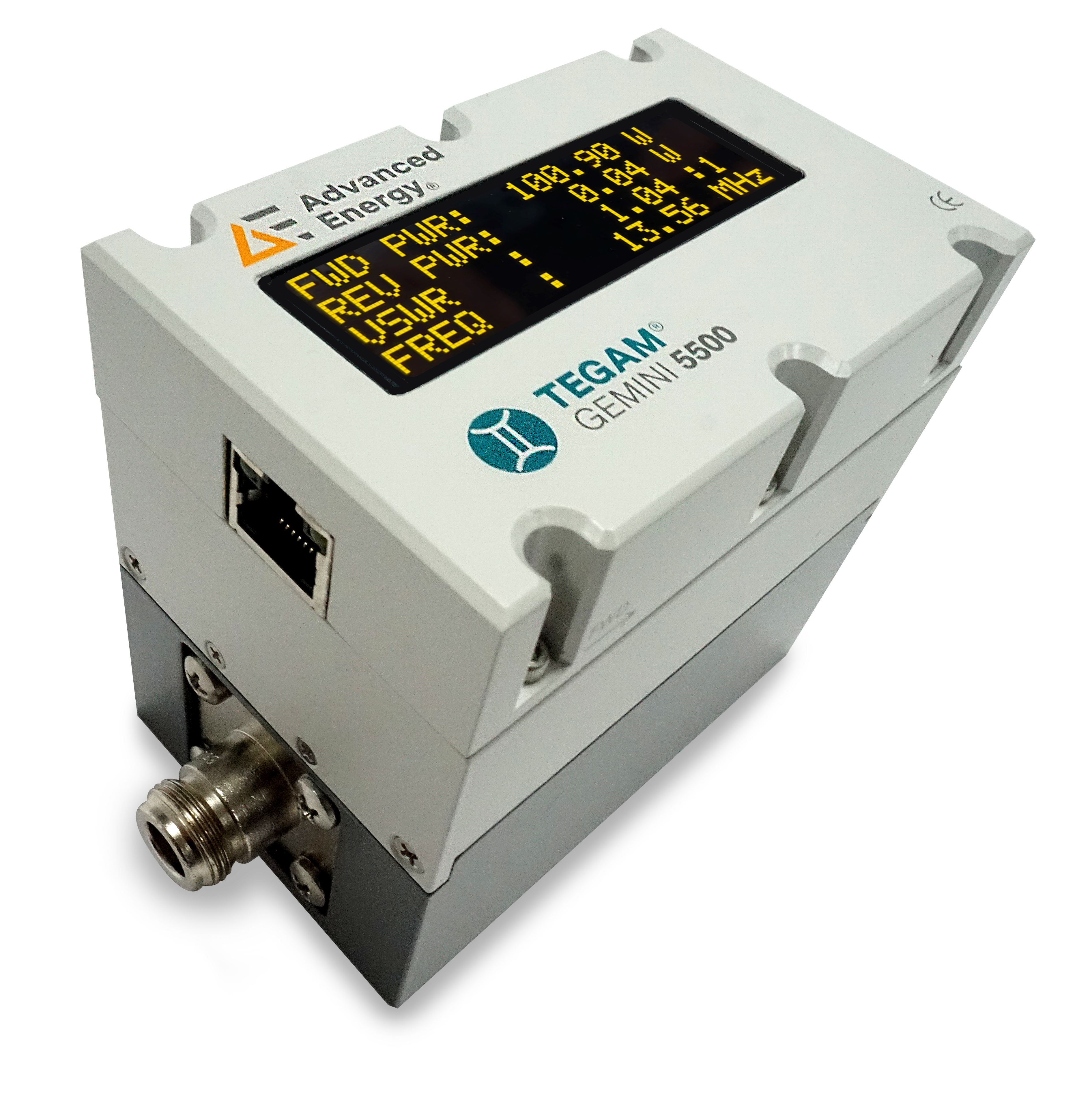

5541A Series RF Power Meters

Active

High Power, High-Accuracy RF Measurement in a Single Instrument

Advanced Energy's 5541A Series of RF power meters provide high power, high accuracy measurements with a sensor and meter that are built into one instrument. The 5541A also has the unique capability of being calibrated at multiple available frequency points, creating a single meter that can replace multiple existing power sensors. Offering rich functionality and an easy-to-use design, this series is ideal for use in semiconductor applications, for which measurement certainty and repeatability are imperative. It is powered by a standard POE port. Because the meter is built-in, there is less equipment, and fewer cables, to carry to the field or bench.



Features

  • Accuracy: ±0.5% + 0.5 W at 2σ (at calibrated frequencies and power levels)
  • 0.2-200 MHz, 3 to 5,000 W
  • Meter and Sensor build into one instrument
  • One sensor can be calibrated at multiple frequencies

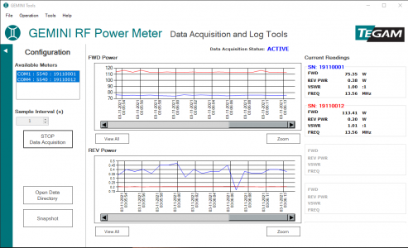

  • Read forward and reverse power, VSWR, and frequency simultaneously on the integrated display
  • 1 year calibration interval

Benefits

  • Exceptional accuracy makes the 5541A ideal for RF generator calibration
  • Multiple frequencies in one instrument reduces the number of required sensors
  • An all in one meter/sensor reduces equipment required for use and maintenance
  • A longer calibration interval increases the time your power meter is at your facility ready for use

Specifications

Basic Accuracy: +/- (0.5% of Rdg + 0.5 W)
Communication: Ethernet
Frequency Range: 200 kHz to 200 MHz
Power Range: 3 W to 5 kW
Power Range (typical): 3 W to 5 kW
Power Requirements: POE, IEEE 802.3af

Stock Check

Model Number
Basic Accuracy Communication Frequency Range Power Range (typical) Power Requirements Buy
5541A-NF-NM Active, Contact Us
5541A with One Female N Coonector and One Male N Connector
+/- (0.5% of Rdg + 0.5 W) Ethernet 200 kHz to 200 MHz 3 W to 5 kW POE, IEEE 802.3af Buy
5541A-QDSUF-QDSUIM Active, Contact Us
5541A with QDSU Female/Male Connectors and Interlock
+/- (0.5% of Rdg + 0.5 W) Ethernet 200 kHz to 200 MHz 3 W to 5 kW POE, IEEE 802.3af Buy

Accessories Stock Check

Calibration to the Input Port. 13.56 MHz, 3W to 5000W
Calibration to the Input Port. 2MHz, 3W to 5000W
Calibration to the Input Port. 60MHz, 3W to 5000W
Calibration to the Input Port. 1MHz, 3W to 5000W
Calibration to the Input Port. 27.12MHz, 3W to 5000W
Calibration to the Input Port. 0.20MHz, 3W to 2500W
Calibration to the Input Port. 0.40MHz, 3W to 5000W
Calibration to the Input Port. 40.68 MHz, 3W to 5000W

5540A Power Sensor Accessories

5540A Power Sensor Accessories

Technical Documentation
