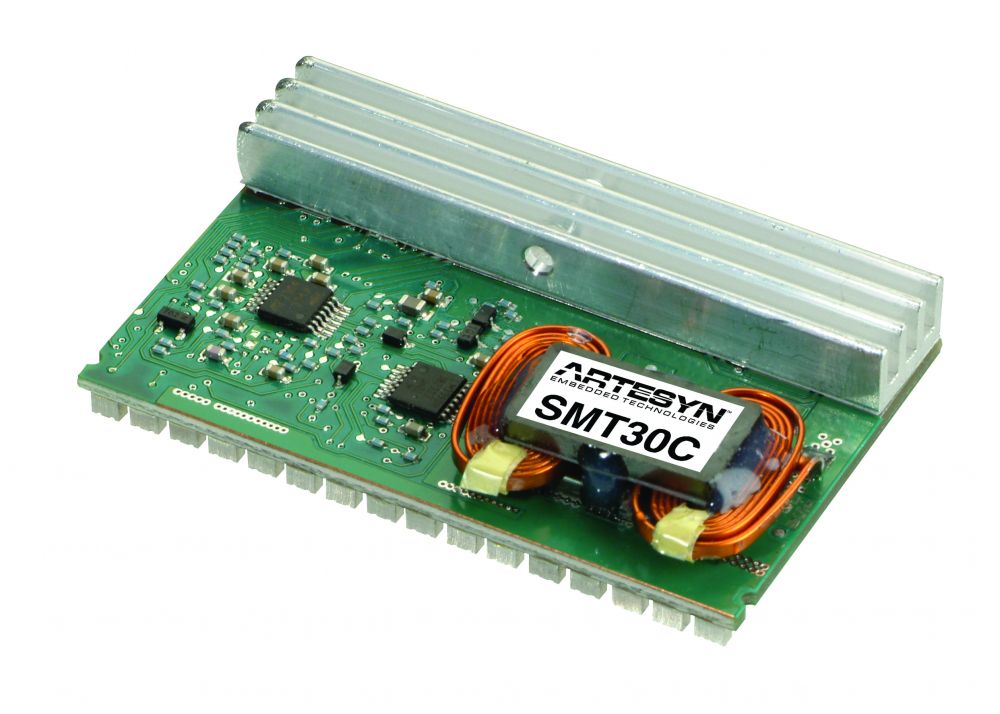

SMT30C Series


150 W (30 A) Non-Isolated DC-DC Converters

The SMT30C series surface mount 30 A non-isolated DC-DC converter is designed for cost- and space-sensitive applications. It accepts a 10.2 to 13.8 VDC input and provides an output that is adjustable from 0.9 to 5.0 VDC to accommodate a wide variety of silicon power needs. Rated at 150 W, the converter has a typical efficiency of 91%. Standard features include remote sense, remote On/Off and remote ‘power good’ indication.


  • 30 A current rating
  • Input voltage range: 10.2 - 13.8 VDC
  • Output voltage range: 0.9 - 5.0 VDC
  • Designed-in reliability: MTBF of >4 million hours per Telcordia SR-332


  • Industry-leading value
  • Cost optimized design
  • Excellent transient response
  • Output voltage adjustability
  • Path for future upgrades
  • Supports silicon voltage migration
  • Reduced design-in and qual time
  • Available RoHS compliant
  • Two year warranty


Output Power (W): 150
Length (Inches): 2.28
Width (Inches): 1.452
Height (Inches): 0.41
Mounting Type: BMP; SMT
Minimum Output Current (A): 30
Maximum Output Current (A): 30
Output Voltage Range (V): 0.9V to 5V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
SMT30C-12SADJJ Active, Contact Us 0.9 5 30 0 1 Contact Us Buy
