SIL30E Series

Not for New Designs

99 W (30 A) Non-Isolated DC-DC Converters

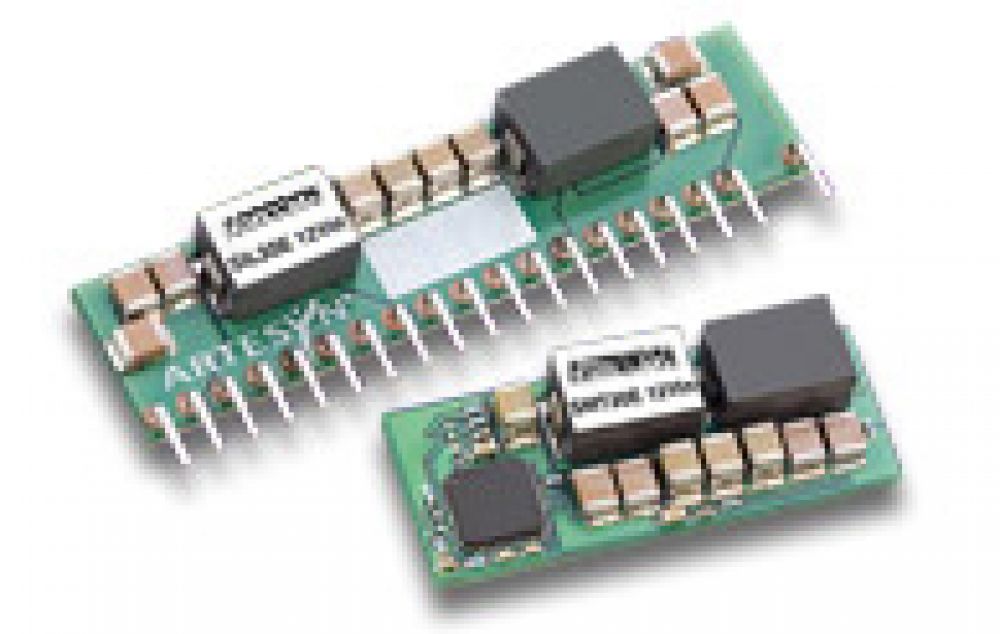

The SIL30E series non-isolated DC-DC converter accepts an 8 to 14 VDC input and produces an output that can be trimmed over a very wide 0.8 to 3.63 VDC range to satisfy a broad diversity of semiconductor power needs. Rated at 99 W, the converter has a typical efficiency of 93% and can deliver up to 30 A. Standard features include remote On/Off, remote sense and comprehensive protection against short-circuit and over temperature conditions. Packaged as a through-hole vertical mount module with a single-in-line footprint of just 0.3 x 2 inches (7.8 x 50.8 mm), it has an installed height of 0.5 inch (12.7 mm).

Features

  • 30 A current rating
  • Input voltage range: 8 VDC to 14 VDC
  • Output voltage range: 0.8 VDC to 3.63 VDC
  • Ultra high efficiency: 93% @ 12 Vin and 3.3 Vout
  • Designed in reliability: MTBF of 4,435,000 hours per Telcordia SR-332
  • 2 Year Warranty

Benefits

  • Extremely low internal power dissipation
  • Minimal thermal design concerns
  • Ideal solution where board space is at a premium or tighter card pitch is required
  • Available RoHS compliant

Specifications

Output Power (W): 99
Length (Inches): 2
Width (Inches): 0.307
Height (Inches): 0.5
Mounting Type: BMP; Through Hole
Minimum Output Current (A): 30
Maximum Output Current (A): 30
Output Voltage Range (V): 0.8V to 3.63V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
SIL30E-12W3V3-VJ Active, In Stock 0.8 3.63 30 0 1 Request Buy
SIL30E-12W3V3-VRJ Active, Contact Us 0.8 3.63 30 0 1 Contact Us Buy
SIL30E-12W3V3-VY Active, Contact Us 0.8 3.63 30 0 1 Contact Us Buy
