AEE 40W High I/P Single O/P Series
Active
40 W Isolated DC-DC Converters (High-Input)

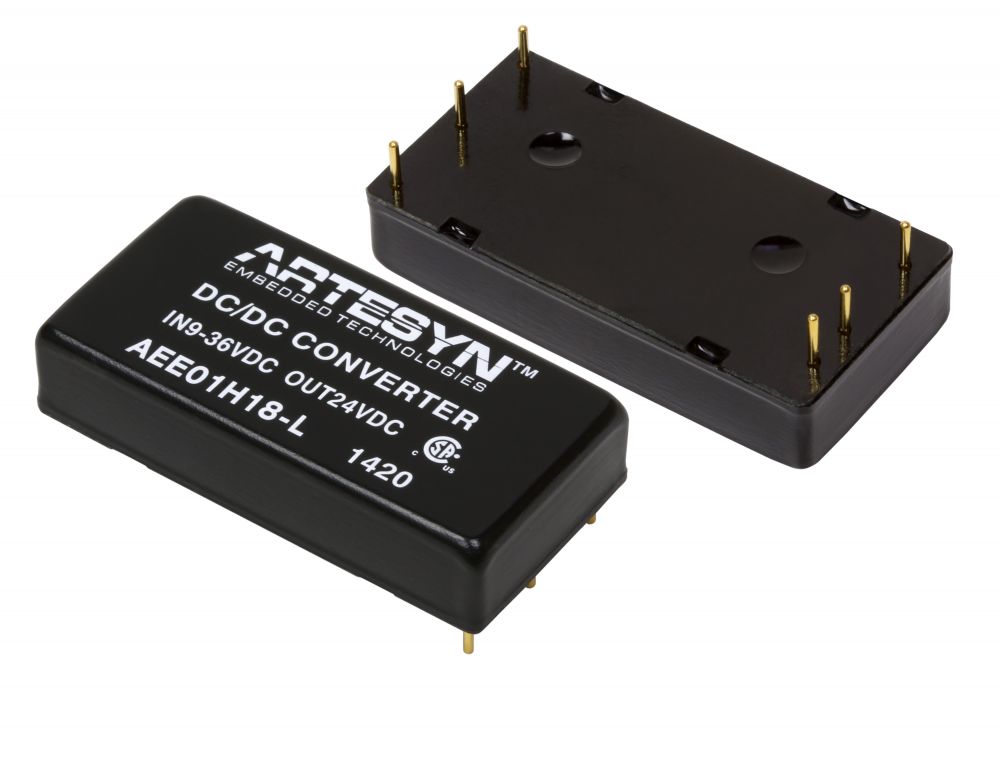

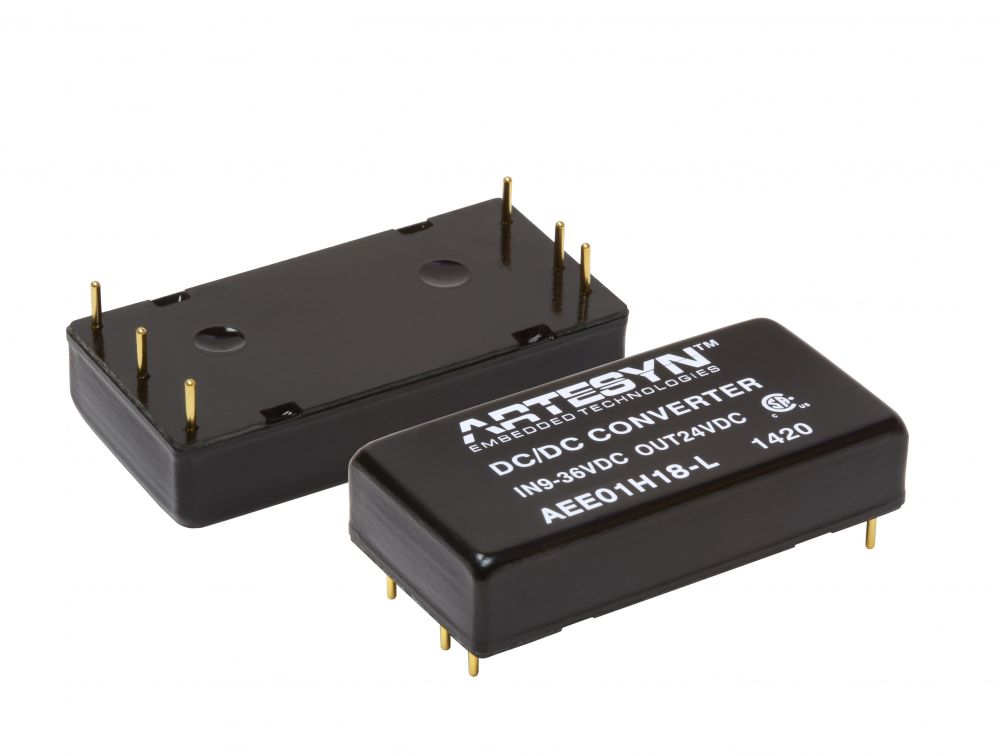

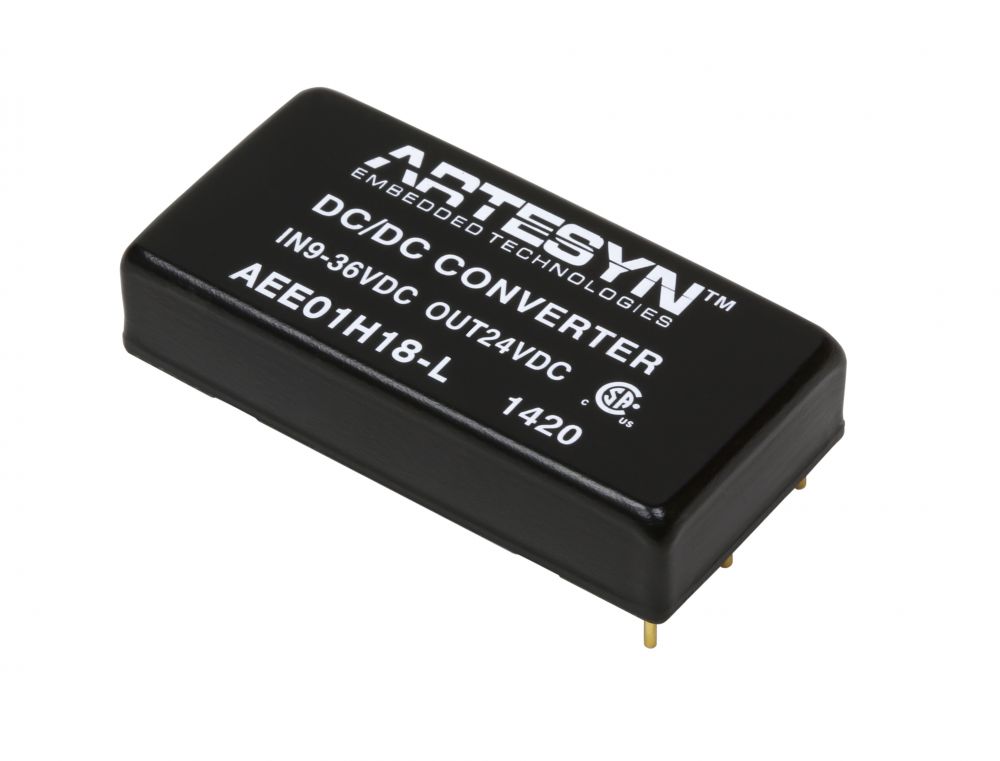

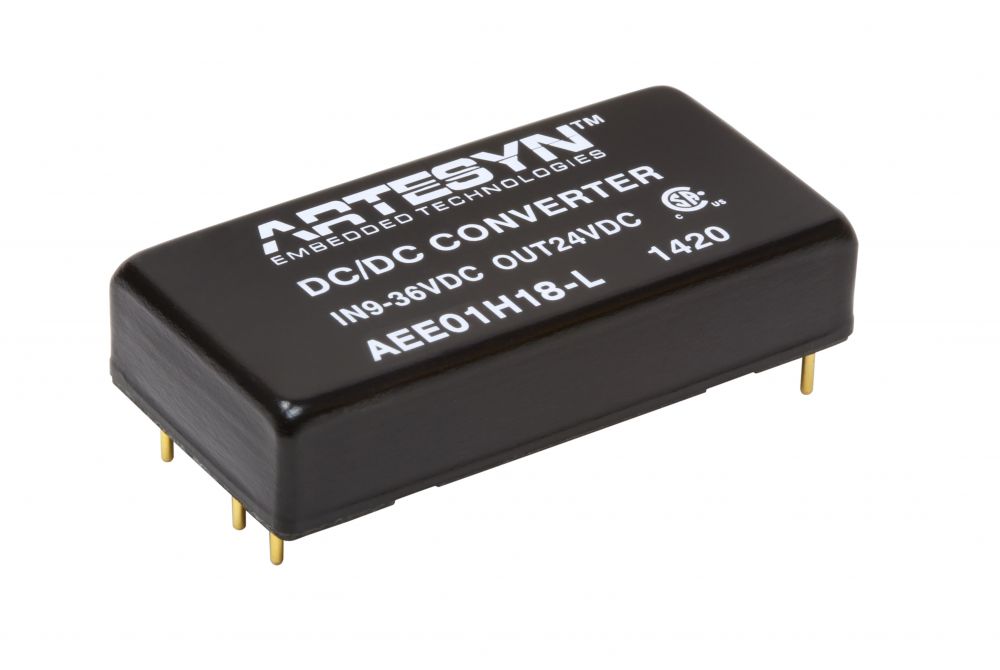

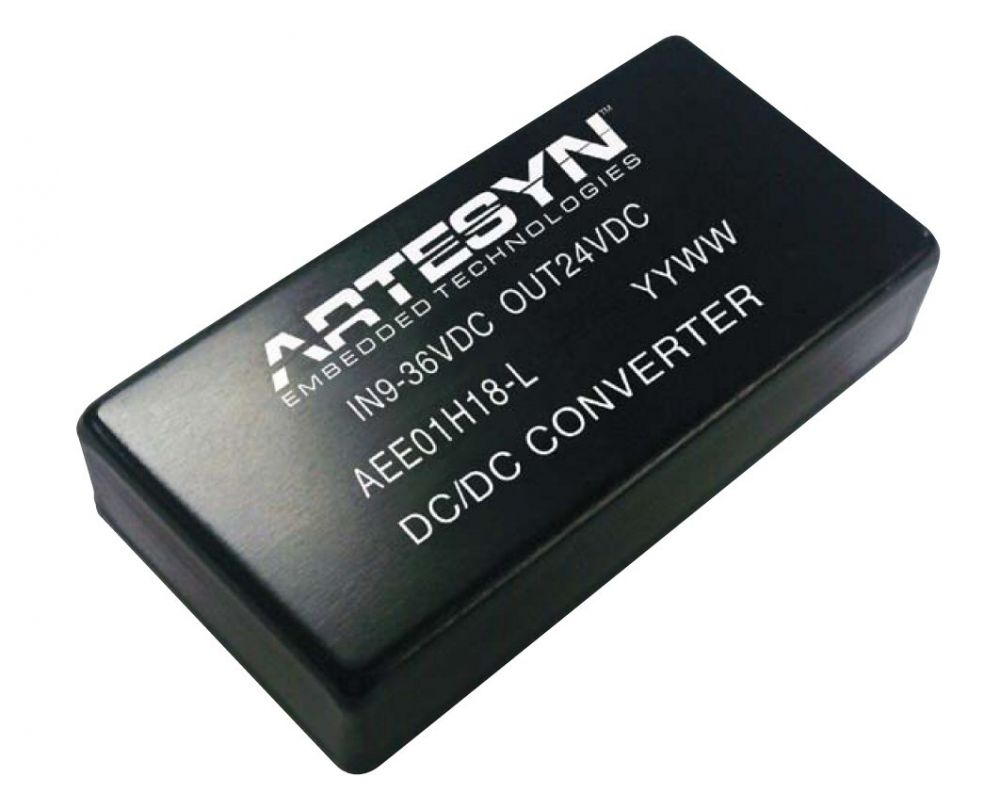

The AEE series of 40 W high-input isolated DC-DC converters features an ultra wide 4:1 input voltage range of 18 to 75 VDC and is primarily designed for use with nominal 48 V supplies. There is a choice of five single output models, offering voltages of 3.3 V, 5 V, 12 V, 15 V or 24 V, and two dual output models offering +12/-12 V or +15/-15 V. The converters are fully encapsulated in a compact 1 x 2 inch (25.4 x 50.8 mm) metal case and have a height of just 0.40 inch (10.2 mm) – except for the 24 V model, which has a height of 0.43 inch (11 mm).
Standard features include 1500 VDC input/output isolation, comprehensive protection against overvoltage, overcurrent and overtemperature conditions, and remote On/Off. These converters have an operating temperature range of -40 to 80˚C without derating and a typical efficiency of 90%; an optional clip-on heatsink is available. They are ideal for ruggedized applications involving harsh environments. Typical areas of use include industrial automation, instrumentation, test and measurement, and telecommunications.
The 3.3 VDC output model has a power output rating of 26.4 W, while all other models are rated at 40 W.
Standard features include 1500 VDC input/output isolation, comprehensive protection against overvoltage, overcurrent and overtemperature conditions, and remote On/Off. These converters have an operating temperature range of -40 to 80˚C without derating and a typical efficiency of 90%; an optional clip-on heatsink is available. They are ideal for ruggedized applications involving harsh environments. Typical areas of use include industrial automation, instrumentation, test and measurement, and telecommunications.
The 3.3 VDC output model has a power output rating of 26.4 W, while all other models are rated at 40 W.
Features
- Wide 4:1 input range
- 1” x 2” DIP package
- 1500 VDC I/O isolation
- High efficiency - 91%
- Operating temp. range –40°C to +85 °C (with derating)
Benefits
- Encapsulated
- Single and Dual output
- OCP, OVP, OTP protection
- Remote On/Off
Specifications
Output Power (W): | 40 |
---|---|
Length (Inches): | 2 |
Width (Inches): | 1 |
Height (Inches): | 0.4 |
Mounting Type: | BMP; Through Hole |
Minimum Output Current (A): | 0 |
Maximum Output Current (A): | 8 |
Output Voltage Range (V): | 3V to 28.8V |
