AEE 15W High I/P Wide Range Series

Active

15 W Isolated DC-DC Converters (High-Input)

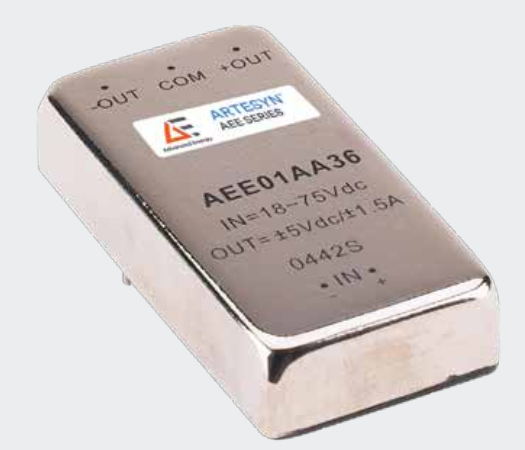

The AEE series of 15 W high-input isolated DC-DC converters features an ultra wide 4:1 input voltage range of 18 to 75 VDC and is primarily designed for use with nominal 48 V supplies. There is a choice of four single output models, offering voltages of 3.3 V, 5 V, 12 V or 15 V, and three dual output models offering +5/-5 V, +12/-12 V or +15/-15 V. The converters are fully encapsulated in a compact 1 x 2 inch (25.4 x 50.8 mm) metal case and have a height of just 0.44 inch (11.3 mm). They are ideal for ruggedized applications involving harsh environments.

Standard features include 1500 VDC input/output isolation and short-circuit protection with auto-restart. AEE series converters have an operating temperature range of -40 to 71ËšC without derating and are suitable for diverse applications in areas such as industrial automation, instrumentation, test and measurement, and telecommunications. The 3.3 VDC output model has a power output rating of 13.2 W, while all other models are rated at 15 W.

Features

  • 4:1 Input Range
  • MTBF: > 1 M Hours
  • RoHS 6/6 Compliant

Benefits

  • Single or Dual Output
  • Through Hole Termination
  • UL Approved

Specifications

Output Power (W): 15
Length (Inches): 2
Width (Inches): 1
Height (Inches): 0.44
Mounting Type: BMP; Through Hole
Minimum Output Current (A): 0.33
Maximum Output Current (A): 4
Output Voltage Range (V): -15V to 15V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
AEE00BB36-LS Active, In Stock 12 12 0.625 0 2 Request Buy
AEE00CC36-LS Active, In Stock 15 15 0.5 0 2 Request Buy
AEE01AA36-LS Active, In Stock 5 5 1.25 0 2 Request Buy
AEE01B36-LS Active, In Stock 12 12 1.25 0 1 Request Buy
AEE01C36-LS Active, In Stock 15 15 1 0 1 Request Buy
AEE03A36-LS Active, In Stock 5 5 3 0 1 Request Buy
AEE04F36-LS Active, In Stock 3.3 3.3 4 0 1 Request Buy
