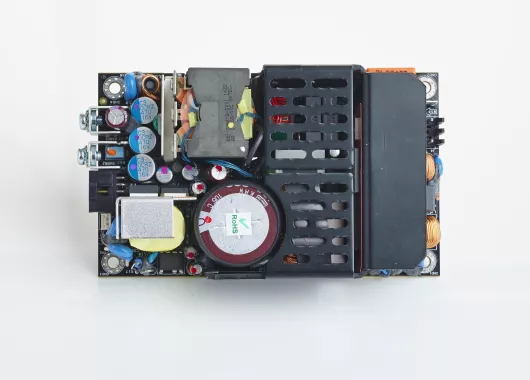

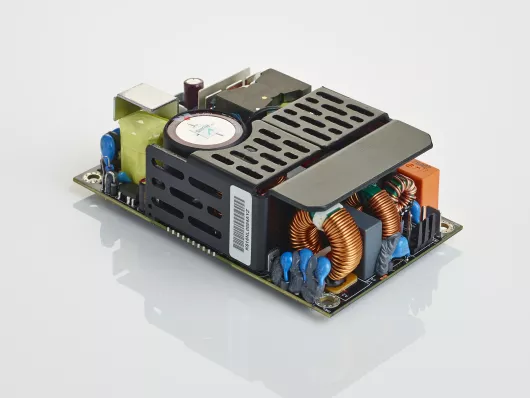

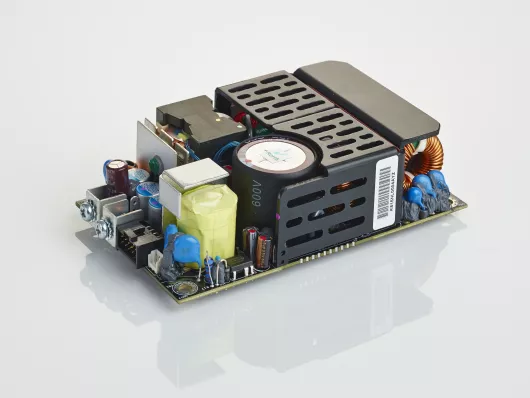

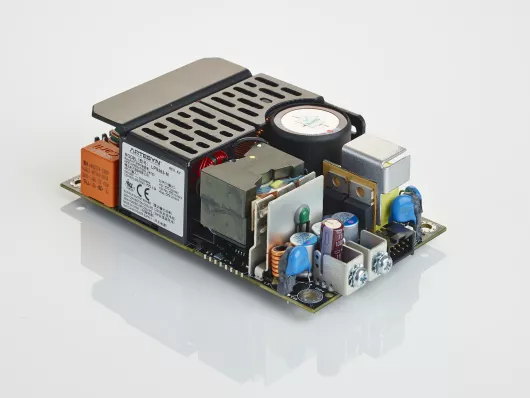

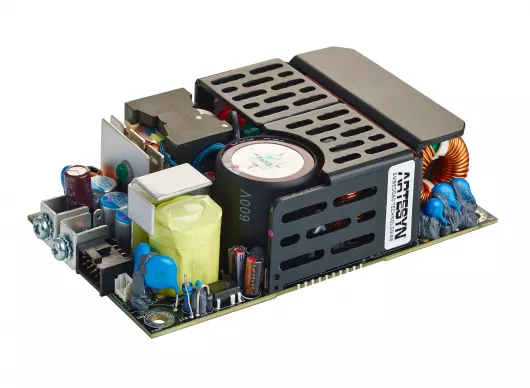

LPS360-M Series


200 to 360 W Medical AC-DC Power Supplies

The LPS360-M series of open-frame AC-DC power supplies comprises five single output models, offering voltages of 12 V, 15 V, 24 V, 36 V or 48 V. Each power supply also provides 12 V fan and 5 V standby outputs. All four models feature ITE and medical safety approvals and accept a universal input of 90 to 264 VAC or 120 to 300 VDC. Comprehensive overcurrent, overvoltage and overtemperature protection is provided as standard. Additional facilities include main output remote sense, Power fail signal and I2C for basic monitoring and control. LPS360-M power supplies have a full load efficiency of up to 92%. Depending on operating conditions, they provide up to 240 W of output power with free air convection cooling and up to 360 W with 400 LFM of forced air. Less than 1U high, the power supplies are ideal for light industrial systems as well as patient contact Type BF medical applications.


  • 3” x 5” footprint
  • Less than 1U high
  • EN61000-3-2 compliant
  • 12 V fan output
  • LPX200 enclosure kit available
  • 5 V Standby output
  • Remote Inhibit
  • PMBus commands
  • RoHS compliant
  • Digital I2C interface
  • Designed to meet Class I and Class II
  • Dual AC fuses
  • Suitable for BF Type applications


  • Medical and ITE safeties
  • Active power factor correction
  • Remote sense
  • Power fail
  • Adjustable main output
  • Level B Conducted EMI - Class I or Class II inputs
  • Overvoltage protection
  • Overload protection
  • Thermal overload protection


Output Power (W): 360
Length (Inches): 5
Width (Inches): 3
Height (Inches): 1.37
Mounting Type: Embedded PSU
Minimum Output Current (A): 0
Maximum Output Current (A): 30
Output Voltage Range (V): 12V to 52.8V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
LPS363-M Active, In Stock 12 13.8 30 12 1 Request Buy
LPS364-M Active, In Stock 14.25 16.5 24 15 1 Request Buy
LPS365-M Active, In Stock 24 27.6 15 24 1 Request Buy
LPS366-M Active, In Stock 30.6 36 11.25 36 1 Request Buy
LPS368-M Active, In Stock 45.6 52.8 7.5 48 1 Request Buy
