SL Power™

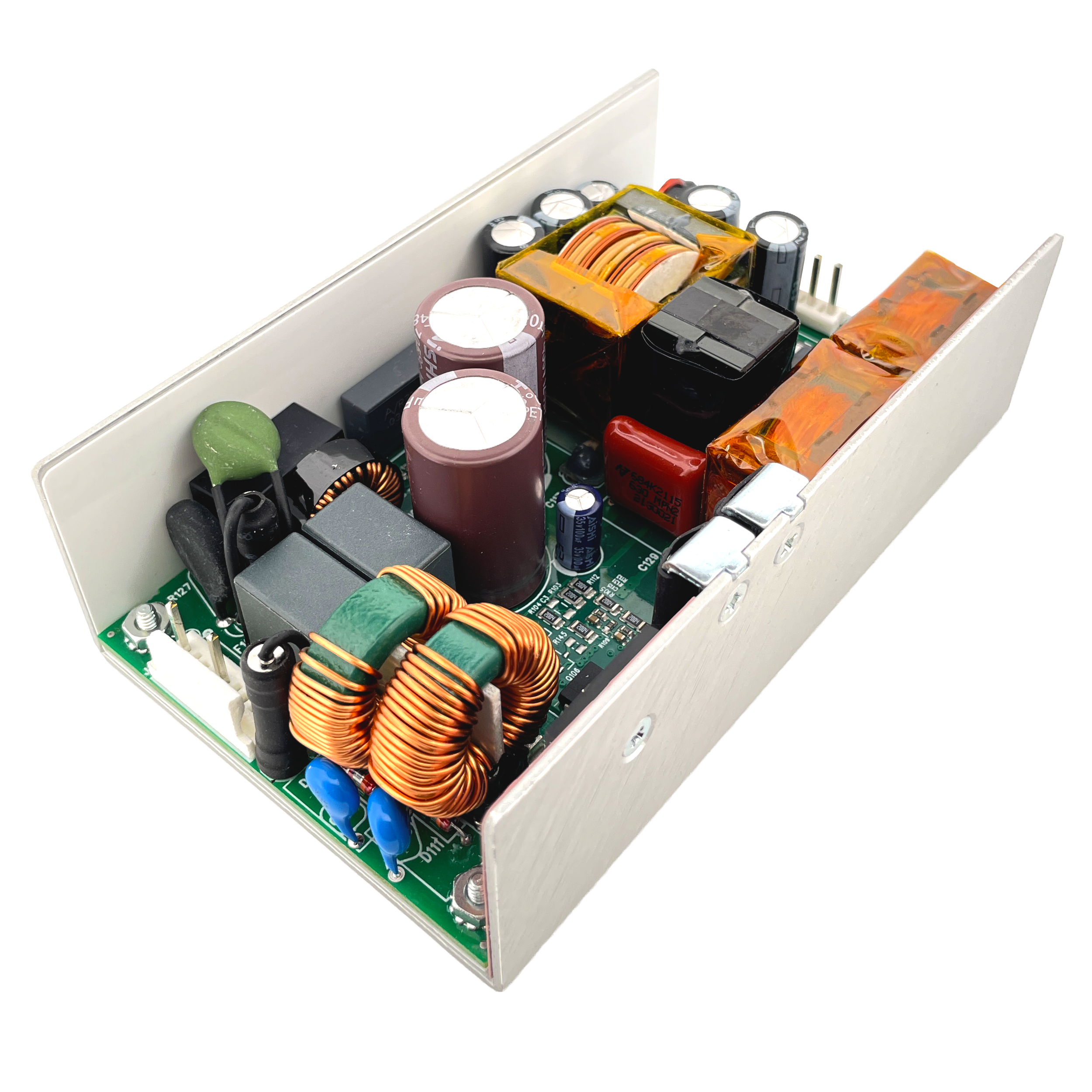

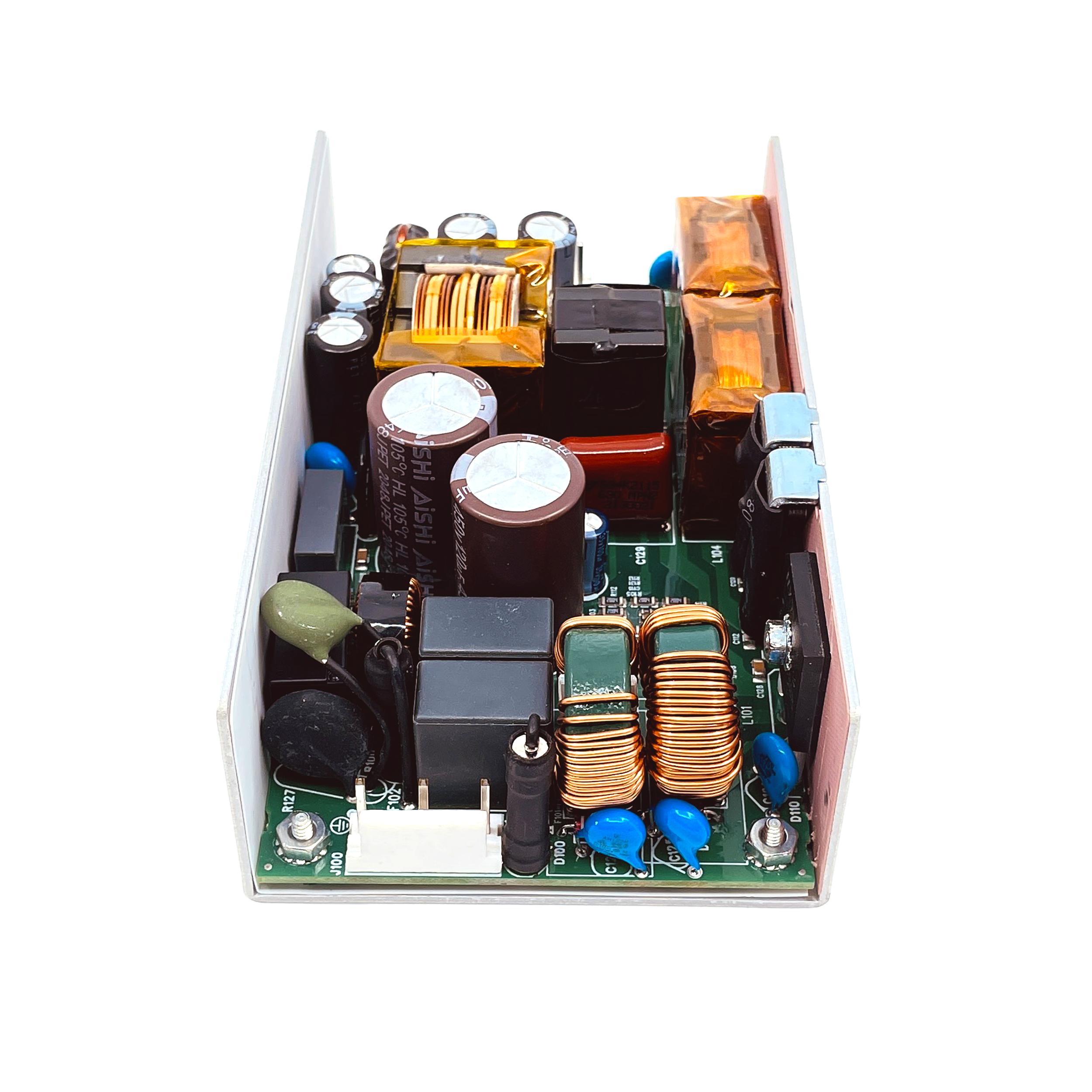

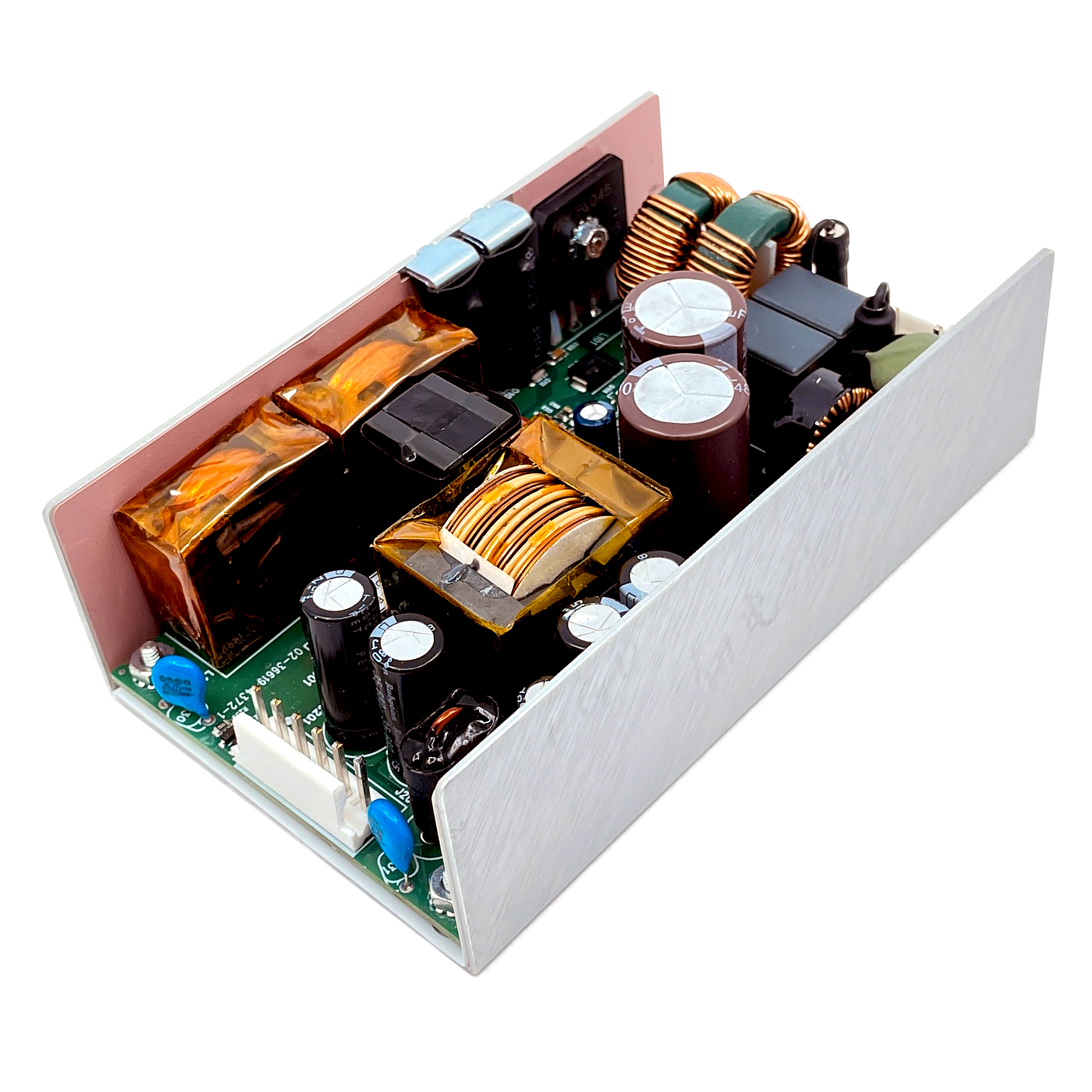

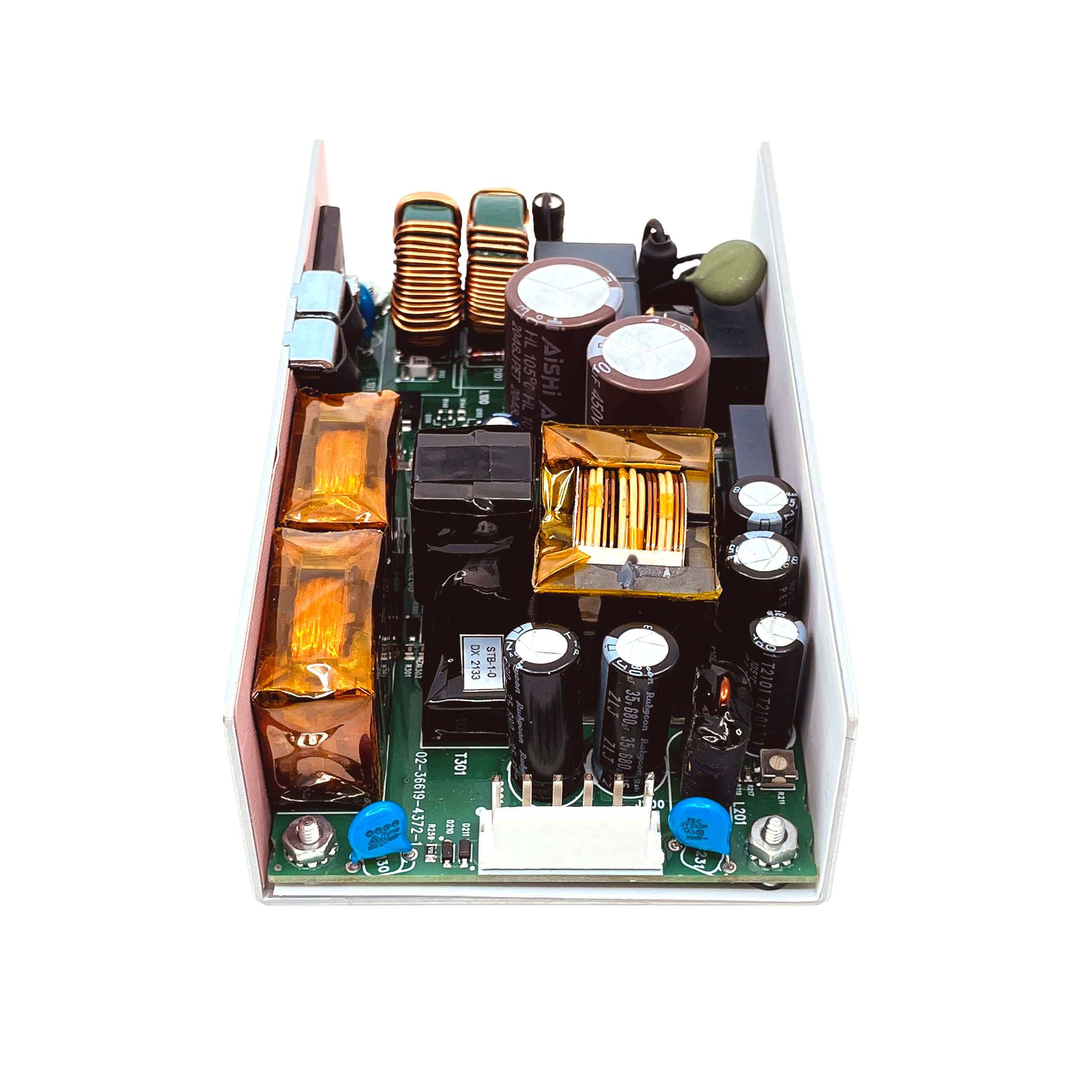

LGU350 Series

Active

350 W Single Output LED Grade

Advanced Energy’s SL Power LGU350 AC-DC power supplies are available with a nominal main output of 24 V, 48 V or 56 V. LGU350 power supplies provide up to 350 W of output power at 50°C ambient with 200 LFM airflow, designed to meet global lighting requirements and has a built-in EMI filter to meet EN55015 class B. All models have output overvoltage, short circuit and overload protection and a 3 x 5 x 1.4 inch form factor.

Features

  • 350 Watts @ 50°C (200 LFM)
  • Up to 425 W Peak Watts
  • 150 W Convection Cooled
  • Universal Input 90 to 305 VAC
  • 50°C Ambient Operation
  • For Class C 30% to 100% LED Dimming Apps

Benefits

  • EN55015 Class B Conducted EMI
  • ROHS Compliant
  • 3-years Warranty

Specifications

Output Power (W): 350
Length (Inches): 5
Width (Inches): 3
Height (Inches): 1.5
Mounting Type: Embedded PSU
Minimum Output Current (A): 5
Maximum Output Current (A): 23.5
Output Voltage Range (V): 12V to 56V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
LGB350S24K Active, Contact Us
56V @ 2.68A, Class I
53.2 58.8 2.68 56 1 Contact Us Buy
LGB350S48K Active, Contact Us
48V @ 3.13A  , Class I
45.6 50.4 3.13 48 1 Contact Us Buy
LGB350S56K Active, Contact Us
24V @ 6.25A, Class I
23.8 25.2 6.25 24 1 Contact Us Buy

Technical Documentation

Title Type
LGU350 Datasheet (505 KB) Data Sheet
