SL Power™

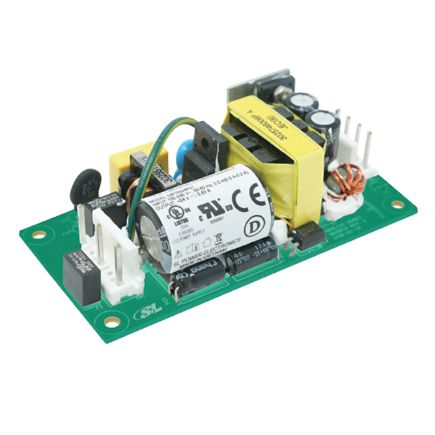

GB10 Series
Active
10 W Single Output Medical and Industrial Grade
Advanced Energy’s SL Power GB10 series of open-frame AC-DC power supplies comprises six single output models. All models feature medical safety approvals and accept a universal input of 90 to 264 VAC. These compact switch-mode power supplies feature output overvoltage, overload protection, with short-circuit protection on the output. GB10 series power supplies provide 10 W of output power with free air convection cooling.
Features
- 10 W open frame and PCB-mount power supply
- PCB-mount: 1.02 x 2.05 x 0.98” (27 x 52 x 25mm)
- Chassis mount: 1.6” x 3.38” x 1.0” (40.6 x 85.8 x 25.4mm)
- Universal input 90 to 264 VAC
- <0.1 W no load input power
- >1,000,000 hours MTBF
Benefits
- Approved to EN/IEC/UL62368-1
- Approved to CSA/EN/IEC/UL60601-1, 3rd edition
- E-cap life of >10 years
- 3 year warranty
- Meets class B radiated & conducted EMI, with margin
- Meets heavy industrial and IEC60601-1-2 4th edition levels of EMC
Specifications
| Output Power (W): | 12 |
|---|---|
| Length (Inches): | 3.23 |
| Width (Inches): | 1.6 |
| Height (Inches): | 1.04 |
| Mounting Type: | Embedded PSU |
| Minimum Output Current (A): | 0.5 |
| Maximum Output Current (A): | 2 |
| Output Voltage Range (V): | 5V to 24V |
Technical Documentation
Product Information Documents
Updated
Safety & Compliance Certificates
Engineering Resources
