GB10 Series

Active

10 W Single Output Medical and Industrial Grade

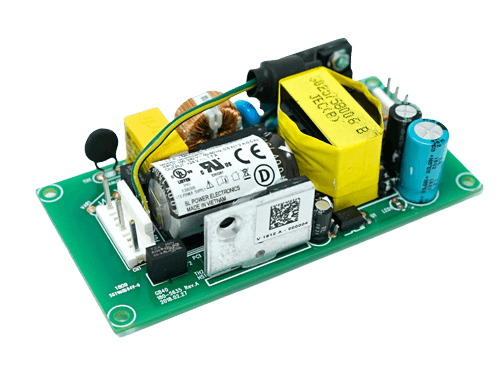

Advanced Energy’s SL Power GB10 series of open-frame AC-DC power supplies comprises six single output models. All models feature medical safety approvals and accept a universal input of 90 to 264 VAC. These compact switch-mode power supplies feature output overvoltage, overload protection, with short-circuit protection on the output. GB10 series power supplies provide 10 W of output power with free air convection cooling.

特点

10 W open frame and PCB-mount power supply
PCB-mount: 1.02 x 2.05 x 0.98” (27 x 52 x 25mm)
Chassis mount: 1.6” x 3.38” x 1.0” (40.6 x 85.8 x 25.4mm)
Universal input 90 to 264 VAC
<0.1 W no load input power
>1,000,000 hours MTBF

益处

Approved to EN/IEC/UL62368-1
Approved to CSA/EN/IEC/UL60601-1, 3rd edition
E-cap life of >10 years
3 year warranty
Meets class B radiated & conducted EMI, with margin
Meets heavy industrial and IEC60601-1-2 4th edition levels of EMC

规格

输出功率（瓦）:	12
长度（英寸）:	3.23
宽度（英寸）:	1.6
高度（英寸）:	1.04
安装类型:	Embedded PSU
最小输出电流 (A):	0.5
最大输出电流 (A):	2
输出电压范围 (V):	5V to 24V
最小输出功率（瓦）:	10
最大输出功率（瓦）:	12
最大输入电压 (V):	264
保修期（年）:	3

所有规格折叠规格

库存检查

型号样品购买	最小值电压 (V)	最大电压电压 (V)	电流 (A)	标称电压 (V)	输出数量	样品	购买
GB10S05K01 活动，有库存 5V @ 2A, Class I 要求购买	5	5	2	5	1	要求	购买
GB10S05P01 活动，有库存 5V @ 1.8A PCB Mount Class II 要求购买	5	5	1.8	5	1	要求	购买
GB10S07K01 活动，有库存 7.5V @ 1.3A, Class I 要求购买	7.5	7.5	1.3	7.5	1	要求	购买
GB10S09K01 活动，有库存 9V @ 1A, Class I 要求购买	9	9	1	9	1	要求	购买
GB10S12K01 活动，有库存 12V @ 1A, Class I 要求购买	12	12	1	12	1	要求	购买
GB10S12P01 活动，有库存 12V @ 0.83A PCB Mount Class II 要求购买	12	12	0.83	12	1	要求	购买
GB10S15K01 活动，有库存 15V @ 0.8A, Class I 要求购买	15	15	0.8	15	1	要求	购买
GB10S24K01 活动，有库存 24V @ 0.5A, Class I 要求购买	24	24	0.5	24	1	要求	购买

技术文档

标题	类型
GB10 3D File (3 MB)	三维模型
GB10 PCB Footprint Files (125 KB)	三维模型
GB10 Application Note (3 MB)	应用说明
GB10 Datasheet (602 KB)	数据表
GB10 PCB-Mount Datasheet (439 KB)	数据表
GB10 & GB20 Medical Demko Certificate (160 KB)	Demko Certificate
GB10P Medical Demko Certificate (374 KB)	Demko Certificate
GB10S HT Demko Certificate (339 KB)	Demko Certificate
GB10 REACH Statement (124 KB)	达到证书
GB10 RoHS Certificate (131 KB)	RoHS 证书
GB10 & 20 HT UL CofA (110 KB)	安全证书
GB10 & GB20 HT CB Certificate (73 KB)	安全证书
GB10 & GB20 Medical CB Certificate Class I Ed 3.1 (52 KB)	安全证书
GB10 & GB20 Medical CB Certificate Class II Ed 3.1 (59 KB)	安全证书
GB10 & GB20 Medical UL Certificate of Compliance (280 KB)	安全证书
GB10P Medical CB Certificate (187 KB)	安全证书
GB10S HT CB Certificate (200 KB)	安全证书
GB10SxxP HT CB Cert includes 12W (200 KB)	安全证书
