SL Power™

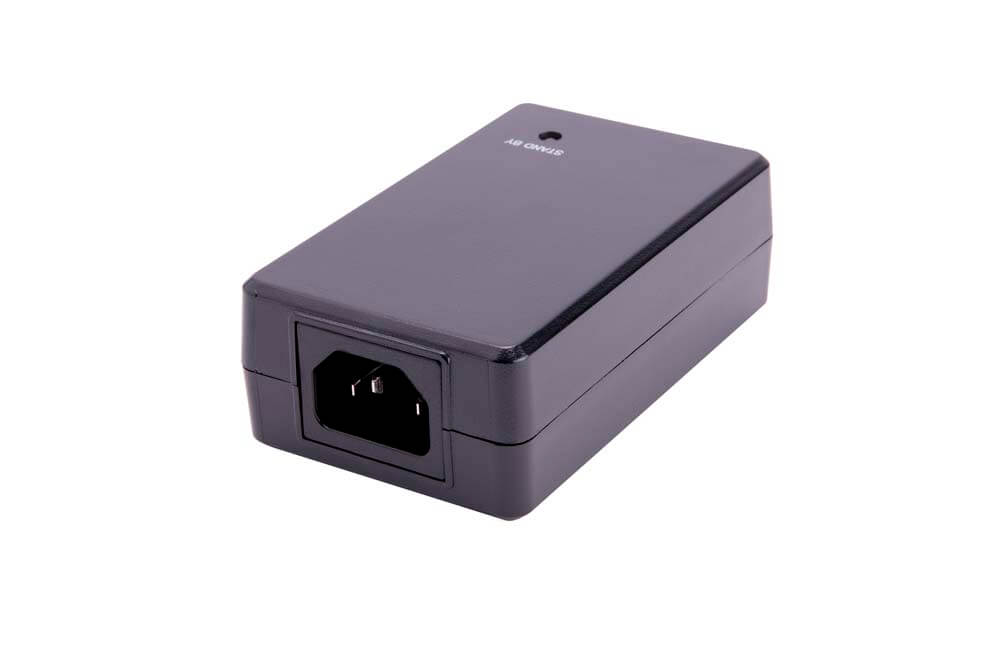

PW180 Series


20 W Single Output Industrial Grade

Advanced Energy’s SL Power PW180KA AC-DC power supplies are available with a nominal main output 48 V, which have self contained midspan power injector and support power over ethernet up to 20 W. PW180KA series has 90 VAC to 265 VAC input voltage range and regulated output with low ripple. IEEE802.3af Compliant and non-Compliant versions are provided.


  • 20 W PoE Adapter
  • 100 to 250 VAC
  • Single Output up to 20 W


  • Self Contained Midspan Power Injector
  • Desktop Style
  • IEEE802.3af Compliant and non-Compliant versions
  • Regulated Output with Low Ripple
  • CE Compliant


Output Power (W): 20
Length (Inches): 3.98
Width (Inches): 2.4
Height (Inches): 1.35
Mounting Type: External Adapter
Minimum Output Current (A): 0.35
Maximum Output Current (A): 0.4
Output Voltage Range (V): 48V to 48V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
PW180KA4800F01 Active, In Stock
48V @ 0.40A Class I, PoE
48 48 0.4 48 1 Request Buy
PW180KA4800N01 Active, Contact Us
48V @ 0.40A Class II, PoE
48 48 0.4 48 1 Contact Us Buy
PW180KB4800F01 Active, In Stock
48V @ 0.35A Class I, PoE: IEEE802.3af Compliant
48 48 0.35 48 1 Request Buy
PW180KB4800N01 Active, Contact Us
48V @ 0.35A Class II, PoE: IEEE802.3af Compliant
48 48 0.35 48 1 Contact Us Buy
