SL Power™

ME60 Series

Active

60 W Single Output External Power Adapter Medical Grade

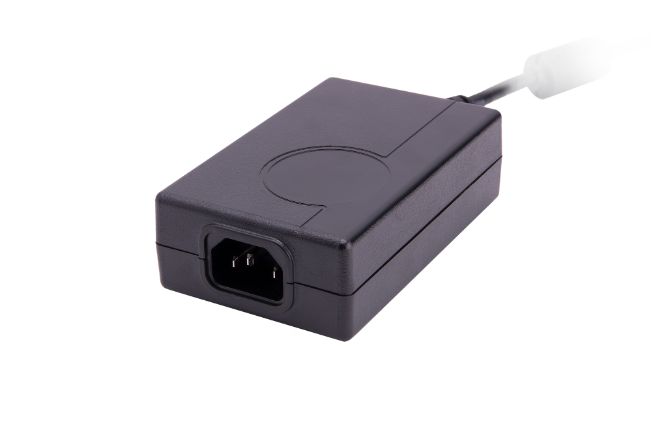

Advanced Energy’s SL Power ME60 series of desktop AC-DC external power adapter comprises seven output models. All models feature medical safety approvals and accept a universal input of 90 to 264 VAC. ME60 series power adapters provide up to 60 W of output power with IP22 rated enclosure and are ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option.

Features

  • Up to 60 W of AC-DC Power
  • Universal Input 90 to 264 VAC Input Range
  • >250,000 Hours MTBF

Benefits

  • A high performance power supply designed for Medical applications
  • Ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option
  • Great EMI, EMC, and noise performance ensures easy integration into the end equipment
  • Meets DoE Efficiency Level VI Requirements
  • Meets UL/EN/IEC60601-1-2, 4th edition for EMC
  • Approved to EN/IEC/UL60601-1, 3rd edition
  • Isolation levels which satisfy the 2 MOPP requirements
  • Desktop and Wall-Plug versions
  • Meets EN55011/CISPR11, FCC Part 15.109 Class B Conducted & Radiated Emissions
  • E-cap life of >7 years
  • 3 Year Warranty
  • IP22 Rated Enclosure

Specifications

Output Power (W): 60
Length (Inches): 4.25
Width (Inches): 2.67
Height (Inches): 1.29
Mounting Type: External Adapter
Minimum Output Current (A): 1.35
Maximum Output Current (A): 7
Output Voltage Range (V): 5V to 48V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
ME60A0551F01 Active, In Stock
5V @ 7.0A Class I Desktop C14
5 5 7 5 1 Request Buy
ME60A0551N01 Active, Contact Us
5V @ 7.0A Classs II Desktop C8
5 5 7 5 1 Contact Us Buy
ME60A1203F01 Active, In Stock
12V @ 5.0A Class I Desktop C14
12 12 5 12 1 Request Buy
ME60A1203N01 Active, In Stock
12V @ 5.0A Classs II Desktop C8
12 12 5 12 1 Request Buy
ME60A1503F01 Active, In Stock
15V @ 4.0A Class I Desktop C14
15 15 4 15 1 Request Buy
ME60A1503N01 Active, In Stock
15V @ 4.0A Classs II Desktop C8
15 15 4 15 1 Request Buy
ME60A2403F01 Active, In Stock
24V @ 2.70A Class I Desktop C14
24 24 2.7 24 1 Request Buy
ME60A2403N01 Active, In Stock
24V @ 2.70A Classs II Desktop C8
24 24 2.7 24 1 Request Buy
ME60A4803F01 Active, In Stock
48V @ 1.35A Class I Desktop C14
48 48 1.35 48 1 Request Buy
ME60A4803N01 Active, Contact Us
48V @ 1.35A Classs II Desktop C8
48 48 1.35 48 1 Contact Us Buy

Technical Documentation
