artesyn™

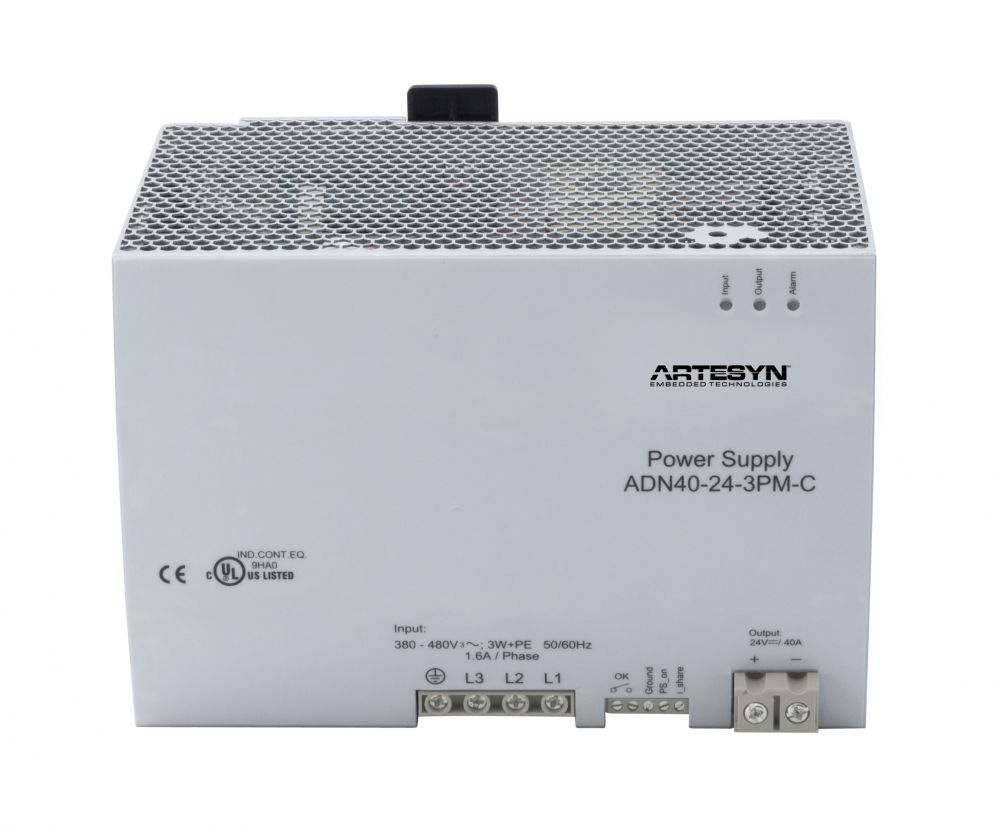

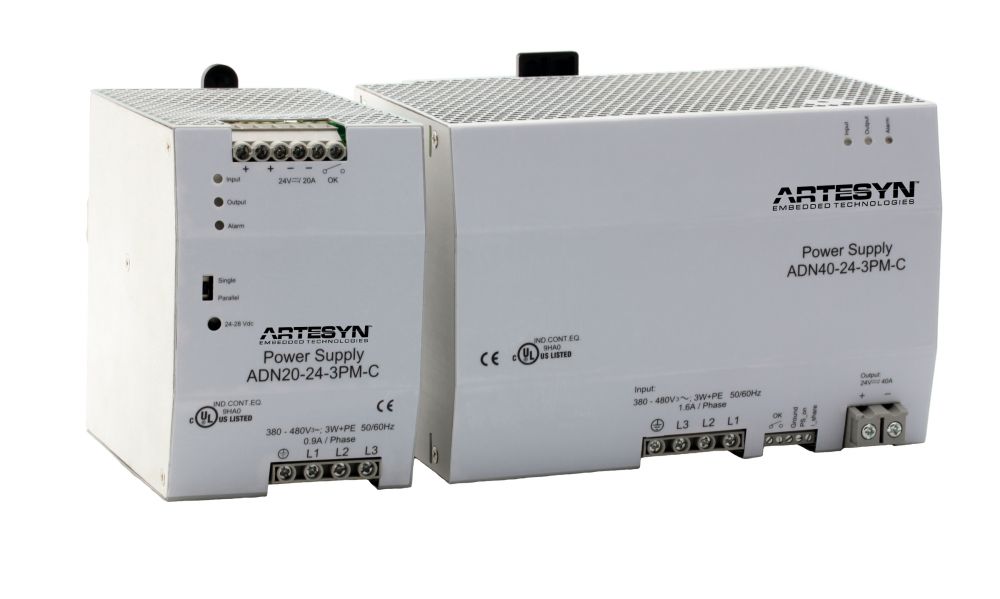

ADN-C 3-Phase Series
Active
Din Rail Mounting Three-Phase AC-DC Power Supplies
The ADN-C series of three-phase DIN rail mounting AC-DC power supplies is ideal for a wide range of heavy duty industrial applications – especially those involving large inductive loads – including machine control, semiconductor fabrication, conveyor and material handling systems. These highly efficient ultra compact 24 VDC output power supplies operate directly from three-phase inputs and accommodate virtually all standard line voltages worldwide.
Features
- Frequency 50-60 Hz
- Input Range 320-540 VAC, 450-720 VDC
- Active PFC > 0.92
- Hold-up time > 20ms
- OVP > 30.5 VDC but < 33 VDC with autorecovery
- Voltage 24 VDC (24.0 to 28.0 VDC Adj)
- Voltage Regulation < ± 2% overall
- PowerBoost 1.5x nominal current for 4 seconds
Specifications
| Output Power (W): | 960 |
|---|---|
| Length (Inches): | 4.85 |
| Width (Inches): | 7.09 |
| Height (Inches): | 4.85 |
| Mounting Type: | Din Rail |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 40 |
| Output Voltage Range (V): | 22.5V to 28.5V |
