CSU3200ADC-3-3M0 M-CRPS

Active

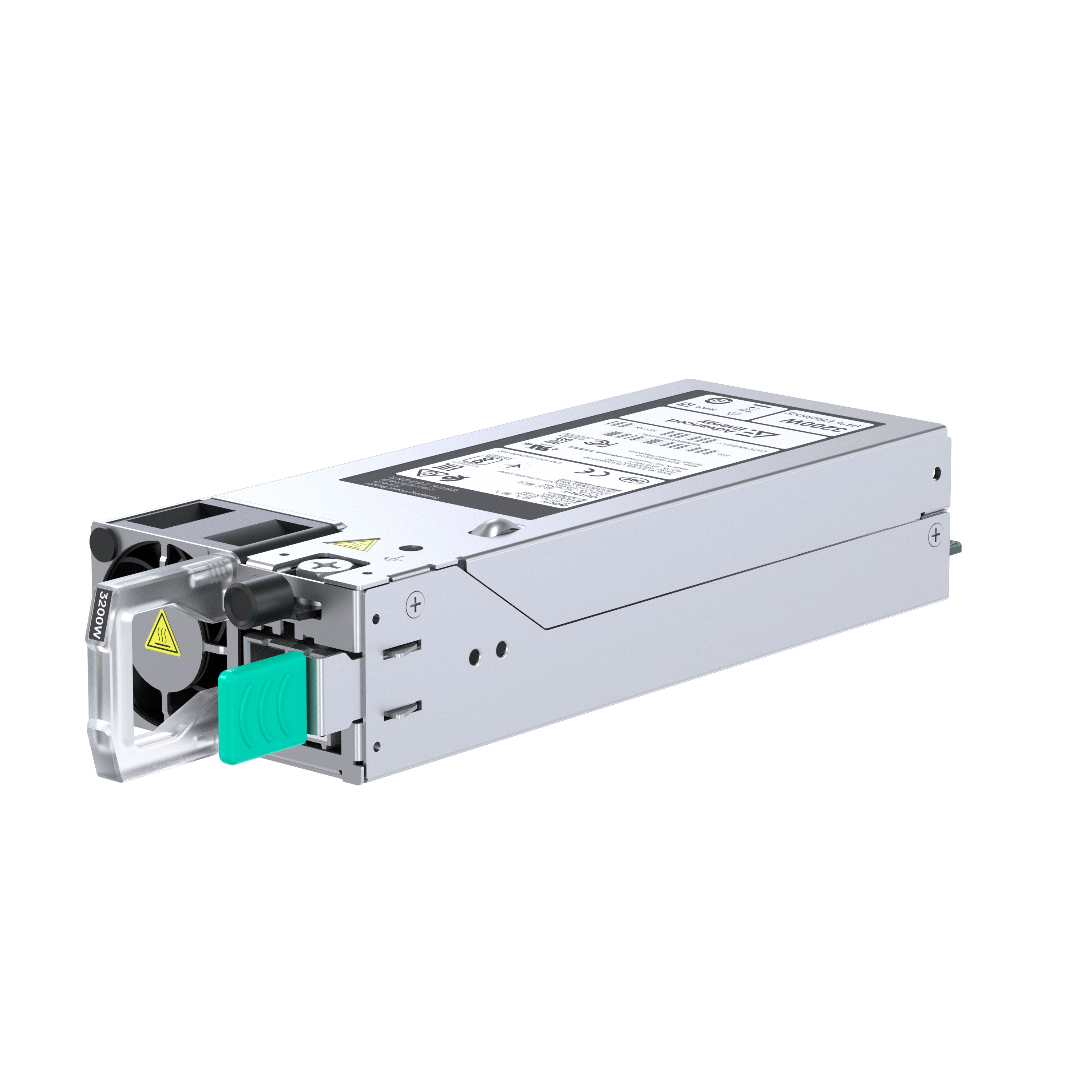

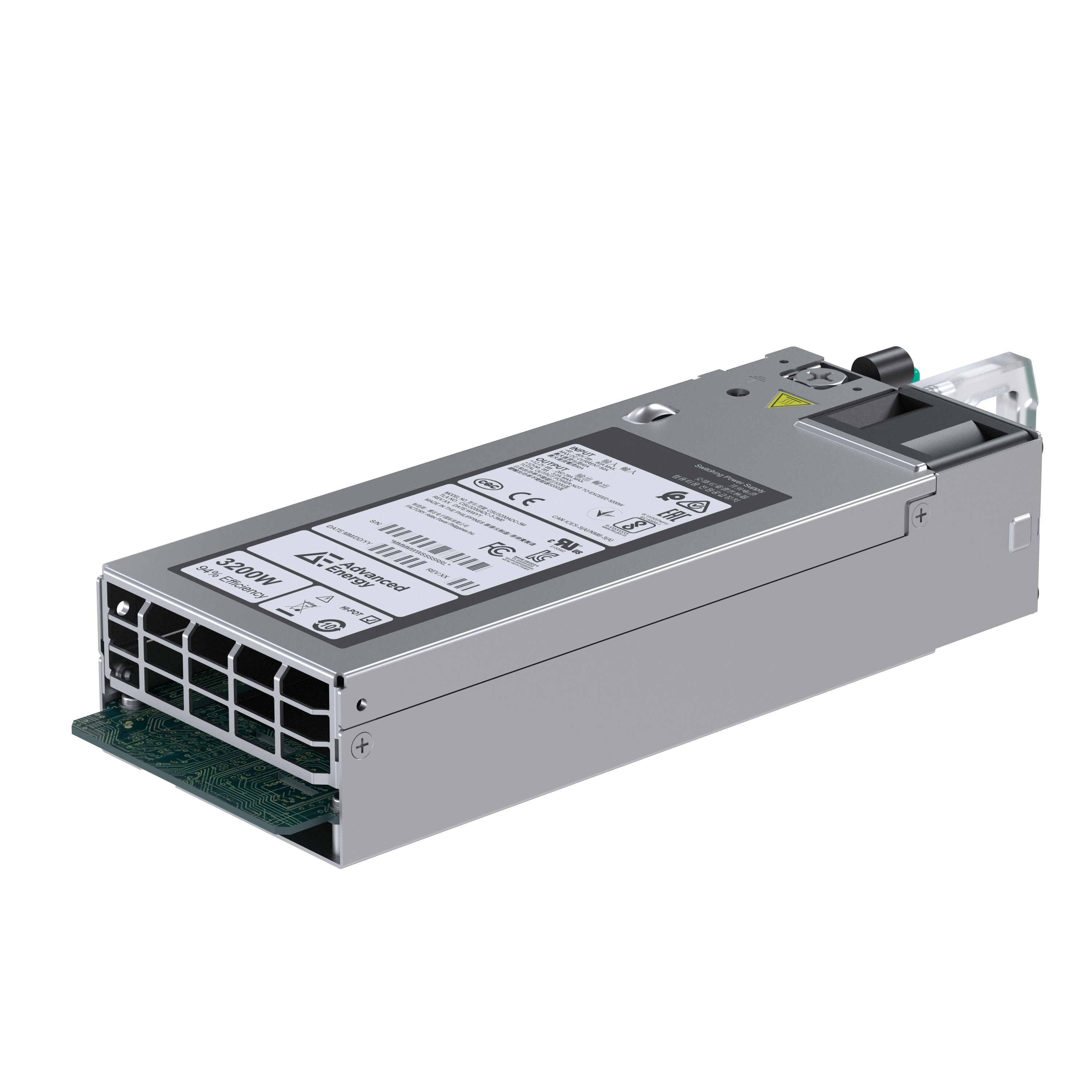

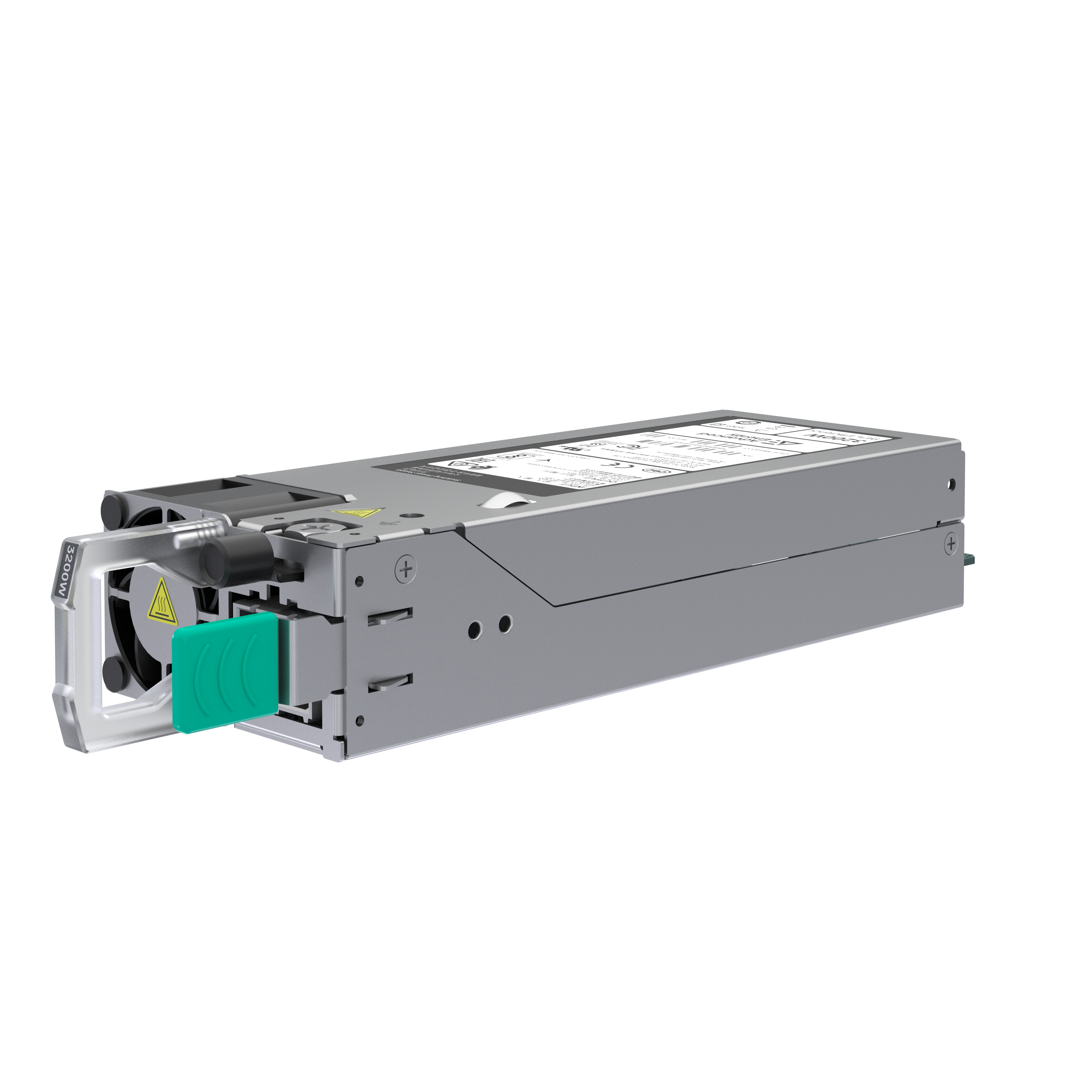

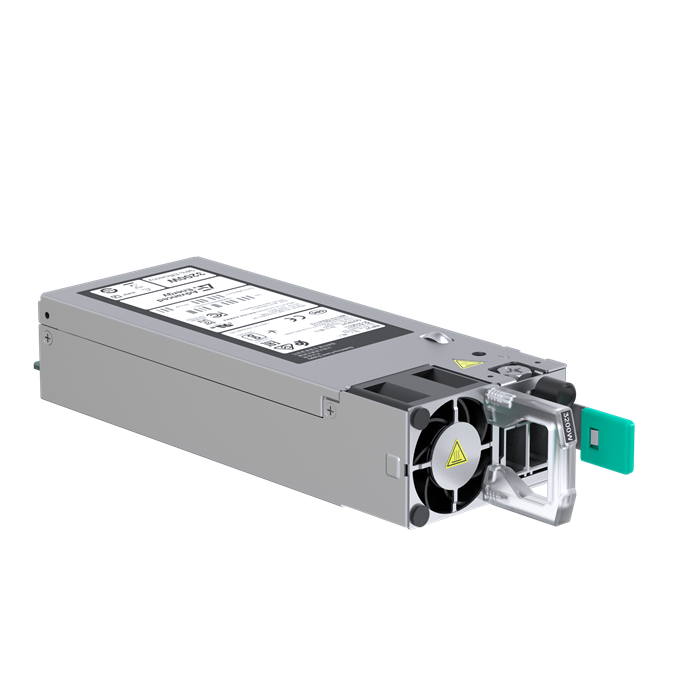

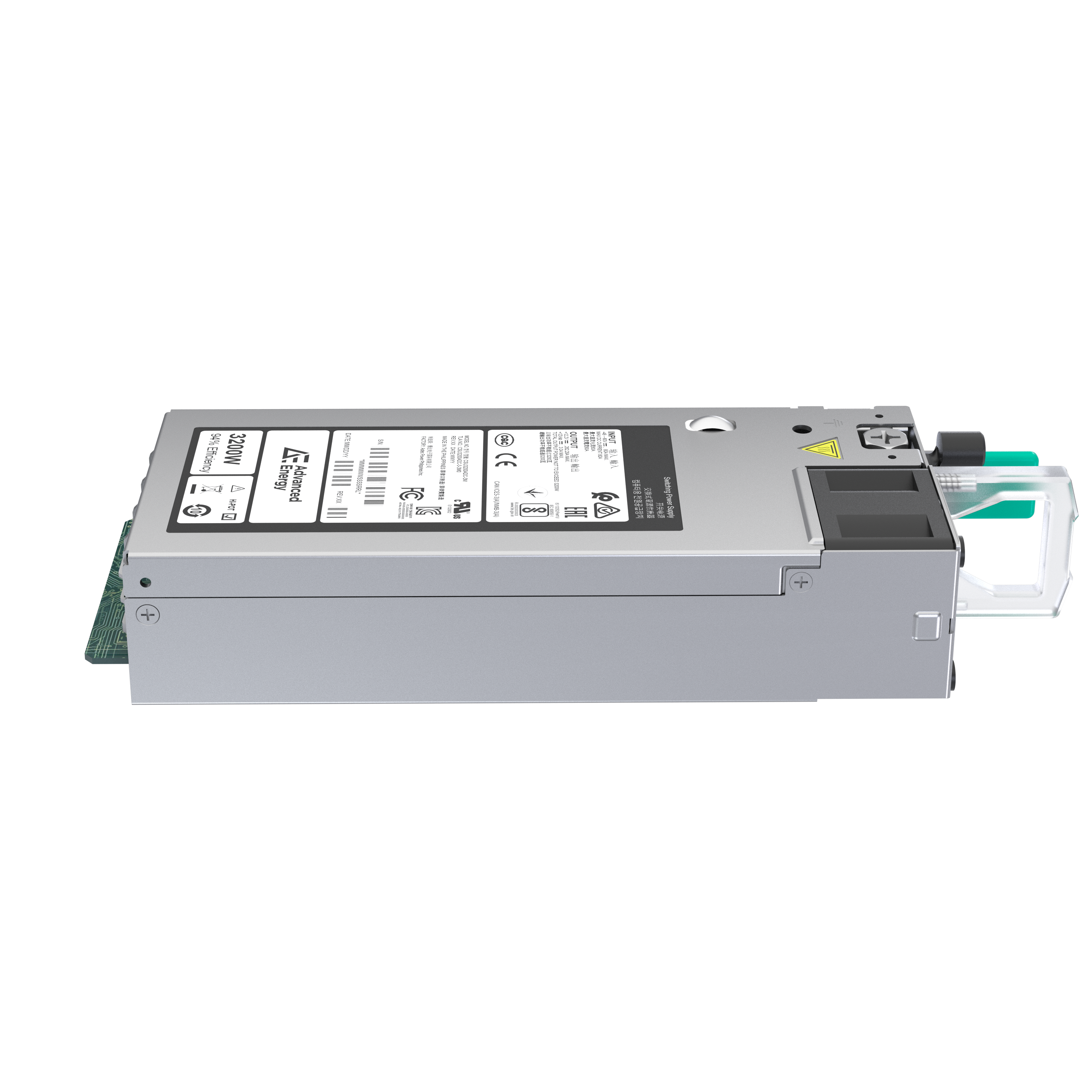

3200 W M-CRPS Titanium Power Supply

The 3.2 kW Titanium-efficiency CSU3200ADC-3-3M0 delivers regulated 12 VDC output with up to 94% efficiency for centralized -48 VDC telecom, networking, AI, and data center systems. Its compact 1U M-CRPS-compliant design maximizes available system space and supports parallel and redundant operation with active current sharing. Integrated I²C and PMBus® support enable advanced monitoring and power management.

Features

Efficiency: Up to 94%
Input range: 140 to -72 VDC
Hold-up time: 2 ms
Power Factor: > 0.98 at 50% load
Main output voltage: 12.2 V at 262.3 A
Standby output voltage: 12.0 V at 3 A
Dimensions: 1U, 2.89 × 7.28 inches (73.5 × 185 mm)
Redundant mode operation
Field upgradable firmware
Load sharing active for parallel function
PMBus monitoring and reporting
FW security

Benefits

High efficiency and high power factor performance reduce electricity costs.
Small form factor saves space for system core functions.
PMBus support provides reporting, monitoring, and control functions.
Field upgradeable feature reduces mean time to repair and system down time

Specifications

Output Power (W):	3200
Length (Inches):	7.28
Width (Inches):	2.89
Height (Inches):	1.52
Mounting Type:	Rack mount
Minimum Output Current (A):	0
Maximum Output Current (A):	262.29
Output Voltage Range (V):	11.4V to 12.8V
Minimum Output Power (W):	0
Maximum Output Power (W):	3200
Minimum Input Voltage (V):	-72
Maximum Input Voltage (V):	-40
Warranty (Years):	2

All Specifications Collapse Specifications
