CoolX1800 Series

Active

1800 W Intelligent, Modular Power Supplies

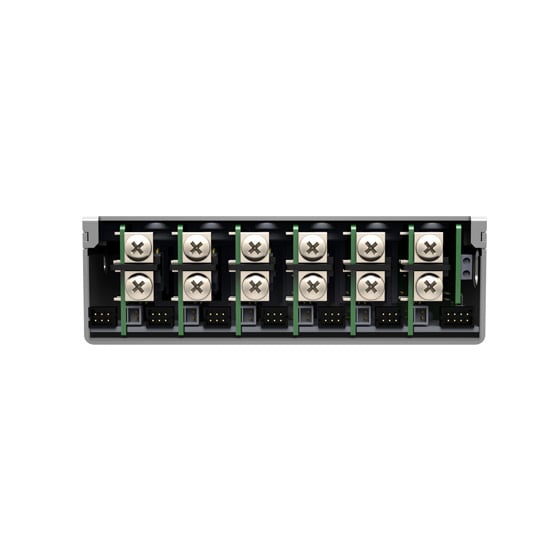

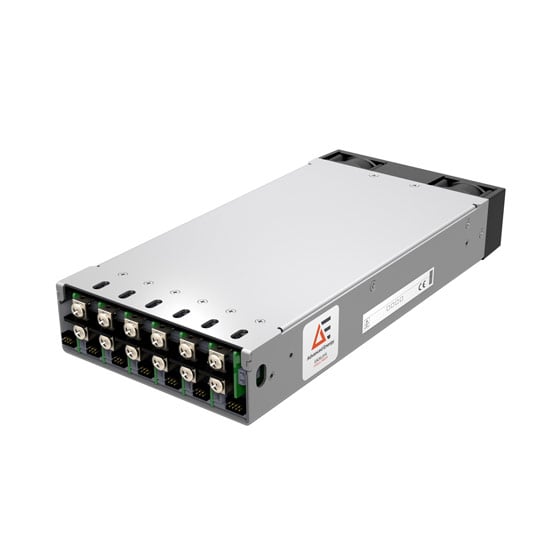

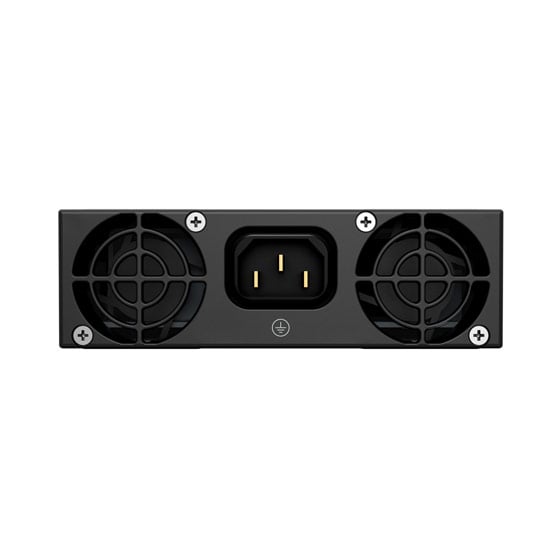

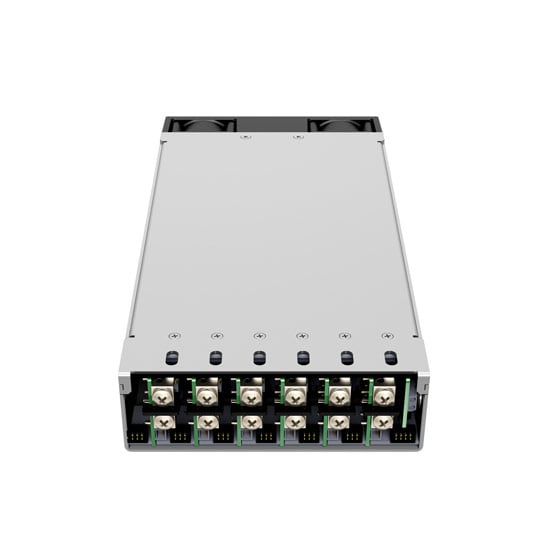

Access incredible power via a compact supply. The modular Excelsys CoolX®1800 offers 1800 W in a 267 x 127 x 41 mm package (approximately 50% more power than the industry standard). Outputs can be parallel connected for higher currents and series connected for higher voltages (up to 348 VDC). The series is available in two base models. The CX18S has the IEC60950 (second edition) certification for industrial applications and will comply with the upcoming IEC62368-1 standard. The CX18M carries IEC60601-1 (third edition) and the IEC60601-1-2 (fourth edition, EMC) standards for medical applications. Both can be populated with up to six CoolMods, providing up to 12 isolated DC outputs that range from 1.0 V to 615 V.

Features

  • 93% efficiency
  • Five-year warranty
  • MTBF figures of > 200000
  • Safety approved to 5000 m altitude

Benefits

  • High Power Density: 1800 W in a 267 x 127 x 41 mm package
  • Full Safety Agency Approvals: See Technical Specs for details
  • Intelligent Digital Power: Access maximum flexibility with analog and digital control (PMBus®)
  • User- and Field-Configurable: Configure outputs to setpoint voltages; connect in parallel/series for higher output current and/or voltages
  • High Reliability and Efficiency: Help ensure quality, reliability, and a low total cost of ownership

Specifications

Output Power (W): 1800
Length (Inches): 10.5
Width (Inches): 5
Height (Inches): 1.75
Output Voltage Range (V): 1 to 348
Maximum Output Power (W): 1800
Maximum Input Voltage (V): 264

Stock Check

Model Number
Efficiency (%) Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Max Output Power (W) Number of Outputs Samples Buy
CMA Active, In Stock
CoolMod 2.5V-6.0V/21A (25A*),must be used with CoolX CoolPac/Flexicharge
93 2.5 6 30 5 150 1 Request Buy
CMB Active, In Stock
CoolMod 6.0V-15.0V/15A (23.3A*) ,must be used with CoolX CoolPac/Flexicharge
93 6 15 23.3 12 280 1 Request Buy
CMC Active, In Stock
CoolMod 15.0V-28.0V/8.33A (12.5A*),must be used with CoolX CoolPac/Flexicharge
93 15 18 12.5 24 300 1 Request Buy
CMD Active, In Stock
CoolMod 28.0V-58.0V/4.17A (6.25A*),must be used with CoolX CoolPac/Flexicharge
93 28 58 6.25 48 300 1 Request Buy
CMDC Active, In Stock
CoolMod Conformal Coated 28.0V-58.0V/4.17A (6.25A*),must be used with CoolX CoolPac/Flexicharge
93 28 58 6.25 48 300 1 Request Buy
CMD-W01 Active, In Stock
CoolMod Wide Trim, 3.0V-58.0V/4.17A (6.25A*),must be used with CoolX CoolPac/Flexicharge
93 3 58 6.25 48 300 1 Request Buy
CME Active, In Stock
CoolMod 22.8V-25.2V/25A (37.5A*),must be used with CoolX CoolPac
93 22.8 25.2 37.5 24 900 1 Request Buy
CMF Active, In Stock
CoolMod 45.6V-50.4V/12.5A (18.75A*) ,must be used with CoolX CoolPac
93 45.6 50.4 18.75 48 900 1 Request Buy
CMG Active, In Stock
CoolMod Dual 3.0V-30.0/3A (4A*),must be used with CoolX CoolPac/Flexicharge
93 200 2 Request Buy
CMH Active, In Stock
CoolMod Dual 3.0V-6.0V/6A (10A*), 3.0V-30.0V/3A (4A*),must be used with CoolX CoolPac/Flexicharge
93 180 2 Request Buy
CMK Active, In Stock
CoolMod 175V-205V/0.6A(1.0A*),must be used with CoolX CoolPac/Flexicharge
93 175 205 1 200 205 1 Request Buy
CX18M-000000-N4A Active, In Stock
1800W Fan Cooled Medical CoolPac, Screw Terminal Input, Low leakage, 12V aux, 6 Slots, must be used with CoolX CoolMod
93 85 VAC Input 264 VAC Input 1800 12 Request Buy
CX18M-000000-N5B Active, In Stock
1800W Fan Cooled Medical CoolPac, IEC input, Low leakage, 5V aux, 6 Slots, must be used with CoolX CoolMod
93 85 VAC Input 264 VAC Input 1800 12 Request Buy
CX18M-000000-N-A Active, In Stock
1800W Fan Cooled Medical CoolPac, Screw Terminal Input, Low leakage, 12V aux, 6 Slots, must be used with CoolX CoolMod
93 85 VAC Input 264 VAC Input 1800 12 Request Buy
CX18M-000000-N-B Active, In Stock
1800W Fan Cooled Medical CoolPac, Screw Terminal Input, Low leakage, 5V aux, 6 Slots, must be used with CoolX CoolMod
93 85 VAC Input 264 VAC Input 1800 12 Request Buy
CX18P1 Active, In Stock
CoolX1800 Parallel Links
Request Buy
CX18S-000000-N-A Active, In Stock
1800W Fan Cooled Standard CoolPac, Screw Terminal Input, Low leakage, 12V aux, 6 Slots, must be used with CoolX CoolMod
93 85 VAC Input 264 VAC Input 1800 12 Request Buy
CX18S-000000-N-B Active, In Stock
1800W Fan Cooled Standard CoolPac, Screw Terminal Input, Low leakage, 5V aux, 6 Slots, must be used with CoolX CoolMod
93 85 VAC Input 264 VAC Input 1800 12 Request Buy
CX18S1 Active, In Stock
CoolX1800 Series Links
Request Buy

Accessories

CoolXPMBus GUI

The CoolX series PMBus interface facilitates operating parameter communications (e.g. output voltage, output current, and internal temperature) with other PMBus enabled devices.

Compare

Model CoolX1800 CoolX1000 Coolx600 Ultimod
Length (Inches) 10.5 10 8.5 10
Width (Inches) 5 6.5 4.5 5
Height (Inches) 1.75 1.539 1.539 1.75
Maximum Output Current (A) 4.7 4.7
Maximum Output Power (W) 1800 1000 600 1200
