new artesyn™

FCM 10 kW Modules

Active

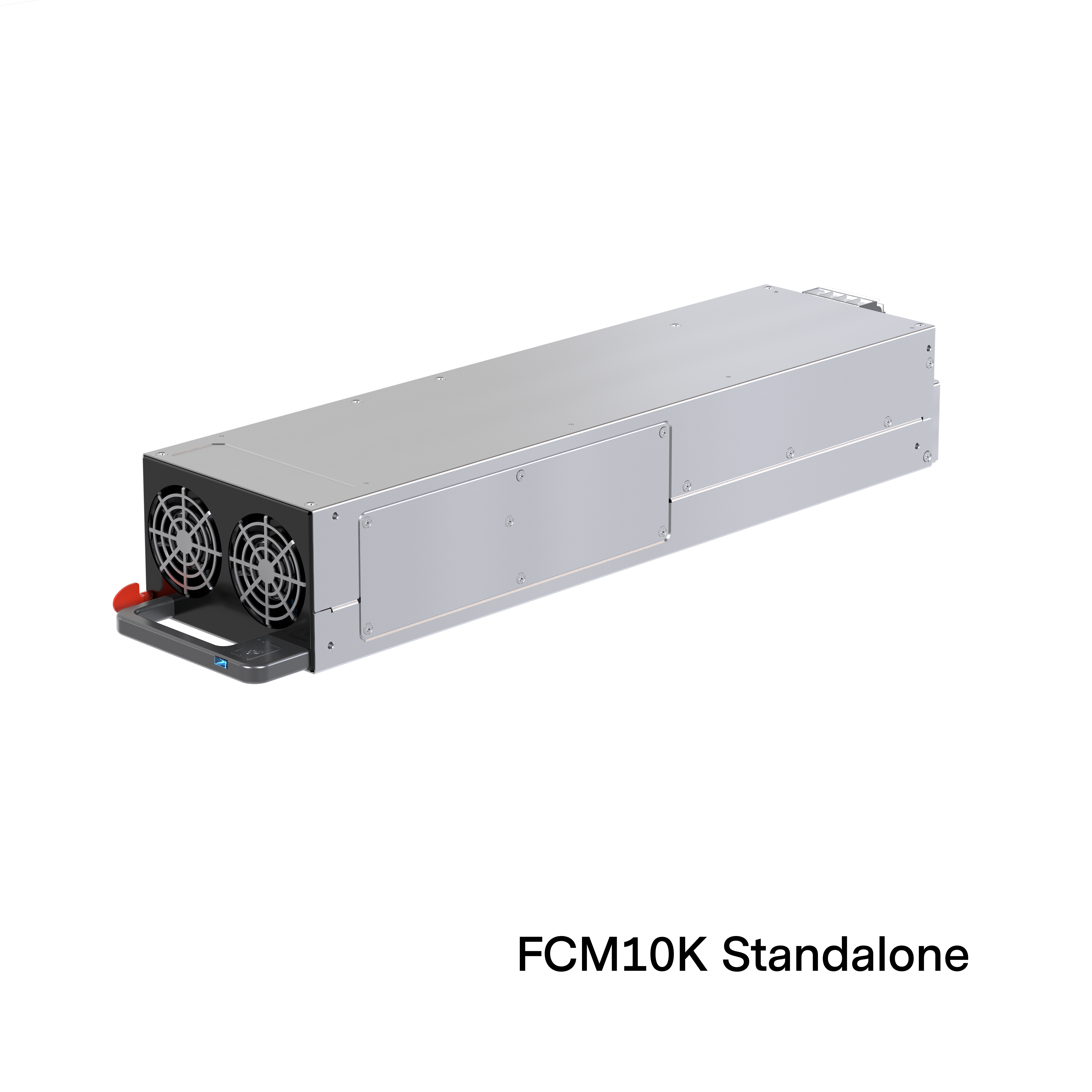

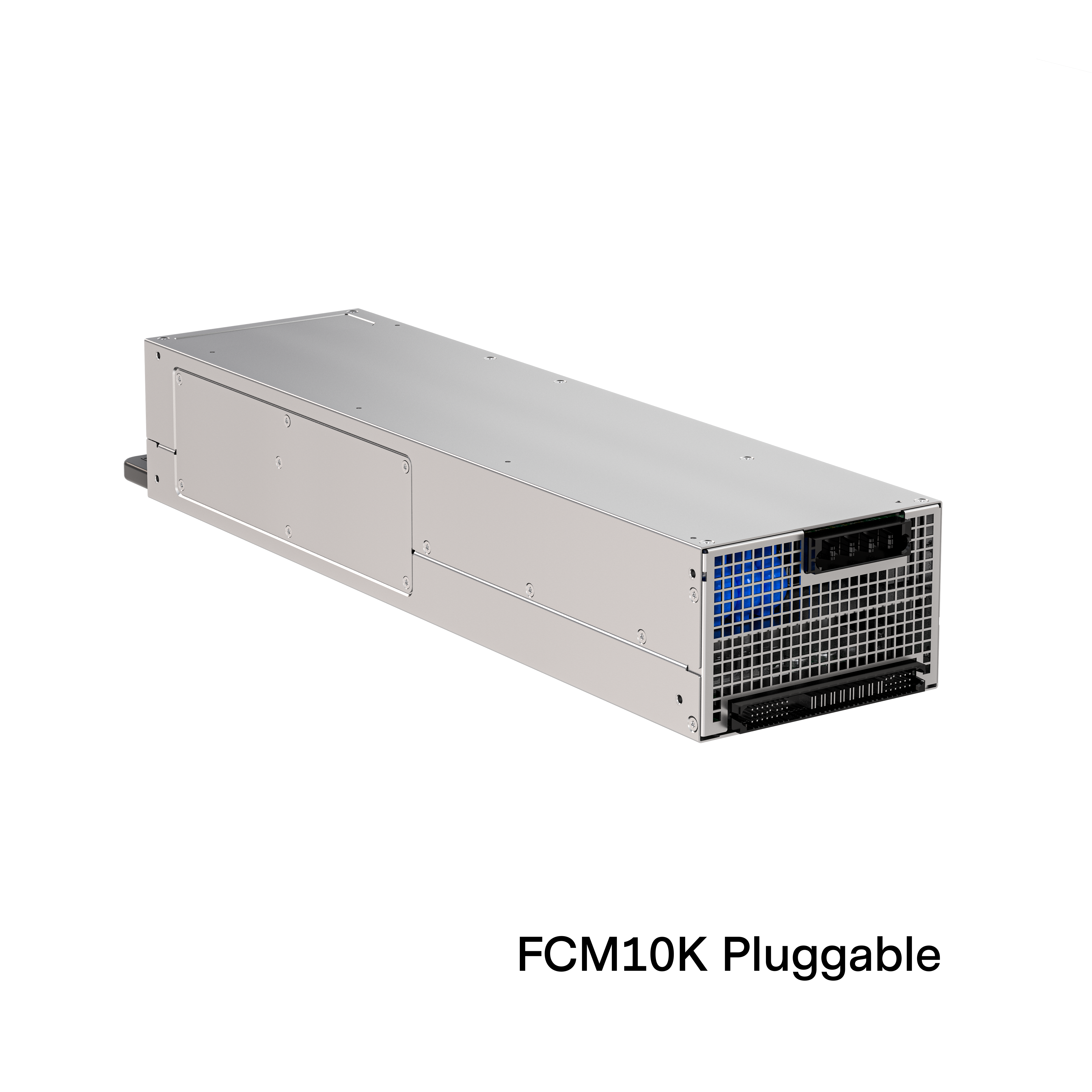

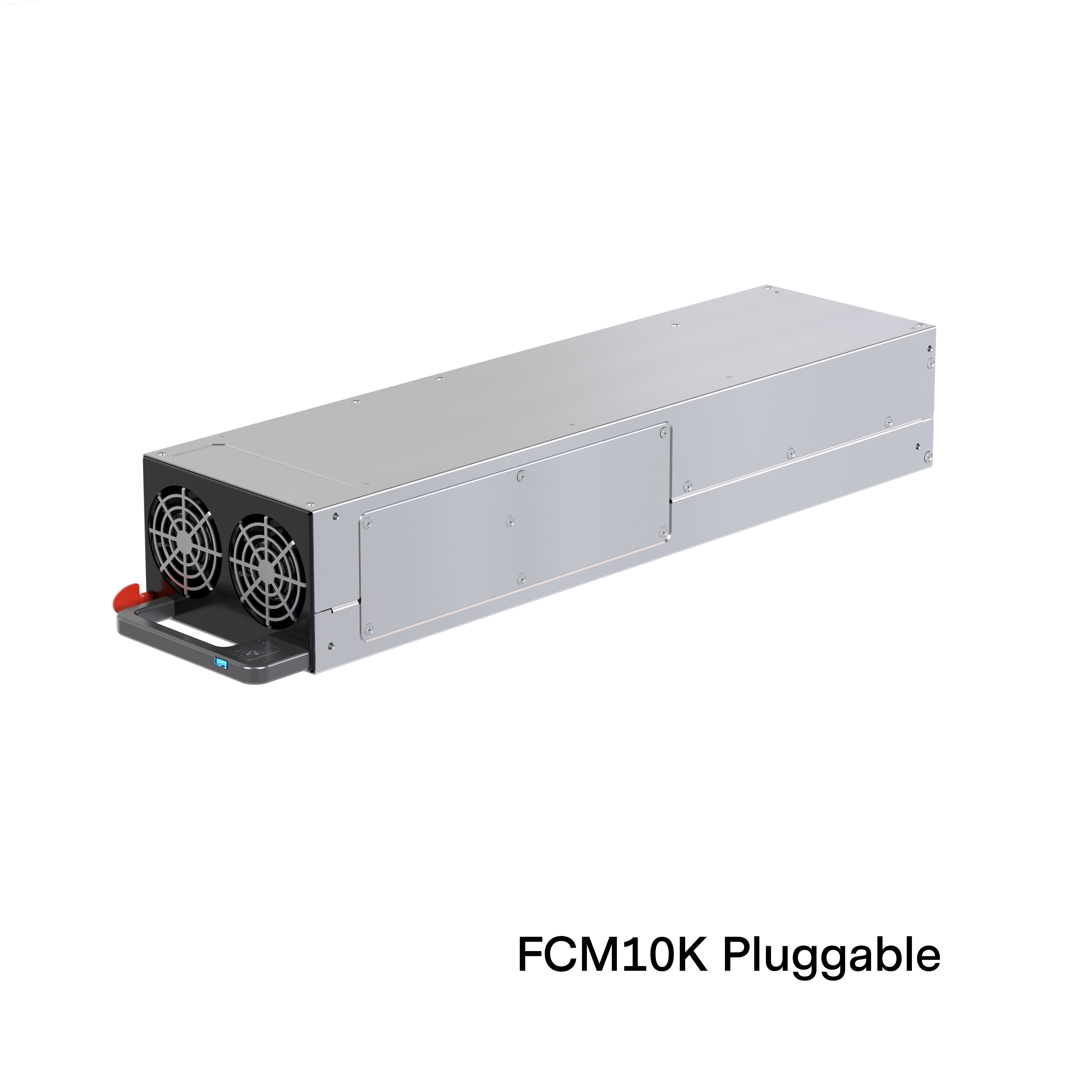

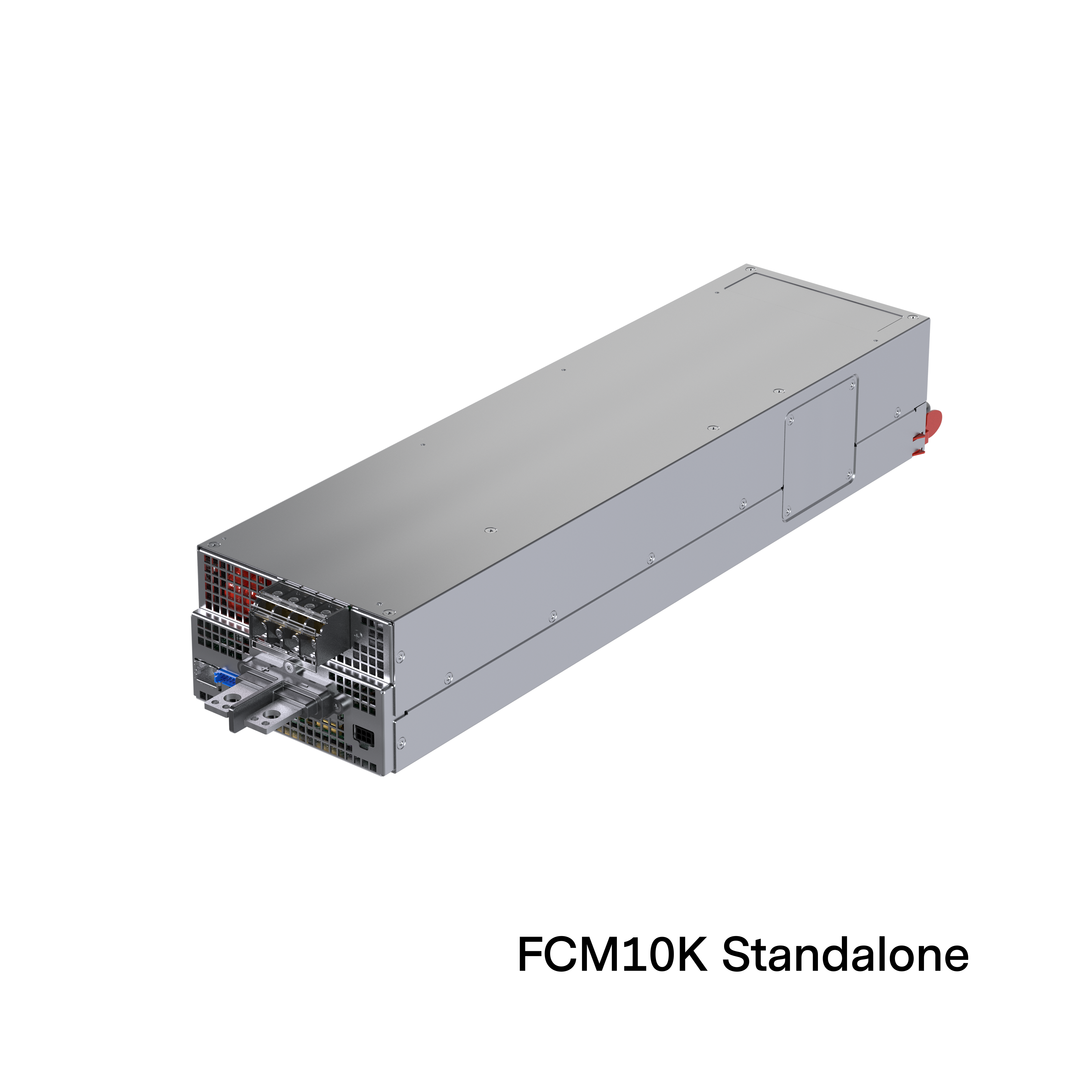

Evergreen™ Vento™

The 38 W/in3 power density of Evergreen Vento standalone and pluggable modules provides more power in less space, and > 95% efficiency with 0.98 power factor correction reduces utility costs and minimizes heat. These modules are high performing in an array of industrial, medical, semiconductor, supercomputer and defense applications.

Features

  • Instant customization
  • Modularity
  • 38 W/in3
  • > 95% efficiency

Benefits

  • Fast delivery of tailored solutions
  • Quick power scaling
  • More power in less space
  • Reduced utility costs

Specifications

Output Power (W): 0 to 10000
Length (Inches): 18.11
Width (Inches): 4.95
Height (Inches): 3.2
Mounting Type: Shelf
Minimum Output Current (A): 0
Maximum Output Current (A): 183.5
Output Voltage Range (V): 48 to 60 V
All Specifications Collapse Specifications

Stock Check

* Demo available, Contact Us
Model Number
Efficiency (%) Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Samples Buy
FCM10KW-N-P* Active, Contact Us
Bulk Power; AC-DC 3-PH, 10KW; 48V; Pluggable
95.5 48 60 183 54.5 Contact Us Buy
FCM10KW-N-T* Active, Contact Us
Bulk Power; AC-DC 3-PH, 10KW; 48V; Terminal Block
95.5 48 60 183 54.5 Contact Us Buy

Accessories

FCM10K Software

Windows software for Evergreen FCM Series

PowerPro CANBUS/PMBUS Dongle

Add CANBUS and PMBUS capability

Technical Documentation

Title Type
FCM 10k Data Sheet (1 MB) Data Sheet

Technical Videos
