CSU3600AT-9-3M0 M-CRPS

Active

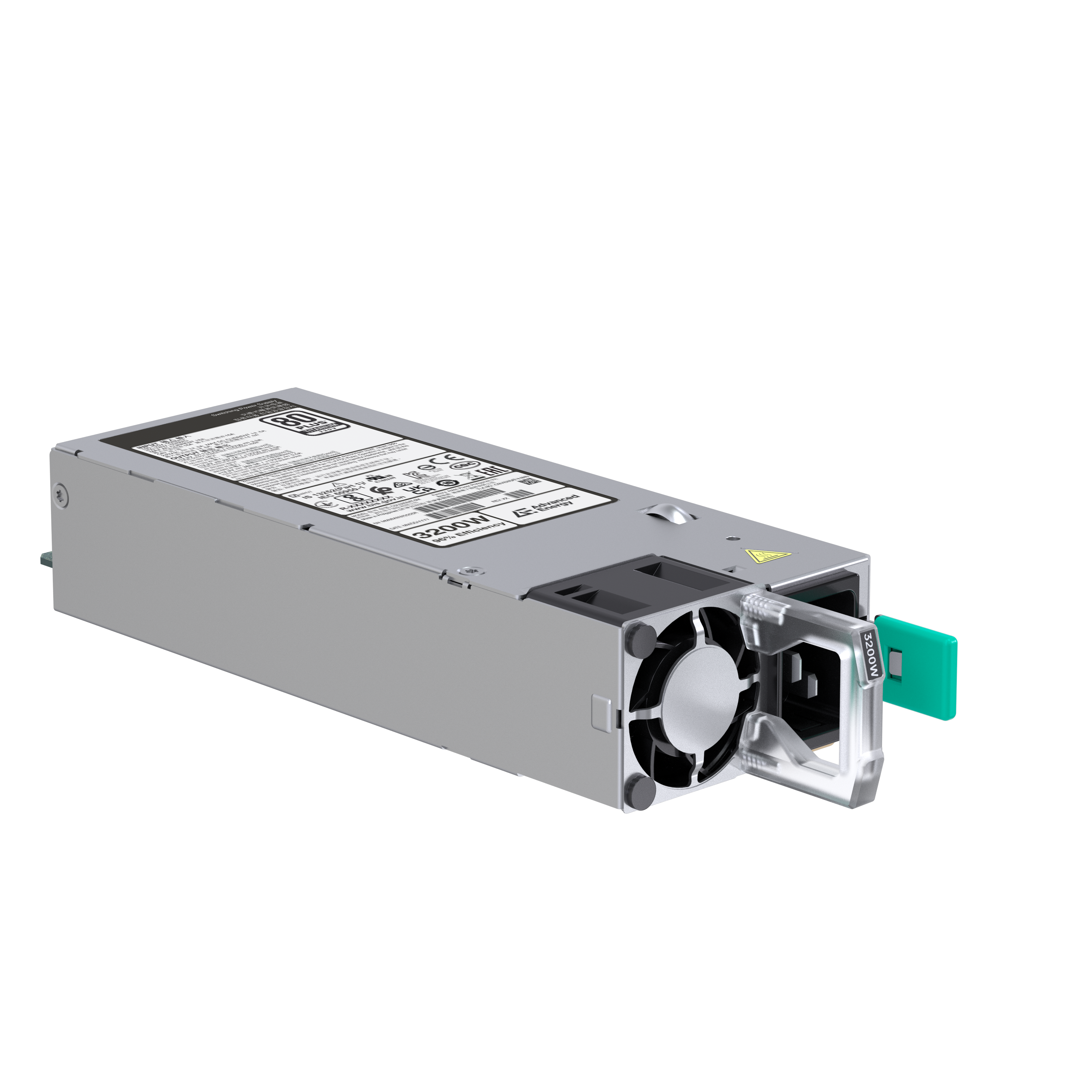

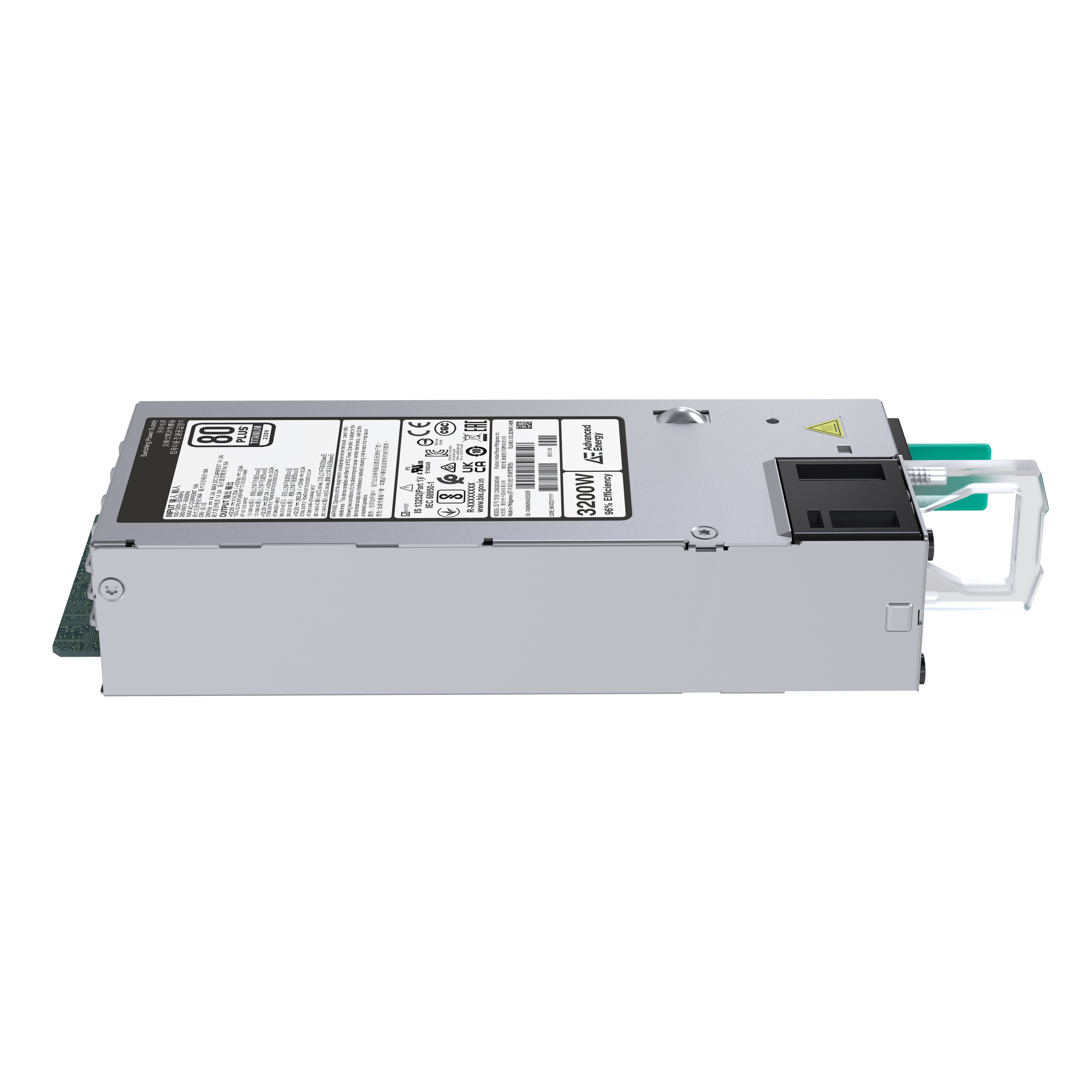

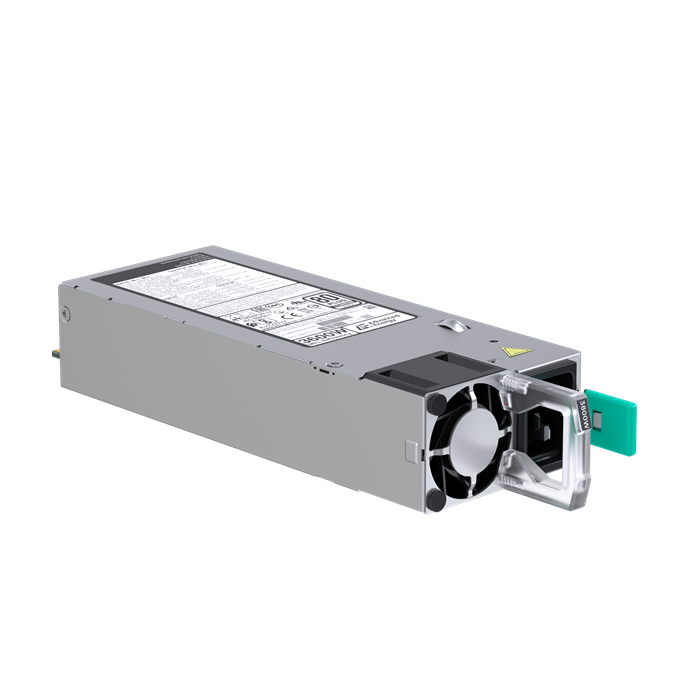

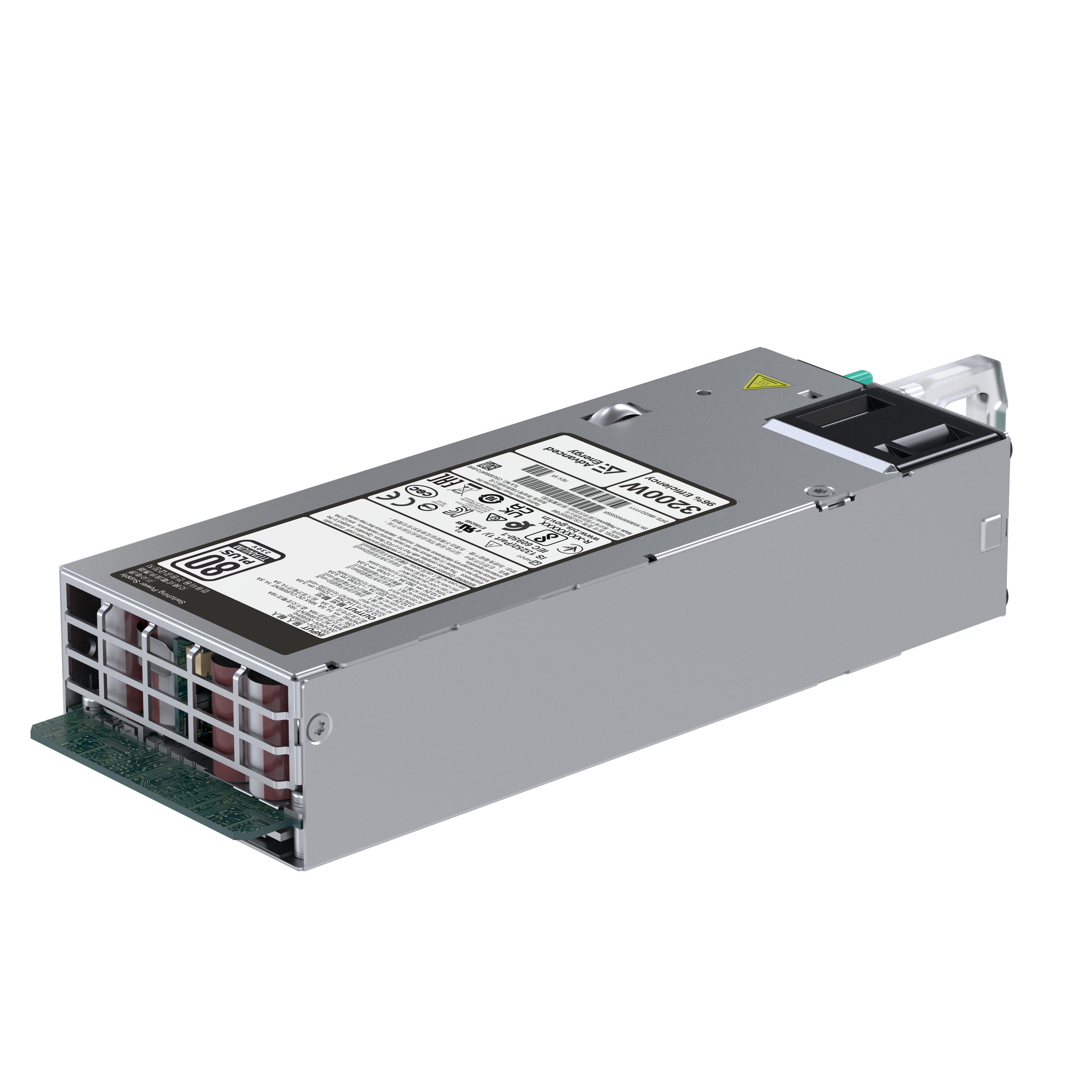

3600 W M-CRPS Titanium Power Supply

The 3.6 kW Titanium-Efficiency-certified CSU3600AT-9-6M0 delivers 54 VDC up to 66.7 A with 96% peak efficiency in a compact 1U M-CRPS form factor that frees up valuable system space. Its feeds DC-DC converters in distributed power architectures with wide AC or DC input range, active current sharing, and embedded I²C/PMBus® digital control for flexibility and ease of integration.

Features

Peak efficiency: 96%
Input range at low line, high line, and high voltage DC
Input: 90 to 127 VAC, 180 to 264 VAC, and 192 to 310 VDC
Input frequency: 47 to 63 Hz
Hold-up time: 11 ms
Power factor: > 0.98 at 50% load
Main output voltage: 54 V at 66.7 A
Standby output voltage: 12.0 V at 3 A
Dimensions: 2.89 x 7.28 in (73.5 x 185 mm)
Redundant mode operation
Field upgradable firmware
Load sharing active for parallel function
PMBus monitoring and reporting
FW security

Benefits

Input voltage flexiblity supports worldwide deployment.
High efficiency and high power factor reduce electricity costs.
Small form factor saves space for system core functions
PMBus support provides reporting, monitoring, and control functions.
Field upgradeable feature reduces mean time to repair and system down time.

Specifications

Output Power (W):	3600
Length (Inches):	7.28
Width (Inches):	2.89
Height (Inches):	1.52
Mounting Type:	Rack mount
Minimum Output Current (A):	0
Maximum Output Current (A):	66.7
Output Voltage Range (V):	54
Minimum Output Power (W):	0
Maximum Output Power (W):	3600
Minimum Input Voltage (V):	90
Maximum Input Voltage (V):	264
Warranty (Years):	2

All Specifications Collapse Specifications

Technical Documentation

Notify me when documents are updated

Product Information Documents New

Technical Videos

3200 W and 3600 W M-CRPS Power Supplies for AI and Enterprise Systems

Oct 13, 2026

Discover Advanced Energy’s compact M-CRPS power supplies, delivering 3200 W and 3600 W in a space-saving 185 mm form factor. Designed for enterprise and AI servers, storage systems, networking equipment, telecom infrastructure and OCP ORv3 platforms, the portfolio supports 12 V and 54 V architectures with AC- and LVDC-input options. Features include 80 PLUS® Titanium efficiency, wide operating temperature ranges, zero-trust firmware security, live firmware upgrades and comprehensive system protection.
