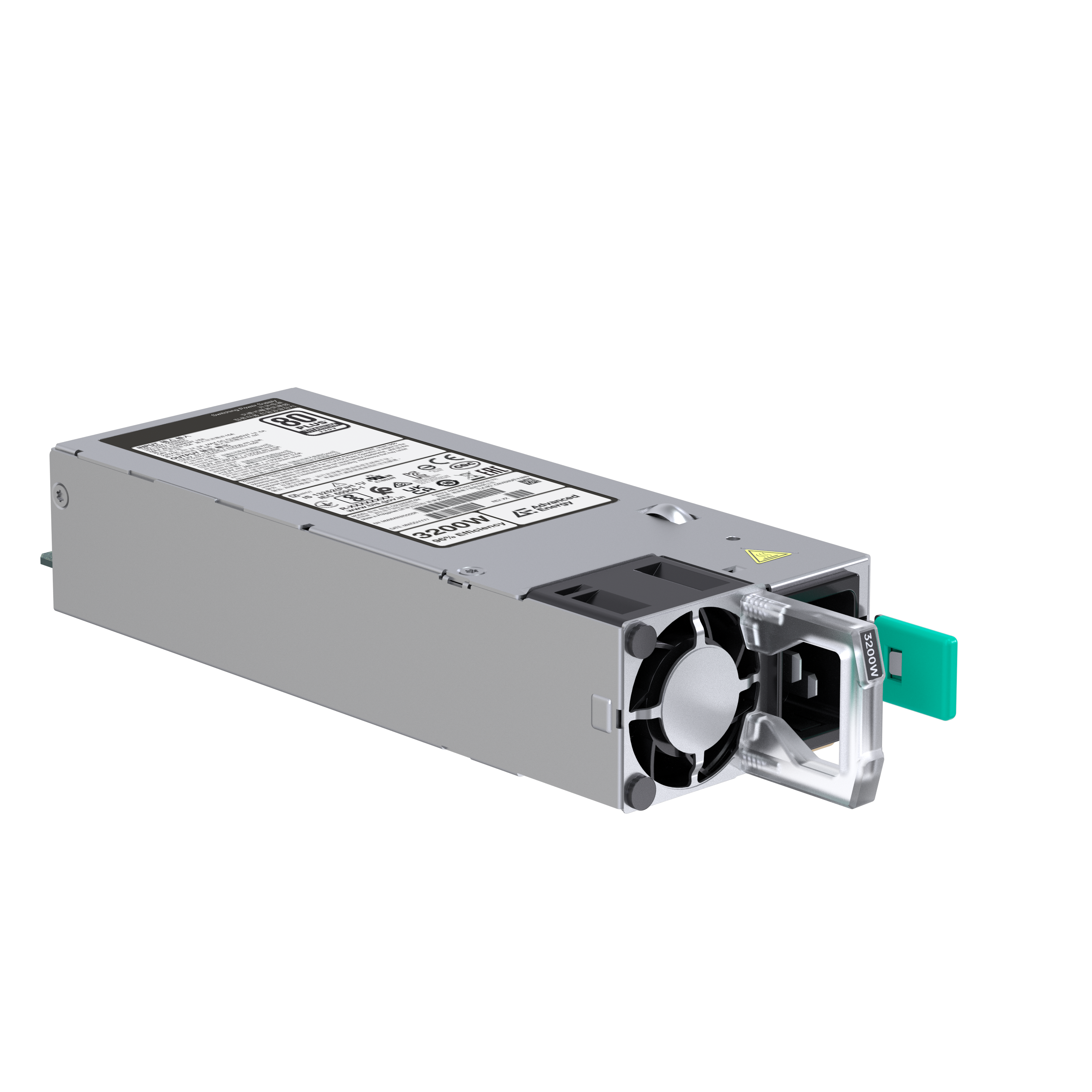

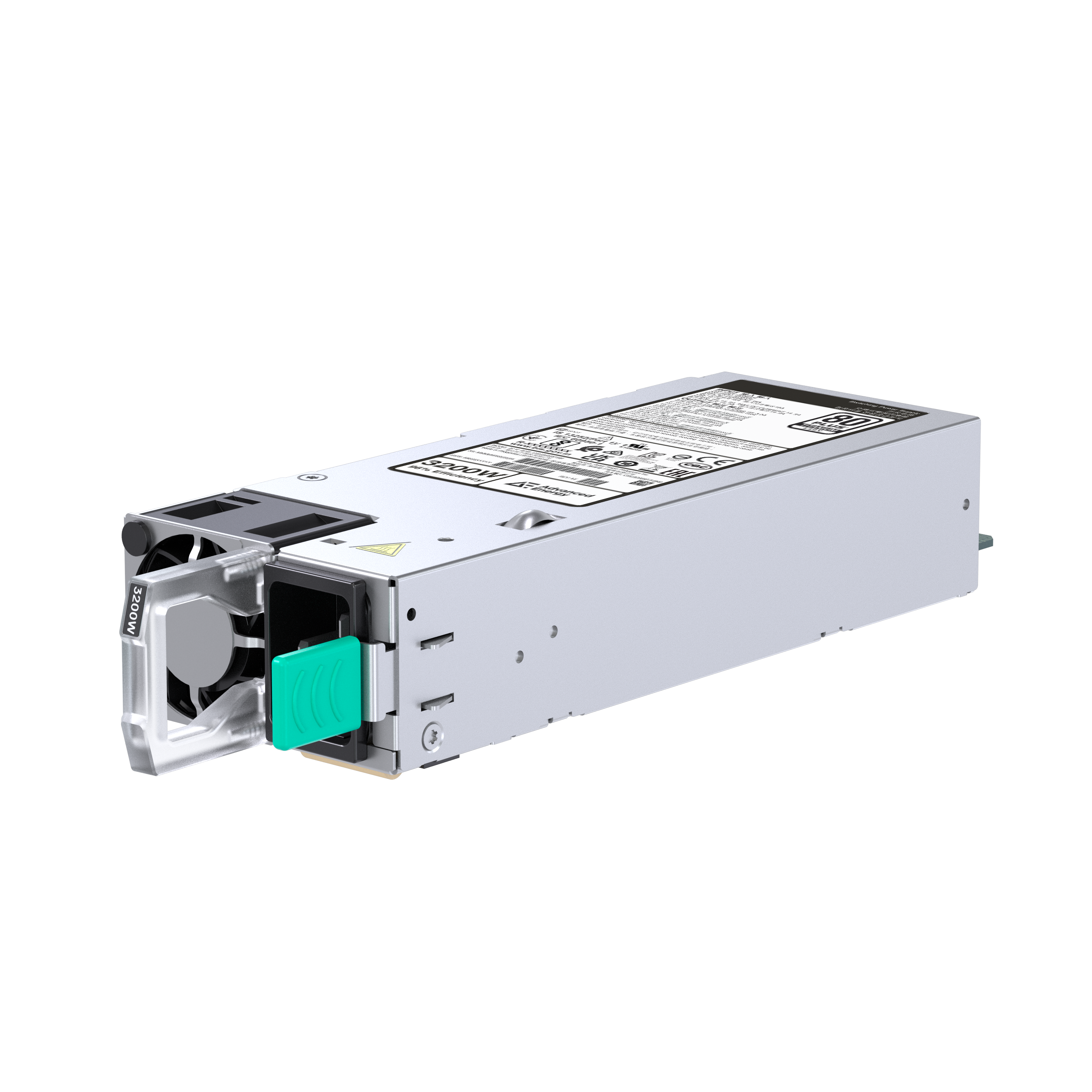

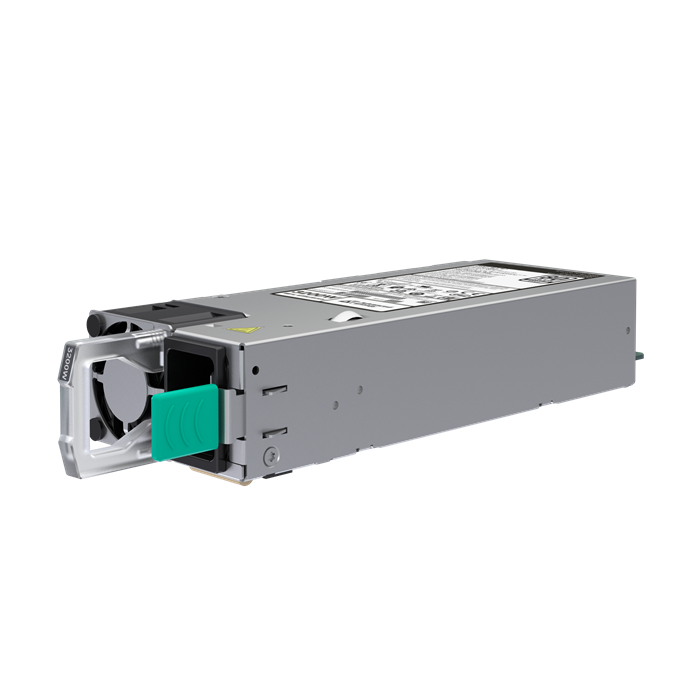

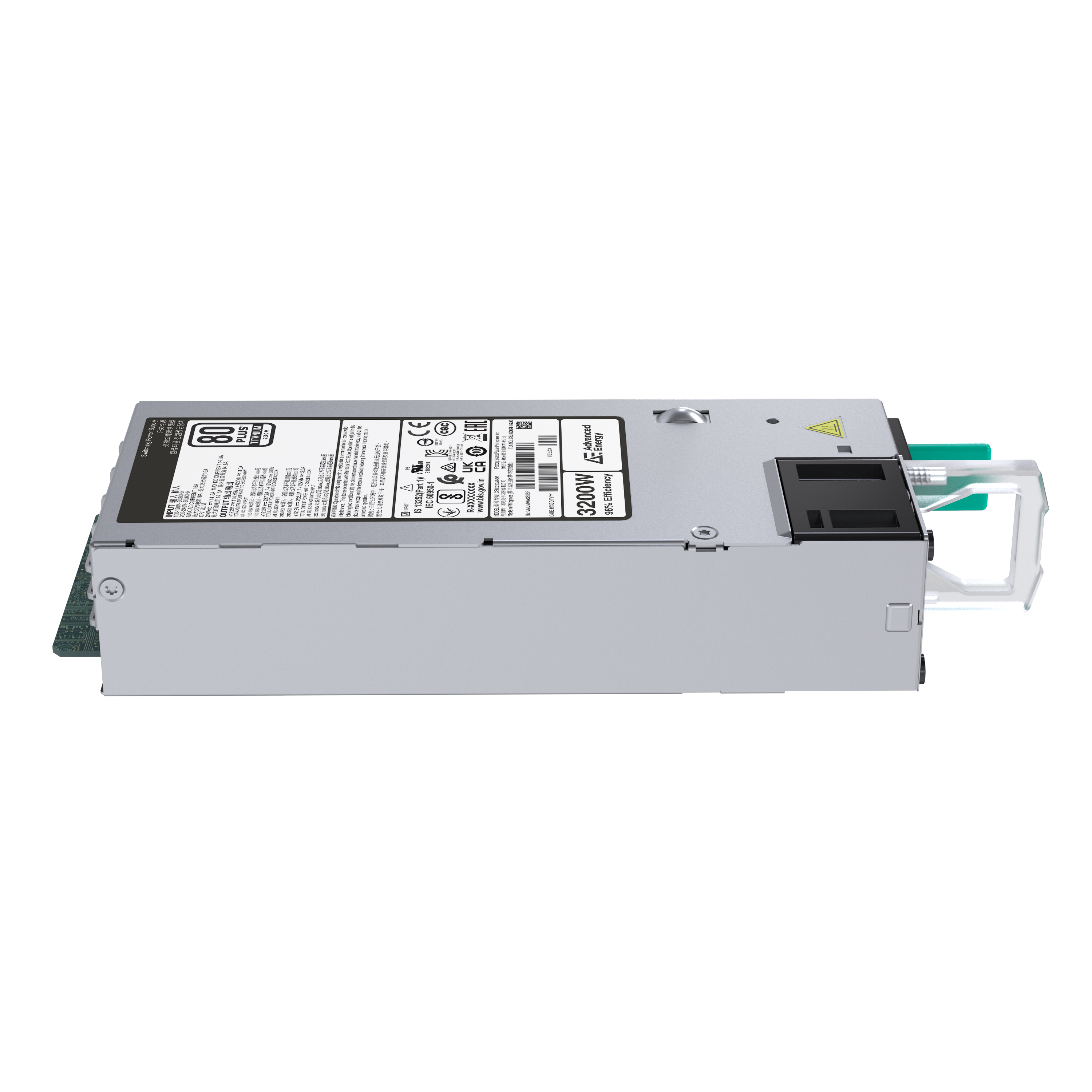

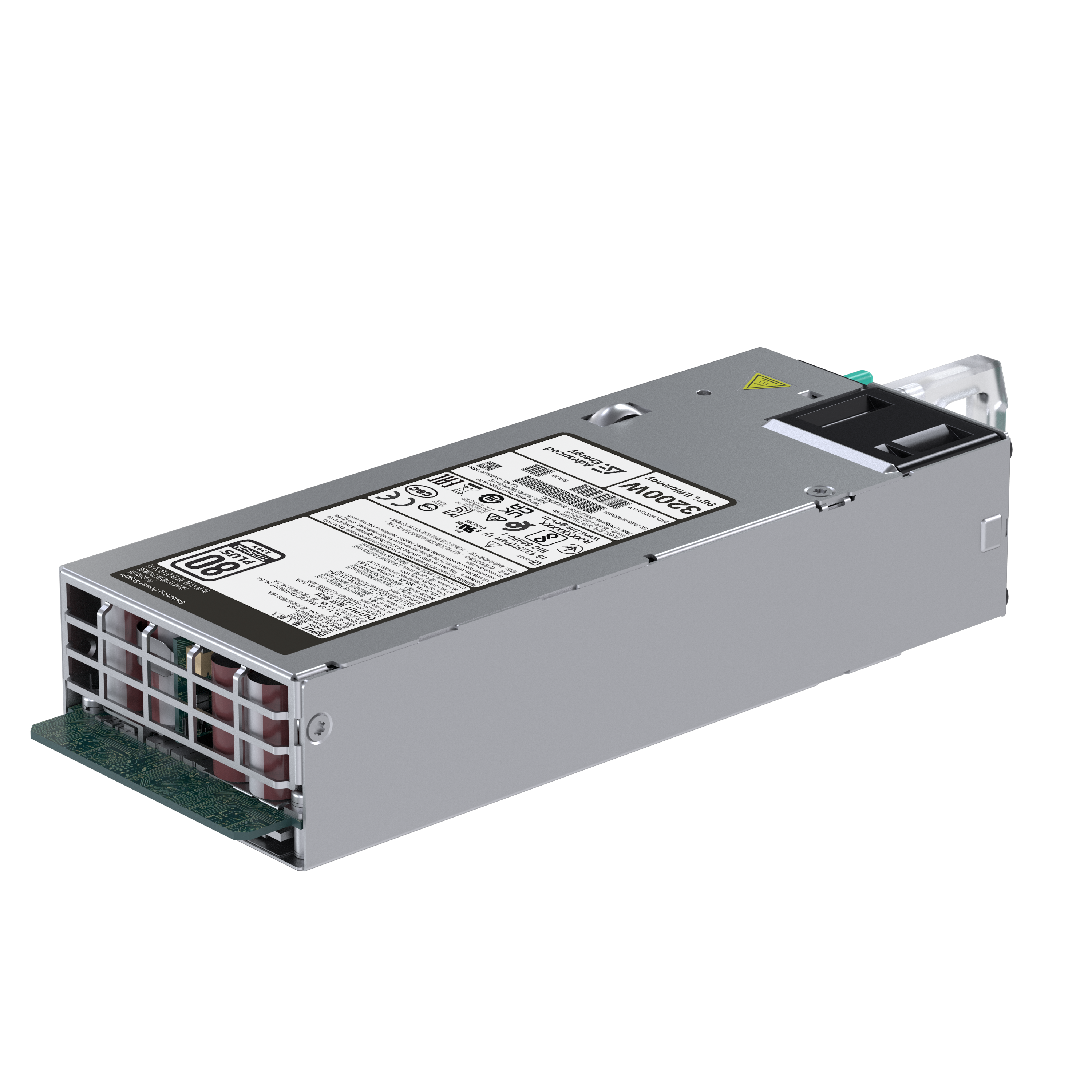

CSU3200AT-3-6M0 M-CRPS

Active

3200 W M-CRPS Titanium Power Supply

The 3.2 kW Titanium-Efficiency-certified CSU3200AT-3-6M0 delivers up to 262.3 A with 96% peak efficiency in a compact 1U M-CRPS form factor that frees up valuable system space. Its 11.4 to 12.8 VDC output feeds DC-DC converters in distributed power architectures. Wide AC or DC input range, active current sharing, and
embedded I²C/PMBus® digital control provide flexibility and
ease of integration.

Features

Peak efficiency: 96%
Input range at low line, high line, and high voltage DC
Input range: 90 to 127 VAC, 180 to 264 VAC, and 192 to 310 VDC
Input frequency: 47 to 63 Hz
Hold-up time: 11 ms
Power factor: > 0.98 at 50% load
Main output: 12.2 V at 262.3 A
Standby output: 12.0 V at 3 A
Dimensions: 2.89 x 7.28 in (73.5 x 185 mm)
Redundant mode operation
Field upgradable firmware
Load sharing active for parallel function
PMBus monitoring and reporting
FW security

Benefits

Input voltage flexiblity supports worldwide deployment.
High efficiency and high power factor reduce electricity costs.
Small form factor saves space for system core functions.
PMBus support provides reporting, monitoring, and control.
Field upgradeable feature reduces mean time to repair and system down time.

Specifications

Output Power (W):	3200
Length (Inches):	7.28
Width (Inches):	2.89
Height (Inches):	1.52
Mounting Type:	Rack mount
Minimum Output Current (A):	0
Maximum Output Current (A):	262.3
Output Voltage Range (V):	12.2
Minimum Output Power (W):	0
Maximum Output Power (W):	3200
Minimum Input Voltage (V):	180
Maximum Input Voltage (V):	264
Warranty (Years):	2

All Specifications Collapse Specifications
