CSU3200AT-3-3M0 M-CRPS
Active

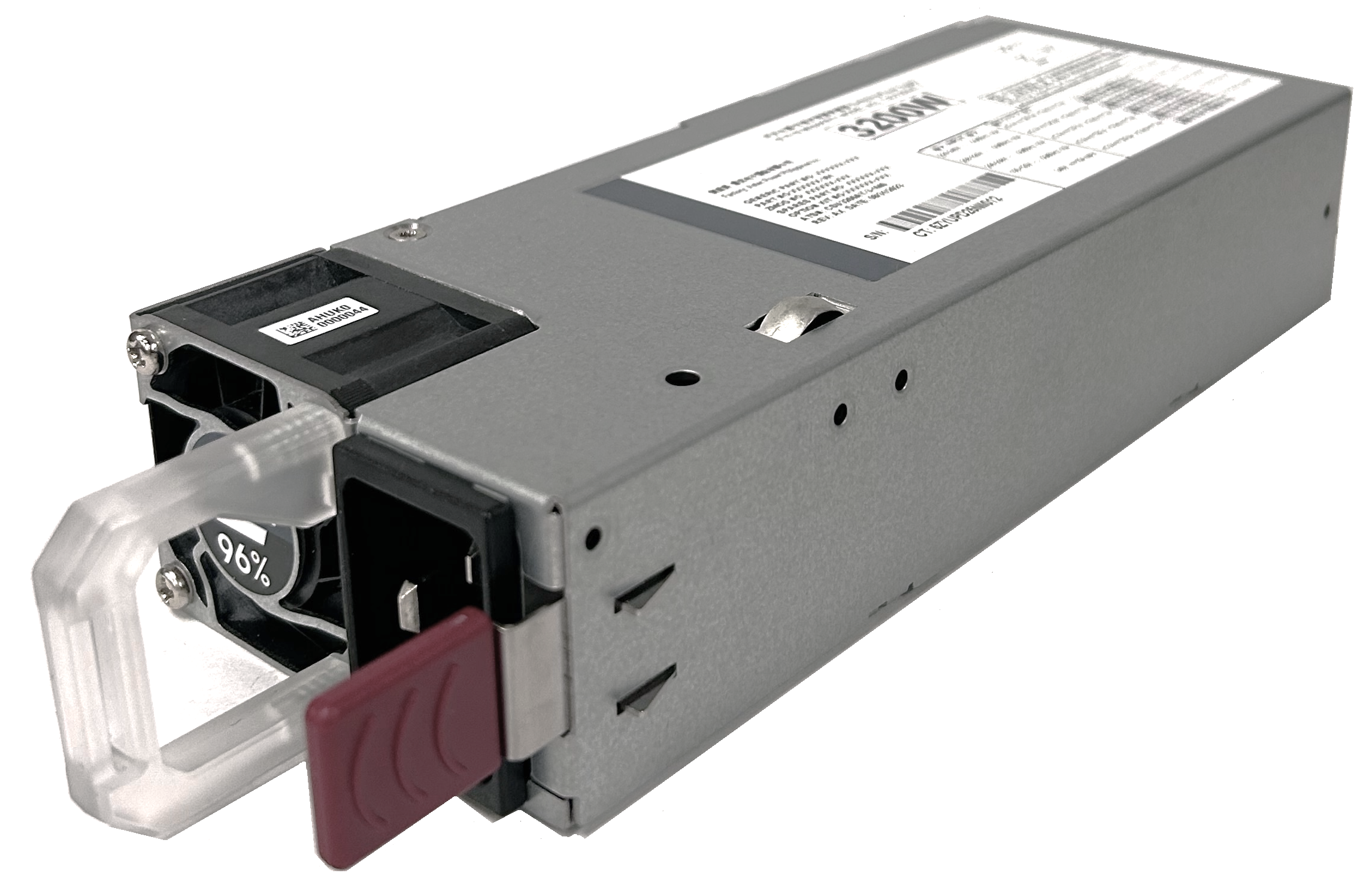

3200 W M-CRPS-Type Titanium Power Supply
The 3.2 kW CSU3200AT-3-xMx Titanium Efficiency certified power supply offers a peak efficiency of 96% and delivers up to 262.3 A. The PSU features an input range of 90-127 Vac, 180 to 264 Vac, and 180 to 264 VDC. The main output range is 11.4 to 12.8 VDC that can feed downstream DC-DC converters in distributed power architectures (DPA). Housed in a 1U high rack-mount enclosure measuring just 2.89 x 7.28 inches (73.5 x 185 mm), the supply’s short, narrow form factor conforms to the Modular Common Redundant Power Supply (M-CRPS) standard and frees up system space. Active current sharingallows paralleling without additional components.
The CSU3200AT-3-3M0 is digitally controlled via an integral I2C interface using Advanced Energy’s universal PMBus® graphical user interface.
The CSU3200AT-3-3M0 is digitally controlled via an integral I2C interface using Advanced Energy’s universal PMBus® graphical user interface.
Features
- Input Range at low line, high line, and high voltage DC
- Input Frequency 47 - 63 Hz
- Hold-up Time 11 ms
- Power Factor >0.98 at 50% load
- Main Output Voltage 12.2V at 262.3A
- Standby Output Voltage 12.0V at 3.5A
- Redundant mode operation
- Field upgradable firmware
- Load Sharing Active load sharing for parallel function
- PMBus monitoring and reporting
- FW security
Benefits
- Input voltage flexiblity for world-wide deployment
- Reduces electricity bill due to high efficiency and high power factor performance
- Small form factor saves space for system core functions
- PMBus support provided reporting, monitoring, and control functions for sysytem power management
- Field upgradeable feature reduces mean time to repair and system down time
- Secure FW
Specifications
| Output Power (W): | 3200 |
|---|---|
| Length (Inches): | 7.28 |
| Width (Inches): | 2.89 |
| Height (Inches): | 1.51 |
| Mounting Type: | Hotpluggable |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 262.3 |
| Output Voltage Range (V): | 12.2 |
