artesyn™

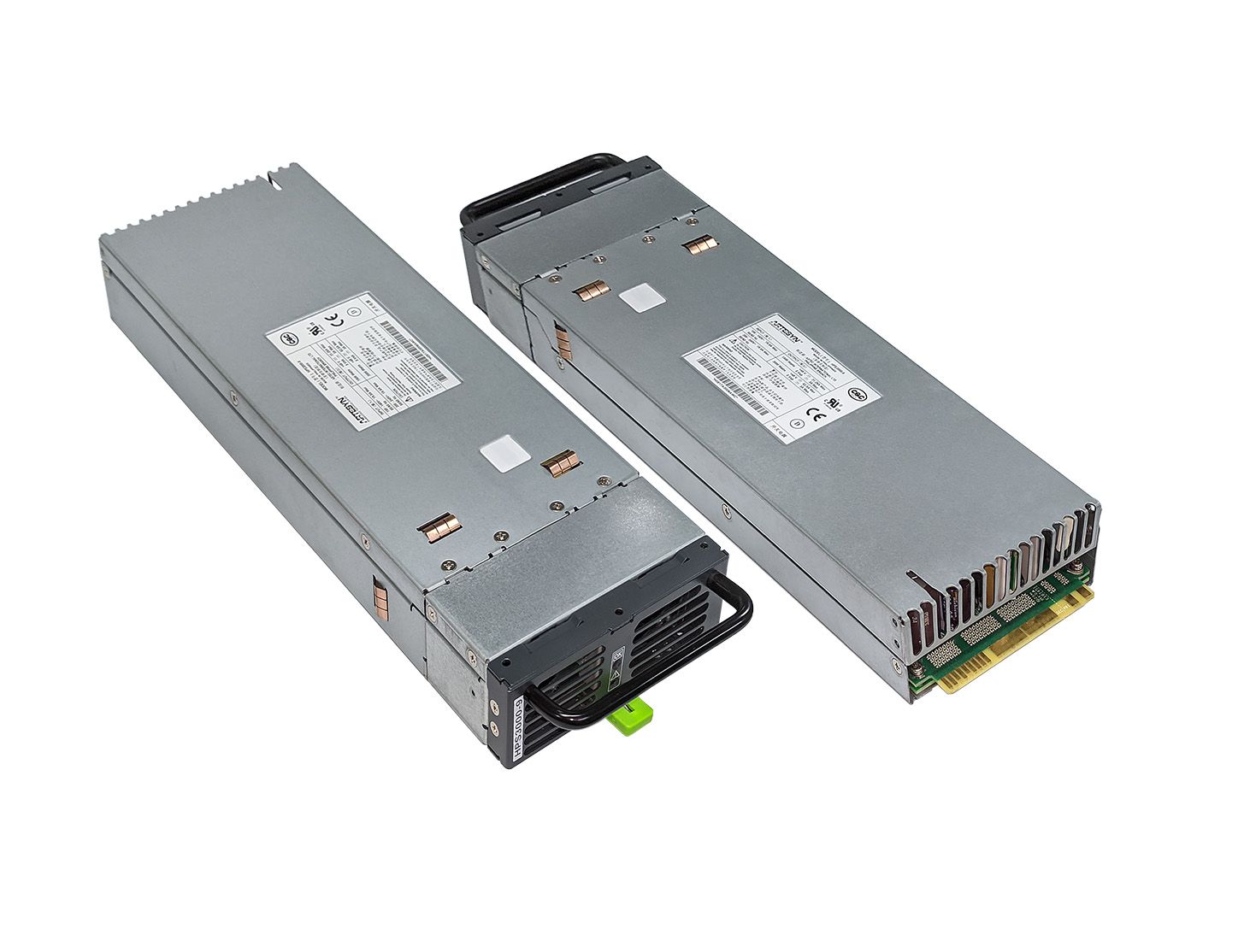

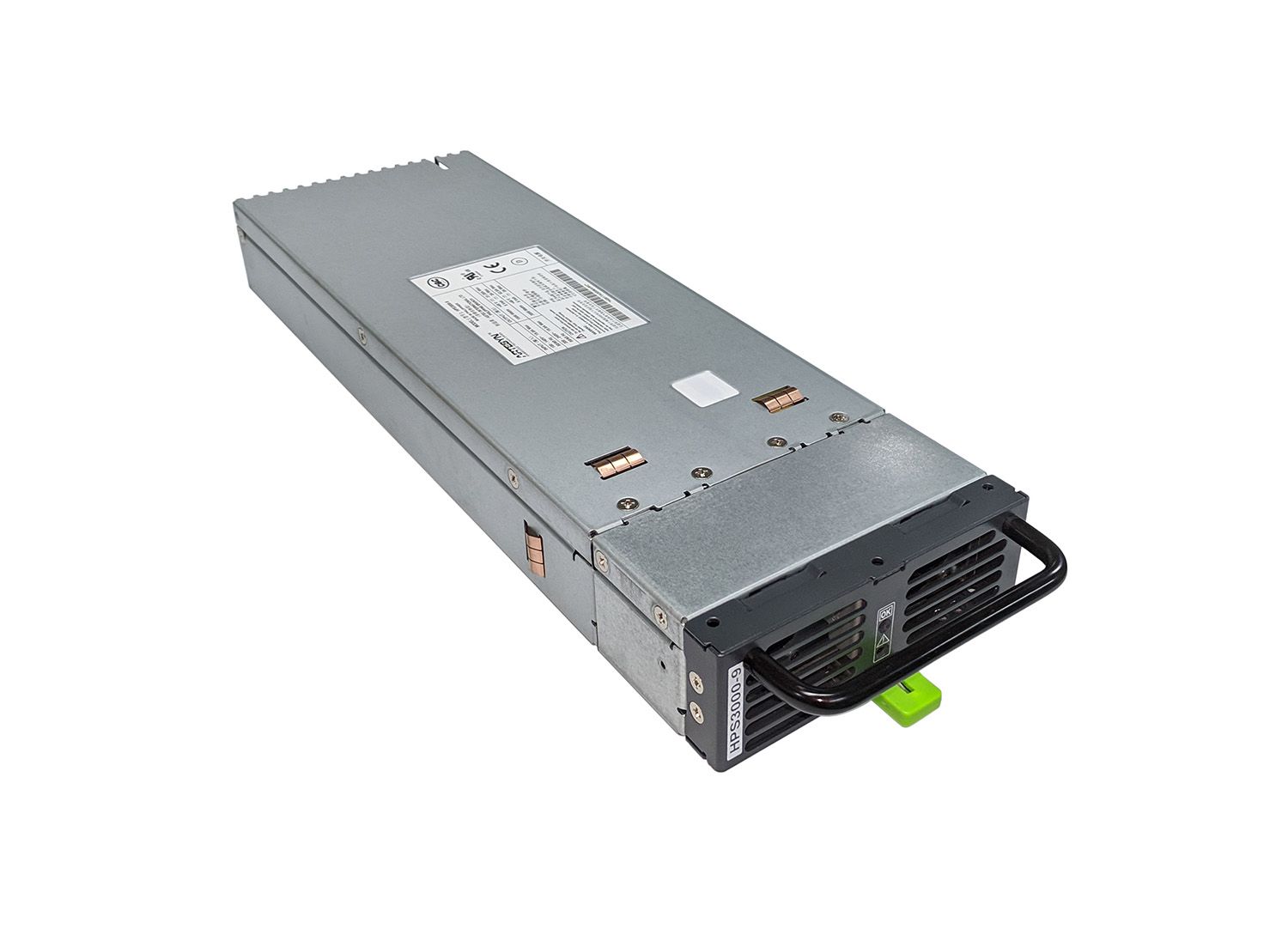

HPS3000 Series
Active
3000 W Front End AC-DC Power Supplies

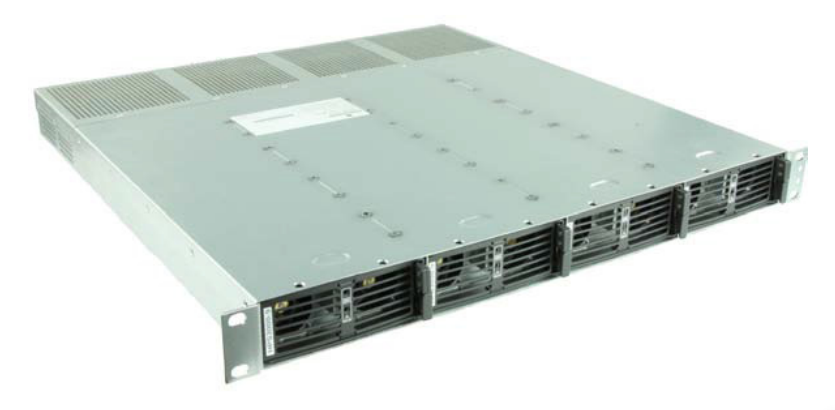

The HPS3000 series bulk front-end AC-DC power supply unit (PSU) accepts 90 to 264 VAC input and outputs a main 48 VDC and standby 5 VDC. The main output delivers up to 62 A in the 180 to 264 VAC input range. Rated at 3,000 W (from 200 VAC nominal input) and 90% full-load efficiency, the PSU features active current sharing for paralleling as many as four units in high-current applications. Ideal for feeding downstream DC-DC converters in distributed power architectures, the PSU is hot pluggable and supports constant current mode. The series is available in a 1U x 4.2-inch form factor, featuring power density of 40 W/inch3 and enabling four units on a standard 19-inch rack shelf to provide 12 kW.
Features
- 1U x 3U form factor
- 3000 W Output Power
- 40 W/cuin
- 5 V housekeeping supply
- High efficiency > 90%
- N+1 Redundant
- Input Range 180 - 265 VAC 3000 W
- Inrush Current <= 40 A Peak
- Power Factor 0.97 typical
- Fusing Internal 25 A Both lines Fused
- Input Range 90 - 140 VAC 1500 W
- Hold-up Time 10 mSec Min
- Current 19 A max
- Input Frequency 43 - 63 Hz
- Transient Response 5% max deviation
- Rating 90-140 VAC 48 V @ 29.4 A; 5 V @ 3 A
- Min Load 0
- Rating 180-264 VAC 48 V @ 62.0 A; 5 V @ 3 A
- Output Noise 480 mV max P-P
- Output Isolation Per PoE specs > 2000 VAC
- Altitude Up to 10K feet
- Vibration/Shock 5G Sine sweep from 5 Hz to 500 Hz
Benefits
- Downloadable Artesyn Universal PMBus GUI
- Hotswap
- Internal ORing
- Optional customer provided air
- PMBus Compliant
- PoE Compliant
- Variable speed "smart fans"
- Protections OCP, OVP, OTP
- Customer Interface PMBus Compliant
Specifications
| Output Power (W): | 3000 |
|---|---|
| Length (Inches): | 12.9 |
| Width (Inches): | 4.2 |
| Height (Inches): | 1.57 |
| Mounting Type: | Rack-mount |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 62 |
| Output Voltage Range (V): | 48V to 48V |
