artesyn™

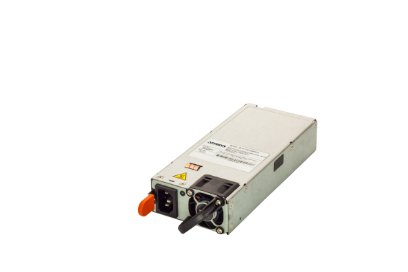

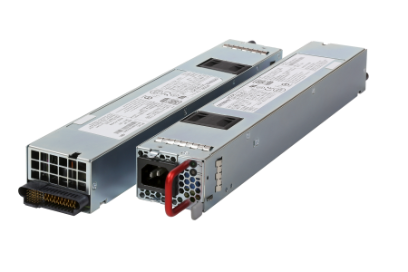

DS760SL Series
Not for New Designs
760 W Front End AC-DC Power Supplies
The DS760SL series bulk front-end AC-DC power supply accepts a wide range of 90 to 264 VAC input and provides a main 12 V output plus a 5 V standby output. Rated at 760 W it has a high peak efficiency of 91%. Housed in a slimline 1U high, 2.1-inch wide rack-mounting package, the power supply is primarily designed for ‘always-on’ enterprise servers and similar space-constrained applications. This series comes in two airflow versions – DC-connector to AC-connector and vice versa. The main 12 V output can deliver up to 62.3 A and stays within regulation down to zero load, making it perfect for feeding downstream DC-DC converters in systems that use distributed power architectures (DPA).
Features
- 18.1 W/cuin
- 5.0 V housekeeping
- 760W output power in a slimline outline
- EN61000 Immunity
- High efficiency (91% @ 230 VAC) 50% load
- N+1 Redundant
- Leakage Current < 0.8 mA
- Input Range 90 - 264 VAC
- Inrush Current < 25 A Peak
- Input Current 8.8 A RMS @ 100 VAC input
- Frequency 47 - 63 Hz
- Fusing Internal 10 A
- Power Factor 0.99 Typical
- Hold-up Time 12 mSec min.
- Load Share Forced to 10% of all shared outputs
- Short Circuit 120% of rated output
- Noise (PARD) 100 mV Max P-P
- Output Rating 12 V @ 62.3 A; 748 W; 5.0V sb @ 2.4 A; 12 W
Benefits
- EMI Class A
- HotSwap
- Internal OR'ing
- Variable speed smart fan
- OCP; OVP; and OTP Included in spec
- Min Load Non Required
Specifications
| Output Power (W): | 760 |
|---|---|
| Length (Inches): | 12.68 |
| Width (Inches): | 2.15 |
| Height (Inches): | 1.57 |
| Mounting Type: | Rack-mount |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 62.3 |
| Output Voltage Range (V): | 12V to 12V |
