artesyn™

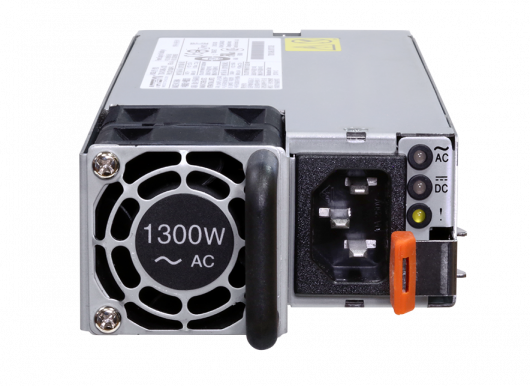

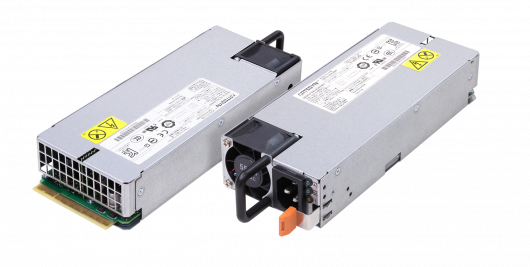

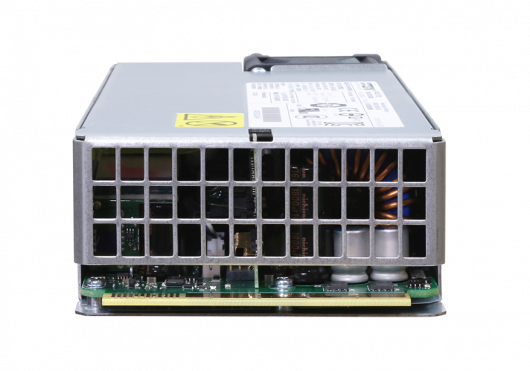

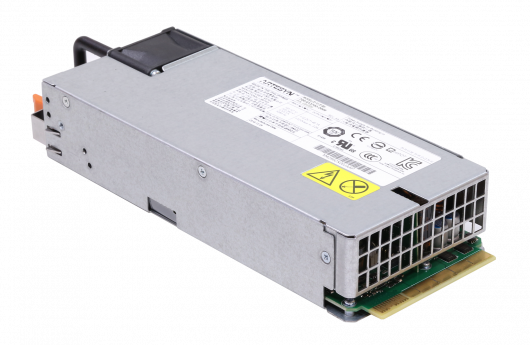

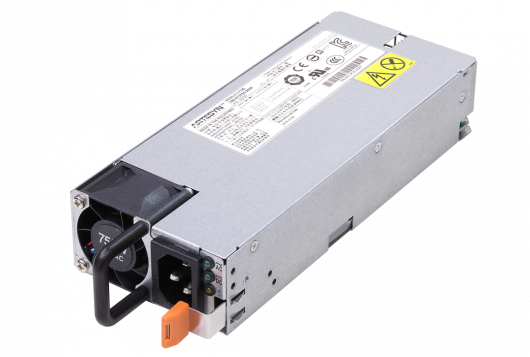

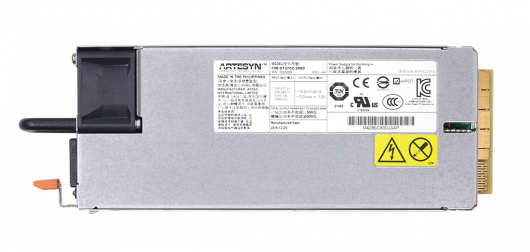

CSV Series
Active
1U X 80 mm X 195 mm Form Factor
The CSV series bulk front end power AC-DC supply is designed for systems where scalability and density are requirements. With multiple power levels to choose from, this family provides designers with the ability to change the power supply to optimize according to system power consumption.
Features
- 550 W to 2000 W output power
- N+N Redundant
- Hot-swap
- Internal OR'ing
- 12.0 V housekeeping
- Platinum efficiency
- High efficiency (94% @ 230 VAC) 50% load
- Throttle function
- EMI Class A
- EN61000 Immunity
- Low iTHD
- Active current sharing
- PMBus compliant
Benefits
- 1U power supply
- Active Power Factor Correction
- EN61000-3-2 Harmonic compliance
- Inrush current control
- 80PLUS® Platinum efficiency
- N+N Redundant
- Hot-pluggable
- Active current sharing
- PMBus® compliant
- Two-year warranty
Specifications
| Output Power (W): | 2000 |
|---|---|
| Length (Inches): | 7.68 |
| Width (Inches): | 3.15 |
| Height (Inches): | 1.57 |
| Mounting Type: | Rack-mount |
| Minimum Output Current (A): | 45.1 |
| Maximum Output Current (A): | 164 |
| Output Voltage Range (V): | 0V to 0V |
