BDQ1300 & BCQ1300 Series

Active

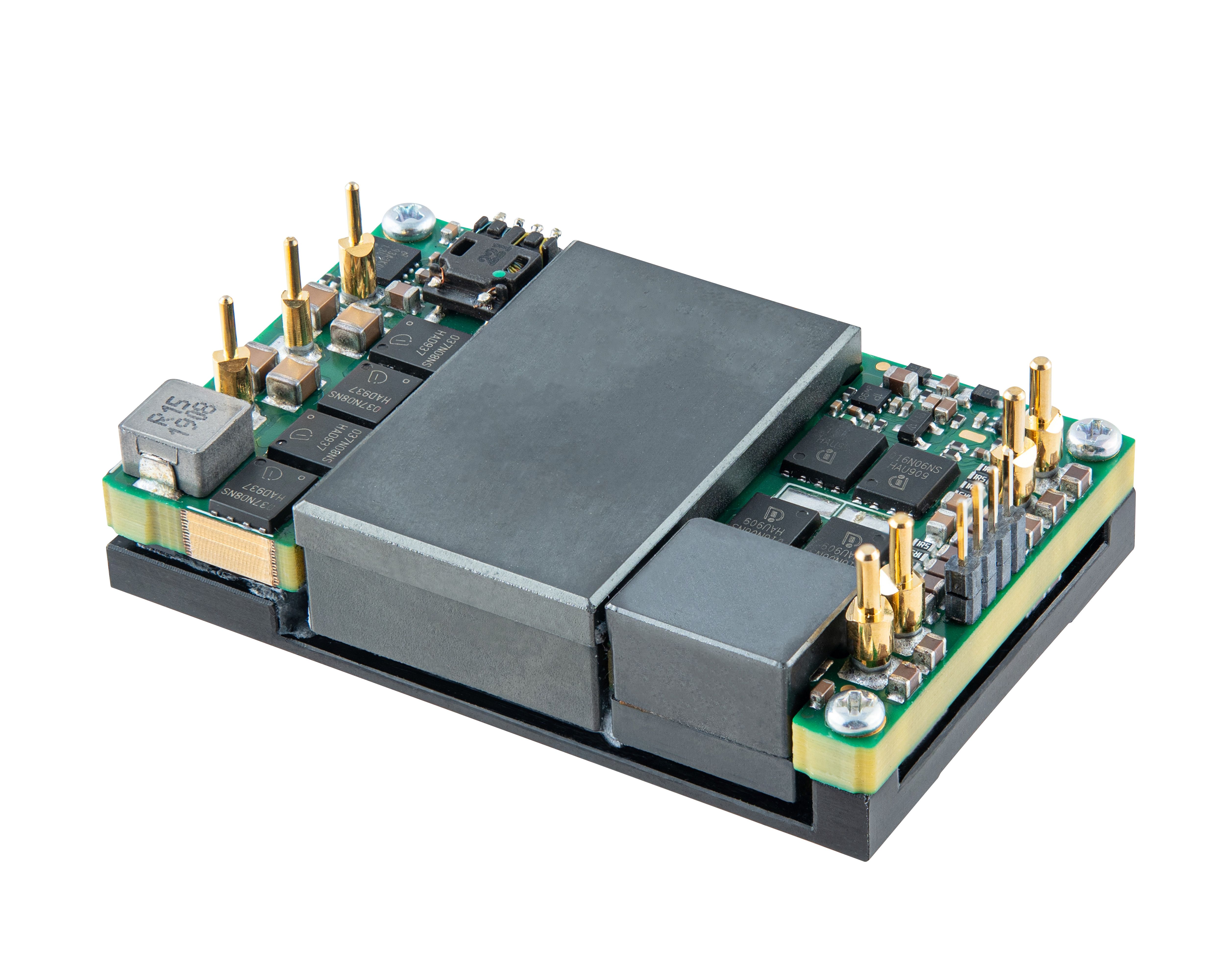

BDQ1300 & BCQ1300 Series Quarter-Brick

The BDQ1300 and BCQ1300 series quarter-brick are isolated DC-DC converters that produce a single 12V nominal output. Rated at 1300W, these converters can deliver up to 107 A output current and have no minimum load requirement. Both the BDQ1300 and BCQ1300 have an input voltage range of 40 to 60V and are primarily designed for standard 48V supplies in computing and server applications, as well as regulated 48V supplies in communications equipment.


Features

  • Output current 107Amps
  • Output power 1300Watts
  • Output voltage 12V nominal
  • Input range 40-60Vdc
  • Input current 38Amps max
  • Isolation Input-to-output 800Vdc
  • mechanical size Standard 1/4 brick.
  • Efficiency >97%
  • Safety IEC62368 compliant

Benefits

  • Enable function Negative enable
  • Control PMBus compatible

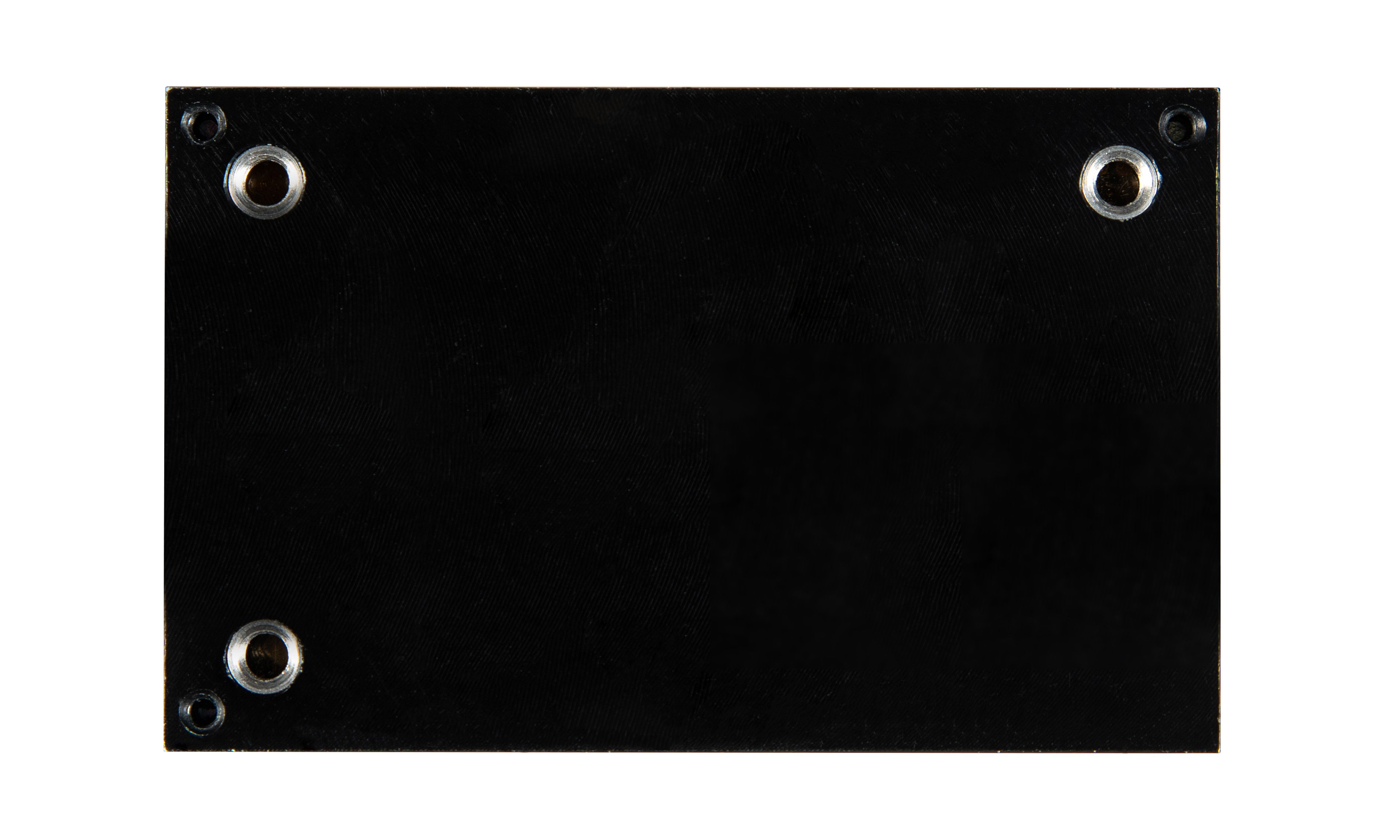

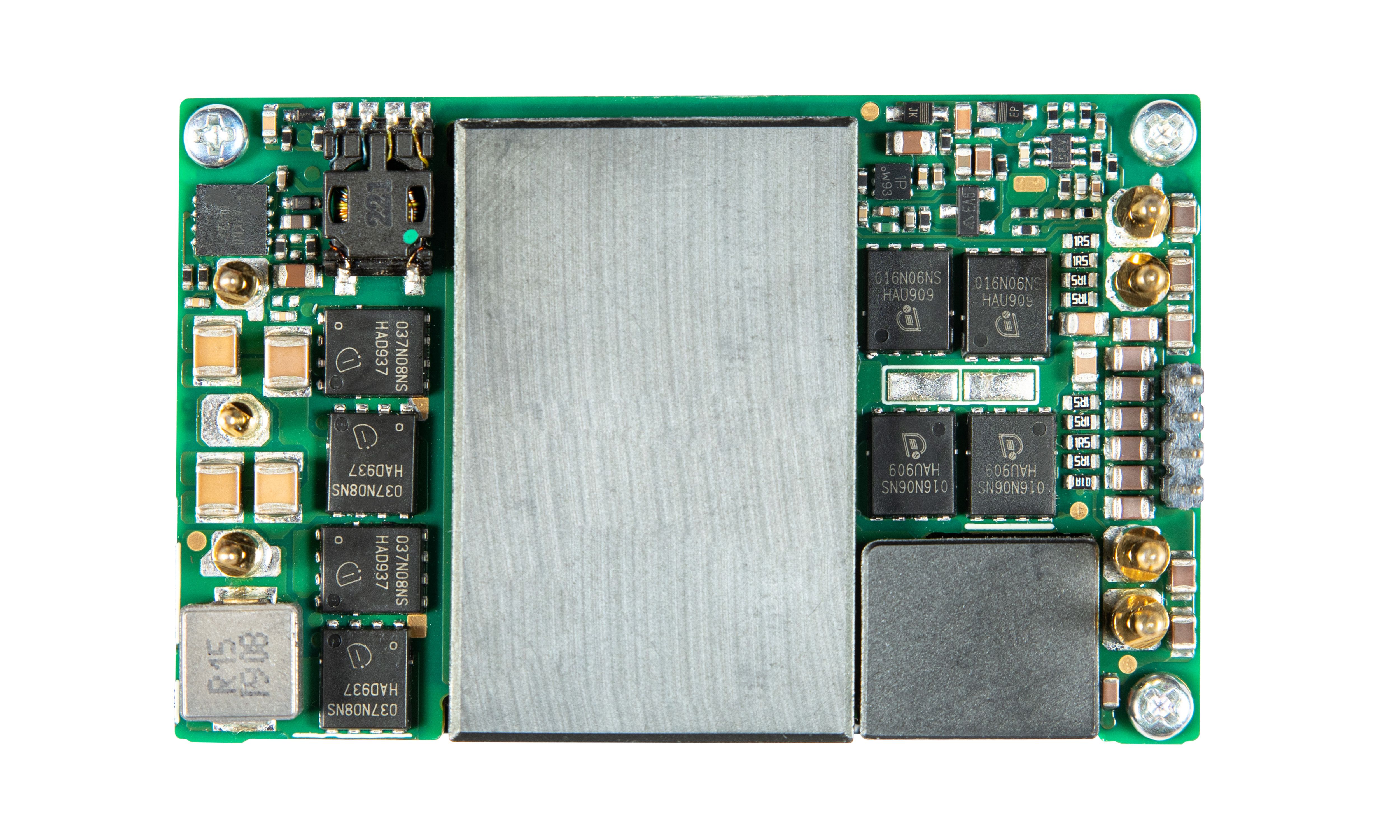

  • Mechanical construction Single PCB with Baseplate

Specifications

Output Power (W): 1300
Length (Inches): 2.3
Width (Inches): 1.45
Height (Inches): 0.5
Mounting Type: BMP; Through Hole
Minimum Output Current (A): 0
Maximum Output Current (A): 107
Output Voltage Range (V): 9.2V to 14.5V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
BCQ1300-48S12B-4L Active, In Stock
1300W 12V 1/4 brick
9.6 14.5 90 12 1 Request Buy
BDQ1300-48S12B-4L Active, In Stock
1300W 1/4 brick
9.2 12.15 107 12 1 Request Buy
BDQ1300-48S12B-4LI Active, In Stock
1300W 1/4 brick
9.2 12.15 107 12 1 Request Buy
