artesyn™

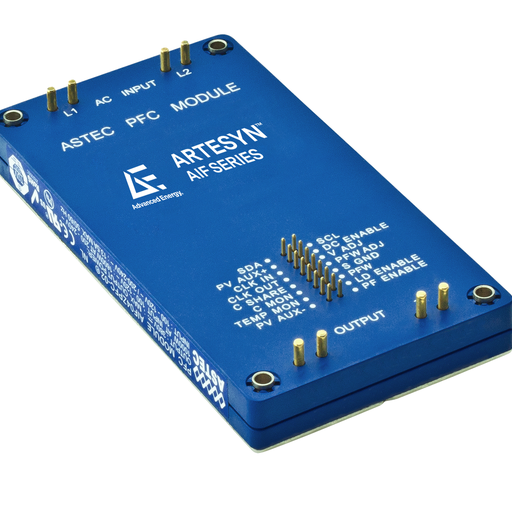

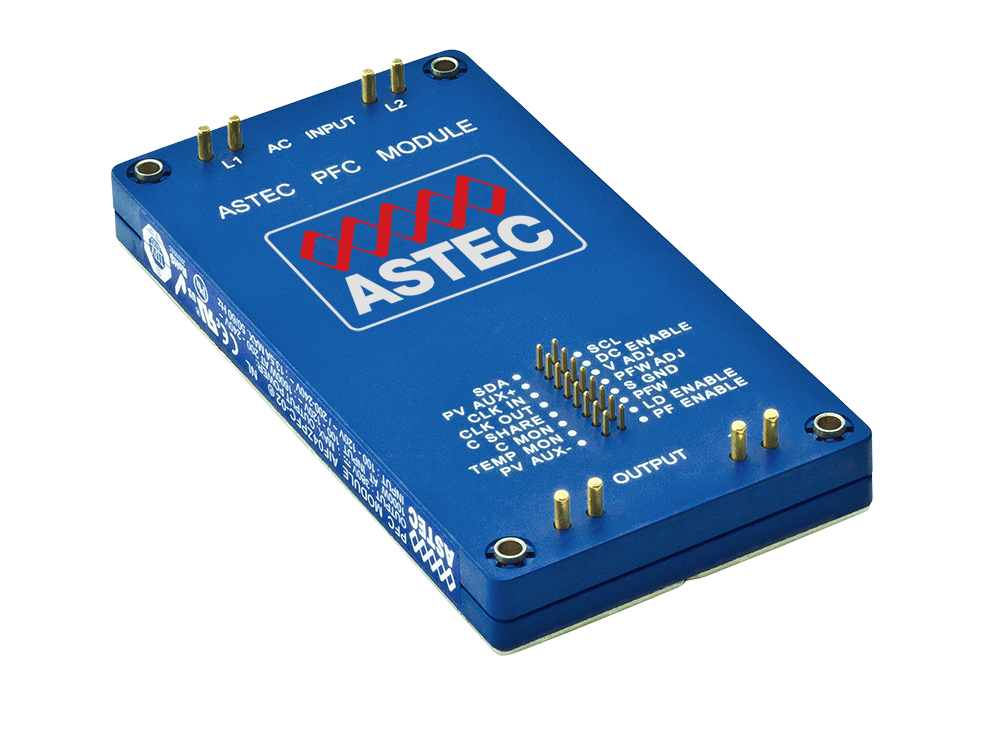

AIF04ZPFC Series
Active
Full Brick PFC Modules
The AIF04ZPFC series power factor correction (PFC) module presents a unity power factor from an 85 to 264 VAC input that can be configured to accept 120 to 370 VDC. Rated at 1.6 kW, the module offers 95% efficiency and a nominal non-isolated output of 380 VDC. The series offers monitoring, protection, and adjustment facilities, a built-in I2C interface, internal EEPROM, current sharing for paralleling, and an optional version for >16 A applications. The encapsulated design allows a baseplate operating temperature range of -20 to +100℃ with startup from as low as -40℃. Featuring a standard 2.4 x 4.6-inch (61 x 116.8 mm) full-brick form factor and 0.5-inch (12.7 mm) height, the series offers a high power density of 290 W/inch3 (17.7 W/cm3).
Features
- Input Range 85 - 264Vac
- Output Voltage 380Vdc
- Output Current 4.2A
Benefits
- Enable Positive and Negative
- Mechanical Baseplate Construction
Specifications
| Output Power (W): | 1600 |
|---|---|
| Length (Inches): | 4.6 |
| Width (Inches): | 2.4 |
| Height (Inches): | 0.5 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 4.2 |
| Maximum Output Current (A): | 4.2 |
| Output Voltage Range (V): | 380V to 380V |
